RAXWN6401Fmini-PCI Wireless Module

Product Specification WN6401F-IM 1 WN6401F-IM Arcadyan Technology Corporation 4F, No 9 Park Avenue II, Science-based Industrial Park HsinChu 300, Taiwan Subject to Change without Notices ©Copyright 2003 by Arcadyan. Confidentical / All right reserved. Product Specification WN6401F-IM 2 Table of Contents Contents _____________________________________________________________ 2 Chapter 1 Introduction _________________________________________________ 3 1.1 Product Features ________________________________________________ 3 1.2 Application ____________________________________________________ 3 Chapter 2 Hardware ___________________________________________________ 4 2.1 General Overview _______________________________________________ 4 2.2 Hardware Architecture ___________________________________________ 4 2.3 Main Chipset Information _________________________________________ 4 Chapter 3 Software ____________________________________________________ 5 3.1 Operating Systems Supported ____________________________________ 5 3.2 WEP Security _________________________________________________ 5 3.3 Configuration Utility ___________________________________________ 5 Chapter 4 Specifications ________________________________________________ 6 Product Specification WN6401F-IM 3 Chapter 1 Introduction =================================================================== 1. Introduction 1.1 Product Features ♦ High speed for wireless LAN connection, up to 54 Mbps data rate. ♦ Extended Range feature supported ♦ Backward compatible to the existing IEEE 802.11b WLAN infrastructure. ♦ An user-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption using WEP 64, 128-bit encryption for security. ♦ Support for WPA and Wi-Fi, WPA2 upgradeable ♦ Built-in Hirose antenna connectors. ♦ Firmware upgrade-able by only changing driver. 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. ♦ Wireless office for extension Ethernet range. ♦ Mobile networking for notebook PC, PDA, Web Pad or Wireless Gateway Built-in Application. Product Specification WN6401F-IM 4 Chapter 2 Hardware 2.1 General Overview ♦ Power: 3.3V, DC input. ♦ Antenna connector: Two Hirose, FL-R-SMT (01) coaxial connectors. 2.2 Hardware Architecture 2.3 Main Chipset Information 2.3.1 AR5414: An IEEE 802.11g MAC + Baseband processor, AES Hardware accelerator, on-chip SRAM memory and MiniPCI/PCI bus interface. Radio-on-Chip (RoC). A zero-IF direct down conversion transceiver. a 2.4GHz power amplifier, 5GHz SiGe monolithic VCO. Product Specification WN6401F-IM 5 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 98SE, Windows ME, Windows 2000, Windows XP and Linux. 3.2 Security ♦ Wired Equivalent Privacy (WEP) supports 64, and 128 bit keys. ♦ Support WPA, WPA2 upgradeable 3.3 Configuration Utility ♦ A Utility to set SSID, WEP key and dynamically view configuration and receiving signal quality. ♦ Support worldwide country channel selection. Product Specification WN6401F-IM 6 Chapter 4 Specifications Product Specification WN6401F-IM 7 References ♦ IEEE 802.11a Standard Specification ♦ IEEE 802.11b Standard Specification ♦ IEEE 802.11g Standard Specification The drawings, specifications and the data contain herein are the exclusive property of Arcadyan Technology Corp. issued in strict confidence and shall not, without the prior written permission of Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose whatsoever, except the manufacture of articles for Arcadyan Technology Corp. Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this specification. The information in this document is subject to change without notice. Arcadyan reserves the right to make revisions to this document and the product described herein without obligation to notify any person or entity of any such changes. WARNING This document is intended for internal use only. A Non-Disclosure Agreement (NDA) is required to release this document under any circumstances. Product Specification WN6401F-IM 8 Product Specification WN6401F-IM 9

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan 1/1 Date: 12/ 26 / 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID
RAXWN6401F Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Simon Liu / Manager Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan TEL: 886.3.505.1719 FAX: 886.3.563.7325 E-mail: [email protected]

Page No. : 6 Module Approval Request Letter Subject: Module Approval Date: 2005/12/30 FCC ID: RAXWN6401F Dear Reviewer, We, Sporton International Inc., are authorized by Arcadyan Technology Corporation to have their state-of-the-art mini-PCI wireless module approved under limited module approval authorization. The application of this module is specified to Mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR5414A. 3. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 4. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 5. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 6. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 7. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Signature : Name : Wayne Hsu Job Title : Supervisor

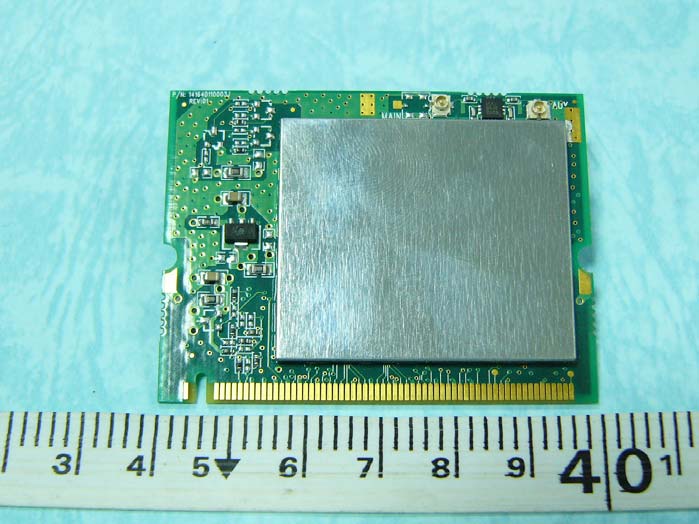

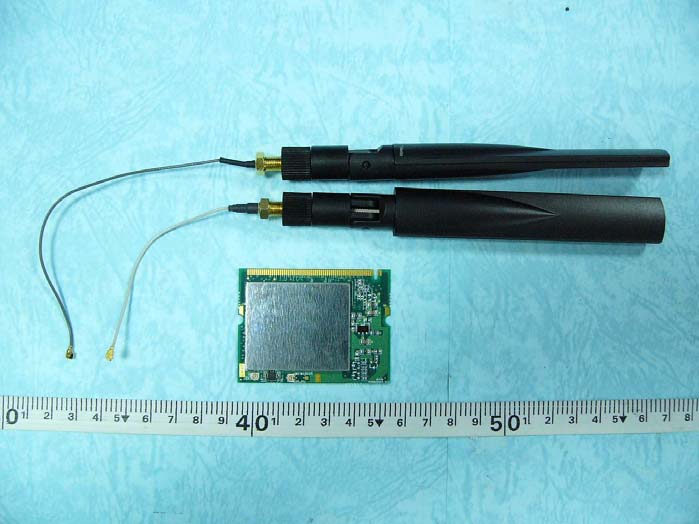

SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Label Location

SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 19, 2006 FAX : 886-2-2696-2255

Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (mW/cm²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (mW) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (cm) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11a (5150 ~ 5350MHz) : 17.76 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5 3.1623 17.7600 59.7035 0.037579 1 Complies Antenna Type : Dipole Max Conducted Power for IEEE 802.11a (5745~5825MHz) : 22.20 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5 3.1623 22.2000 165.9587 0.104460 1 Complies Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 22.80 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.5 1.7783 22.8000 190.5461 0.067445 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.407-2005-12-28-b FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. FCC ID RAXWN6401F Manufacturer’s company Arcadyan Technology Corporation Manufacturer Address 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Product Name mini-PCI wireless module Brand Name Fortinet Model Name WN6401F-IM Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz Receive Date Dec. 13, 2005 Test Date Jan. 19, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11a (5150 ~ 5350MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR5D1401 Report Format Version: RF-15.407-2005-12-28-b Page No. : i of ii FCC ID: RAXWN6401F Issued Date : Jan. 19, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Table for Filed Antenna.......................................................................................................................................................................3 3.3. Table for Carrier Frequencies .............................................................................................................................................................4 3.4. Table for Test Modes ...........................................................................................................................................................................4 3.5. Table for Testing Locations..................................................................................................................................................................4 3.6. Table for Supporting Units ...................................................................................................................................................................5 3.7. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.8. Test Configurations .............................................................................................................................................................................5 4. TEST RESULT ..................................................................................................................................................... 7 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................7 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................11 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................17 4.4. Power Spectral Density Measurement ..............................................................................................................................................23 4.5. Peak Excursion Measurement ...........................................................................................................................................................29 4.6. Radiated Emissions Measurement ....................................................................................................................................................35 4.7. Band Edge Emissions Measurement .................................................................................................................................................53 4.8. Frequency Stability Measurement ....................................................................................................................................................68 4.9. Antenna Requirements .....................................................................................................................................................................70 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 71 6. SPORTON COMPANY PROFILE ........................................................................................................................ 73 6.1. Test Location.....................................................................................................................................................................................73 7. NVLAP CERTIFICATE OF ACCREDITATION ......................................…

Text truncated - open the document above for the full version.

Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 3 of 5 SIDE VIEW Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 4 of 5 2. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5D1401 FCC ID: RAXWN6401F Page No. : 5 of 5 NEAR VIEW
