RAXWN7511A2Wire 802.11N Wireless USB Adapter

Product Specification WN7511A 1 User’s manual AWN11N AWN11NAWN11N AWN11N- -- -001 001001 001 IEEE 802.11n USB2.0 Adapter v.02 draft Product Specification WN7511A 2 Table of Contents Chapter 1 _________________________________________________ Introduction 4 1. Introduction _________________________________________________ 4 1.1 Product Features ___________________________________________ 4 1.2 Applications _______________________________________________ 4 Chapter 2 Hardware _______________________________________________ 5 2.1 General Overview ___________________________________________ 5 2.2 Hardware Architecture _______________________________________ 5 2.3 Main Chipset Information _____________________________________ 5 Chapter 3 Software ________________________________________________ 5 3.1 Operating System Supported __________________________________ 6 3.2 Wireless Mode Supported_____________________________________ 6 3.3 Security___________________________________________________ 6 3.4 Configuration ______________________________________________ 6 Chapter 4 Appearance______________________________________________ 7 Chapter 5 Specifications ____________________________________________ 8 Table 1: Modulation Scheme and Nominal Transmit Power ___________________11 Product Specification WN7511A 3 Revision History Edition # Reason for revision Issue date Written by V 01 ♦ Initial Document Jan 18, 2008 Katherine Hsieh V02 ♦ Remove second LED behavior Nov 18 2009 Troy Chen Product Specification WN7511A 4 Chapter 1 Introduction 1. Introduction AWN11N-001 is a wireless 1x1 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 150 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11b and IEEE 802.11g ,and draft IEEE 802.11n standards. AWN11N-001 will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. This Wire 802.11N wireless USB Adapter is for use only with compatible UL Listed Computer that installation Instruction detailing user installation of card cage accessories 1.1 Product Features ♦ High speed for wireless LAN connection, RX up at 150 Mbps data rate. ♦ Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure. ♦ User-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption with 64, 128 encryption for security. ♦ Internal antenna ♦ Support USB v2.0 ♦ Key type housing ♦ WPS Button for easy security 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. ♦ Wireless office for extension Ethernet range. ♦ Mobile networking for notebook PC, Desktop PC, Monitor, PDA with USB port ready device. Product Specification WN7511A 5 Chapter 2 Hardware 2.1 General Overview ♦ USB 2.0 Interface and 802.11 n chipset-on-board design. ♦ Antenna: 1 Internal Antenna on board 2.2 Hardware Architecture Ralink 3070 single chip USB2.0 2.3 Main Chipset Information RT3070: An 1T1R MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n draft2.0 standard. 2.4 PCB dimension 16.5mmx43mm Product Specification WN7511A 6 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 2000 , Windows XP, Windows Vista 3.2 Wireless Mode Supported ♦ AP (Infrastructure) mode(Software AP) ♦ AP (Infrastructure) Client mode ♦ Ad-hoc mode 3.3 Security ♦ AP (Infrastructure) mode supports ♦ Static WEP that support both 64 and 128 bit keys. ♦ WPA(TKIP) with PSK ♦ Ad-hoc mode supports ♦ None (plaintext) ♦ Static WEP that supports both 64 and 128 bit keys. 3.4 Configuration ♦ User should be able to select ♦ Mode of operations: AP or ad-hoc mode ♦ Different security modes: none (plaintext), static WEP, WPA(TKIP)/PSK or 802.1X/LEAP as supported by the respective operating mode. ♦ Channel to operate on ♦ User should be able to perform key management on WPA/PSK and static WEP as supported by the respective operating mode ♦ A Utility to set SSID, WEP key, site survey, profile manager and dynamically view configuration and receiving signal quality. ♦ Support for transmitting power configurable. ♦ Support for extended range. ♦ WPS support(Pin code) ♦ WPS Hard Button Product Specification WN7511A 7 Chapter 4 Appearance LED 1 One Power/Link (Green) OFF All others states ON Radio On and Associated Blink Radio On and Scanning Flash Radio On and Associated and TX/RX Data Product Specification WN7511A 8 Chapter 5 Specifications ♦ Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) ♦ Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) ♦ Transmit Power and Sensitivity: TX Output Power:(Typical) 11b 11G 11n HT20 11n HT40 Data Rate (Mbps) Power (dBm) Data Rate (Mbps) Power (dBm) Data Rate Power (dBm) Data Rate Power (dBm) 1 15 6 15 MCS0 15 MCS0 15 2 15 9 15 MCS1 15 MCS1 15 5.5 15 12 15 MCS2 15 MCS2 15 11 15 18 15 MCS3 15 MCS3 15 24 14 MCS4 14 MCS4 14 36 14 MCS5 14 MCS5 14 48 12 MCS6 12 MCS6 12 54 12 MCS7 12 MCS7 12 Product Specification WN7511A 9 ♦ Rx Sensitivity:(Typical) data rate specification 1 -90 2 -90 5.5 -86 11b 11 -82 …

Text truncated - open the document above for the full version.

Arcadyan Technology Corporation 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. 2009/12/4 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RAXWN7511A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ---------------------------------------- Simon Liu / Project manager TEL: 886-3-5787000 FAX: 886-3-5637325 [email protected]

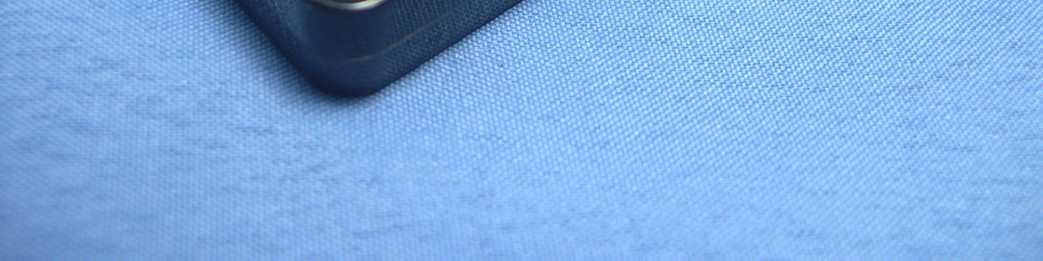

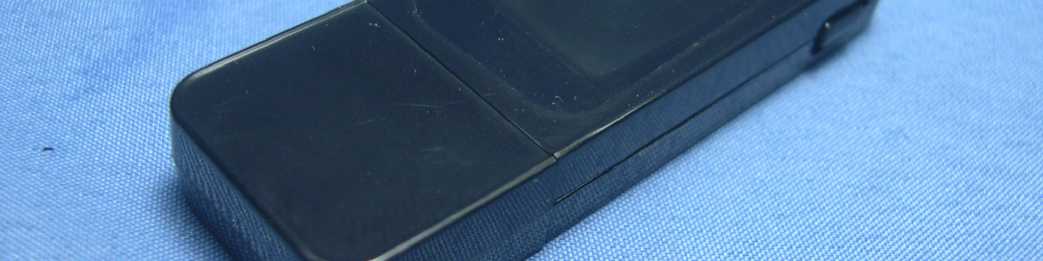

Page 1 CONSTRUCTION PHOTOS OF EUT

1SVA accton technology CO LTD.GZ 2Accton Joytech CO LTDAC 3Accton Technology CO LTD.None 4Compal Corp.(Kunshan) None (from08/21/2007)

FCC ID： ：： ：RAXWN7511A LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Page 2 Page 3

Report No.: SA970818H05B 1 Report Format Version 3.0.1 Reference No.: 981125H01 SAR TEST REPORT REPORT NO.: SA970818H05B MODEL NO.: AWN11N-001 RECEIVED: Nov. 25, 2009 TESTED: Dec. 28, 2009 ISSUED: Jan. 05, 2010 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA970818H05B 2 Report Format Version 3.0.1 Reference No.: 981125H01 TABLE OF CONTENTS 1. CERTIFICATION ............................................................................................................... 3 2. GENERAL INFORMATION................................................................................................ 4 2.1 GENERAL DESCRIPTION OF EUT .................................................................................. 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................... 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM .......................................................... 6 2.4 TEST EQUIPMENT ........................................................................................................... 9 2.5 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .........................10 3. DESCRIPTION OF SUPPORT UNITS .............................................................................13 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..........................................14 4.1. DESCRIPTION OF TEST CONDITION ............................................................................14 4.2. CHECK FOR SCAN RESOLUTION .................................................................................14 4.3. DESCRIPTION OF TEST MODE .....................................................................................15 4.4. SUMMARY OF TEST RESULTS ......................................................................................17 5. TEST RESULTS ...............................................................................................................19 5.1 TEST PROCEDURES ......................................................................................................19 5.2 SAR LIMITS .....................................................................................................................20 5.3 MEASURED SAR RESULTS............................................................................................21 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ..............................................................22 6. SYSTEM VALIDATION .....................................................................................................25 6.1 TEST PROCEDURE ........................................................................................................25 6.2 VALIDATION RESULTS ...................................................................................................27 6.3 SYSTEM VALIDATION UNCERTAINTIES........................................................................28 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES.................................................29 7.1. PROBE CALIBRATION UNCERTAINTY ..........................................................................29 7.2. ISOTROPY UNCERTAINTY.............................................................................................30 7.3. BOUNDARY EFFECT UNCERTAINTY ............................................................................30 7.4. PROBE LINEARITY UNCERTAINTY................................................................................31 7.5. READOUT ELECTRONICS UNCERTAINTY....................................................................31 7.6. RESPONSE TIME UNCERTAINTY..................................................................................31 7.7. INTEGRATION TIME UNCERTAINTY .............................................................................32 7.8. PROBE POSITIONER MECHANICAL TOLERANCE .......................................................33 7.9. PROBE POSITIONING ....................................................................................................33 7.10. PHANTOM UNCERTAINTY .............................................................................................34 7.11. DASY4 UNCERTAINTY BUDGET....................................................................................35 8. INFORMATION ON THE TESTING LABORATORIES ......................................................36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA970818H05B 3 Report Format Version 3.0.1 Reference No.: 981125H01 1. CERTIFICATION PRODUCT: 2Wire 802.11N Wireless USB Adapter MODEL NO.: AWN11N-001 BRAND: 2Wire APPLICANT: Arcadyan Technology Corporation TESTED: Dec. 28, 2009 TEST SAMPLE: R&D SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: AWN11N-001) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the m…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA FOR DIFFERENT SCAN RESOLUTION Liquid Level Photo Tissue MSL2450MHz D=152mm A - 2 Date/Time: 2010/1/19 18:59:08 Test Laboratory: Bureau Veritas ADT 11b-Ch6 / Normal DUT: 2Wire 802.11N Wireless USB Adapter ; Type: AWN11N-001 Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The right edge side of the EUT to the Phantom) DASY4 Configuration: - Probe: EX3DV4 - SN3590 ; ConvF(7.96, 7.96, 7.96) ; Calibrated: 2009/4/28 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2009/7/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 80 ; Postprocessing SW: SEMCAD, V1.8 Build 186 Mid Channel 6/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.453 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.2 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 0.786 W/kg SAR(1 g) = 0.399 mW/g; SAR(10 g) = 0.224 mW/g Maximum value of SAR (measured) = 0.487 mW/g A - 3 Date/Time: 2010/1/19 19:14:01 Test Laboratory: Bureau Veritas ADT 11b-Ch6 / Step size minimum DUT: 2Wire 802.11N Wireless USB Adapter ; Type: AWN11N-001 Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The right edge side of the EUT to the Phantom) DASY4 Configuration: - Probe: EX3DV4 - SN3590 ; ConvF(7.96, 7.96, 7.96) ; Calibrated: 2009/4/28 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2009/7/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 80 ; Postprocessing SW: SEMCAD, V1.8 Build 186 Mid Channel 6/Area Scan (13x19x1): Measurement grid: dx=5mm, dy=5mm Maximum value of SAR (measured) = 0.497 mW/g Mid Channel 6/Zoom Scan (13x13x13)/Cube 0: Measurement grid: dx=2.5mm, dy=2.5mm, dz=2.5mm Reference Value = 15.2 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.778 W/kg SAR(1 g) = 0.399 mW/g; SAR(10 g) = 0.221 mW/g Maximum value of SAR (measured) = 0.584 mW/g A - 4 Date/Time: 2010/1/19 09:59:23 Test Laboratory: Bureau Veritas ADT System Validation Check-MSL 2450MHz DUT: Dipole 2450 MHz ; Type: D2450V2 ; Serial: 716 ; Test Frequency: 2450 MHz Communication System: CW ; Frequency: 2450 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL2450;Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 10 mm (The feetpoint of the dipole to the Phantom)Air temp. : 22.3 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV4 - SN3590 ; ConvF(7.96, 7.96, 7.96) ; Calibrated: 2009/4/28 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2009/7/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 17.0 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.2 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 28.1 W/kg SAR(1 g) = 12.7 mW/g; SAR(10 g) = 5.92 mW/g Maximum value of SAR (measured) = 16.5 mW/g

D2: DOSIMETRIC E-FIELD PROBE D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: RF970818H05B 1 Report Format Version 3.0.0 Reference No.: 981125H01 FCC TEST REPORT REPORT NO.: RF970818H05B MODEL NO.: AWN11N-001 RECEIVED: Nov. 25, 2009 TESTED: Dec. 11 to 21, 2009 ISSUED: Jan. 12, 2010 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 79 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970818H05B 2 Report Format Version 3.0.0 Reference No.: 981125H01 Table of Contents 1. CERTIFICATION................................................................................................4 2. SUMMARY OF TEST RESULTS.........................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3. GENERAL INFORMATION..................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................7 3.2 DESCRIPTION OF TEST MODES......................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.......................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................10 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................13 4. TEST TYPES AND RESULTS...........................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT......................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................14 4.1.2 TEST INSTRUMENTS......................................................................................14 4.1.3 TEST PROCEDURES.......................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD..............................................................15 4.1.5 TEST SETUP...................................................................................................16 4.1.6 EUT OPERATING CONDITIONS......................................................................16 4.1.7 TEST RESULTS...............................................................................................17 4.2 RADIATED EMISSION MEASUREMENT..........................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.........................................19 4.2.2 TEST INSTRUMENTS......................................................................................20 4.2.3 TEST PROCEDURES.......................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD..............................................................21 4.2.5 TEST SETUP...................................................................................................22 4.2.6 EUT OPERATING CONDITIONS......................................................................22 4.2.7 TEST RESULTS...............................................................................................23 4.3 6dB BANDWIDTH MEASUREMENT.................................................................52 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................52 4.3.2 TEST INSTRUMENTS......................................................................................52 4.3.3 TEST PROCEDURE.........................................................................................53 4.3.4 DEVIATION FROM TEST STANDARD..............................................................53 4.3.5 TEST SETUP...................................................................................................53 4.3.6 EUT OPERATING CONDITIONS......................................................................53 4.3.7 TEST RESULTS...............................................................................................54 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................58 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................58 4.4.2 INSTRUMENTS................................................................................................58 4.4.3 TEST PROCEDURES.......................................................................................58 Report No.: RF970818H05B 3 Report Format Version 3.0.0 Reference No.: 981125H01 4.4.4 DEVIATION FROM TEST STANDARD..............................................................58 4.4.5 TEST SETUP...................................................................................................58 4.4.6 EUT OPERATING CONDITIONS......................................................................59 4.4.7 TEST RESULTS...............................................................................................60 4.5 POWER SPECTRAL DENSITY MEASUREMENT..............................................62 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT............................62 4.5.2 TEST INSTRUMENTS......................................................................................62 4.5.3 TEST PROCEDURE.........................................................................................63 4.5.4 DEVIATION FROM TEST STANDARD.....................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST

1 PHOTOGRAPHS OF THE TEST CONFIGURATION BODY POSITION Horizontal-Down Vertical-Front Horizontal-Up Vertical-Back Tail TEST SETUP PHOTO 2 DESCRIPTION OF ANTENNA LOCATION:
