RAXWN7512ADraft 11n Wireless USB2.0 Adapter

EZ Connect™ N Draft 11n Wireless USB2.0 Adapter SMCWUSBS-N2 20 Mason Irvine, CA 92618 Phone: (949) 679-8000 EZ Connect TM N Draft 11n Wireless USB 2.0 Adapter User Guide The easy way to make all your network connections September 2007 R01 F1.0 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2007 by SMC Networks, Inc. 20 Mason Irvine, CA 92618 All rights reserved. Trademarks: SMC is a registered trademark; and EZ Connect N and EZ Switch are trademarks of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. i COMPLIANCES Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot configuration. Industry Canada Statement Operation is subject to the following two conditions: 1) this device may not cause interference and COMPLIANCES ii 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Australia/New Zealand AS/NZS 4771 Contact SMC at: SMC Networks, Inc. 20 Mason Irvine, CA 92618 Phone: (949) 679-8000 EC Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following references have been applied in order to prove presumption of compliance with the R&TTE Directive 1999/5/EC: • EN 300 328 • EN 301 489-1 • EN 301 489-17 • EN 60950-1 ACN 066 352010 N11846 COMPLIANCES iii Council recommendation 1999/519/EC of 12 July 1999, limitations of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz) English Hereby, SMC Networks, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The official EC-Declaration of Conformity can be found under the corresponding product section on the web http://www.smc.com . Dutch Hierbij verklaart SMC Networks dat het toestel Radio LAN device in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Het officiële EC- gelijkvormigheidattest kan men vinden op de internetsite http://www.smc.com onder de betrokken productcategorie. French Par la présente SMC Networks déclare que l'appareil Radio LAN device est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. La déclaration de conformité officielle peut être trouvée sur notre site internet http://www.smc.com dans la rubrique Produits. German Hiermit erklärt SMC Networks, dass sich dieses Wireless LAN Gerät in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Die offizielle EC-Declaration of Conformity finden Sie im Internet unter http://www.smc.com unter der entsprechenden Produktkategorie. Spanish Por medio de la presente SMC Networks declara que el Radio LAN device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. The official EC-Declaration of Conformity can be found under the corresponding product section on the web http://www.smc.com . COMPLIANCES iv Countries of Operation & Conditions of Use in EC/ EFTA member states English This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and office use in all notified…

Text truncated - open the document above for the full version.

Arcadyan Technology Corporation 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Date: 2007/10/19 G E N E R A L D E C L A R A T I O N We, Arcadyan Technology Corporation, declares that device does not have Ad Hoc on DFS frequencies while applying for the following product. FCC ID: RAXWN7512A If you have any questions, please don’t hesitate to contact us. Thank you! ------------------------------------------------ Simon Liu / Manager Email: [email protected] TEL: 886-3-578-7000 ext. 14250 FAX: 886-3-563-7325

Arcadyan Technology Corporation 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. 2007/9/27 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RAXWN7512A Pursuant to Sections 0.457 and 0.459 of the Commission¡s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------ Simon Liu / Manager Arcadyan Technology Corporation TEL: 886-3-5787000 FAX: 886-3-5637325 [email protected]

Arcadyan Technology Corporation 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Power of Attorney 2007/9/27 To whom it may concern: We, the undersigned Arcadyan Technology Corporation hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products： Draft 11n Wireless USB2.0 Adapter ; Model No：SMCWUSBS-N2 If you have any questions regarding the authorization, please don¡t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------ Simon Liu / Manager Arcadyan Technology Corporation Email: [email protected] TEL: 886-3-5787000 FAX: 886-3-5637325

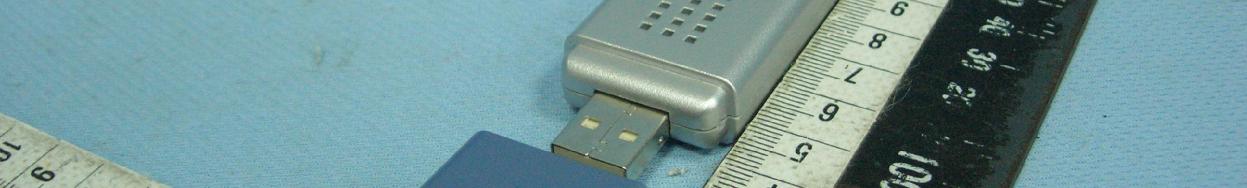

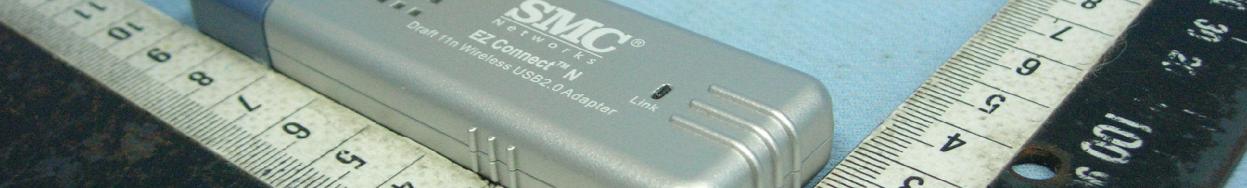

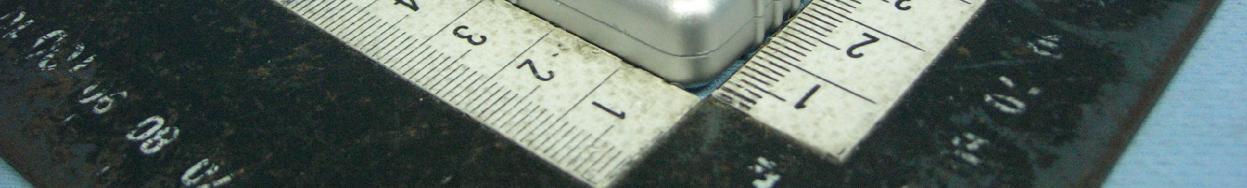

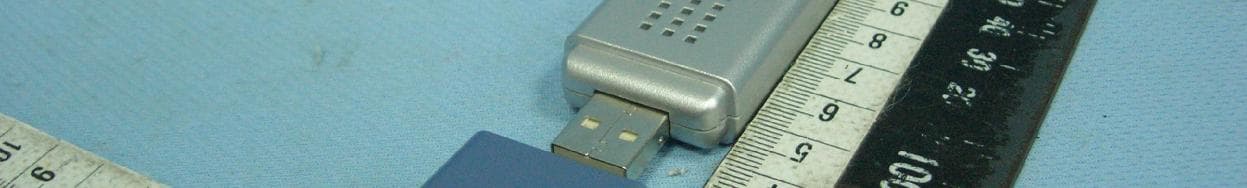

Page: 1 CONSTRUCTION PHOTOS OF EUT

Z366 N11846

FCC ID： ：： ：RAXWN7512A LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page: 2 Page: 3 Page: 4

Report no.: SA960829H03B 1 Report Format Version 2.0.6 Reference no.: 960917H01 SAR TEST REPORT REPORT NO.: SA960829H03B MODEL NO.: SMCWUSBS-N2 RECEIVED: Aug. 29, 2007 TESTED: Sep. 28, 2007 ISSUED: Oct. 12, 2007 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 41 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA960829H03B 2 Report Format Version 2.0.6 Reference no.: 960917H01 TABLE OF CONTENTS 1. CERTIFICATION..................................................................................................................3 2. GENERAL INFORMATION...................................................................................................4 2.1 GENERAL DESCRIPTION OF EUT................................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM........................................................6 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION........................9 3. DESCRIPTION OF SUPPORT UNITS................................................................................13 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS..............................................14 4.1. DESCRIPTION OF ANTENNA LOCATION...................................................................14 4.2. DESCRIPTION OF ASSESSMENT POSITION.............................................................15 4.3. DESCRIPTION OF TEST MODE..................................................................................16 4.4. SUMMARY OF TEST RESULTS...................................................................................17 5. TEST RESULTS.................................................................................................................18 5.1 TEST PROCEDURES..................................................................................................18 5.2 MEASURED SAR RESULTS........................................................................................20 5.3 SAR LIMITS.................................................................................................................22 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS...........................................................25 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY............................................................28 6. SYSTEM VALIDATION.......................................................................................................29 6.1 TEST EQUIPMENT......................................................................................................29 6.2 TEST PROCEDURE.....................................................................................................30 6.3 VALIDATION RESULTS................................................................................................32 6.4 SYSTEM VALIDATION UNCERTAINTIES.....................................................................33 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................34 7.1. PROBE CALIBRATION UNCERTAINTY.......................................................................34 7.2. ISOTROPY UNCERTAINTY.........................................................................................35 7.3. BOUNDARY EFFECT UNCERTAINTY.........................................................................35 7.4. PROBE LINEARITY UNCERTAINTY............................................................................36 7.5. READOUT ELECTRONICS UNCERTAINTY................................................................36 7.6. RESPONSE TIME UNCERTAINTY..............................................................................36 7.7. INTEGRATION TIME UNCERTAINTY..........................................................................37 7.8. PROBE POSITIONER MECHANICAL TOLERANCE....................................................38 7.9. PROBE POSITIONING.................................................................................................38 7.10. PHANTOM UNCERTAINTY..........................................................................................39 7.11. DASY4 UNCERTAINTY BUDGET................................................................................40 8. INFORMATION ON THE TESTING LABORATORIES.........................................................41 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA960829H03B 3 Report Format Version 2.0.6 Reference no.: 960917H01 1. CERTIFICATION PRODUCT: Draft 11n Wireless USB2.0 Adapter MODEL: SMCWUSBS-N2 BRAND: SMC APPLICANT: Arcadyan Technology Corporation TESTED : Sep. 28, 2007 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: SMCWUSBS-N2) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Oct…

Text truncated - open the document above for the full version.

Report No.: RF960829H03B 1 Report Format Version 2.0.6 Reference No.: 960917H01 FCC TEST REPORT REPORT NO.: RF960829H03B MODEL NO.: SMCWUSBS-N2 RECEIVED: Aug. 29, 2007 TESTED: Sep. 07 to 14, 2007 ISSUED: Oct. 11, 2007 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 93 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960829H03B 2 Report Format Version 2.0.6 Reference No.: 960917H01 TABLE OF CONTENTS 1. CERTIFICATION......................................................................................4 2. SUMMARY OF TEST RESULTS.............................................................5 3.1 MEASUREMENT UNCERTAINTY...........................................................5 3. GENERAL INFORMATION......................................................................6 3.2 GENERAL DESCRIPTION OF EUT........................................................6 3.3 DESCRIPTION OF TEST MODES..........................................................8 3.3.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...........9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS........................11 3.5 DESCRIPTION OF SUPPORT UNITS...................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST....................................13 4. TEST TYPES AND RESULTS................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT.........................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................15 4.1.2 TEST INSTRUMENTS...........................................................................15 4.1.3 TEST PROCEDURES...........................................................................16 4.1.4 DEVIATION FROM TEST STANDARD..................................................16 4.1.5 TEST SETUP.........................................................................................17 4.1.6 EUT OPERATING CONDITIONS...........................................................17 4.1.7 TEST RESULTS....................................................................................18 4.2 RADIATED EMISSION MEASUREMENT..............................................24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................24 4.2.2 TEST INSTRUMENTS...........................................................................25 4.2.3 TEST PROCEDURES...........................................................................26 4.2.4 DEVIATION FROM TEST STANDARD..................................................26 4.2.5 TEST SETUP.........................................................................................27 4.2.6 EUT OPERATING CONDITIONS...........................................................27 4.2.7 TEST RESULTS....................................................................................28 4.3 6DB BANDWIDTH MEASUREMENT....................................................57 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT..................................57 4.3.2 TEST INSTRUMENTS...........................................................................57 4.3.3 TEST PROCEDURE..............................................................................57 4.3.4 DEVIATION FROM TEST STANDARD..................................................57 4.3.5 TEST SETUP.........................................................................................58 Report No.: RF960829H03B 3 Report Format Version 2.0.6 Reference No.: 960917H01 4.3.6 EUT OPERATING CONDITIONS...........................................................58 4.3.7 TEST RESULTS....................................................................................59 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................67 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......67 4.4.2 INSTRUMENTS.....................................................................................67 4.4.3 TEST PROCEDURES...........................................................................67 4.4.4 DEVIATION FROM TEST STANDARD..................................................67 4.4.5 TEST SETUP.........................................................................................68 4.4.6 EUT OPERATING CONDITIONS...........................................................68 4.4.7 TEST RESULTS....................................................................................69 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................71 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............71 4.5.2 TEST INSTRUMENTS...........................................................................71 4.5.3 TEST PROCEDURE..............................................................................71 4.5.4 DEVIATION FROM TEST STANDARD..................................................71 4.5.5 TEST SETUP.........................................................................................72 4.5.6 EUT OPERATING CONDITION.............................................................72 4.5.7 TEST RESULTS....................................................................................73 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT........81 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT...................................................................................81 4.6.2 TEST INSTRUMENTS................…

Text truncated - open the document above for the full version.

Report No.: RF960829H03B 61 Report Format Version 2.0.6 Reference No.: 960917H01 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 16.65 0.5 PASS 6 2437 16.60 0.5 PASS 11 2462 16.60 0.5 PASS CH1 Report No.: RF960829H03B 62 Report Format Version 2.0.6 Reference No.: 960917H01 CH6 CH11 Report No.: RF960829H03B 63 Report Format Version 2.0.6 Reference No.: 960917H01 DRAFT 802.11n (20MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 17.75 0.5 PASS 6 2437 17.75 0.5 PASS 11 2462 17.75 0.5 PASS CH1 Report No.: RF960829H03B 64 Report Format Version 2.0.6 Reference No.: 960917H01 CH6 CH11 Report No.: RF960829H03B 65 Report Format Version 2.0.6 Reference No.: 960917H01 DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2422 36.5 0.5 PASS 4 2437 36.6 0.5 PASS 7 2452 36.5 0.5 PASS CH1 Report No.: RF960829H03B 66 Report Format Version 2.0.6 Reference No.: 960917H01 CH4 CH7 Report No.: RF960829H03B 67 Report Format Version 2.0.6 Reference No.: 960917H01 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 23, 2007 Agilent SIGNAL GENERATOR E8257C MY43320668 Dec. 28, 2007 TEKTRONIX OSCILLOSCOPE TDS380 B016335 July 15, 2008 NARDA DETECTOR 4503A FSCM99899 NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF960829H03B 68 Report Format Version 2.0.6 Reference No.: 960917H01 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR Report No.: RF960829H03B 69 Report Format Version 2.0.6 Reference No.: 960917H01 4.4.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 57.544 17.60 30 PASS 6 2437 54.954 17.40 30 PASS 11 2462 58.884 17.70 30 PASS 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 50.119 17.00 30 PASS 6 2437 56.234 17.50 30 PASS 11 2462 52.481 17.20 30 PASS Report No.: RF960829H03B 70 Report Format Version 2.0.6 Reference No.: 960917H01 DRAFT 802.11n (20MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 57.544 17.60 30 PASS 6 2437 51.286 17.10 30 PASS 11 2462 51.286 17.10 30 PASS DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1 2412 41.687 16.20 30 PASS 6 2437 51.286 17.10 30 PASS 11 2462 52.481 17.20 30 PASS Report No.: RF960829H03B 71 Report Format Version 2.0.6 Reference No.: 960917H01 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 23, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time = span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF960829H03B 72 Report Format Version 2.0.6 Reference No.: 960917H01 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITION Same as Item 4.3.6 SPECTRUM ANALYZER EUT Report No.: RF960829H03B 73 Report Format Version 2.0.6 Reference No.: 960917H01 4.5.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 62%RH, 960hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3kHz BW (dBm) MAXIM…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
