RAXWN7911A2.4GHZ SDIO Sip Module

USER MANUAL WN7911A-LF 1 USER MANUAL WN7911A-LF MPN F0ILF7911000J (Hirose 1.5 mm Connector) 1x1 Single Band 802.11 b/g/n WiFi Module V 1.2 . USER MANUAL WN7911A-LF 2 Introduction 1.1 Introduction WN7911A-LF is a 1x1 single-band 2.4GHz IEEE 802.11 b/g/n WiFi module with on-board PCB printed antenna. WN7911A-LF attains the data transmission speed up to 150 Mbps and provide SDIO physical interface to the board for WiFi. This WiFi module is the low power consumption, high performance and the best WiFi solution for consumer devices which need the compact size embedded WiFi module for wireless connectivity like smart mobile phone, e-book, printer, tablet PC and so on. 1.2 Product Features
Small form factor: 25mm x 18mm x 2.4mm
High speed for wireless LAN connection, up to 150 Mbps for uplink and 150 Mbps for downlink
Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure
Low power consumption and excellent power management
Security features  WPA TM and WPA2 TM (personal) support for powerful encryption and authentication  AES and TKIP acceleration hardware for fast data encryption and 802.11i compatibility  Cisco Compatible Extension (CCX, CCX 2.0, CCX 3.0, CCX 4.0) certified  SecureEasySetup TM for simple WiFi setup and configuration  Support WPS
QOS features  802.11e  802.11h  802.11i  802.11j USER MANUAL WN7911A-LF 3 2 Bill of Material Item QTY Reference Part Description Vendor P/N Manufacturer 1 10 C3,C5,C7,C11,C13, C16,C17,C19,C23,C25 0.1uF C SMD CER 0.1uF 10% 16V X7R 0402 T0.5 HF MURATA 2 3 C4,C6,C8 10uF C SMD CER 10uF 20% 6.3V X5R 0603 T0.8mm HF CC0603MRX5R5BB106 YAGEO 3 7 C9,R19,R20,R21,R22, R23,R26 DNI 4 8 C10,C12,C14,C18,C20, C22,C24,C26 2.2uF C SMD CER 2.2uF 10% 6.3V X5R 0603 T0.8mm LT/LF 0603X225K6R3CT WALSIN 5 1 R17 0 OHM RES SMD 0ohm 1/16W 0402 T0.35 HF WALSIN 6 1 C46 1.8pF C SMD HIGH-Q CER 1.8pF 0.25pF 50V NPO 0402 T0.5 HF WALSIN 7 1 C48 0.5pF C SMD HIGH-Q CER 0.5pF +-0.25pF 50V NPO 0402 T0.5 HF MURATA 8 1 C51 3.3nH IND SMD 3.3nH +-0.1nH 190 mA 0402 LT/LF MURATA 9 1 L1 600 OHM BEAD 100MHz 25% 1Kohm 100mA 0402 HF TAI-TECH 10 1 L2 INDUCTOR ?!IND SMD 3.3uH 20% 1200mA 2.5x2.0 HF MURATA 11 1 R1 10K RES SMD 10Kohm 5% 1/10W 0603 T0.45 HF WR06X103JTL WALSIN 12 1 J1 Connector 0.5 mm Pitch 1.5 mm Mating Height 14 Pin Plug Board-to-Board Connector. DF23C-14DP-0.5V HIROSE 13 1 U1 WS5700B-ZZ 802.11b/g/n 2.4GHz SDIO SiP Module Arcadyan 14 1 WN7911A-LF PCB footprint R0A3 PCB WN7911A-LF Carrier Board PCB ANT (4L) Arcadyan USER MANUAL WN7911A-LF 4 3 Pin Definition Pin # Type Description 1 P Ground 2 I/O SDIO Data Line 2 3 I/O SDIO Clock 4 P Ground 5 P Ground 6 I System Reset 7 I/O SDIO Data Line 0 8 I/O SDIO Command 9 P Ground 10 P Ground 11 I/O SDIO Data Line 1 12 I/O SDIO Data Line 3 13 P SDIO_VCC 3.3V 14 P SDIO_VCC 3.3V USER MANUAL WN7911A-LF 5 4 SiP Module 4.1 General Overview Item Description SiP Module Dimension 10mm x 10mm x 1.2mm Chipset Broadcom BCM4319 1x1 Single Band (2.4GHz) 802.11n MAC/BB/RF on single chip with integrated CMOS PA. Module Interface SDIO (4-bit) Module Pin Connection 48-pin LGA 4.2 SiP Module Architecture 4.2.1 WS5700B USER MANUAL WN7911A-LF 6 4.3 Outline Drawing 4.3.1 Top Side View 4.3.2 Bottom Side View 4.4 Dimension, Marking and Pin Layout 4.4.1 Side View USER MANUAL WN7911A-LF 7 4.4.2 Top Side View 4.4.3 Bottom Side Function Pad (Top View) USER MANUAL WN7911A-LF 8 4.4.4 Bottom Side Ground Pad (Top View) 4.4.5 Suggested Ground Pad Foot Print (Top View) USER MANUAL WN7911A-LF 9 4.5 Pin Description Pin # Terminal Name Pin Type I/O Type Description 1 BTCX_RF_ACTIVE Signal I Indicates that the coexistent BT is active: internal pull-down. 2 BTCX_STATUS Signal I Indicates the coexistent BT priority status and RX/TX direction. 3 USB_AVDD12 Power I USB Phy core 1.2V supply 4 USB_AVDD25 Power I USB Phy analog 2.5V supply 5 USB_AVDD33 Power I USB Phy analog 3.3V supply 6 VDD_AFE Power I 1.2V filtered supply for ADC; 1.2V filtered supply for AFE AUX 7 GND Power I Ground 8 USB20_DEV_DPLS Signal I/O USB port data plus 9 USB20_DEV_DMNS Signal I/O USB port data minus 10 GND Power I Ground 11 BTCX_FREQ Signal I Indicates that the coexistent BT is about to transmit on a restricted channel: internal pull-down. 12 GPIO_8 Signal I/O General-purpose interface pins. 13 BTCX_TXCONF Signal O Output permission for the coexistent BT to transmit. 14 UART_TX Signal O Serial Input for UART 15 UART_RX Signal I Serial Output for UART 16 GND Power I Ground 17 VIN_LDO Power I Input supply pin for CLDO and LNLDO1 18 VDD_CORE_1.2V Power O 1.2V output for core LDO, 200mA 19 VDD_RADIO_PLL_O Power O 1.2V output for low noise LNLDO1, 150mA USER MANUAL WN7911A-LF 10 20 VDD_3.3V Power O Internal PALDO output or feedback of output from external PNP 21 GPIO_0 Signal I/O General-purpose interface pins. 22 VDD_2.5V Power O 2.5V LDO2p5 output 23 GND Power I Ground 24 VLX Power O Core buck regulator: Output to inductor 25 VIN_3V_5V Power I Battery supply input for PALDO; Core buck regulator: Battery voltage input 26 GPIO_2 Signal I/O General-purpose interface pins. 27 GND Power I Ground 28 SDIO_CLK Signal I/O SDIO clock 29 GPIO_3 Signal I/O General-purpose interface pins. 30 SDIO_DATA_0 Signal I/O SDIO data line 0 31 GPIO_1 Signal I/O General-purpose interface pins. 32 SDIO_DATA_1 Signal I/O SDIO data line 1 33 SDIO_DATA_2 Signal I/O SDIO data line 2 34 GPIO_9 Signal I/O General-purpose interface pins. 35 RESETn Signal I Low asserting global chip reset: digital input pin. Used by PMU to enable/disable power the internal regulators. 36 SDIO_CMD Signal I/O SDIO command line 37 SDIO_DATA_3 Signal I/O SDIO data line 3 38 VDDIO Power I Digital I/O supply (1.8V to 3.3V) VDDIO should be supplied externally; SDIO I/O supply (1.8V to 3.3V) 39 GND Power I Ground USER MANUAL WN7911A-LF 11 40 VDD_PLL Power I 1.2V supply for PLL; 1.2V crystal oscillator filtered power supply 41 GND Power I Ground 42 VDD_RADIO_PLL_I Power I 1.2V supply for radio transmit and receive sections 43 GND Power …

Text truncated - open the document above for the full version.

2013/4/2 Federal Communications Commission Authorization and Evaluation Division Declaration for no non-US channel operation We, Arcadyan Technology Corporation declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: RAXWN7911A Sincerely yours, ---------------------------------------- Simon Liu / Manager, RD Center TEL: 886-3-5787000 FAX: 886-3-5637325 [email protected]

2013/4/2 FCC ID: RAXWN7911A Declaration for Shielding WN7911A-LF is a 1x1 single-band 2.4GHz IEEE 802.11 b/g/n WiFi module with on-board PCB printed antenna. WN7911A-LF attains the data transmission speed up to 150 Mbps and provide SDIO physical interface to the board for WiFi. The shielding is achieved by the following method, Shielding Method: Sincerely yours, -------------------------------------------- Simon Liu / Manager, RD center TEL: 886-3-5787000 FAX: 886-3-5637325 [email protected]

2013/4/2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RAXWN7911A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics/ Block Diagram/ Operating description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ---------------------------------------- Simon Liu / Manager, RD Center TEL: 886-3-5787000 FAX: 886-3-5637325 [email protected]

Power of Attorney 2013/4/2 To whom it may concern: We, the undersigned Arcadyan Technology Corporation hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15 approvals and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: RAXWN7911A If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ---------------------------------------- Simon Liu / Manager, RD Center TEL: 886-3-5787000 FAX: 886-3-5637325 [email protected] [email protected]

FCC ID: RAXWN7911A Report No.: RF130402E05 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch April 24, 2013 Dear Application Examiner, Arcadyan Technology Corporation, 2.4GHZ SDIO Sip Module, FCC ID: RAXWN7911A would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip WS5700B-ZZ. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is WS5700B-ZZ. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RAXWN7911A Report No.: RF130402E05 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, H ank Chung Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

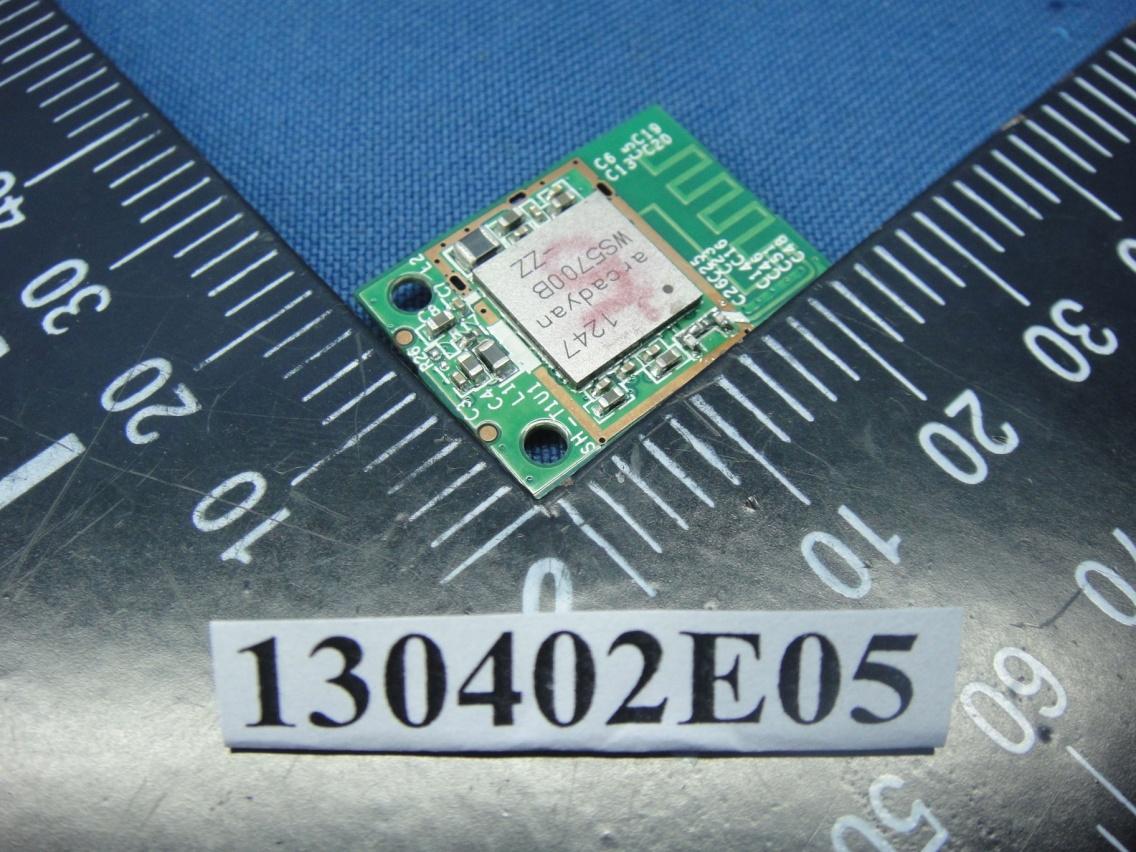

Report No.: 13402E05 1 of 2 CONSTRUCTION PHOTOS OF EUT
