RAXWN8522D10IEEE Dual Band 802.11n USB2.0 Module

Arcadyan Technology Corporation
IEEE Dual Band 802.11n USB2.0 Module - FCC ID RAXWN8522D10 - Arcadyan Technology Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 09, 2012
Application Purpose
Original Equipment
Date of Application
Jan 09, 2012
Equipment Note
IEEE Dual Band 802.11n USB2.0 Module
Frequency Range
5755.00000000 - 5795.00000000
Company
Arcadyan Technology Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

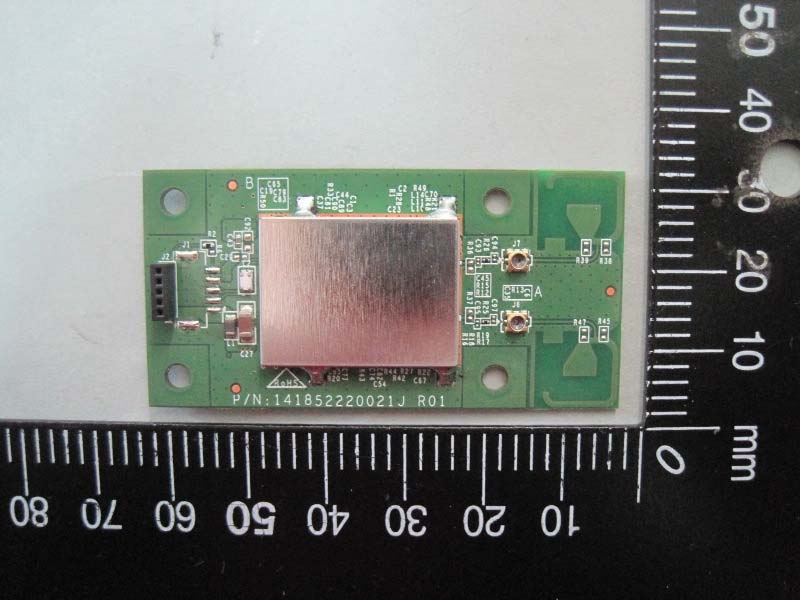

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Specification WN8522D 10 1 Product Specification WN8522D 10-CP IEEE Dual Band 802.11n USB2.0 Module v.02 Arcadyan P/N: FICCP8522014J-P (Connect-DIP) Compal P/N: PK29820010I Product Specification WN8522D 10 2 Table of Contents Chapter 1 Introduction............................................................................ 5 1. Introduction ................................................................................................................. 5 1.1 Product Features ........................................................................................................ 5 1.2 Applications ..............................................................................................................5 Chapter 2 Hardware................................................................................... 6 2.1 General Overview ..................................................................................................... 6 2.2 Hardware Architecture .............................................................................................. 6 2.3 Main Chipset Information ......................................................................................... 6 2.4 PCB dimension............................................................................................................. 6 2.5 Pin Assignment,............................................................................................................7 2.6 Connector Type, ........................................................................................................... 8 2.7 Label Drawing..............................................................................................................9 2.8 BOM List.................................................................................................................... 10 Chapter 3 Software..................................................................................... 13 3.1 Operating System Supported................................................................................... 13 3.2 Wireless Mode Supported ....................................................................................... 13 3.3 Security.................................................................................................................... 13 Chapter 4 Appearance............................................................................ 14 4.1 Module Pix ........................................................................................................... 14 Product Specification WN8522D 10 3 Chapter 5 Specifications....................................................................... 15 Chapter 5 Specifications....................................................................... 16 References................................................................................................................... 18 Product Specification WN8522D 10 4 Revision History Edition # Reason for revision Issue date Written by V 01 Initial Document August 29 th 2011 Troy Chen V 02 Revised version December 16 th , 2011Stephanie Tsai Product Specification WN8522D 10 5 Chapter 1 Introduction 1. Introduction WN8522D is a dual band wireless 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 300 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11a/b and IEEE 802.11g ,and draft IEEE 802.11n standards. WN8522B will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features High speed for wireless LAN connection, RX up at 300 Mbps data rate. Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure. User-friendly utility to configure SSID, security setup and site survey. Wireless data encryption with 64, 128 encryption for security. Support USB v2.0 1.2 Applications Home networking for device sharing. Wireless multimedia. Product Specification WN8522D 10 6 Chapter 2 Hardware 2.1 General Overview USB 2.0 Interface and 802.11 n chipset-on-board design. Antenna: Antennas on board 2.2 Hardware Architecture Broadcom 43236 single chip USB2.0 2.3 Main Chipset Information BCM43236 is a dual band IEEE 802.11n-compliant MAC/PHY/Radio complete system on a chip with 2.4Ghz and 5GHz internal PA 2.4 PCB dimension PCB dimension : 60x30 mm Weight (Connect-DIP):6.6035g +/- 1g Product Specification WN8522D 10 7 2.5 Pin Assignment, 排線順序,由右到左:V+ D- D+ GND WOWL Product Specification WN8522D 10 8 2.6 Connector Type, Product Specification WN8522D 10 9 2.7 Label Drawing Product Specification WN8522D 10 10 2.8 BOM List Part no Descrip 165000073400J RNA R0A SCHEMATIC FILE WN8522D 10-CP (D) CICCP8522014J ??CONFIG WN8522D 10-CP (D) 123700011600J R01 PARTITION COVER WN8522B-LF-FX LT 175000377000J V0.10 FINAL TEST PROGRAM WN8522D 10-CP (D) NICCP8522014J ??PCBA WN8522D 10-CP (S) Con-DIP MAIN 175000377100J V0.10 PRE TEST PROGRAM WN8522D 10-CP (D) 249300000100J R04 MAC_ID #NEW:743170# #OLD:7C4FB5;00264D# ARC SICCP8522014J ??SMD ASM WN8522D 10-CP (S) Con-DIP MAIN 102100045100A BEAD 100MHz 25% 600ohm 300mA 0402 MURATA 102100038100E BEAD 100MHz 25% 600ohm 300mA 0402 LT/LF TAIYO 1021A1000019J BEAD 100MHz 25% 220ohm 3A 0805 HF MAXECHO 102100019100E BEAD 100MHz +-25% 220ohm…

Text truncated - open the document above for the full version.

Attestation Statements

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325 Ad Hoc Mode Function Declaration Date: 2011/11/29 FCC ID:RAXWN8522D10 To Whom it may concern, We, Arcadyan Technology Corporation, declare that the EUT (Model Name: WN8522D 10-CP) doesn’t have Ad Hoc function on non-US/Canada frequencies and/or on DFS frequencies. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Regards, FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager , RD Center E-Mail : [email protected] Tel. : +886-3-578-7000

Attestation Statements

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325 DoC Attestation Letter Date: 2011/11/29 We, Arcadyan Technology Corporation, as the grantee of this project FCC ID: RAXWN8522D10, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager , RD Center E-Mail : [email protected] Tel. : +886-3-578-7000

Cover Letter(s)

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325 Confidential Letter Date: 2011/11/29 Federal Communications Commission Authorization and Evaluation Division FCC ID:RAXWN8522D10 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager , RD Center E-Mail : [email protected] Tel. : +886-3-578-7000

Cover Letter(s)

Page No. : 21 Module Approval Request Letter Subject: Module Approval Date: 2011/11/29 FCC ID: RAXWN8522D10 Dear Reviewer, We, Sporton International Inc., are authorized by Arcadyan Technology Corporation to have their state-of-the-art IEEE Dual Band 802.11n USB2.0 Module approved under full module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM43236KMLG. 3. The requirement of power supply regulation: The part number of the power regulator is RT8020. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Cover Letter(s)

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325 Power of Attorney Date: 2011/11/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Arcadyan Technology Corporation / WN8522D 10-CP FCC ID: RAXWN8522D10 Product name: IEEE Dual Band 802.11n USB2.0 Module FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager , RD Center E-Mail : [email protected] Tel. : +886-3-578-7000

External Photos

SPORTON International Inc. PAGE NUMBER : C1 OF C1 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 29, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT

Internal Photos

SPORTON International Inc. PAGE NUMBER : C1 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 29, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT SPORTON International Inc. PAGE NUMBER : C2 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 29, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : C3 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 29, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : C4 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 29, 2011 FAX : 886-2-2696-2255

RF Exposure Info

Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 18.42 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.35 5.4325 15.4240 34.8661 0.037701 1 Complies Note: Directional gain = 10log [(10 4.62/20 + 10 4.06/20 ) 2 /2]= 7.35 dBi For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 19.16 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.35 5.4325 19.1593 82.4009 0.089101 1 Complies Note: Directional gain = 10log [(10 4.62/20 + 10 4.06/20 ) 2 /2]= 7.35 dBi For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g: 18.69 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.10 5.1286 18.6929 74.0098 0.075551 1 Complies Note: Directional gain = 10log [(10 4.18/20 + 10 3.99/20 ) 2 /2]= 7.1 dBi

Test Report

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park Hsinchu 300, Taiwan, ROC FCC ID RAXWN8522D10 Product Name IEEE Dual Band 802.11n USB2.0 Module Brand Name Arcadyan Technology Corporation Model Name WN8522D 10-CP Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Nov. 17, 2011 Final Test Date Dec. 05, 2011 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR1N1716AB Report Format Version: 01 Page No. : i of ii FCC ID: RAXWN8522D10 Issued Date : Dec. 29, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................13 4.2. Peak Output Power Measurement ....................................................................................................................................................17 4.3. Average Output Power Measurement ..............................................................................................................................................20 4.4. Power Spectral Density Measurement ..............................................................................................................................................23 4.5. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................33 4.6. Radiated Emissions Measurement ....................................................................................................................................................40 4.7. Band Edge Emissions Measurement .................................................................................................................................................66 4.8. Antenna Requirements .....................................................................................................................................................................78 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 79 6. TEST LOCATION.............................................................................................................................................. 81 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 82 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A6 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE( ...........…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : 1 of 6 Appendix A. Test Photos Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : 3 of 6 SIDE VIEW Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : 4 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : 5 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR1N1716 FCC ID: RAXWN8522D10 Page No. : 6 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW

Contact Information

Applicant

Simon Liu(Manager)
[email protected]886-3-572-7000Fax: 886-3-572-7063

Test Firm

SPORTON International Inc.Leo Huang
[email protected]886-3-6569065Fax: 886-3-6569085

Technical Specifications

#Rule PartsFrequency RangePower Output
415C5.75 GHz - 5.79 GHz379.30 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted peak output power as indicated in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz and 5755 to 5795 MHz respectively. Grantee shall provide installation and operating instructions for satisfying RF exposure requirements to OEM integrators and installers. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
