RAXWN8522D3JU802.11n wireless LAN module

Product Specification WN8522D 3 1 Product Specification RUNTKA810WJQZ 802.11n wireless LAN module v.01 draft Product Specification WN8522D 3 2 Table of Contents Chapter 1 Introduction .......................................................................................................... 4 1. Introduction ................................................................................................................. 4 1.1 Product Features ........................................................................................................ 4 1.2 Applications .............................................................................................................. 4 Chapter 2 Hardware .............................................................................................................. 5 2.1 General Overview ..................................................................................................... 5 2.2 Hardware Architecture .............................................................................................. 5 2.3 Main Chipset Information ......................................................................................... 5 2.4 PCB dimension ............................................................................................................. 5 Chapter 3 Software ............................................................................................................... 7 3.1 Operating System Supported ..................................................................................... 7 3.2 Wireless Mode Supported ......................................................................................... 7 3.3 Security ...................................................................................................................... 7 Chapter 4 Appearance ........................................................................................................... 8 Chapter 5 Specifications ....................................................................................................... 9 References ................................................................................................................................ 11 Product Specification WN8522D 3 3 Revision History Edition # Reason for revision Issue date Written by V 01 ♦ Initial Document August 10 th 2010 Troy Chen z Product Specification WN8522D 3 4 Chapter 1 Introduction 1. Introduction WN8522D is a dual band wireless 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 300 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11a/b and IEEE 802.11g ,and draft IEEE 802.11n standards. WN8522B will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features ♦ High speed for wireless LAN connection, RX up at 300 Mbps data rate. ♦ Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure. ♦ User-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption with 64, 128 encryption for security. ♦ Support USB v2.0 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. Product Specification WN8522D 3 5 Chapter 2 Hardware 2.1 General Overview ♦ USB 2.0 Interface and 802.11 n chipset-on-board design. ♦ Antenna: 2 external Antennas on board 2.2 Hardware Architecture Broadcom 43236 single chip USB2.0 2.3 Main Chipset Information ♦ BCM43236 is a dual band IEEE 802.11n-compliant MAC/PHY/Radio complete system on a chip with 2.4Ghz and 5GHz internal PA 2.4 PCB dimension PCB dimension : 78.6x20 mm RF Shield include Crystal 20 max Part prohibit area: 10x10 RF connecter USB Antenna B Antenna A Metal ANTMetal ANT Bottom To p 5 max TV front Place right as much as possible USB 5 max Shield can be top or bottom Product Specification WN8522D 3 6 2.5 Pin Assignment Product Specification WN8522D 3 7 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 2000, XP, Vista ♦ Linux Driver 3.2 Wireless Mode Supported ♦ AP (Infrastructure) Client mode 3.3 Security ♦ AP (Infrastructure) mode supports ♦ Static WEP that support both 64 and 128 bit keys. ♦ WPA(TKIP) with PSK ♦ Ad-hoc mode supports ♦ None (plaintext) ♦ Static WEP that supports both 64 and 128 bit keys. Product Specification WN8522D 3 8 Chapter 4 Appearance Product Specification WN8522D 3 9 Chapter 5 Specifications ♦ Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) 802.11a Radio : 5 GHz 5.150~5.250GHz 5.250~5.350 GHz 5.470~5.725 GHz 5.725~5.850GHz ♦ Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) ♦ Transmit Power and Sensitivity: TX Output Power:(Typical) TX Output Power:(Typical) TBD 11b 17 +/- 1.5 dBm 11g 14 +/- 1.5 dBm@54Mbps 11n 13.5 +/- 1.5 dBm Rx Sensitivity:(Typical) -68dBm at HT20 m15 2.4GHz -88dBm at HT20 m0 2.4GHz -68dBm at HT20 m15 5.0GHz -88dBm at HT20 m0 5.0GHz Current consumption(5V DC): Product Specification WN8522D 3 10 TX: TBDat 11dBm HT40 CH38 2x2 RX: TBD at 11dBm HT40 CH38 2x2 Power Saving: TBD Radio …

Text truncated - open the document above for the full version.

Page No. : 11 Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: 886-3-578-7000 Fax: 886-3-563-7325 Ad Hoc Mode Function Declaration Date: 2010/11/9 FCC ID：RAXWN8522D3JU To whom it may concern: We, Arcadyan Technology Corporation, declare that the EUT (Model Name: RUNTKA810WJQZ) doesn’t have Ad Hoc function on “non-US frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Sincerely, FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Simon Liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

Page No. : 8 Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: 886-3-578-7000 Fax: 886-3-563-7325 Confidential Letter Date: 2010/11/9 Federal Communications Commission Authorization and Evaluation Division FCC ID：RAXWN8522D3JU Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Simon Liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

Page No. : 14 Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: 886-3-578-7000 Fax: 886-3-563-7325 DoC Attestation Letter Date: 2010/11/9 We Arcadyan Technology Corporation, as the grantee of this project FCC ID: RAXWN8522D3JU, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Simon Liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

Page No. : 18 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/11/9 FCC ID: RAXWN8522D3JU Dear Reviewer, We, Sporton International Inc., are authorized by Arcadyan Technology Corporation to have their state-of-the-art 802.11n wireless LAN module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM43236KMLG. 3. The requirement of power supply regulation: The part number of the power regulator is RT8020. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Page No. : 2 Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: 886-3-578-7000 Fax: 886-3-563-7325 Power of Attorney Date: 2010/11/9 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Sharp / RUNTKA810WJQZ FCC ID: RAXWN8522D3JU Product name: 802.11n wireless LAN module FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Simon Liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

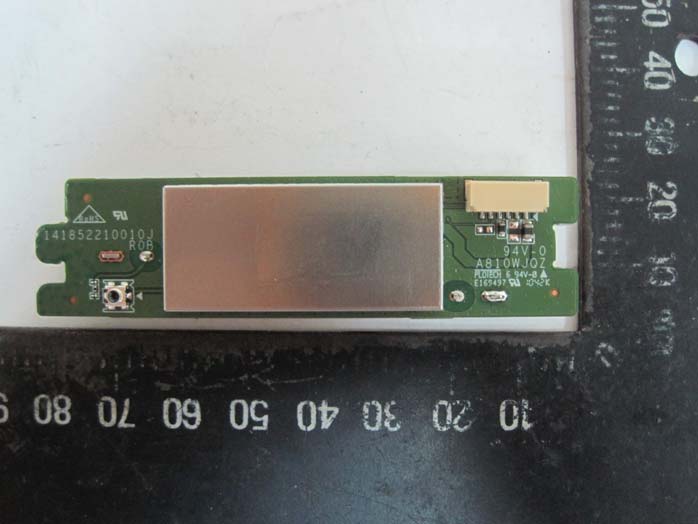

SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 09, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT

Unit: mm

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 09, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 09, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 09, 2010 FAX : 886-2-2696-2255

Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : C3 of C3 1.3. Calculated Result and Limit <For 5GHz Band>: For UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for 802.11a IEEE 802.11n MCS0 20MHz Ant. 1 + Ant. 2: 20.24 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.57 2.2751 20.2363 105.5919 0.047817 1 Complies For ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for 802.11a IEEE 802.11n MCS0 40MHz Ant. 1 + Ant. 2: 24.92 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.57 2.2751 24.9199 310.4520 0.140587 1 Complies <For 2.4GHz Band>: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. 1+ Ant. 2: 28.42 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result -1.04 0.7870 28.4190 694.8625 0.108855 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC Dynamic Frequency Selection Test Report Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C FCC ID RAXWN8522D3JU Product Name 802.11n wireless LAN module Brand Name Sharp Model Name RUNTKA810WJQZ Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5250~5350 / 5470~5725 Received Date Sep. 29, 2010 Final Test Date Nov. 08, 2010 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ0N0535 Report Format Version: 01 Page No. : i of ii FCC ID: RAXWN8522D3JU Issued Date : Nov. 12, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Standard Requirement .......................................................................................................................................................................3 3.2. Product Specification Table................................................................................................................................................................3 3.3. Accessories .........................................................................................................................................................................................5 3.4. Table for DFS Band Carrier Frequencies .............................................................................................................................................6 3.5. Table for Filed Antenna.......................................................................................................................................................................7 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ............................................................................. 8 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring.........................................................................8 4.2. DFS Response requirement values......................................................................................................................................................8 4.3. Radar Test Waveforms Minimum Step.................................................................................................................................................9 4.4. Short Pulse Radar Test Waveforms ......................................................................................................................................................9 4.5. Long Pulse Radar Test Waveform......................................................................................................................................................10 4.6. Frequency Hopping Radar Test Waveform.......................................................................................................................................12 4.7. Conducted Calibration Setup ..........................................................................................................................................................14 4.8. Radar Waveform Calibration Procedure ..........................................................................................................................................14 4.9. Calibration Deviation........................................................................................................................................................................14 4.10. Radar Waveform Calibration Result .................................................................................................................................................15 5. TEST SETUP AND TEST RESULT............................................................................................................................ 17 5.1. Test setup ..........................................................................................................................................................................................17 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement...23 6. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 32 7. TEST LOCATION.............................................................................................................................................. 33 8. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 34 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A4 Report No.: FZ0N0535 Report Format Version: 01 Page No. : ii of ii FCC ID: RAXWN8522D3JU Issued…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C FCC ID RAXWN8522D3JU Product Name 802.11n wireless LAN module Brand Name Sharp Model Name RUNTKA810WJQZ Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz / 5470 ~ 5725MHz Received Date Sep. 29, 2010 Final Test Date Nov. 11, 2010 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement Test result included is for the 802.11n and 802.11a (5150 ~ 5350MHz / 5470 ~ 5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR0N0535AA Report Format Version: 01 Page No. : i of ii FCC ID: RAXWN8522D3JU Issued Date : Nov. 12, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................13 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................17 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................23 4.4. Power Spectral Density Measurement ..............................................................................................................................................29 4.5. Peak Excursion Measurement ...........................................................................................................................................................35 4.6. Radiated Emissions Measurement ....................................................................................................................................................41 4.7. Band Edge Emissions Measurement .................................................................................................................................................72 4.8. Frequency Stability Measurement ....................................................................................................................................................82 4.9. Antenna Requirements .....................................................................................................................................................................84 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 85 6. TEST LOCATION.............................................................................................................................................. 87 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 88 APPENDIX A. PHOTOGRAPHS …

Text truncated - open the document above for the full version.

Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : 4 of 5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR0N0535 FCC ID: RAXWN8522D3JU Page No. : 5 of 5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
