RAXWN8522D465

Arcadyan Technology Corporation

IEEE Dual Band 802.11n USB2.0 Module

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Dec 27, 2010
Application Purpose: Original Equipment
Date of Application: Dec 27, 2010
Equipment Note: IEEE Dual Band 802.11n USB2.0 Module
Frequency Range: 5510.00000000 - 5670.00000000
Company: Arcadyan Technology Corporation
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

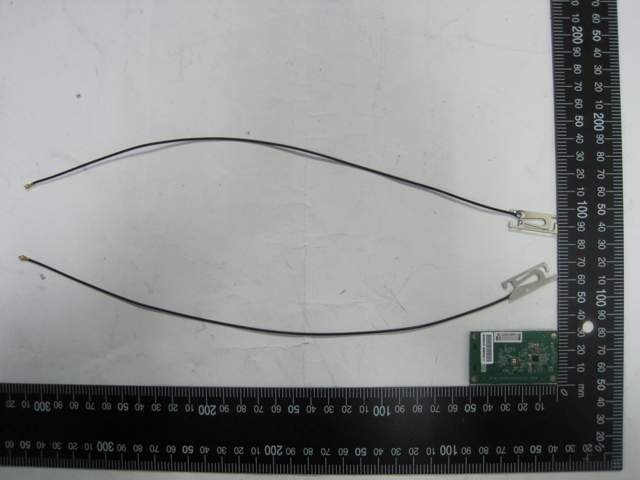

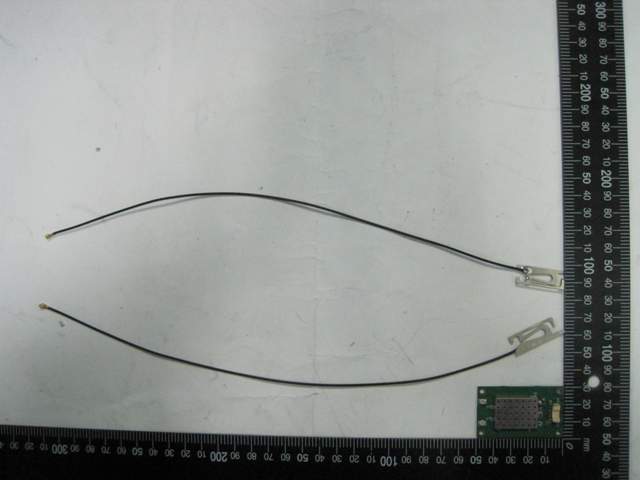

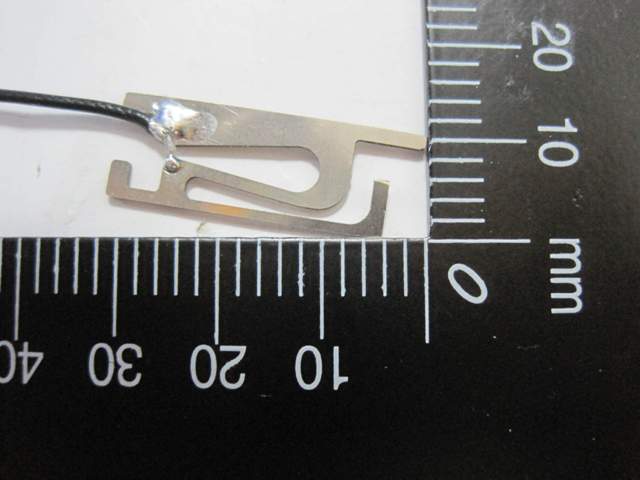

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
6	15E	5.51 GHz - 5.67 GHz	116.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Power listed is the maximum combined conducted output power as indicated in the filing. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. This transmitter is restricted to indoor use only within the 5.15-5.25 GHz band. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 5190 to 5230 MHz, 5270 to 5310 MHz, 5510 to 5670 MHz.
