RAXWN8522D7JU802.11n Dual Band WLAN Adapter

User Manual WN8522D 7-JU 1 User Manual WN8522D 7-JU IEEE Dual Band 802.11n USB2.0 Adapter v.03 draft User Manual WN8522D 7-JU 2 Table of Contents Chapter 1 Introduction _____________________________________________________ 4 1. Introduction ________________________________________________________ 4 1.1 Product Features ____________________________________________________ 4 1.2 Applications _______________________________________________________ 4 Chapter 2 Hardware _______________________________________________________ 5 2.1 General Overview __________________________________________________ 5 2.2 Hardware Architecture _______________________________________________ 5 2.3 Main Chipset Information ____________________________________________ 5 2.5 Net Weight : 13g _____________________________________________________ 5 2.6 PCB dimension ______________________________________________________ 5 Chapter 3 Software _______________________________________________________ 7 3.1 Operating System Supported __________________________________________ 7 3.2 Wireless Mode Supported ____________________________________________ 7 3.3 Security ___________________________________________________________ 7 Chapter 4 Appearance _____________________________________________________ 8 4.1 Housing appearance __________________________________________________ 8 4.2 PCB appearance _____________________________________________________ 8 Chapter 5 Specifications __________________________________________________ 10 References ________________________________________________________________ 12 User Manual WN8522D 7-JU 3 Revision History Edition # Reason for revision Issue date Written by V 0.1 ♦ Initial Document June 7 th , 2010 Troy Chen V 0.2 ♦ Add customer code and product drawings Oct 27 th , 2010 Jeff Wu V 0.3 ♦ Add PCB appearance Nov 12 th , 2010 Jeff Wu V 0.4 ♦ Add dongle pictures Jan 3 rd , 2011 Jeff Wu V 1.0 ♦ Add net weight Jan 25 th , 2011 Jeff Wu User Manual WN8522D 7-JU 4 Chapter 1 Introduction 1. Introduction WN8522D 7-JU is a dual band wireless 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 300 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11a/b and IEEE 802.11g ,and IEEE 802.11n standards. WN8522D 7-JU will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features ♦ High speed for wireless LAN connection, Tx/Rx up at 300 Mbps data rate. ♦ Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure. ♦ User-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption with 64, 128 encryption for security. ♦ Internal antenna ♦ Support USB v2.0 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. User Manual WN8522D 7-JU 5 Chapter 2 Hardware 2.1 General Overview ♦ USB 2.0 Interface and 802.11 n chipset-on-board design. ♦ Antenna: 2 external Antennas on board 2.2 Hardware Architecture Broadcom 43236 single chip USB2.0 2.3 Main Chipset Information ♦ BCM43236 is a dual band IEEE 802.11n-compliant MAC/PHY/Radio complete system on a chip with 2.4Ghz and 5GHz internal PA 2.5 Net Weight : 13g 2.6 PCB dimension PCB dimension : 16x52mm User Manual WN8522D 7-JU 6 User Manual WN8522D 7-JU 7 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 2000, XP, Vista ♦ Linux Driver 3.2 Wireless Mode Supported ♦ AP (Infrastructure) Client mode 3.3 Security ♦ AP (Infrastructure) mode supports ♦ Static WEP that support both 64 and 128 bit keys. ♦ WPA(TKIP) with PSK ♦ Ad-hoc mode supports ♦ None (plaintext) ♦ Static WEP that supports both 64 and 128 bit keys. User Manual WN8522D 7-JU 8 Chapter 4 Appearance 4.1 Housing appearance 4.2 PCB appearance Front Side User Manual WN8522D 7-JU 9 Back Side User Manual WN8522D 7-JU 10 Chapter 5 Specifications ♦ Frequency Band: 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) 802.11a Radio : 5 GHz 5.150~5.250GHz 5.250~5.350 GHz 5.470~5.725 GHz 5.725~5.850GHz ♦ Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) ♦ Transmit Power and Sensitivity: 2.4GHz 11b 17 +/- 2 dBm 11g 14 +/- 2 dBm 11n 20MHz 13 +/- 2 dBm 11n 40MHz 13 +/- 2 dBm 5GHz (5150~5250MHz , 5250~5350MHz) 11a 14 +/- 2 dBm 11n 20MHz 13 +/- 2 dBm 11n 40MHz 13 +/- 2 dBm 5GHz (5470~5725MHz, 5725~5850MHz) 11a 13 +/- 2 dBm 11n 20MHz 13 +/- 2 dBm 11n 40MHz 13 +/- 2 dBm User Manual WN8522D 7-JU 11 Rx Sensitivity:(Typical) -84 dBm @11 Mbps -72 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing ♦ Modulation DBPSK @1Mbps DQPSK@2Mbp [email protected]/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above ♦ Current consumption(5V DC): Tx: 2164mW at 11dBm HT40 CH38 2x2 Rx: 1405mW at 11dBm HT40 CH38 2x2 Power Saving: TBD Radio OFF mode: TBD ♦ Operating Temperature: 0 ~ 40 o C ambient ♦ Storage Temperature: -20 ~ 60 o C ambient ♦ Humidity: under 85% and must be non-condensing ♦ Regulation and certification compliance available: ♦ ETSI/CE ♦ FCC ♦ ESD: EN61000-4-2, which specifies 4kV contact and …

Text truncated - open the document above for the full version.

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: 886-3-578-7000 Fax: 886-3-563-7325 Declaration letter Date: 2011/2/17 FCC ID: RAXWN8522D7JU To whom it may concern, We hereby declare that this device couldn’t work when it was used to connect the device to a standard laptop PC and this equipment can only work with the TVs. This device will not be recognised by the Windows/Linux/other operating system of a standard PC and that no drivers are available which would support such a configuration. Sincerely yours, Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

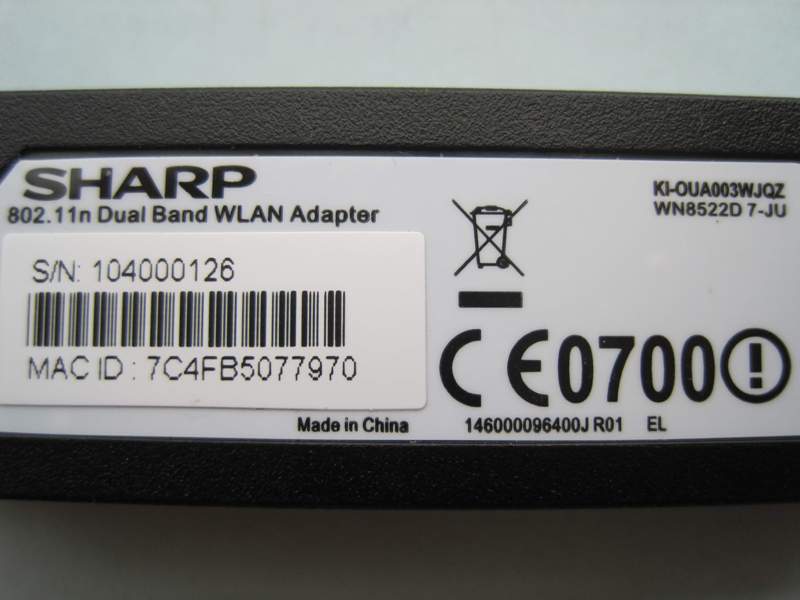

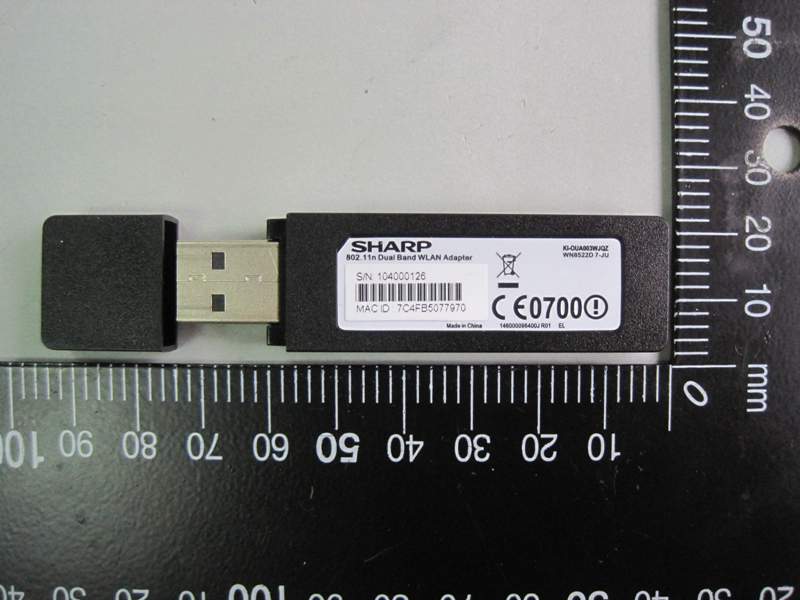

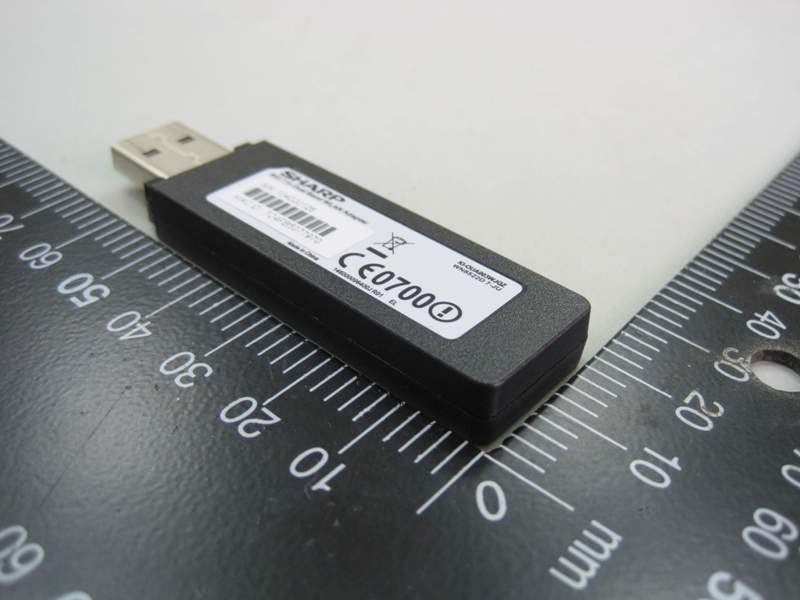

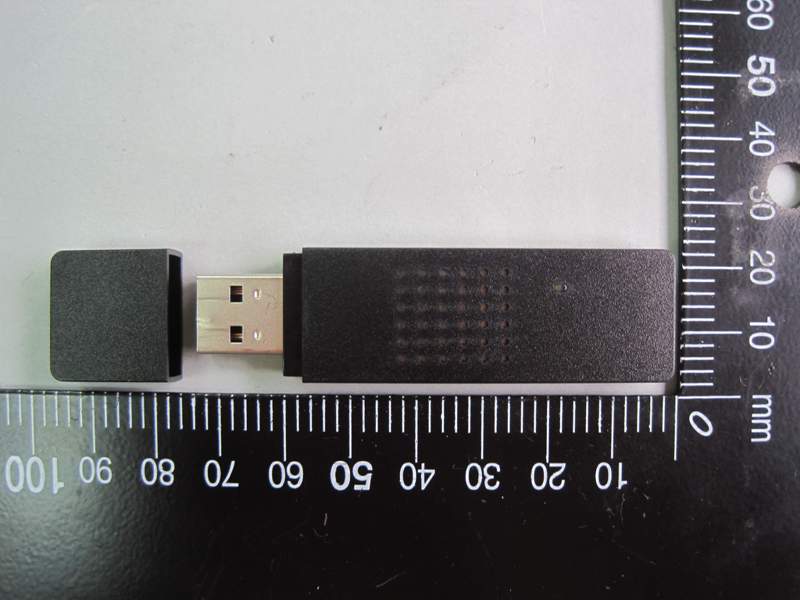

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255

Size unit:mm

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 21, 2011 FAX : 886-2-2696-2255

Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : C3 of C3 1.3. Calculated Result and Limit F<For 5GHz Band>: For 5GHz ISM Band: Antenna Type : Printed Antenna Max Conducted Power for IEEE 802.11an MCS0 40MHz Ant. 1 + Ant. 2 : 22.27 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.63 2.3067 22.2700 168.6553 0.077437 1 Complies For 5GHz UNII Band: Antenna Type : Printed Antenna Max Conducted Power for IEEE 802.11an MCS0 20MHz Ant. 1 + Ant. 2 : 26.16 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.63 2.3067 26.1567 412.7351 0.189505 1 Complies <For 2.4GHz Band>: Antenna Type : Printed Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. 1 + Ant. 2 : 29.33 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result -2.63 0.5458 29.3268 856.4110 0.093032 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHZ Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.189505 / 1+ 0.093032 / 1 = 0.282537, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC Dynamic Frequency Selection Test Report Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C FCC ID RAXWN8522D7JU Product Name 802.11n Dual Band WLAN Adapter Brand Name SHARP Model Name WN8522D 7-JU Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5250~5350 / 5470~5725MHz Received Date Dec. 08, 2010 Final Test Date Feb. 18, 2011 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ0D0846-02 Report Format Version: 01 Page No. : i of ii FCC ID: RAXWN8522D7JU Issued Date : Feb. 21, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION ..................................................................................................................................... 3 3.1. Standard Requirement .............................................................................................................................................................................. 3 3.2. Product Specification Table ..................................................................................................................................................................... 3 3.3. Accessories ................................................................................................................................................................................................. 5 3.4. Table for DFS Band Carrier Frequencies ................................................................................................................................................. 5 3.5. Antenna Information on DFS Band .......................................................................................................................................................... 6 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS .......................................................................... 7 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring .................................................................... 7 4.2. DFS Response requirement values .......................................................................................................................................................... 8 4.3. Radar Test Waveforms Minimum Step .................................................................................................................................................... 9 4.4. Short Pulse Radar Test Waveforms ........................................................................................................................................................... 9 4.5. Long Pulse Radar Test Waveform .......................................................................................................................................................... 10 4.6. Frequency Hopping Radar Test Waveform ......................................................................................................................................... 12 4.7. Conducted Calibration Setup ............................................................................................................................................................... 14 4.8. Radar Waveform Calibration Procedure ............................................................................................................................................. 15 4.9. Calibration Deviation .............................................................................................................................................................................. 15 4.10. Radar Waveform Calibration Result ..................................................................................................................................................... 16 5. TEST SETUP AND TEST RESULT .............................................................................................................................. 17 5.1. Test setup ................................................................................................................................................................................................... 17 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement 23 6. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 33 7. TEST LOCATION .................................................................................................................................................. 34 8. TAF CERTIFICATE OF ACCREDITATION .............................................................................................................. 35 APPENDIX A. PHOTOGRAPHS OF EUT ..........................................................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C FCC ID RAXWN8522D7JU Product Name 802.11n Dual Band WLAN Adapter Brand Name SHARP Model Name WN8522D 7-JU Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz / 5470 ~ 5725MHz Received Date Dec. 08, 2010 Final Test Date Feb. 18, 2011 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5350MHz / 5470 ~ 5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR0D0846-02AA Report Format Version: 01 Page No. : i of ii FCC ID: RAXWN8522D7JU Issued Date : Feb. 21, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION ..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 6 3.5. Table for Test Modes .................................................................................................................................................................................. 7 3.6. Table for Testing Locations........................................................................................................................................................................ 8 3.7. Table for Supporting Units ......................................................................................................................................................................... 8 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 9 3.9. Test Configurations ................................................................................................................................................................................... 10 4. TEST RESULT ......................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 12 4.2. 99% Occupied Bandwidth Measurement ............................................................................................................................................ 16 4.3. Peak Conducted Output Power Measurement ................................................................................................................................. 32 4.4. Test Result of Peak Conducted Output Power .................................................................................................................................... 34 4.5. Power Spectral Density Measurement .................................................................................................................................................. 38 4.6. Peak Excursion Measurement ................................................................................................................................................................ 46 4.7. Radiated Emissions Measurement ......................................................................................................................................................... 54 4.8. Band Edge Emissions Measurement ...................................................................................................................................................... 85 4.9. Frequency Stability Measurement ......................................................................................................................................................... 95 4.10. Antenna Requirements ........................................................................................................................................................................... 97 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 98 6. TE…

Text truncated - open the document above for the full version.

Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : 4 of 5 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR0D0846-02 FCC ID: RAXWN8522D7JU Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW
