RAXWN8722BTAACWN8722BTAAC-VO

IEEE 802.11a/b/g/n Wireless Dual-Band Network Adapter IEE E Du al B and 8 02 .1 1n U SB2. 0 mo dule f o r DTV Model # S BOM-06005-000 Introduction The Wireless Dual-band USB Network Adapter is another cutting edge introduction in both 5GHz and 2.4GHz wireless communication for home networking devices. Designed for both your home and office, this wireless network adapter provides excellent performance of speed, coverage and security expected by today’s wireless users. WN8722BTAAC-VO is IEEE 802.11n compliant while maintaining full backwards compatibility with the 802.11a, 802.11b and 802.11g standards. It utilizes advanced MIMO (Multiple-In, Multiple-Out) technology to deliver incredible speed and range. The Wireless Dual-band Network Adapter provides an excellent solution for sharing an Internet connection and files such as video, music, photos, and documents. Hardware General Overview  USB 2.0 Interface  3 * antenna connectors Hardware Architecture Broadcom 43570 single chip USB2.0 Main Chipset Information BCM43570: MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n draft2.0 standard. Inserting the USB Network Adapter ID label Software Operating System Supported Windows 2000, XP, Vista Wireless Mode Supported AP (Infrastructure) Client mode Security  AP (Infrastructure) mode supports  Static WEP that support both 64 and 128 bit keys.  WPA(TKIP) with PSK  Ad-hoc mode supports  None (plaintext)  Static WEP that supports both 64 and 128 bit keys. Product Specification  Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC: 2412~2462MHz (Ch1~Ch11) Canada – IC: 2412~2462MHz (Ch1~Ch11) Europe – ETSI : 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33: 2412~2484MHz (Ch1~Ch14)  Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan)  Modulation DBPSK @1Mbps DQPSK@2Mbp [email protected]/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above, RX up to 300Mbps  Current consumption(5V DC): TX: <480mA Max, @MCS15, 40MHz RX: <380 mA Max, @MCS15, 40MHz Radio OFF mode: <60 mA  Operating Temperature: 0 ~ 40 o C ambient  Storage Temperature: -10 ~ 70 o C ambient  Humidity: 5 ~ 90% and must be non-condensing  Regulation and certification compliance available:  WHQL  ETSI/CE  ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge. Antenna list: Ant. Brand P/N Antenna Type Connector Gain (dBi) 2.4GHz 5GHz Bluetooth 1 arcadyan 120800021300J PCB Antenna I-PEX 4.01 7.65 - 2 arcadyan 120800021400J PCB Antenna I-PEX 3.77 5.03 - 3 arcadyan 120800021500J PCB Antenna I-PEX - - 4.66 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi- transmitter product procedures. Referring to the multi-transmitter policy, ultiple-transmitter(s) and module(s) can be operated simultaneously without C2PC. This device is restricted for indoor use. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be infor…

Text truncated - open the document above for the full version.

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Tel: +886-3-5727000 #14250 / Fax: +886-3-5727063 DoC Attestation Letter Date: 2015/6/16 We Arcadyan Technology Corporation, as the grantee of this project (FCC ID: RAXWN8722BTAAC / Brand Name: Arcadyan / Model No.: SBOM-06005-000), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD551972, FCC designation number: TW1024). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. A pplicant’s company name : Arcadyan Technology Corporation Applicant’s company address : No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Signature : Name and Job Title : Simon Liu / Manager E-Mail : [email protected] Tel. : +886-3-5727000 # 14250

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Tel: +886-3-5727000 #14250 / Fax: +886-3-5727063 Ad Hoc Mode Function Declaration Date: 2015/6/16 FCC ID：RAXWN8722BTAAC To whom it may concern: We, Arcadyan Technology Corporation, declare that the EUT (Model Name: SBOM-06005-000) doesn’t have Ad Hoc function on “non-US/ Canada frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Sincerely, FCC Grantee contact person information. A pplicant’s company name : Arcadyan Technology Corporation Applicant’s company address : No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Signature : Name and Job Title : Simon Liu / Manager E-Mail : [email protected] Tel. : +886-3-5727000 # 14250

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Tel: +886-3-5727000 #14250 / Fax: +886-3-5727063 Confidential Letter Date: 2015/6/16 Federal Communications Commission Authorization and Evaluation Division FCC ID：RAXWN8722BTAAC Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: ● Block Diagram ● Schematic Diagram ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Signature : Name and Job Title : Simon Liu / Manager E-Mail : [email protected] Tel. : +886-3-5727000 # 14250

Page No. : 26 Module Approval Request Letter Subject: Module Approval Date: 2015/6/23 FCC ID: RAXWN8722BTAAC Dear Reviewer, We, Sporton International Inc., are authorized by Arcadyan Technology Corporation to have their state-of-the-art WN8722BTAAC-VO approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM43570. 3. The requirement of power supply regulation: The part number of the power regulator is BCM43570. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Tel: +886-3-5727000 #14250 / Fax: +886-3-5727063 Power of Attorney Date: 2015/6/16 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Arcadyan / SBOM-06005-000 FCC ID: RAXWN8722BTAAC Product name: WN8722BTAAC-VO FCC Grantee contact person information. A pplicant’s company name : Arcadyan Technology Corporation Applicant’s company address : No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Signature : Name and Job Title : Simon Liu / Manager E-Mail : [email protected] Tel. : +886-3-5727000 # 14250

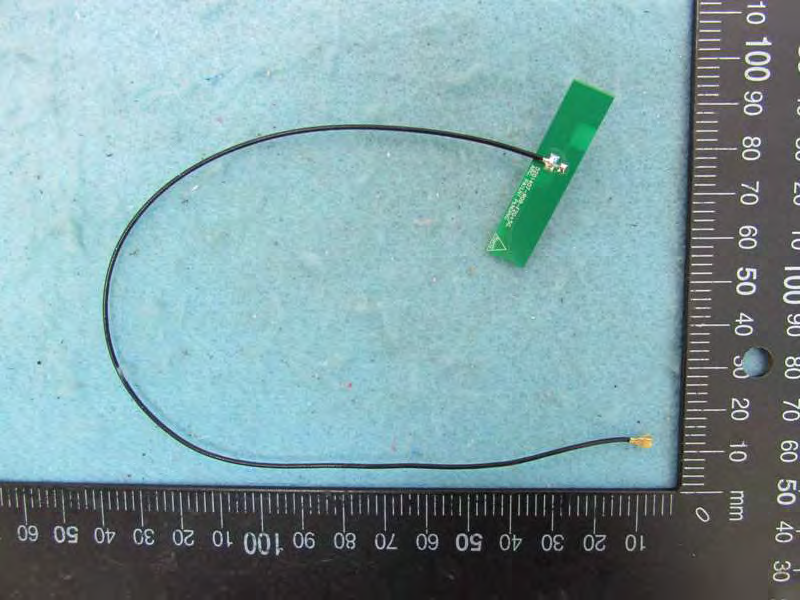

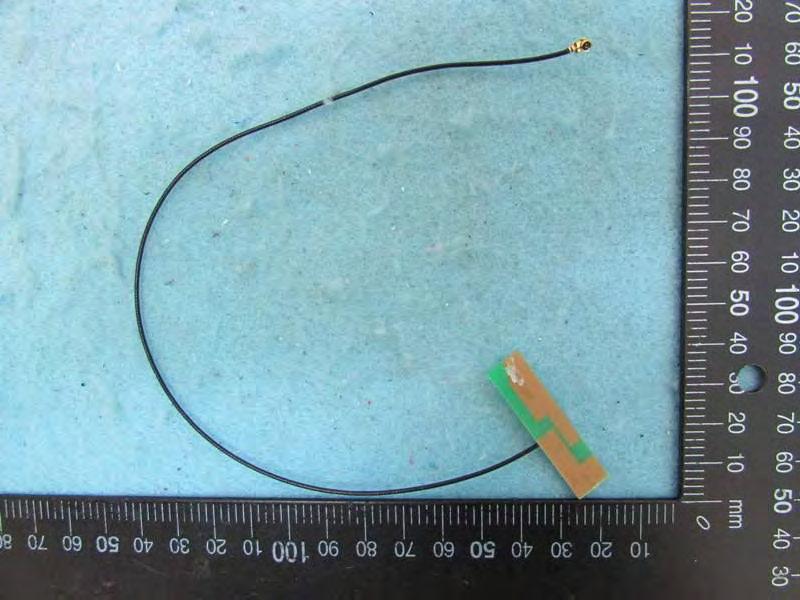

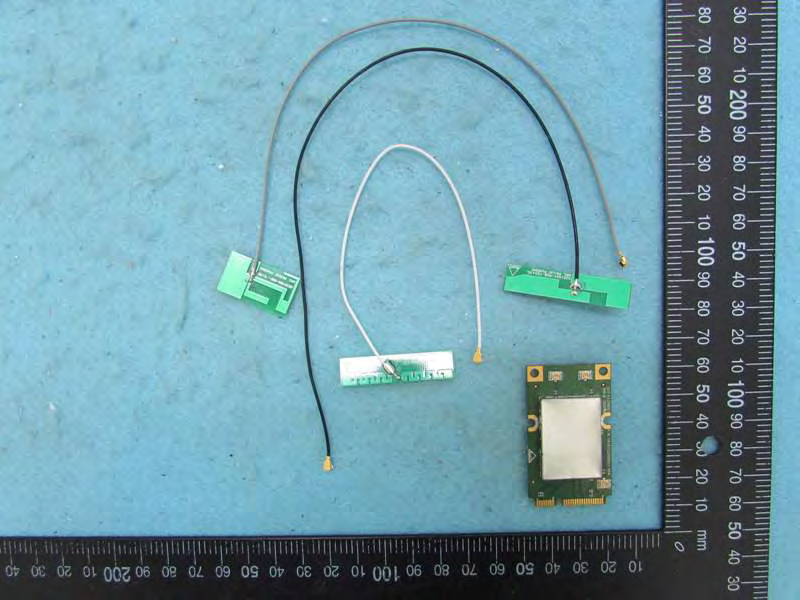

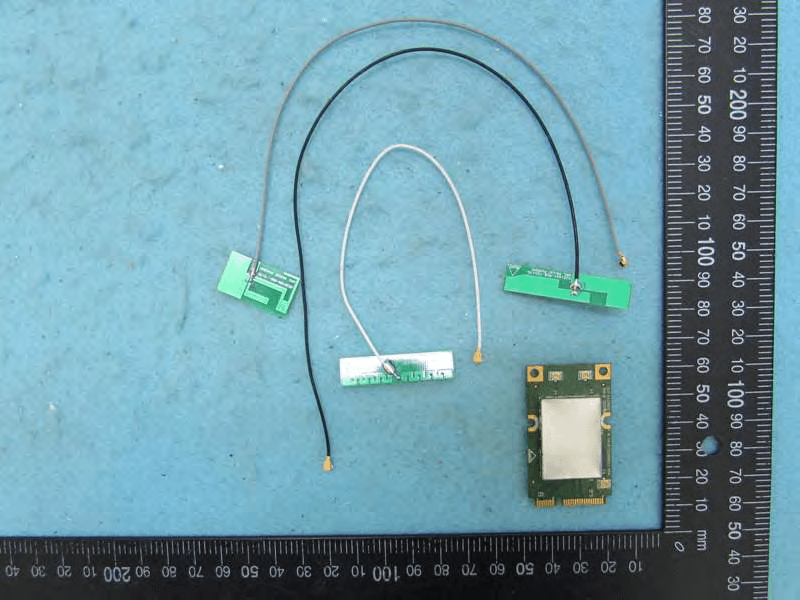

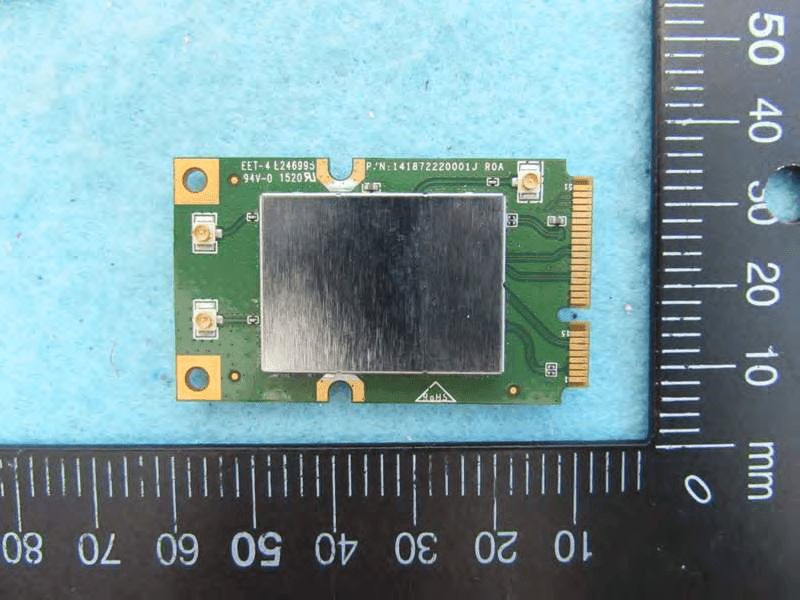

Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Label: Label location:

Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 551972 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby that distance of at least 0.2 m is normally maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : C3 of C4 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For WLAN: For 5GHz Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11ac VHT20 : 21.58dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 5785 7.65 5.8210 21.5768 143.7730 0.166582 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11b: 22.96 dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2437 4.01 2.5177 22.9623 197.8031 0.099125 1 Complies For Buletooth: Antenna Type : PCB Antenna Max Conducted Power for Bluetooth EDR BR (GFSK) Mbps : 14.06 dBm Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2402 4.66 2.9242 14.0582 25.4577 0.014817 1 Complies Antenna Type : PCB Antenna Max Conducted Power for Bluetooth 4.0 : 9.18 dBm Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2402 4.66 2.9242 9.1800 8.2794 0.004819 1 Complies Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : C4 of C4 Conclusion: Both of the WLAN 2.4GHz Band and Bluetooth can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.099125 / 1 + 0.014817 / 1 = 0.113942, which is less than “1”. This confirmed that the device complies. Conclusion: Both of the WLAN 5GHz Band and Bluetooth can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.166582 / 1 + 0.014817 / 1= 0.181399, which is less than “1”. This confirmed that the device complies.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan FCC ID RAXWN8722BTAAC Manufacturer’s company Arcadyan Technology Corporation Manufacturer Address No.8, Sec.2, Guangfu Rd., Hsinchu, 30071 Taiwan Product Name WN8722BTAAC-VO Brand Name Arcadyan Model Name SBOM-06005-000 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2402 ~ 2480MHz Received Date May 19, 2015 Final Test Date Jun. 12, 2015 Submission Type Original Equipment Statement Test result included is only for the Bluetooth BR/EDR of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Note: Using 1.5m table as an alternative was permitted by the FCC per TCBC conference call of Dec. 2, 2014. Report No.: FR551972AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: RAXWN8722BTAAC Issued Date : Jun. 18, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. EUT Operation during Test ...................................................................................................................................................................7 3.10. Duty Cycle ..........................................................................................................................................................................................7 3.11. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................15 4.3. Hopping Channel Separation Measurement ...................................................................................................................................17 4.4. Number of Hopping Frequency Measurement.................................................................................................................................28 4.5. Dwell Time Measurement..................................................................................................................................................................30 4.6. Radiated Emissions Measurement ....................................................................................................................................................37 4.7. Emissions Measurement ....................................................................................................................................................................49 4.8. Antenna Requirements .....................................................................................................................................................................63 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 64 6. MEASURE…

Text truncated - open the document above for the full version.

Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : D1 of D5 Appendix D. Radiated Emission Co-location Report Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : D2 of D5 1. Results of Radiated Emissions for Co-located Temperature 22°C Humidity 55% Test Engineer Stim Sung Configurations 2.4GHz + Bluetooth Horizontal Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : D3 of D5 Vertical Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : D4 of D5 Temperature 22°C Humidity 55% Test Engineer Stim Sung Configurations 5GHz + Bluetooth Horizontal Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : D5 of D5 Vertical

Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B1 of B9 Appendix B. Test Photos Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B2 of B9 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B3 of B9 CLOSE-UP VIEW Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B4 of B9 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B5 of B9 CLOSE-UP VIEW Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B6 of B9 Test Configuration: 30MHz~1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B7 of B9 CLOSE-UP VIEW Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B8 of B9 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR551972 FCC ID: RAXWN8722BTAAC Page No. : B9 of B9 CLOSE-UP VIEW
