Ve rizo n Internet Gateway USER GUIDE ©2022 Verizon Model ARC-XCI55AX CONTENTS 01 / INTRODUCTION 1.0 Inside the box 5 1.1 Getting to Know Your Verizon Internet Gateway 5 1.2 Setting Up Your Verizon Internet Gateway 9 02 / CONFIGURING YOUR VERIZON INTERNET GATEWAY 2.0 Configure Your Verizon Internet Gateway 14 2.1 Expanding Wi-Fi Coverage 19 2.2 Computer Network Configuration 20 2.3 Main Screen 27 03 / WI-FI SETTINGS 3.0 Overview 33 3.1 Basic Settings 34 3.2 Advanced Settings 43 04 / CONNECTED DEVICES 4.0 Device Settings 51 4.1 Setting Parental Controls 56 4.2 Universal Plug & Play 60 TABLE OF CONTENTS 3 http://support.verizon.com/router | ©2022 Verizon. All Rights Reserved 05 / CONFIGURING ADVANCED SETTINGS 5.0 Security & Firewall 67 5.1 Network Settings 83 5.2 Diagnostics & Monitoring 130 5.3 System 136 06 / TROUBLESHOOTING 6.0 Troubleshooting Tips 153 6.1 Frequently Asked Questions 160 07 / SPECIFICATIONS 7.0 General Specifications 167 7.1 Connections 168 08 / NOTICES 8.0 Regulatory Compliance Notices 171 01 / INTRODUCTION 1.0 Inside the box 1.1 Getting to Know Your Verizon Internet Gateway 1.2 Setting Up Your Verizon Internet Gateway INSIDE ThE bOx 1.0/ INSIDE ThE bOx Inside the product package you should find the following items. Contact Verizon if any item is missing or damaged. • Verizon Internet Gateway • Power adapter • Ethernet Cable 1.1/ GETTING TO KNOW YOUR VERIZON INTERNET GATEWAY Your Verizon Internet Gateway provides fast dual-band Wi-Fi (with channel steering) for all your devices, and features built-in network security as well as parental controls, guest Wi-Fi and automatic software updates. 6 01 / INTRODUCTION http://support.verizon.com/router | ©2022 Verizon. All Rights Reserved Take a moment to familiarize with your product: GETTING TO KNOW YOUR VERIZON INTERNET GATEWAY 1.1a/ RESET bUTTON If you experience difficulties with your router or you want to revert all settings that you have changed, the reset function allows you to reset the router back to its factory default state. To perform a factory reset and return the Verizon Internet Gateway to default settings, press and hold the reset button for 3+ seconds. The LED will flash yellow to indicate a reset has been triggered, followed by fading in/out (white) while the router restarts. 1.1b/ WPS WPS is an easy way to add supported Wi-Fi devices to your network. Press the WPS button on the back of the Gateway to activate WPS. You will need to activate WPS on your Wi-Fi device too. Refer to “3.1d/ Wi-Fi Protected Setup (WPS)” on page 40. 1.1c/ LED The LED indicates the system and connection status, and WPS activity. Front LED ModeStatusLED Pattern BootupSystem OffOff System BootingSoft blink White Firmware update (FOTA) Fast blink white 8 01 / INTRODUCTION http://support.verizon.com/router | ©2022 Verizon. All Rights Reserved Front LED ModeStatusLED Pattern Cellular signal (or after single click pair button) Passing signalSolid White No Signal, Cold SIMSolid Red No SIM CardHard blink red Regular usage Setup complete50% bright White Wi-Fi disabled by userSolid Green ParingWPS ParingHard blink Blue Other Factory ResetFast blink yellow FW ErrorSoft blink red Ethernet Port LED Mode StatusLeft LEDRight LED Wired LAN connection * Threshold level can be decided based on port capability Ethernet > 100M* Link OffSolid White Ethernet > 100M* Activity OffBlinking White Ethernet < 100M* Link Solid YellowOff Ethernet < 100M* Activity Blinking YellowOff No Ethernet connection OffOff SETTING UP YOUR VERIZON INTERNET GATEWAY 1.2/ SETTING UP YOUR VERIZON INTERNET GATEWAY Your Verizon Internet Gateway comes with a pre-installed SIM card and can be up and running in just a couple of minutes. 1.2a/ POSITIONING YOUR VERIZON INTERNET GATEWAY For the best wireless signal transmission from the Gateway to your network devices: • Place the Gateway in a central area near a window. • Avoid keeping the device in the basement to get better signal. • Avoid having obstacles near the device, clear any objects near the window that could interfere with getting a signal. • Keep the Gateway away from metal obstructions and away from direct sunlight. • Keep the Gateway away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. 1.2b/ SETUP REQUIREMENTS To configure your wireless network via computer, you need a computer that meets the following system requirements: 10 01 / INTRODUCTION http://support.verizon.com/router | ©2022 Verizon. All Rights Reserved • For Wired Connection: Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/1000Base-TX) • For Wi-Fi Connection: IEEE 802.11a/b/g/n/ac/ax wireless capability • An installed TCP/IP service • Web browser such as Microsoft Edge, Firefox, Safari, or Google Chrome 1.2c/ SETTING UP Before you begin, if you are replacing an existing router, disconnect it. Remove all old router components, including the power supply. They will not work with your new Verizon Internet Gateway. 1. Plug the Verizon Internet Gateway into a power outlet with the included power adapter. 2. Wait for a couple of minutes for the Gateway to power up and establish an LTE/5G connection. The LED should display on (white) after starting up. 3. That’s it! You can connect your Internet devices to the Gateway’s Wi-Fi networks named Verizon_<your network> (check your router’s product label on the bottom side for your unique Wi-Fi network name and password). You can also connect Internet devices to your Gateway by connecting the device’s LAN ports with an Ethernet cable. SETTING UP YOUR VERIZON INTERNET GATEWAY • Wi-Fi Network The Verizon Internet Gateway has one Wi-Fi name supporting 2.4 GHz and 5 GHz signals. The Self-Organizing Network (SON) feature lets your devices move between the two signals automatically for an optimized Wi-Fi connection. 4. Go t…

Text truncated - open the document above for the full version.

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu 30071, Taiwan Tel: 886-3-572-7000 ; Fax: 886-3-572-7063 FCC Agent Authorization Date: January 27, 2022 To whom it may concern, Arcadyan Technology Corporation hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address: No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan Name: Eric Huang Job Title: Manager e-Mail: [email protected] We are therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Verizon / ARC-XCI55AX, FCC ID: RAXXCI55AX Sincerely, ________________________ Simon Liu Manager [email protected]

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu 30071, Taiwan Tel: 886-3-572-7000 ; Fax: 886-3-572-7063 Date: January 27, 2022 FCC Laboratory 7435 Oakland Mills Rd Columbia MD 21046 Subject: Request for Confidentiality FCC ID: RAXXCI55AX To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following documents from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned documents which contain detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we are requesting the Commission to withhold the following documents for 180 days after the grant of equipment authorization is issued:  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _______________________ Simon Liu [email protected]

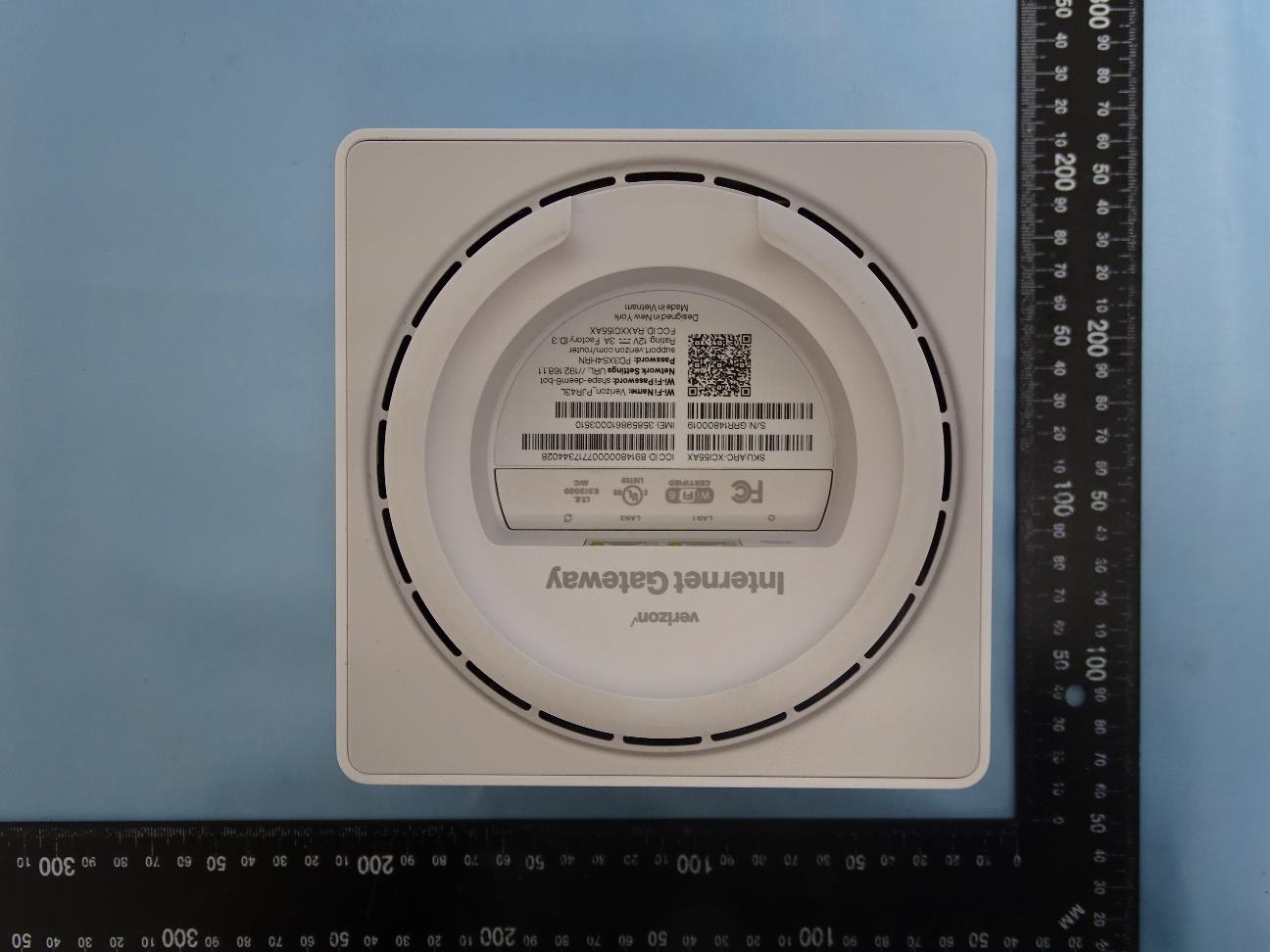

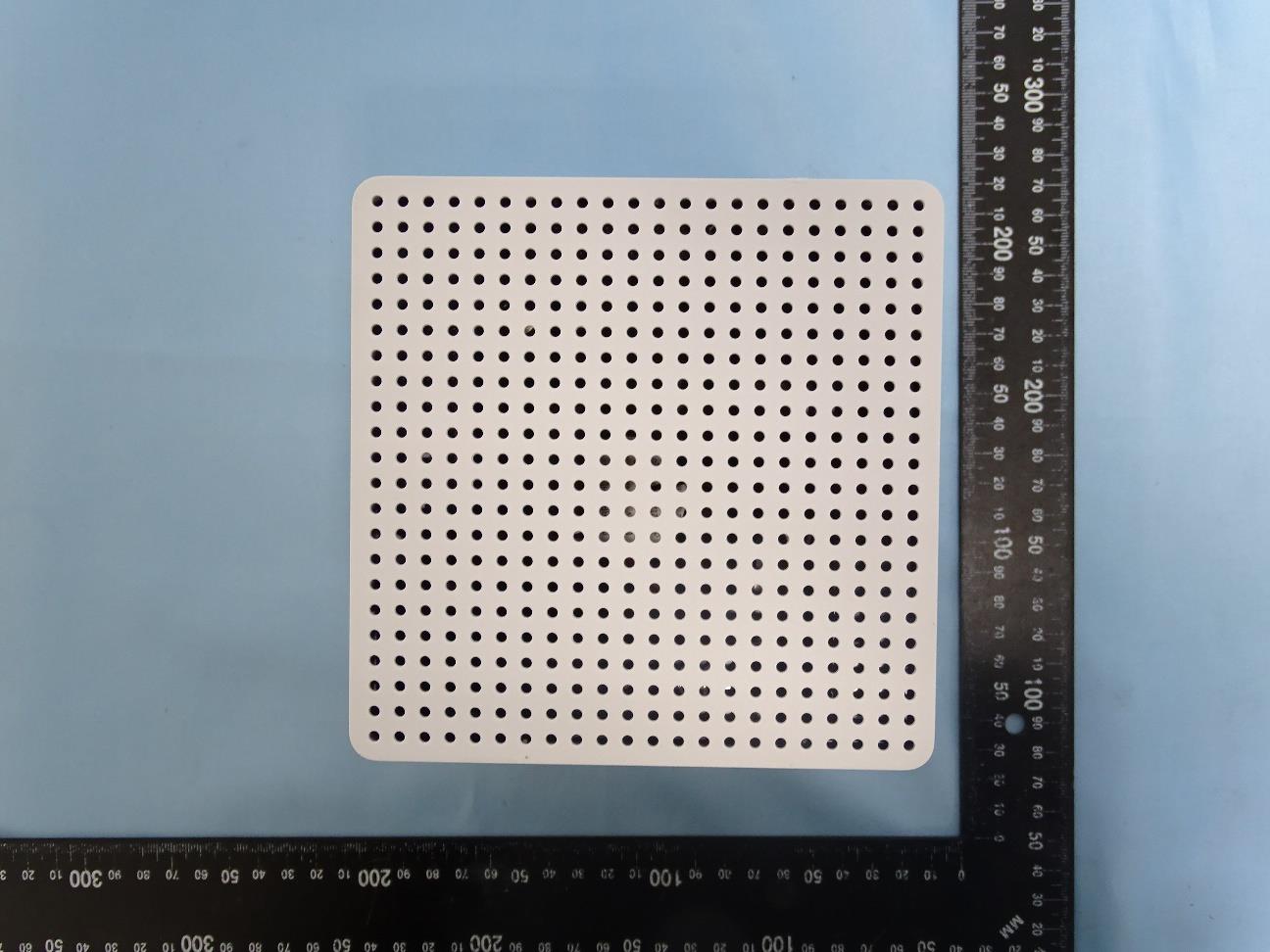

PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 1 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 1. External Photograph of EUT Brand Name: Verizon / Model Name: ARC-XCI55AX PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 2 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 3 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 4 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 5 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 6 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 7 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 720510 PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 8 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 2. Photograph of Accessory Brand Name: Verizon / Model Name: ARC-XCI55AX Specification of Accessory AC Adapter Brand Name DELTA Model Name ADH-42BW B RJ-45 Cable Brand Name YFC Model Name YLC-EUP404-A015MB-WH21625 Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 9 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 720510 PHOTOGRAPHS OF EUT Report No.: EP1O1524 TEL : 886-3-327-3456 Page Number : 10 of 68 FAX : 886-3-328-4978 Issued Date : Mar. 10, 2022 Report Version : 02 AC Adapter

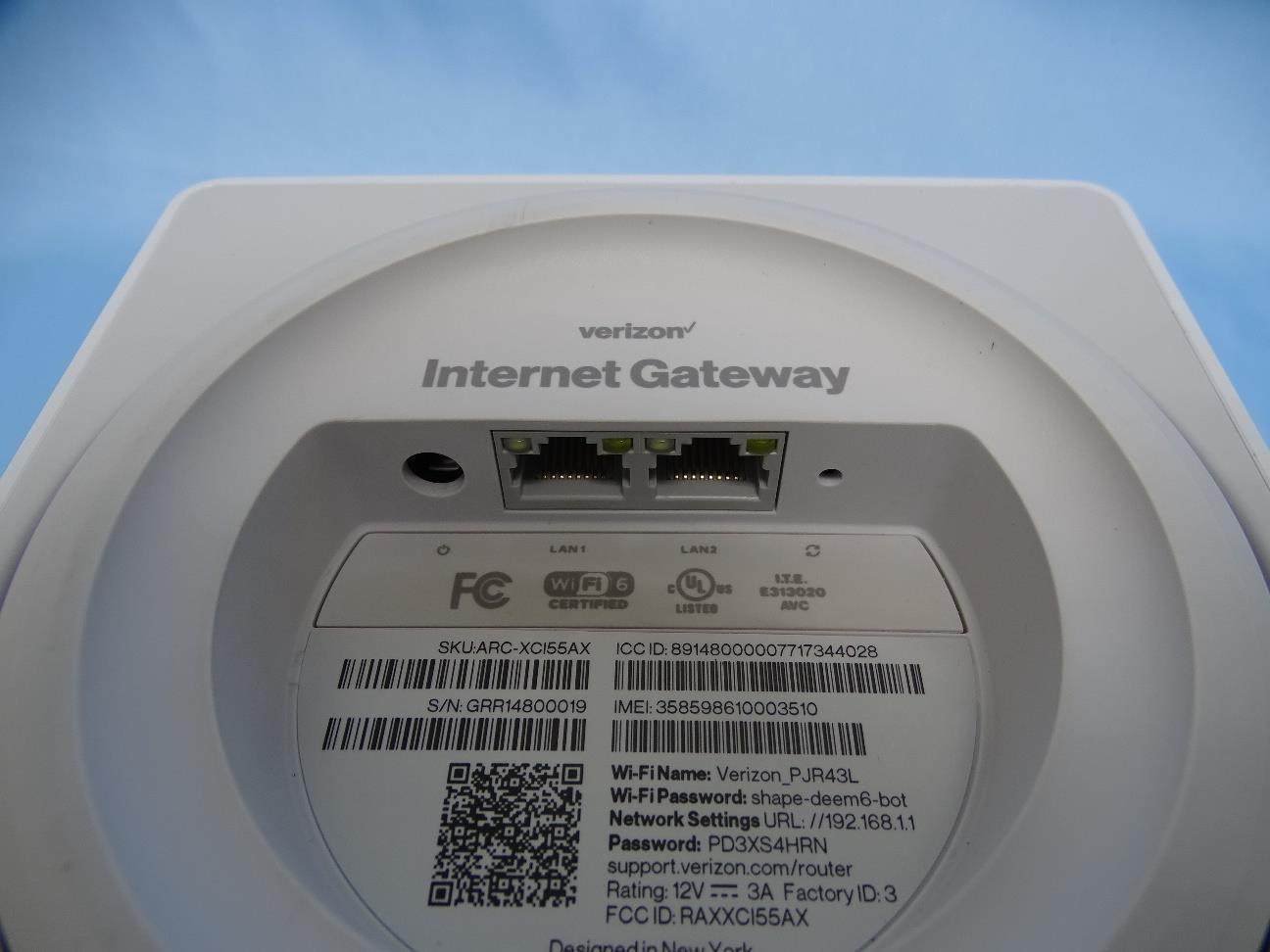

Wi-Fi Password: Wi-Fi Name: URL: Password: Network Settings support.verizon.com/router B4QC49SWQ //192.168.1.1 SKU: ARC-XCI55AX S/N: GRRYWWXXXXX ICC ID: 18539672091724812395 IMEI: 354447110017014 Factory ID: 3 FCC ID: RAXXCI55AX Designed in New York Made in Vietnam Rating: 12V 3.5A table-view7-day Verizon_PN3QDF
