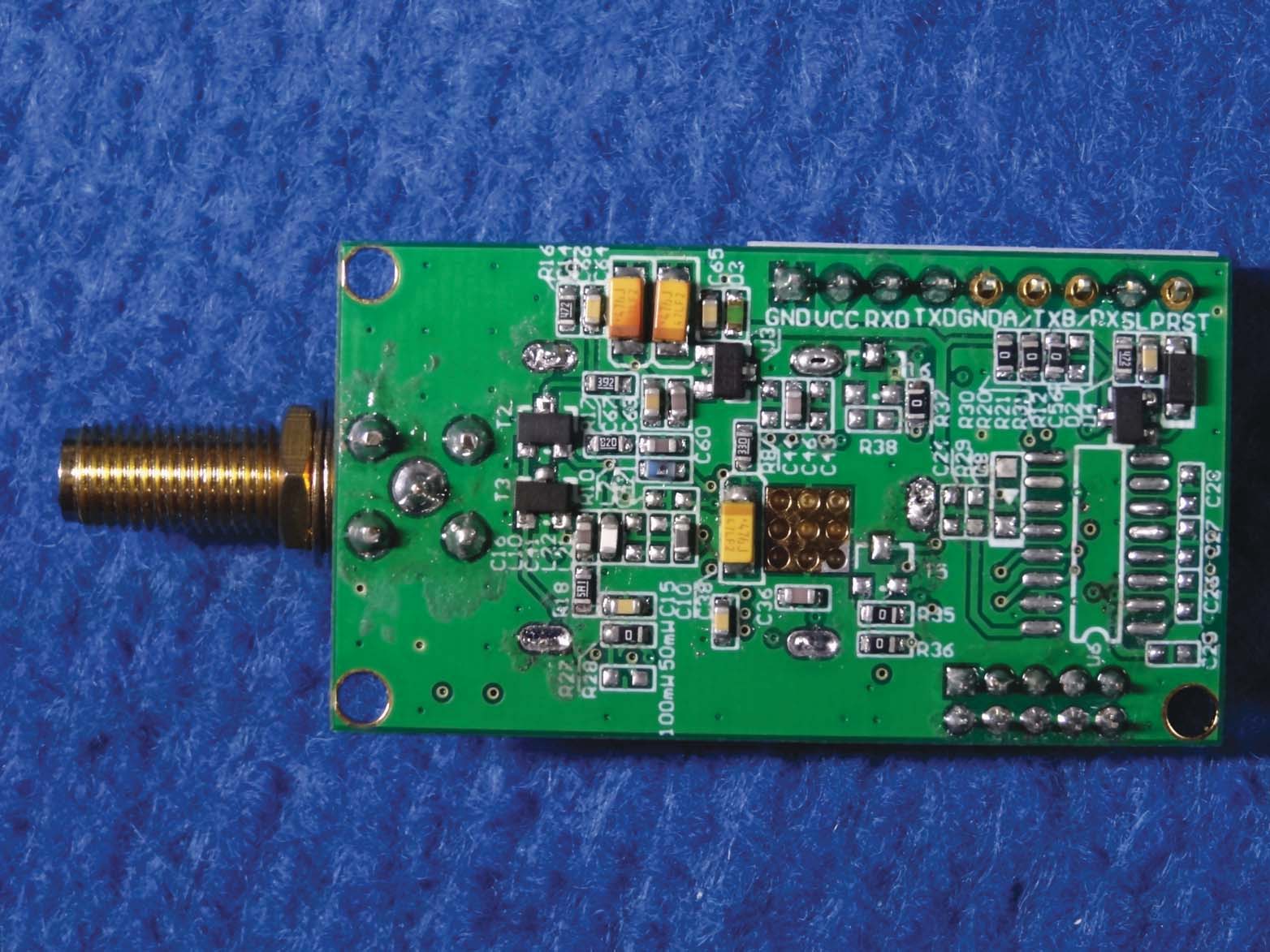

RBC-1022Micro Power Wireless Data Module

ShangHai Sunray Technology Co.,Ltd China. Shanghai Tel：86-21-38953738/ 86-21-50275250 Fax：86-21-50270187 http://www.51sunray.com Page 1 of 6 SRWF-1022 Series Low Power Wireless Transceiver Module User Manual ShangHai Sunray Technology Co.,Ltd ShangHai Sunray Technology Co.,Ltd China. Shanghai Tel：86-21-38953738/ 86-21-50275250 Fax：86-21-50270187 http://www.51sunray.com Page 2 of 6 SRWF-1022 User Manual (V1.1) I. SRWF-1022 SRWF-1022, the low-power wireless transceiver module is used as the wireless command transceiver in short-ranges, with the small size, weight and power consumption and good stability and reliability. Narrowband low power UHF wireless data transmitters: II. Feature of SRWF-1022 Low Power RF Module 1. Using oscillator instead of crystal. The work temperature with oscillator is -40°C to 80°C(with crystal is -25°C to 75°C). 2. High reliability, small and light Single chip radio - frequency integrated circuit and single chip MCU are used for lessened peripheral circuits, high reliability, and low false bit rate. 3. ISM frequency band, requiring on application of frequency point. Carrier frequency of 470.5~479.5MHz. 4. High anti- interference and low BER(Bit Error Rate) Based on the GFSK modulation mode, the high- efficiency forward error correction channel encoding technology is used to enhance data’s resistance to both burst interference and random interference and the actual bit error rate of 10 -5 ~10 -6 can be achieved when channel bit error rate is 10 -2 . 5. Low power consumption +5V supply power, receiving current is 30±3mA。 III. technology support and after service : Serial number Item Parameter Note 1 Modulation mode GFSK 2 Work frequency 470.5~479.5 MHz 3 Receive sensitivity -117 dBm [email protected] 4 Transmitting current 90±10mA 5 Receiving current 30±3mA 6 Sleeping current 5±2uA 7 Interface velocity 1200/2400/4800/9600/19200bps 8 Interface mode VCC,GND,GPIOs ShangHai Sunray Technology Co.,Ltd China. Shanghai Tel：86-21-38953738/ 86-21-50275250 Fax：86-21-50270187 http://www.51sunray.com Page 3 of 6 9 Power supply +3.3～5VDC 10 Working temperature -40°C~80°C 11 Working humidity 10%~90%(relative humidity without condensation) 12 Dimension 47mm×26mm×10mm IV.Use SRWF-1022 wireless transceiver module SRWF-1022 supply 9- pin connector, and its definitions as well as below. The c onnection method of each terminal is shown in Table 1. Table 1 Pin No Pin Name Description Level Connected to Terminal Memo 1 GND Grounding of Power Supply Grounding of Power Supply 2 VCC Power supply DC ＋3.3～ 5.0V 3 RXD/TTL Serial data receiving end TTL TXD COM1 4 TXD/TTL Serial data transmitting end TTL RXD 5 SGND Grounding of the signal 6 A(TX) GPIO1 TTL A For button detect 7 B(RX) GPIO2 TTL B 8 SLEEP Sleep control (Input) TTL Sleep control signal input Low level enable t>15ms 9 RESET Reset control (input) TTL Reset signal input Negative pulse reset 1ms *** When the level of GPIOs（A and B terminal ）changes, the 1022 module will send out the control command, and the remote receiver will act according to the command received. V.Setting of the channel 1． Before using SRWF-1022, you have to make simple configuration of your ShangHai Sunray Technology Co.,Ltd China. Shanghai Tel：86-21-38953738/ 86-21-50275250 Fax：86-21-50270187 http://www.51sunray.com Page 4 of 6 system parameter, such as RF channels. channel A B C D Frequency(MHz) 1 √ 470.500 2 √ 475.500 3 √ 479.500 4 √ 471.500 5 √ √ 472.000 6 √ √ 472.500 7 √ √ 473.000 8 √ √ 473.500 9 √ √ 474.000 10 √ √ 474.500 11 √ √ √ 476.000 12 √ √ √ 476.500 13 √ √ √ 477.000 14 √ √ √ 477.500 15 √ √ √ √ 478.000 16 478.500 ShangHai Sunray Technology Co.,Ltd China. Shanghai Tel：86-21-38953738/ 86-21-50275250 Fax：86-21-50270187 http://www.51sunray.com Page 5 of 6 There is one group of 5-bit short-circuit wire (JP2) on the bottom right corner of SRWF-1022, defined as A、B、C、D、E respectively . A、B、C, D are used for channel selecting, but E is for parity format: E=0 (without shorter) parity 8E1/8O1/9N1 (default) E=1 (with shorter) parity 8N1 2: indicator function In transmitting mode, the red indicator light will twinkle. In receiving mode, the green indicator light will twinkle. VII.Sketch map of structural size (see below): Short circuit ShangHai Sunray Technology Co.,Ltd China. Shanghai Tel：86-21-38953738/ 86-21-50275250 Fax：86-21-50270187 http://www.51sunray.com Page 6 of 6 VIII. Technology support: We offer sufficient technology support for user use the module for free; mending broken module one year for free, always offer after service. To adapt different user structure, we can develop smaller module or various size modules ShangHai Sunray Technology Co.,Ltd ADDRASS: Floor8,No 560 Shengxia RD Zhangjiang Shanghai Pudong china Tel:+86-021-50275250/50275255 Fax:+86-021-50270187 Website: www.51sunray.com ShangHai Sunray Technology Co.,Ltd NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to …

Text truncated - open the document above for the full version.

Applicant/Grantee Shanghai Sunray Technology Co., Ltd. FCC ID: RBC-1022 Modular Transmitters Request for Modular Approval Requirements EUT Conditions Com ply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. SRWF-1022 Modular has a shielding, but the shielding cannot cover all RF components. NO 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with modular approval requirements under conditions of excessive data rates or over-modulation. SRWF-1022 module uses TI Company's CC1020 RF transceiver, and ATMEL ATMEGA88V microcontroller. The module send message from TTL to Air and receive the message from Air to TTL in 470.5~479.5MHz operation frequency. YES 3 The modular transmitter must have its own power supply regulation. The power supply of SRWF-1022 modular has been designed to power from host. The modular transmitter has its own power supply regulation. YES 4 The modular transmitter must comply with the antenna and transmission system requirements. The antenna of SRWF-1022 modular is a exposed antenna and the antenna type is inside thread SMA (F). It isn’t a normal SMA connector. The antenna gain is -1dBi. YES 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testin g shall be unmodified and commercially available (see Section 15.31(i)). SRWF-1022 Modular cannot work in a stand-alone configuration. During testing, It was inside of host for test. The host supply a DC power and when the ON or OFF button on the host was pushed some control data be sent out. It shows in file “SRWF-1022 TEST SETUP PHOTOS” NO 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The SRWF-1022 Modular has a permanently affixed label. Showed as: The outside of the host must display a label like the sample “Contains transmitter module FCC ID: RBC- 1022” Showed as: YES 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The related instruction has been added to last page in user manual. YES 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The SRWF-1022 Modular complies with this requirement. It shows in “SRWF-1022 User Manual” YES A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

March 7,2014 RBC-1022

March 7, 2014

FCC ID: RBC-1022 ANTENNA LOCATION Antenna

Label Location SRWF‐1022 FCCID:RBC‐1022 Contains transmitter module FCCID: RBC-1022.

TEST REPORT Report No.: EM201300847 Application No.: ZJ00035069 Client: Shanghai Sunray Technology Co., Ltd. Address: 8F, Bei Da 2, NO.560 Sheng Xia Rd, Pudong Zhangjiang, Shanghai, China Sample Description: Micro Power Wireless Data Module Model: SRWF-1022 Adding model： / FCC ID: RBC-1022 Test Specification: FCC Part 15.231,Subpart C:2012 Test Date: 2013-10-18 to 2014-05-06 Issue Date: 2014-05-06 Test Result: Pass. Prepared By: Reviewed By: Approved By: Test Engineer Technical Manager Manager Date:2014-05-06 Date:2014-05-06 Date:2014-05-06 Other Aspects: / Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2.0 / 01.Jan.2012 Report No.: EM201300847 Application No.: ZJ00035069 Page 2 of 32 FCC ID: RBC-1022 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: EM201300847 Application No.: ZJ00035069 Page 3 of 32 FCC ID: RBC-1022 Table of Contents 1. TEST RESULT SUMMARY ............................................................................................................................................... 4 2. GENERAL DESCRIPTION OF EUT................................................................................................................................. 5 2.1 APPLICANT .................................................................................................................................................................... 5 2.2 MANUFACTURER ......................................................................................................................................................... 5 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ............................................................................................. 5 3. LABORATORY AND ACCREDITATIONS ..................................................................................................................... 6 3.1 LABORATORY ............................................................................................................................................................... 6 3.2 ACCREDITATIONS ....................................................................................................................................................... 6 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................................... 6 3.4 LIST OF USED TEST EQUIPMENT AT GRGT ............................................................................................................. 7 4. TEST RESULTS ................................................................................................................................................................... 8 4.1 E.U.T. TEST CONDITIONS ............................................................................................................................................ 8 4.2 ANTENNA REQUIREMENT ......................................................................................................................................... 9 4.3 OCCUPIED BANDWIDTH ........................................................................................................................................... 10 4.3.1 LIMITS .................................................................................................................................................................... 10 4.3.2 TEST PROCEDURES ............................................................................................................................................. 10 4.3.3 TEST SETUP .......................................................................................................................................................... 10 4.3.4 TEST RESULTS ...................................................................................................................................................... 10 4.4 CEASE TRANSMISSION TIME AFTER ACTIVATION ............................................................................................ 12 4.4.1 LIMITS .................................................................................................................................................................... 12 4.4.2 TEST PROCEDURES ............................................................................................................................................. 12 4.4.3 TEST SETUP .......................................................................................................................................................... 12 4.4.4 TEST RESULTS ...................................................................................................................................................... 12 4.5 FIELD STRENGTH OF FUNDAMENTAL .................................................................................................................. 14 4.5.1 LIMITS .................................................................................................................................................................... 14 4.5.2 TEST PROCEDURES ....................................................................…

Text truncated - open the document above for the full version.

FCC ID: RBC-1002 TEST SETUP PHOTOS RADIATED SPURIOUS EMISSION TEST（Below 1GHz） RADIATED SPURIOUS EMISSION TEST（Above 1GHz）
