RBWE031451RFID MODULE

USER MANUAL Elo Touch Solutions RFID FOR ET3201L/ET4201L AND ET7001L User Manual– IDS 01 SERIES RFID Rev A, Page 1 of 3 For ET32 01L and ET4201L Touchmonitors for: Product Number: RFID MODULE FOR IDS01 Module Part Number: E031451 Locate and remove the access door on the back of the monitor. Connect the RFID antenna wire and the USB cable from the monitor to the peripheral board. Place the board in the position where the access door was. Secure the board into place with the provided screws. For ET7001L Touchmonitors: Connect the RFID peripheral to the available USB connection on the side of the monitor. Above is a side view of the monitor where the peripheral can be mounted. User Manual– IDS 01 SERIES RFID Rev A, Page 2 of 3 User Manual– IDS 01 SERIES RFID Rev A, Page 3 of 3 Secure the RFID reader with the provided screws. APPENDIX 1 FCC & Canadian Department of Communications This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users. 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) The module is approved using the FCC’ unlicensed modular transmitter approval’ method. Therefore the module must only be used with the originally approved antennas. As long as the 3 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.) IMPORTAMT NOTE: in the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product, in these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End product labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: RBWE031451”. The grantees’s FCC ID can be use only when all FCC compliance requirements are met. APPENDIX 2 Manual information that must be included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The end user manual shall include all required regulatory information/warring as show this manual. The users manual for OEM integrators must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20sm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. APPENDIX 3 FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: －Reorient or relocate the receiving antenna. －Increase the separation between the equipment and receiver. －Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. －Consult the dealer or an experienced radio/TV technician for help . Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of Co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter Safety Information To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

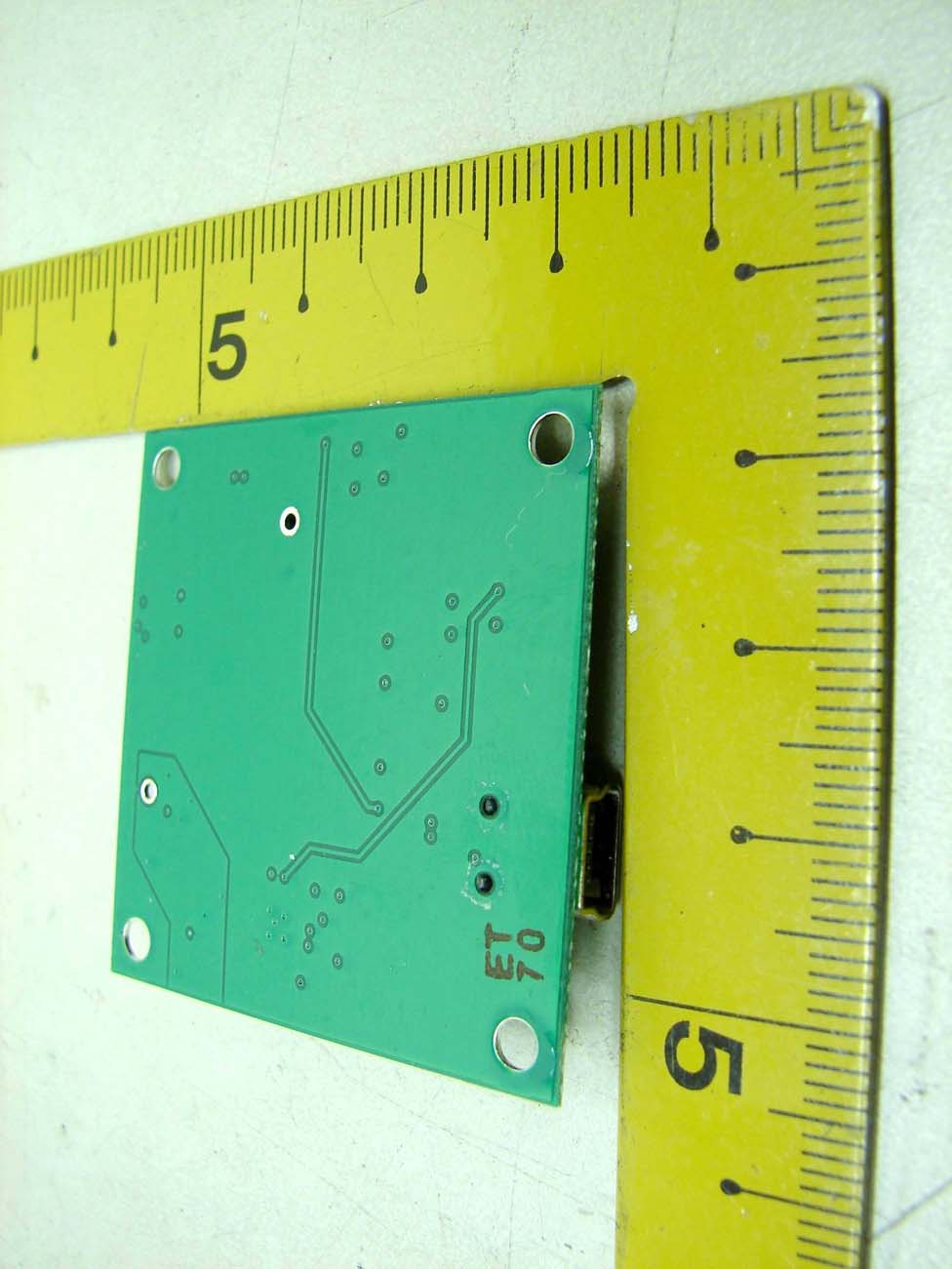

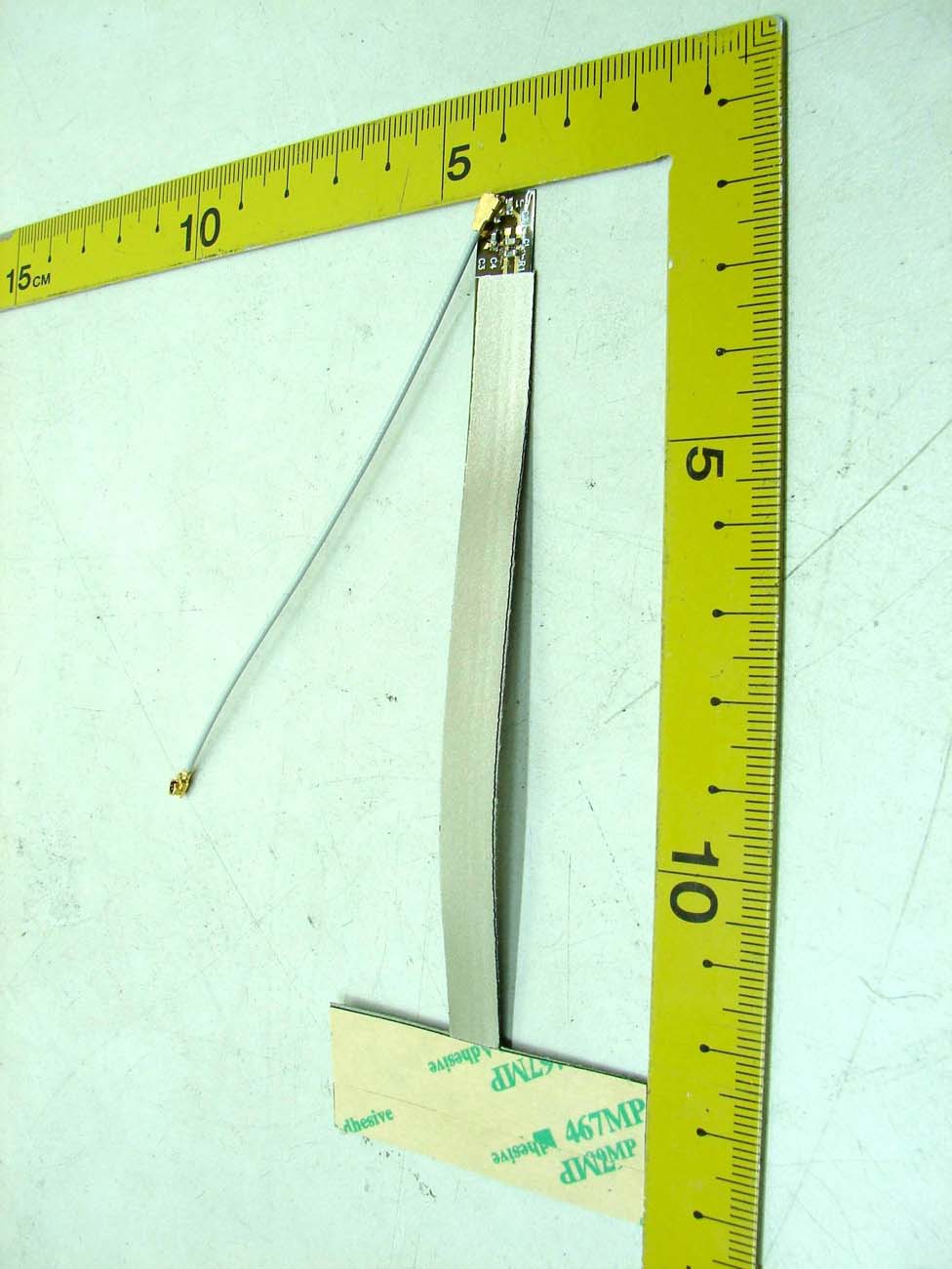

External Photos of EUT -------------------------------------------------------------- 1/5 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT -------------------------------------------------------------- 2/5 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT -------------------------------------------------------------- 3/5 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT -------------------------------------------------------------- 4/5 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT -------------------------------------------------------------- 5/5 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ----------------------------------------- 1/1 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Format: LABEL Size: 20 x 22 mm LABEL Position: LABEL FCC ID: RBWE031451 Model: E031451 The device complies with Part 15 of the FCC Rules.See instruction

Internal Photos of EUT ------------------------------------------------------------- 1/ 7 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ------------------------------------------------------------- 2/ 7 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ------------------------------------------------------------- 3/ 7 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ------------------------------------------------------------- 4/ 7 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ------------------------------------------------------------- 5/ 7 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ------------------------------------------------------------- 6/ 7 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ------------------------------------------------------------- 7/ 7 Applicant: Elo Touch Solutions, Inc. FCC ID: RBWE031451 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Test Report ------------------------------------------------------------------------------- 1/24 Report No.: J2215120130, FCC Part 15.225 Training Research Co., Ltd. TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of RFID MODULE Applicant : Elo Touch Solutions, Inc. EUT : RFID MODULE FCC ID : RBWE031451 Model : E031451 Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan Test Report ------------------------------------------------------------------------------- 2/24 Report No.: J2215120130, FCC Part 15.225 Training Research Co., Ltd. TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All tests were conducted by Training Research Co., Ltd., No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.225. Applicant : Elo Touch Solutions, Inc. Applicant address : 301 Constitution Drive, Menlo Park, California, U.S.A., 94025 Report No. : J2215120130 Test Date : December 20, 2012 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. Test Report ------------------------------------------------------------------------------- 3/24 Report No.: J2215120130, FCC Part 15.225 Training Research Co., Ltd. TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents CHAPTER 1 GENERAL ........................................................................................... 5 1.1 INTRODUCTION ........................................................................................... 5 1.2 DESCRIPTION OF EUT ................................................................................. 5 1.3 TEST METHOD ............................................................................................. 5 1.4 DESCRIPTION OF SUPPORT EQUIPMENT ...................................................... 6 1.5 TEST PROCEDURE ....................................................................................... 6 1.6 LOCATION OF THE TEST SITE ...................................................................... 6 1.7 GENERAL TEST CONDITION ........................................................................ 6 CHAPTER 2 CONDUCTED EMISSIONS MEASUREMENTS ....................................... 7 2.1 TEST CONDITION & SETUP ......................................................................... 7 2.2 LIST OF TEST INSTRUMENTS ....................................................................... 8 2.3 TEST RESULT OF CONDUCTED EMISSIONS .................................................. 9 CHAPTER 3 RADIATED EMISSION MEASUREMENTS .......................................... 10 3.1 HARMONIC AND SPURIOUS EMISSION ....................................................... 10 3.1.1 Test Condition and Setup ............................................................. 10 3.1.2 List of Test Instruments ............................................................... 11 3.1.3 Configuration of System Under Test ........................................... 12 3.1.4 Test Result of Harmonic and Spurious Emission ........................ 13 3.2 PEAK POWER OF FUNDAMENTAL FREQUENCY, HARMONIC AND SPURIOUS MEASUREMENT .................................................................................................. 15 3.2.1 Test Condition and Setup ............................................................. 15 3.2.2 List of Test Instruments ............................................................... 15 3.2.3 Configuration of System Under Test ........................................... 16 3.2.4 Test Result of Fundamental Emission ......................................... 17 3.2.5 Test Result of Harmonic and Spurious Emission ........................ 19 3.3 TEST RESULT OF THE BANDEDGE ............................................................. 20 CHAPTER 4 FREQUENCY STABILITY (PART 2.1055, 15.225 (E)) ........................ 21 4.1 TEST PROCEDURE: (TEMPERATURE) ......................................................... 21 Test Report ------------------------------------------------------------------------------- 4/24 Report No.: J2215120130, FCC Part 15.225 Training Research Co., Ltd. TEL: 886-2-26935155, Fax: 886-2-26934440 4.2 TEST RESULT: ........................................................................................... 21 4.3 TEST EQUIPMENT: .................................................................................... 23 4.4 TEST PROCEDURE:(VOLTAGE) ................................................................... 23 4.5 TEST RESULT: ........................................................................................... 23 Frequency Stability of Voltage Variation Measurement Table ............... 23 Test Report ------------------------------------------------------------------------------- 5/24 Report No.: J2215120130, FCC Part 15.225 Training Research Co., Ltd. TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 1 General 1.1 Introduction The following measurement report is submitted on behalf of Applicant in support of a RF mouse certification in accordance with Part 2 Subpart J and Part 15 Subpart C of the Commission's Rules and Regulations. 1.2 Description of EUT FCC ID : RBWE031451 Product Name : RFID MODULE Model : E031451 Frequency Range : 13.553MHz ~ 13.567MHz Operating Frequency : 13.56MHz Modulation Skill : ASK Power Type : By AC/DC Adapter 1.3 Test meth…
