RBWECMAInteractive Digital Signage Computer Module

USER GUIDE Elo Touch Solutions Interactive Digital Signage Android Computer Module For IDS 3201L/4201L/5501L/5501LT/7001L/7001LT UM600069 Rev 01 User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 2 of 26 Copyright © 2015 Elo Touch Solutions, Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its affiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes. Trademark Acknowledgments AccuTouch, CarrollTouch, Elo (logo), Elo Touch Solutions, Elo TouchSystems, IntelliTouch, iTouch are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation. User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 3 of 26 Table of Contents Chapter 1 - Introduction ........................................................................... 4 Chapter 2 – Unpacking .............................................................................. 5 Chapter 3 – Computer Module Installation ........................................ 6 Chapter 4 – Technical Support ............................................................... 17 Chapter 5 – Safety & Maintenance ........................................................ 18 Chapter 6 – Regulatory Information ................................................... 20 Chapter 7 – Warranty ............................................................................... 26 User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 4 of 26 Chapter 1 - Introduction Product Description The Android Interactive Digital Signage Computer Module (AECMG) is designed to slide into the bay on the rear of the Interactive Digital Signage Generation 2 (IDS 01) touchmonitors, without any effect on the monitor’s form factor or requiring any extra cabling, turning your Interactive Digital Signage TouchMonitor into an Interactive Digital Signage All-In-One TouchComputer. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit and prevent risks to user safety. This manual contains information that is important for the proper setup and maintenance of the Computer Module. Before setting up and powering on your new computer module, read through this manual, especially the Computer Module Installation chapter. User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 5 of 26 Chapter 2 – Unpacking Unpacking the Digital Signage Computer Module Check that the following items are present and in good condition:  Computer Module  Quick Install Guide  PC Box Cable Cover User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 6 of 26 Chapter 3 Computer Module Installation Installation 1. Use a Phillips head screwdriver to remove the access cover plate on the back of the touchmonitor. 2. Slide the Computer Module all the way into the bay until it snaps into place. 3. Tighten the thumbscrews to secure the computer module inside the bay. NOTE: If any cables are connected to the computer module, a cable security cover is included with the computer module kit. Install it by attaching the mounting clip and bracket as shown in the user guide for the computer module and then fastening the thumbscrews on the cover. User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 7 of 26 Connector Panel & Interfaces Touchmonitor & Computer Module Connections 1. Once the Computer Module has been installed, connect the AC power cable between the touchmonitor’s POWER IN connector and the AC power source. NOTE: Computer Module can be installed when the AC power cable is connected (Hot pluggable). Do not remove the computer module unless it is completely shut off. 2. Make any desired connections to the Computer Module connector panel. 3. Press the touchmonitor’s power button to turn on the Computer Module. User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 8 of 26 Operating System Setup – Android Android version 4.4 will be pre-loaded on the system. Gesturing Images: For multi-touch monitors, the following gestures are possible: Dual Touch Gestures and their Functions: Swipe – The action of moving a finger across the screen. - The ability to swipe through from one picture to another or drag an icon Pinch-Zoom – Zoom into a picture - Place two fingers on the screen and move them closer together to zoom in. Move your fingers away from each other to zoom out. Before zoom After zoom For Optical Monitors: - If multi touch is required, contact Elo Customer Service for the process to enable six simultaneous touches. Physical Button Functionality Parameter Available Adjustment Home Button Returns to the Home page User Guide – ELO-KIT-ECMG2-AND UM600069 Rev A, Page 9 of 26 Audio Earphone output with microphone input is supported. Note: If Bluetooth speakers are used, ensure that the speakers are not placed directly in front of the monitor. This can cause interference and disrupt your listening experience. Wifi + Bluetooth The following protocols are supported for Wifi and Bluetooth:  Bluetooth 4.0+EDR Class 2, A2DP/ HID (Keyboard/Mouse), SPP (printer), Barcode scanner (HID/SPP) support.  IEEE 802.11b/g/n; WEP/WPA/WPA2 capable  iBeacon capable General Purpose Input/Output (GPIO) Support The AECM supports a GPIO which can be used under the following conditions: Max Voltage: 5V Max Current: 200mA There are two…

Text truncated - open the document above for the full version.

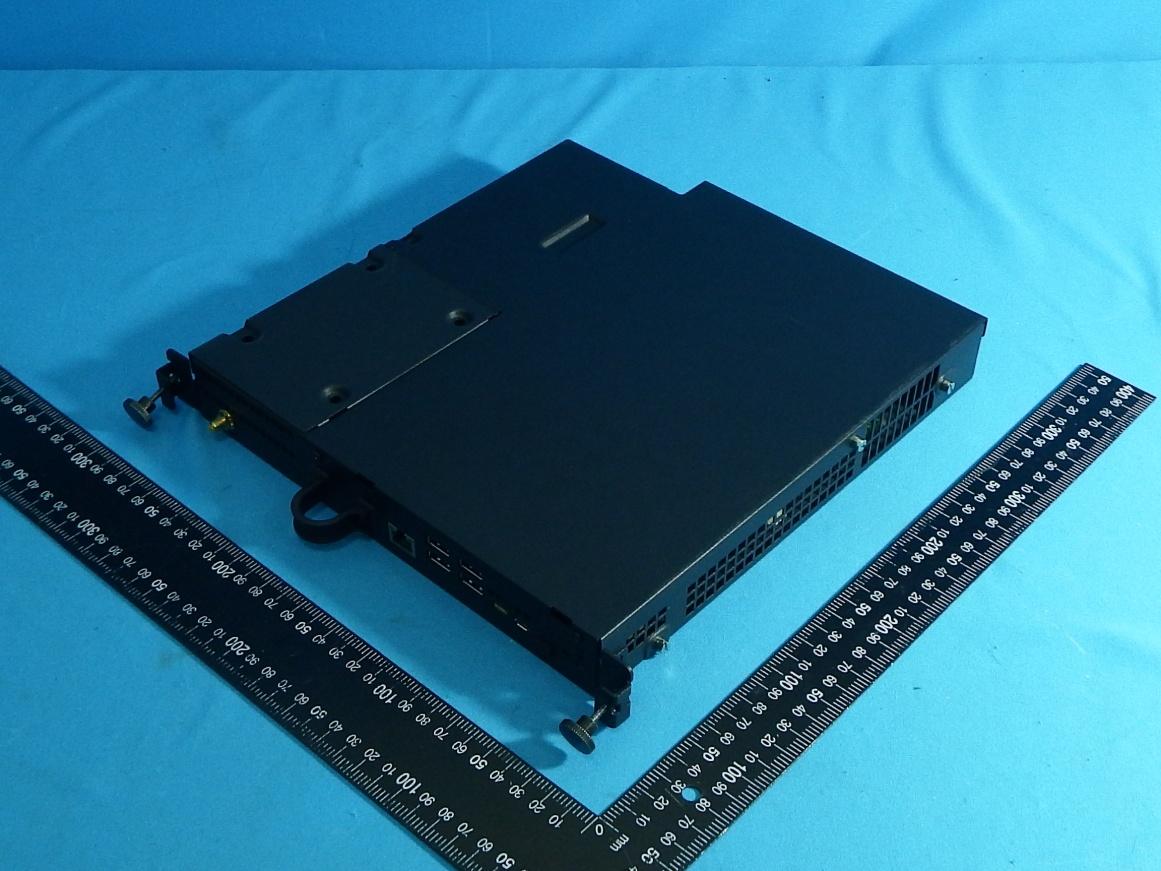

Report No. : EP5O0302 SPORTON International Inc. Page Number : B1 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP5O0302 SPORTON International Inc. Page Number : B2 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B3 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B18 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

1177 FCC ID :RBWECMA IC ID:10757B-ECMA 1177 FCC ID :RBWECMA IC ID:10757B-ECMA label location label location 126 mm

Report No. : EP5O0302 SPORTON International Inc. Page Number : B3 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B4 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B5 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B6 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B7 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B8 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B9 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B10 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B11 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B12 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B13 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B14 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B15 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP5O0302 SPORTON International Inc. Page Number : B16 of B18 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Maximum Permissible Exposure Report No. : FA5O0302 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Maximum Permissible Exposure Equipment : Interactive Digital Signage Computer Module Brand Name : Model No. : ELO-KIT-ECMG2-AND FCC ID : RBWECMA Standard : ANSI/IEEE C95.1 Applicant : Elo Touch Solutions, Inc. 1033 McCarthy Blvd, Milpitas, CA95035, USA The product sample received on Oct. 03, 2015 and completely tested on Nov. 25, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI/IEEE C95.1 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager Maximum Permissible Exposure Report No. : FA5O0302 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 HUMAN EXPOSURE ASSESSMENT ................................................................................................... 4 1.1 Maximum Permissible Exposure ............................................................................................................ 4 Maximum Permissible Exposure Report No. : FA5O0302 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FA5O0302 Rev. 01 Initial issue of report Dec. 16, 2015 Maximum Permissible Exposure Report No. : FA5O0302 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Maximum Permissible Exposure Report No. : FA5O0302 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 20.41 2400-2483.5 g 2412-2462 1-11 [11] 1 19.21 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 19.21 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 DG (dBi) EIRP Power PD (S) (mW/cm²) 11b 1 20.41 2.00 22.41 0.03467 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Maximum Permissible Exposure Report No. : FA5O0302 SPORTON INTERNATIONAL INC. Page No. : 6 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (Bluetooth) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 BR / EDR 2402-2480 0-78 [79] 1 0.83 2400-2483.5 v4.0 LE 2402-2480 0-39 [40] 1 0.13 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode RF Output Power Antenna Gain (dBi) EIRP Power PD (S) (mW/cm²) BR / EDR 0.83 2.00 2.83 0.000382 v4.0 LE 0.13 2.00 2.13 0.000325 Maximum Permissible Exposure Limit (mW/cm²) 1

FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : 1 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Interactive Digital Signage Computer Module Brand Name : Model No. : ELO-KIT-ECMG2-AND FCC ID : RBWECMA Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DSS Applicant : Elo Touch Solutions, Inc. 1033 McCarthy Blvd, Milpitas, CA95035, USA The product sample received on Oct. 03, 2015 and completely tested on Nov. 23, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : 2 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 20dB Bandwidth and Carrier Frequency Separation............................................................................ 15 3.3 Number of Hopping Frequencies ......................................................................................................... 17 3.4 Time of Occupancy (Dwell Time) ......................................................................................................... 19 3.5 RF Output Power .................................................................................................................................. 21 3.6 Transmitter Radiated Bandedge Emissions ......................................................................................... 23 3.7 Transmitter Radiated Unwanted Emissions ......................................................................................... 25 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 36 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : 3 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 15.9700MHz 37.11 (Margin 22.89dB) - QP 31.68 (Margin 18.32dB) - AV FCC 15.207 Complied 3.2 15.247(a) 20dB Bandwidth EDR: 1.3025 MHz N/A Complied 3.2 15.247(a) Carrier Frequency Separation (ChS) EDR: 1.0029MHz ChS ≥ BW 20dB x2/3. Complied 3.3 15.247(a) Number of Hopping Frequencies (N) Max: 79 Min: 15 N ≥ 15 Complied 3.4 15.247(a) Time of Occupancy (Dwell Time) EDR: 0.314sec 0.4 s within 0.4 x N Complied 3.5 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] BR: 1.08 EDR: 2.19 Power [dBm] BR:21 EDR:21 Complied 3.6 15.247(d) Transmitter Radiated Bandedge Emissions Restricted Bands [dBuV/m at 3m]: 2483.52MHz 57.24 (Margin 16.76dB) - PK 44.78 (Margin 9.22dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.7 15.247(d) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]:7440MHz 52.56 (Margin 21.44dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : 4 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR5O0302AD Rev. 01 Initial issue of report Dec. 16, 2015 2500-2690 FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : 5 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequenc…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Conducted Emissions Test Configuration Front view Rear view FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Side view FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz Front view Rear view FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Front view Rear view FCC Test Report Report No. : FR5O0302AD SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Front view Rear view
