Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
USER MANUAL Elo Touch Solutions RFID FOR ET1523L AND ET1723L User Manualβ 23 SERIES MONITORS RFID Rev A, Page 1 of 3 Locate and remove the peripheral cover in the top position on the back of the monitor. Connect the RFID peripheral to the available USB connection within the peripheral slot on the top of the monitor. Above is a back view of the monitor where the peripheral can be mounted. Secure the RFID reader with the provided screws. Emissions and Immunity Information Notice to Users in the United States: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ο· Reorient or relocate the receiving antenna. User Manualβ23 SERIES MONITORS RFID Rev A, Page 2 of 3 User Manualβ23 SERIES MONITORS RFID Rev A, Page 3 of 3 ο· Increase the separation between the equipment and receiver. ο· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ο· Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

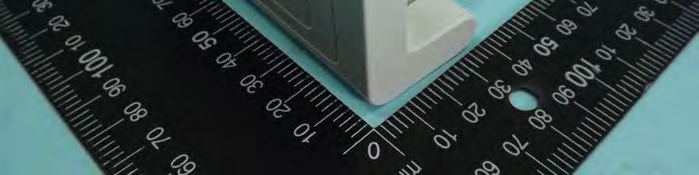

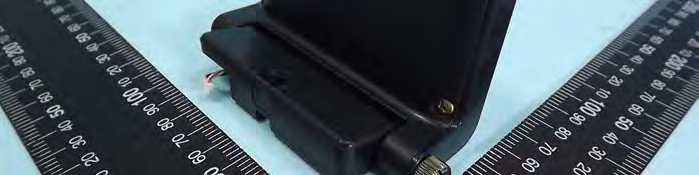

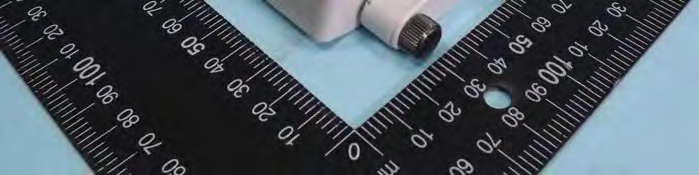

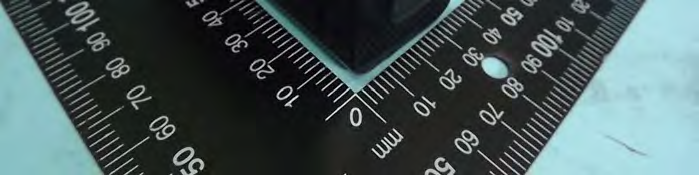

FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B1 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B2 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B3 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973
Production label Box label SN label on carton Carton label E12L000001 MODEL XXXXXXXX-XXXX-X-XX-X PART NO. EXXXXXX UPC CODE X XX X X X X X X X X X X SERIAL NO. A08L000001 MADE IN CHINA REF TOMp500310 FOR S/N RULE Symbology style: EAN 13 ELO-RFID-1523L-1723L-BL-R E326847 ELO-RFID-1523L-1723L-BL-R MADE IN CHINA ELO-RFID-1523L-1723L Part number E326847 ELO-RFID-1523L-1723L-BL-R E12L000001 A Made in China/ 301 Constitution Drive Menlo Park,CA 94025 www.elotouch.com :λͺ¨λΈλͺ μ€κ΅μμ λ§λ Elo Touch Solutions Model/εθ/εε·/ CMIIT ID: XXXX FCC ID: RBWELO-RFID KCC-CRM-ABC-XXXXX A/S μ° λ½μ² : 82-2-3415-4658 Manufacturer: EU importer: Elo Touch Solutions (Belgium) NV. Brand name Elo Touch Solutions Inc. : Elo Touch Solutions
FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B4 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B5 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B6 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B7 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0203 SPORTON International Inc. PAGE NUMBER : B8 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Jan. 28, 2013 FAX : 886-3-327-0973
FCC Test Report Report No. : FR2N0203 SPORTON INTERNATIONAL INC. Page No. : 1 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : RFID Brand Name : Elo Touch Solutions Model No. : ELO-RFID-1523L-1723L FCC ID : RBWELO-RFID Standard : 47 CFR FCC Part 15.225 Operating Band : 13.553 β 13.567 MHz (channel freq. 13.56 MHz) Equipment Class : DXX Applicant Manufacturer : Elo Touch Solutions, Inc 301 Constitution Dr, Menlo Park, CA 94025, USA The product sample received on Nov. 01, 2012 and completely tested on Jan. 11, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR2N0203 SPORTON INTERNATIONAL INC. Page No. : 2 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Support Equipment ........................................................................................................................... 6 1.3 Testing Applied Standards ................................................................................................................ 6 1.4 Testing Location Information ............................................................................................................. 6 1.5 Measurement Uncertainty ................................................................................................................. 7 2 TEST CONFIGURATION OF EUT .................................................................................................... 8 2.1 The Worst Case Modulation Configuration ........................................................................................ 8 2.2 Test Channel Frequencies Configuration ........................................................................................... 8 2.3 The Worst Case Measurement Configuration .................................................................................... 8 2.4 Test Setup Diagram .......................................................................................................................... 9 3 TRANSMITTER TEST RESULT ..................................................................................................... 11 3.1 AC Power-line Conducted Emissions .............................................................................................. 11 3.2 Emission Bandwidth ........................................................................................................................ 15 3.3 Field Strength of Fundamental Emissions and Spectrum Mask ........................................................ 17 3.4 Transmitter Radiated Unwanted Emissions ..................................................................................... 20 3.5 Frequency Stability.......................................................................................................................... 29 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 31 APPENDIX A. TEST PHOTOS .................................................................................................................. A5 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................. B8 FCC Test Report Report No. : FR2N0203 SPORTON INTERNATIONAL INC. Page No. : 3 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.5182420MHz 39.40 (Margin 16.60dB) - AV 32.79 (Margin 13.21dB) - QP FCC 15.207 Complied 3.2 15.215(c) Emission Bandwidth 20dB Bandwidth 2.66 [kHz] F L :13.5590 MHz F H :13.5616 MHz Fall in band F L Β 13.553 MHz F H Β 13.567 MHz Complied 3.3 15.225(a)~(d) Field Strength of Fundamental Emissions and Spectrum Mask Fundamental Emissions peak: 60.46 dBuV/m at 10m Device complies with spectrum mask β refer to test data 103.1 dBuV/m at 10m Complied 3.4 15.225(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 32.91MHz 36.11 (Margin 3.89dB) - PK FCC 15.209 Complied 3.5 15.225(e) Frequency Stability 30.97 ppm Β± 0.01% (100ppm) Complied FCC Test Report Report No. : FR2N0203 SPORTON INTERNATIONAL INC. Page No. : 4 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR2N0203 Rev. 01 Initial issue of report Jan. 28, 2013 FCC Test Report Report No. : FR2N0203 SPORTON INTERNATIONAL INC. Page No. : 5 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range Modulation Ch. Frequency (MHz) Channel Number Field Strength (dBuV/m) 13.553 β 13.567 MHz ISO 14443-2 (ASK) 13.56 1 60.46 Note 1: Field strength performed peak level at 10m. 1.1.2 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently attached) External antenna (dedicated antennas) 1.1.3 Type of EUT Identify EUT EUT Serial Number N/A Presentation of Equipment Production ; Pre-Production ; Prototype Type oβ¦
Text truncated - open the document above for the full version.
FCC Test Report Report No. : FR2N0203 Page No. : A1 of A5 Appendix A. Test Photos FCC Test Report Report No. : FR2N0203 Page No. : A2 of A5 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N0203 Page No. : A3 of A5 SIDE VIEW FCC Test Report Report No. : FR2N0203 Page No. : A4 of A5 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N0203 Page No. : A5 of A5 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW
| # | Rule Parts | Frequency Range | Power Output | Tolerance |
|---|---|---|---|---|
| 1 | 15C | 13.56 MHz - 13.56 MHz | - | 0.0100000000 % |
