RBWEMC0550CHandheld wireless data terminal

USER MANUAL Elo Touch Solutions Elo Mobile Computer M50/M50C Non-Payment User Manual – Elo Mobile Computer M50/M50C UM600472 Rev A, page 2 of99  REVISION HISTORY Revision Eng. Date Description Draft Hector Amores 05/22/20 Draft. A Cameron Cole / Hector Amores / Bill Yu 12/21/2020 Initial release per CO-20-1884. Copyright © 2020 Elo Touch Solutions, Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc., and its Affiliates (collectively “Elo”) makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes. Trademark Acknowledgments Elo, Elo (logo), Elo Touch, Elo Touch Solutions, EloView, are trademarks of Elo and its Affiliates. User Manual – Elo Mobile Computer M50/M50C UM600472 Rev A, page 3 of99 Contents Section 1: Introduction ............................................................................................................................................................................................................................10 Product Description .............................................................................................................................................................................................................................. 11 Overview – Specifications .................................................................................................................................................................................................................... 11 Features: Elo Mobile Computer M50/M50C ...................................................................................................................................................................................... 12 Section 2: Getting Started .......................................................................................................................................................................................................................13 Unpacking .............................................................................................................................................................................................................................................. 14 Battery Installation ................................................................................................................................................................................................................................. 15 Battery Un-installation ........................................................................................................................................................................................................................... 16 Micro SD & Nano Sim Card Installation .............................................................................................................................................................................................. 17 Charging System & Power ................................................................................................................................................................................................................... 18 Charging the Handheld computer through USB type C Port ................................................................................................................................ 18 Charging Safety Features ........................................................................................................................................................................................... 18 Battery Status / Descriptions ....................................................................................................................................................................................... 18 Power Button ................................................................................................................................................................................................................. 18 Power LED Status .......................................................................................................................................................................................................... 18 Power / Function Buttons Features and Gestures ............................................................................................................................................................................ 19 Power button On-Screen display menu features ............................................................................................................................................................................. 19 Gestures .................................................................................................................................................................................................................................................. 19 Status Bar Icons and Definition ............................................................................................................................................................................................................ 20 About Touch Gestures .......................................................................................................…

Text truncated - open the document above for the full version.

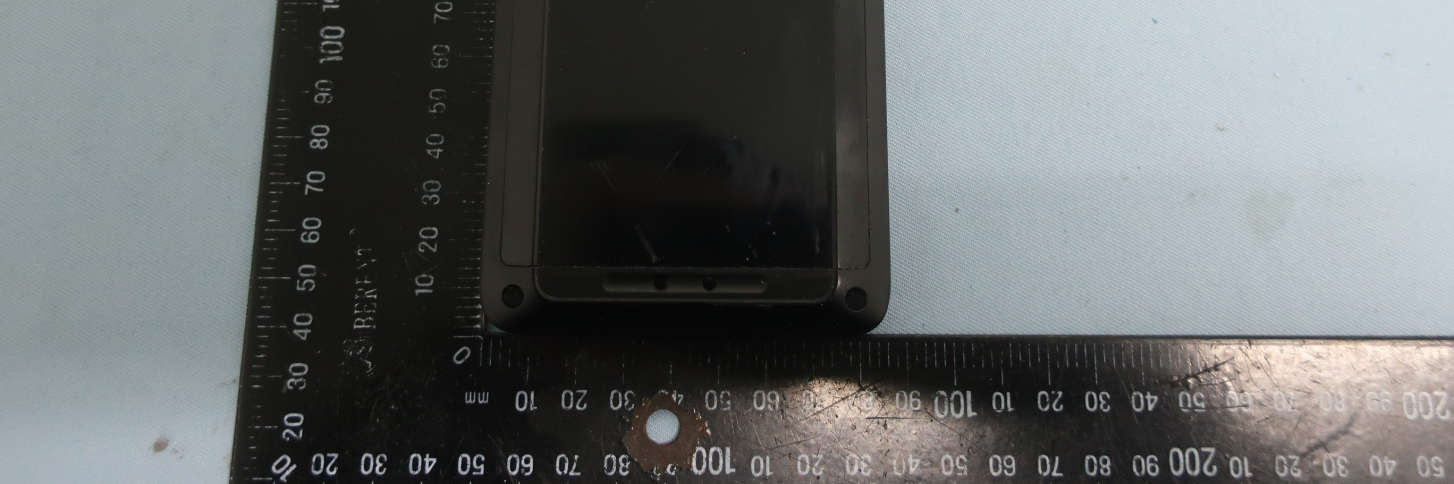

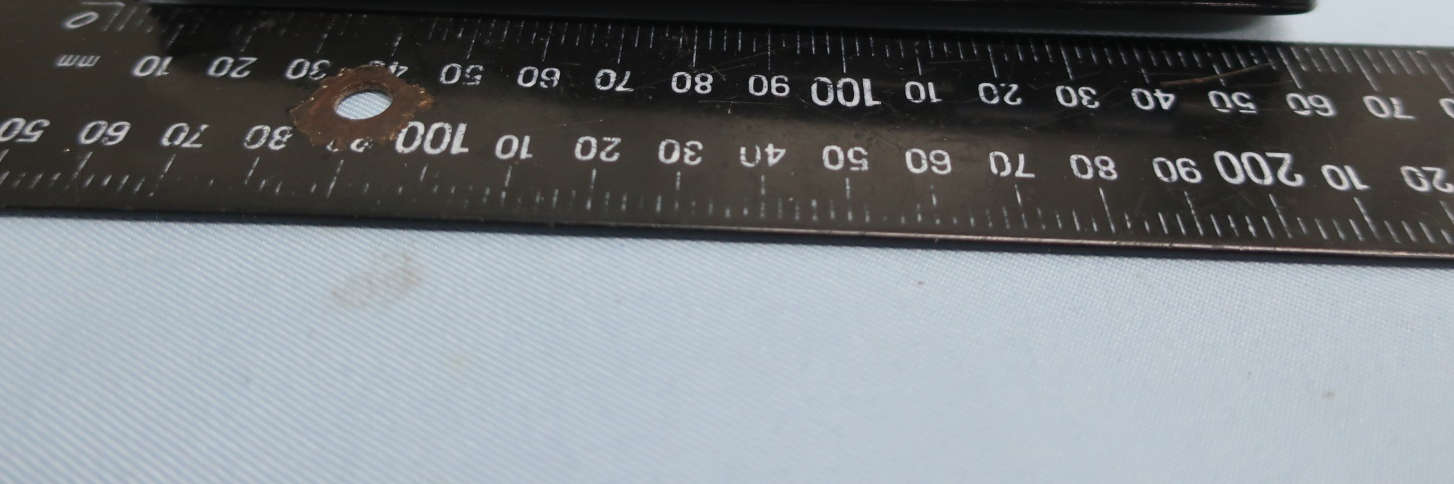

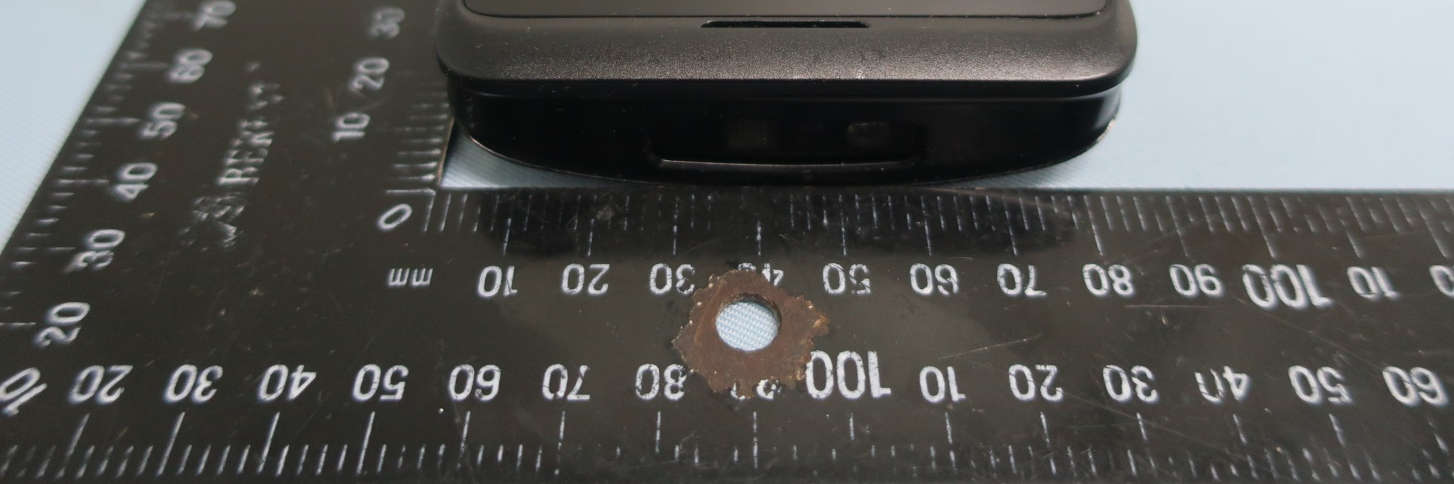

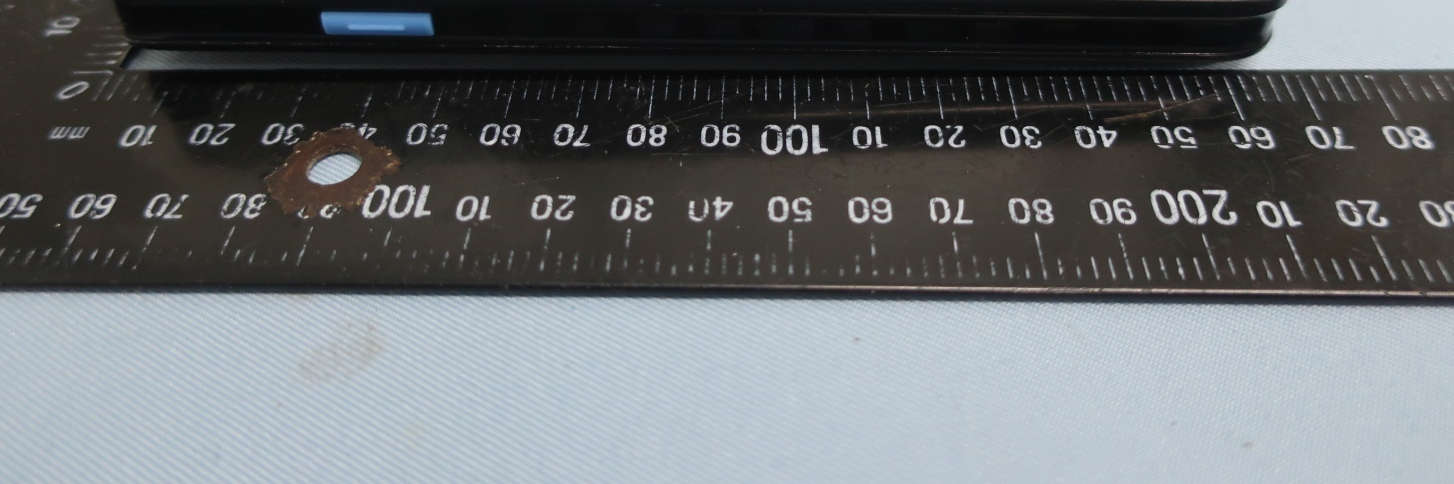

Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 1 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C 1. External Photograph Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 2 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 3 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 4 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 5 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 6 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 7 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C List of Accessory: Specification of Accessory AC Adapter Brand Name BILLION Model Name BQ018-090200CXX Power Rating I/P: 100-240 Vac~50/60Hz, 0.5A , O/P: 5Vdc, 3A or 9Vdc, 2A Battery Brand Name Model Name E864455 Power Rating 3.8Vdc, 4000mAh (Typ) Type Li-ion, Polymer Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 8 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 9 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C AC Adapter Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 10 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C AC Adapter (EU) Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 11 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C AC Adapter (UK) Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 12 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C AC Adapter (US) Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 13 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Battery Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 14 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C

Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 15 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Bluetooth & WLAN 2.4G&5G Antenna WLAN 2.4G&5G Antenna NFC Antenna 3. Internal Photograph of EUT WWAN Diversity Antenna WWAN Main Antenna Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 16 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 17 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 18 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 19 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 20 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 21 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 22 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 23 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 24 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 25 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 26 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 27 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 28 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 29 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 30 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 31 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 32 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 33 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 34 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 35 of 47 TEL : +86-512-57900158 Report Issued Date : Dec. 31, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : RBWEMC0550C Photographs of EUT Report No.: EP072709-01 Brand Name: ELO or / Model Name: EMC0550C Sporton International (Kunshan) Inc. Page Number : 36 of 47 TEL : …

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Page 1 of 44 TEL : +86-512-57900158 / FAX : +86-512-57900958 Issued Date : Dec. 29, 2020 Form version: 200414 FCC SAR Test Report Report No. : FA072709-01 FCC SAR Test Report APPLICANT : Elo Touch Solutions, Inc. EQUIPMENT : Handheld wireless data terminal BRAND NAME : ELO or MODEL NAME : EMC0550C FCC ID : RBWEMC0550C STANDARD : FCC 47 CFR Part 2 (2.1093) The product was received on Oct. 19, 2020 and testing was started from Oct. 29, 2020 and completed on Dec. 09, 2020. We, Sporton International (Kunshan) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this variant report apply exclusively to the tested model / sample. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Rose Wang / Supervisor Approved by: Kat Yin / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Page 2 of 44 TEL : +86-512-57900158 / FAX : +86-512-57900958 Issued Date : Dec. 29, 2020 Form version: 200414 FCC SAR Test Report Report No. : FA072709-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 7.1 E-Field Probe ........................................................................................................................................................12 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 7.3 Phantom ................................................................................................................................................................13 7.4 Device Holder........................................................................................................................................................14 8. Measurement Procedures ...........................................................................................................................................15 8.1 Spatial Peak SAR Evaluation ................................................................................................................................15 8.2 Power Reference Measurement............................................................................................................................16 8.3 Area Scan .............................................................................................................................................................16 8.4 Zoom Scan ............................................................................................................................................................17 8.5 Volume Scan Procedures ......................................................................................................................................17 8.6 Power Drift Monitoring ...........................................................................................................................................17 9. Test Equipment List .....................................................................................................................................................18 10. System Verification ....................................................................................................................................................19 10.1 Tissue Simulating Liquids ....................................................................................................................................19 10.2 Tissue Verification ......................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.30 02_WCDMA IV_RMC 12.2Kbps_Front_10mm_Ch1413 Communication System: UID 0, WCDMA (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1732.6 MHz; σ = 1.349 S/m; ε r = 40.567; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(7.72, 7.72, 7.72); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Serial: TP-1753 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.545 W/kg Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.25 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.628 W/kg SAR(1 g) = 0.371 W/kg; SAR(10 g) = 0.220 W/kg Maximum value of SAR (measured) = 0.526 W/kg 0 dB = 0.526 W/kg = -2.79 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.31 03_WCDMA V_RMC 12.2Kbps_Back_10mm_Ch4182 Communication System: UID 0, WCDMA (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 836.4 MHz; σ = 0.897 S/m; ε r = 41.099; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(8.69, 8.69, 8.69); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Serial: TP-1753 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.133 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.307 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.173 W/kg SAR(1 g) = 0.104 W/kg; SAR(10 g) = 0.061 W/kg Maximum value of SAR (measured) = 0.142 W/kg 0 dB = 0.142 W/kg = -8.48 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.30 04_LTE Band 2_20M_QPSK_1RB_0Offse_Back_10mm_Ch18700 Communication System: UID 0, LTE-FDD (0); Frequency: 1860 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1860 MHz; σ = 1.333 S/m; ε r = 39.877; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(7.41, 7.41, 7.41); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Serial: TP-1753 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.208 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.064 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.240 W/kg SAR(1 g) = 0.145 W/kg; SAR(10 g) = 0.088 W/kg Maximum value of SAR (measured) = 0.205 W/kg 0 dB = 0.205 W/kg = -6.88 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.30 05_LTE Band 4_20M_QPSK_1RB_0Offse_Front_10mm_Ch20175 Communication System: UID 0, LTE-FDD (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1732.5 MHz; σ = 1.349 S/m; ε r = 40.567; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(7.72, 7.72, 7.72); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Serial: TP-1753 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.670 W/kg Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.86 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.777 W/kg SAR(1 g) = 0.463 W/kg; SAR(10 g) = 0.274 W/kg Maximum value of SAR (measured) = 0.647 W/kg 0 dB = 0.647 W/kg = -1.89 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.29 06_LTE Band 12_10M_QPSK_25RB_0Offse_Back_10mm_Ch23095 Communication System: UID 0, LTE FDD (0); Frequency: 707.5 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 707.5 MHz; σ = 0.864 S/m; ε r = 42.878; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(9.06, 9.06, 9.06); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Serial: TP-1753 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (81x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0287 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.757 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.0320 W/kg SAR(1 g) = 0.024 W/kg; SAR(10 g) = 0.019 W/kg Maximum value of SAR (measured) = 0.0288 W/kg 0 dB = 0.0288 W/kg = -15.41 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.30 07_LTE Band 66_20M_QPSK_1RB_0Offse_Front_10mm_Ch132322 Communication System: UID 0, LTE FDD (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1745 MHz; σ = 1.361 S/m; ε r = 40.52; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(7.72, 7.72, 7.72); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Seria…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.30 15_LTE Band 2_20M_QPSK_1RB_0Offse_Left Side_0mm_Ch18700 Communication System: UID 0, LTE-FDD (0); Frequency: 1860 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1860 MHz; σ = 1.333 S/m; ε r = 39.877; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(7.41, 7.41, 7.41); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Serial: TP-1753 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (41x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.35 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.32 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.64 W/kg SAR(1 g) = 0.836 W/kg; SAR(10 g) = 0.426 W/kg Maximum value of SAR (measured) = 1.31 W/kg 0 dB = 1.31 W/kg = 1.17 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.10.30 16_LTE Band 4_20M_QPSK_1RB_0Offse_Front_0mm_Ch20175 Communication System: UID 0, LTE-FDD (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1732.5 MHz; σ = 1.349 S/m; ε r = 40.567; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3843; ConvF(7.72, 7.72, 7.72); Calibrated: 2020.9.23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn656; Calibrated: 2019.12.17 - Phantom: SAM1; Type: SAM; Serial: TP-1753 - Measurement SW: DASY52, Version 52…

Text truncated - open the document above for the full version.
