RBWESY15I1Touch All-in-One Computer

USER MANUAL Elo Touch Solutions ESY10i1 10.1” i-Series Interactive Signage ESY15i1 15.6” i-Series Interactive Signage ESY22i1 21.5” i-Series Interactive Signage SW602242 Rev A User Manual: i-Series Interactive Signage SW602242 Rev A, Page 2 of 31 Copyright © 2014 Elo Touch Solutions, Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afffiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes. Trademark Acknowledgments AccuTouch, CarrollTouch, Elo, Elo (logo), Elo Touch, Elo Touch Solutions, Elo TouchSystems, IntelliTouch, iTouch, SecureTouch, TouchTools and VuPoint are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation. Android is a trademark of Google Corporation. User Manual: i-Series Interactive Signage SW602242 Rev A, Page 3 of 31 Table of Contents Chapter 1 – Introduction ........................................................................... 4 Chapter 2 – Unpacking .............................................................................. 5 Chapter 3 – i-Series System Installation ............................................. 6 Chapter 4 – Mounting ................................................................................ 7 Chapter 5 – Operation ............................................................................... 10 Chapter 6 – Technical Support ............................................................... 23 Chapter 7 – Safety & Maintenance ........................................................ 24 Chapter 8 – Regulatory Information ................................................... 27 Chapter 9 – Warranty Information ......................................................... 30 User Manual: i-Series Interactive Signage SW602242 Rev A, Page 4 of 31 Chapter 1: Introduction Product Description Your new i-Series Interactive Signage system combines Elo Touch Solutions reliable performance with the latest developments in touchscreen technology and display design. This combination of features creates a natural flow of information between a user and the i-Series system. This i-Series system incorporates an active matrix thin-film-transistor, and LCD panel to provide superior display performance. Features that enhance this systems performance are PCAP touchscreen, Plug & Play compatibility, Micro-HDMI Out, LAN/Wifi and built-in speakers and headphone output capability. A general purpose input/output header is available and Bluetooth 4.0 is supported. Also 3G/4G LTE(Micro SIM card holder) support. Precautions Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your unit and prevent risks to user safety. See Chapter 8 for more information on i-Series system safety. This manual contains information that is important for the proper setup and maintenance of the i-Series. Before setting up and powering on your new system, read through this manual, especially the Installation, Mounting, and Operation chapters. User Manual: i-Series Interactive Signage SW602242 Rev A, Page 5 of 31 Chapter 2: Unpacking Unpacking the i-Series Interactive Signage System 1. Carefully cut through the top piece of tape to open the top flaps. 2. Remove the top layer of the packaging pulp. a. The accessory box and the covered monitor will now be visible. 3. Lift the accessory box out of the packaging box to provide access to the required cables. 4. Remove the monitor from the box and set it down. User Manual: i-Series Interactive Signage SW602242 Rev A, Page 6 of 31 Chapter 3: i-Series System Installation Connector Panel & Interfaces Check that the following items are present and in good condition:  i-Series system  Quick Install Guide  Power Brick  Cables o North America power cord o Europe power cord  Two (2) cable strain reliefs  Two (2) screws Remove the cable cover on the rear (when viewed in landscape orientation) to access the i-Series systems connector panel. i-Series System Connections to an External Computer Connect a Micro-HDMI cable between the system and the monitor. User Manual: i-Series Interactive Signage SW602242 Rev A, Page 7 of 31 Chapter 4: Mounting General Mounting Information The monitor following the VESA pattern described in the following section. For optimal touch performance, ensure that the monitor is supported fully and is as flat as possible. The following three mounting orientations are supported: Landscape, portrait and table top mode. For optimal touch performance, ensure that the monitor is supported fully and is as flat as possible. Portrait User Manual: i-Series Interactive Signage SW602242 Rev A, Page 8 of 31 Landscape Table Top Rear VESA Mount A four-hole 75x75mm (for 10.1”) and 100x100 (for 15.6”/21.5”) mounting pattern for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C. User Manual: i-Series Interactive Signage SW602242 Rev A, Page 9 of 31 10.1” 15.6” User Manual: i-Series Interactive Signage SW602242 Rev A, Page 10 of 31 21.5” User Manual: i-Series Interactive Signage SW602242 Rev A, Page 11 of 31 Chapter 5: Operation Power To turn the system on, press the po…

Text truncated - open the document above for the full version.

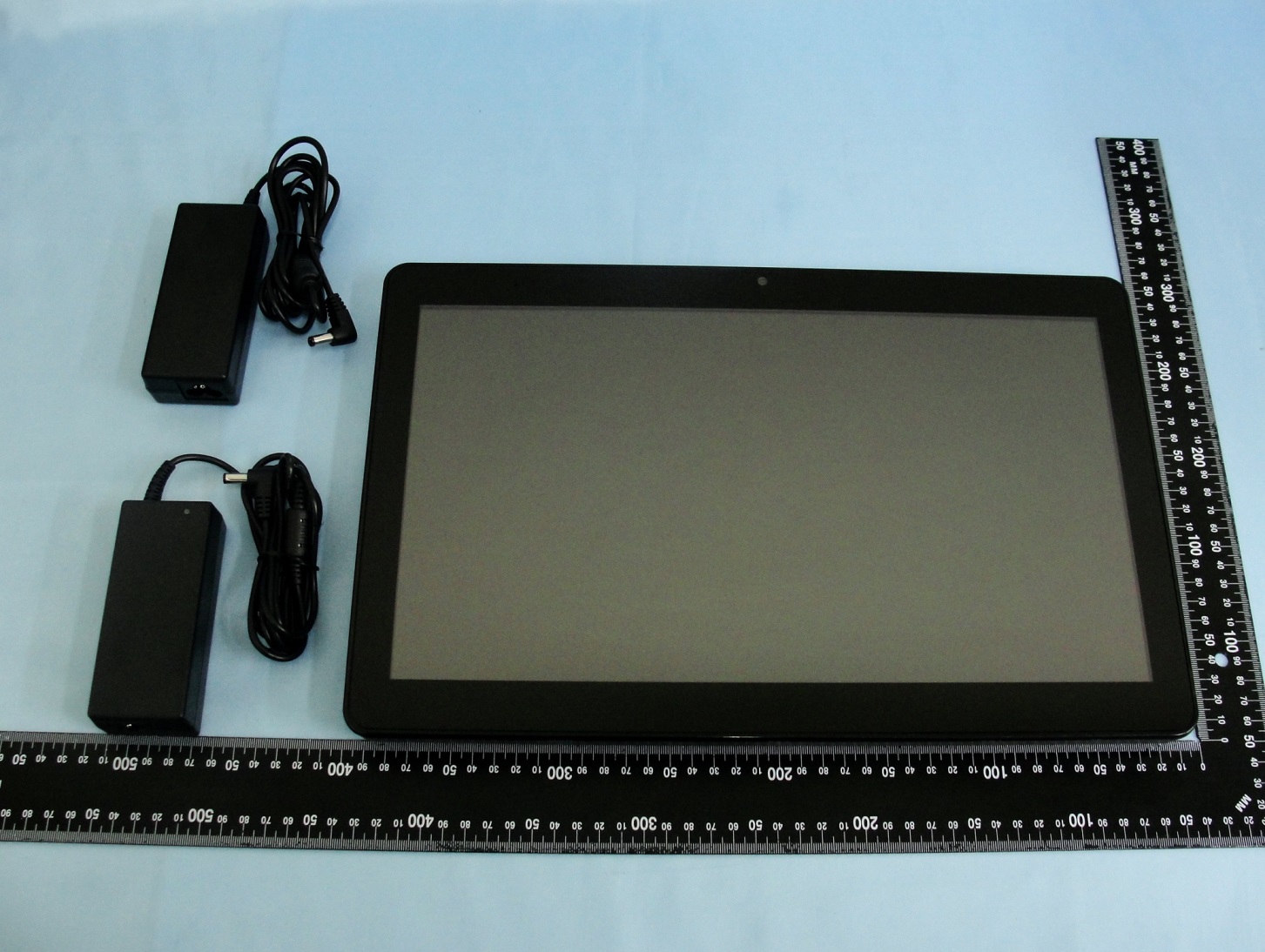

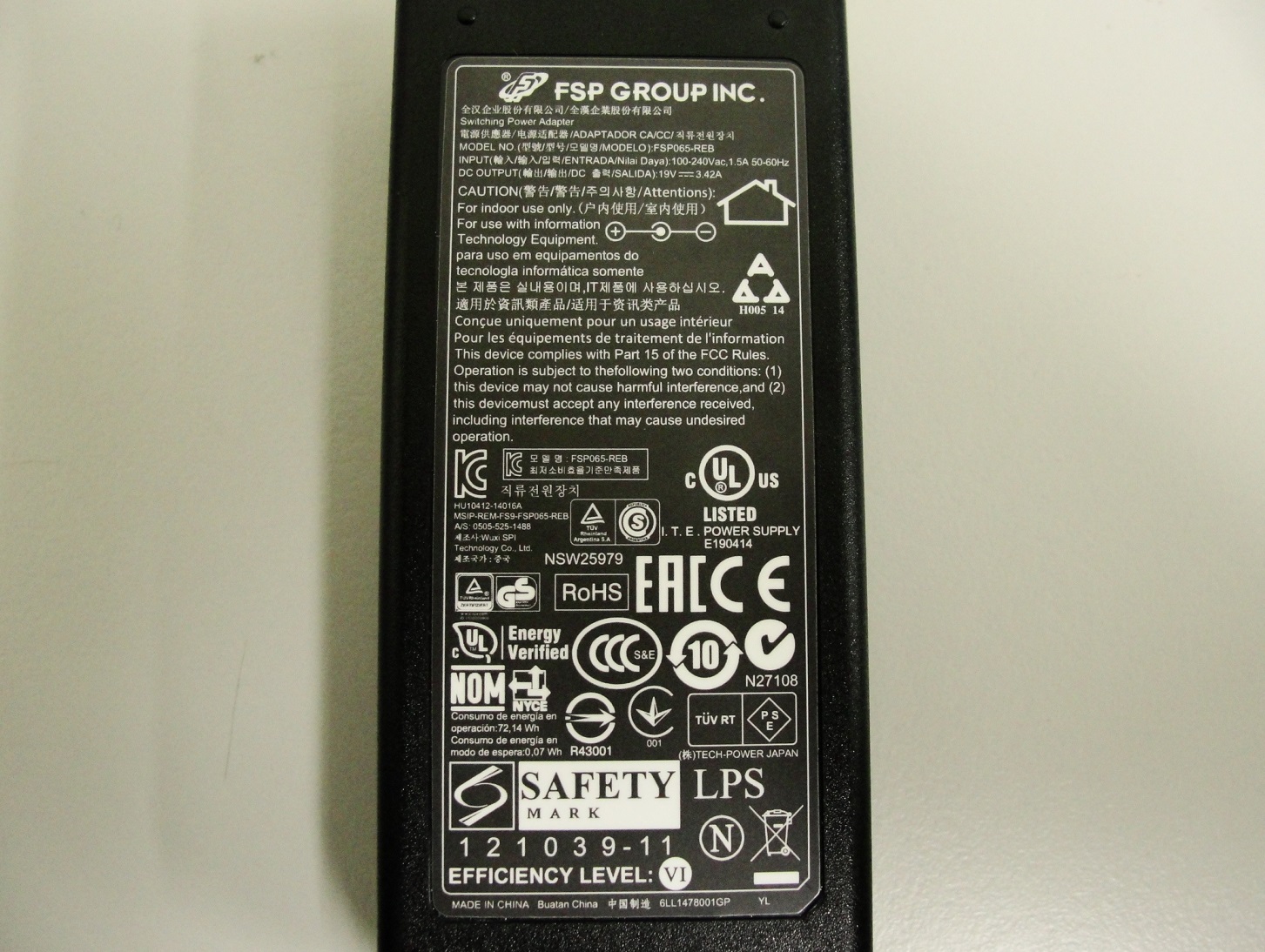

Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 1 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 1. External Photograph of EUT Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 2 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 3 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Specification of Accessory AC Adapter 1 Brand Name DELTA Model Name ADP-65JH HB AC Adapter 2 Brand Name FSP Model Name FSP065-REB Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 4 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 5 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 AC Adapter 1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 6 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 AC Adapter 2

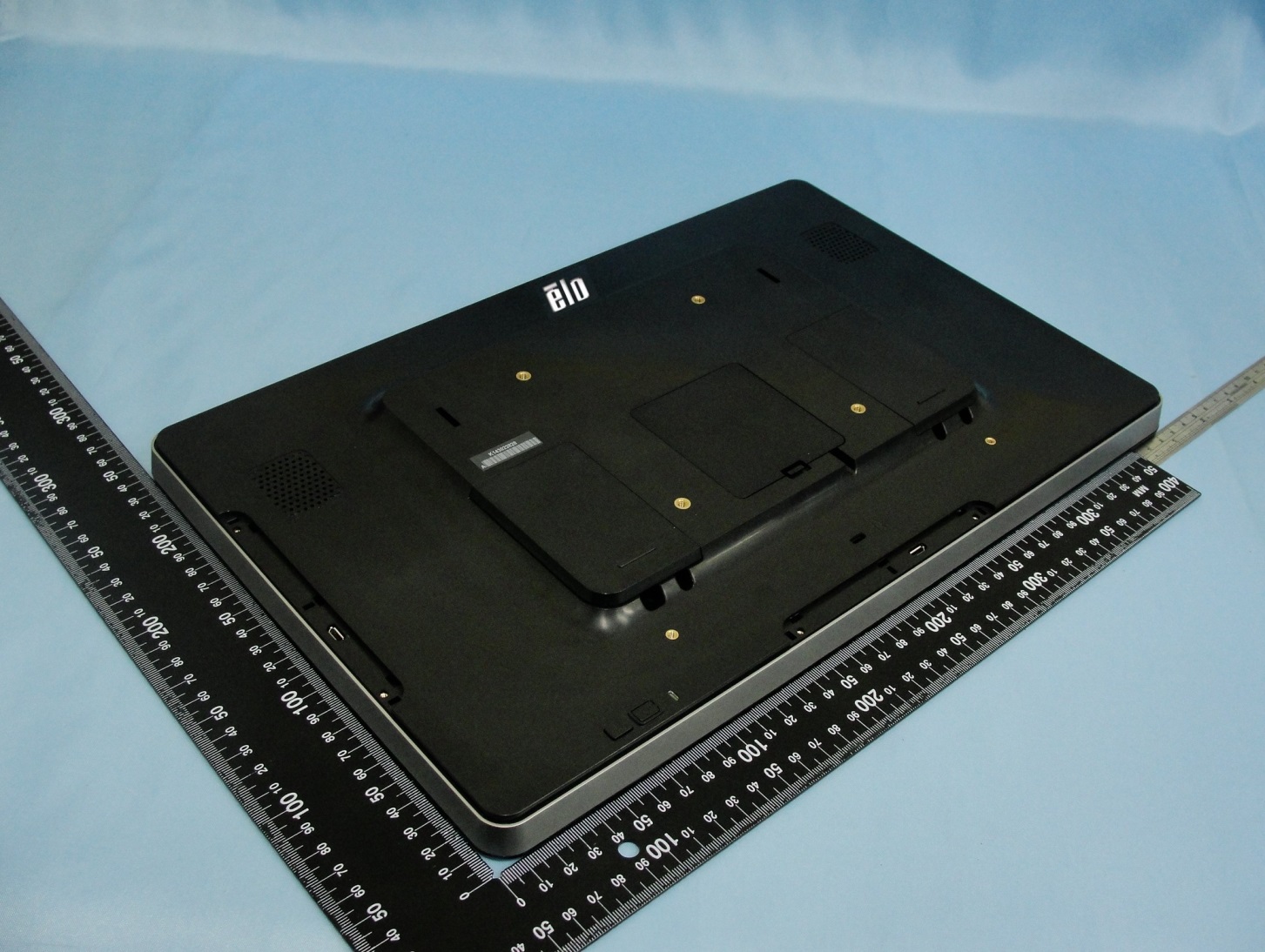

Back of the EUT Label Located inside slot. A Slot for Micro-HDMI, USB and Micro SD.

Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 7 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 3. Internal Photograph of EUT Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 8 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 9 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 10 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 11 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 12 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 13 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 14 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 15 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 16 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 17 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 18 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 19 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 20 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 21 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 22 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 23 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 24 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 25 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 26 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1

Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 27 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 28 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 29 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 30 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 31 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 32 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 33 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 34 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 35 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 36 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 37 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 38 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 39 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 40 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 41 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 42 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 43 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 WLAN Module Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 44 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 45 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 46 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 47 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC : 10757B-ESY15I1 Photographs of EUT Report No.: EP4D0213 Brand Name: Elo or / Model Name: ESY15i1 SPORTON INTERNATIONAL INC. Page Number : 48 of 48 TEL : 886-3-327-3456 Report Issued Date : Jan. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 IC…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 5 TEL : 886-3-327-3456 Report Issued Date : Jan. 12, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 RF Exposure Evaluation Report Report No. : FA4D0213 RF Exposure Evaluation Report APPLICANT : Elo Touch Solutions, Inc. EQUIPMENT : Touch All-in-One Computer BRAND NAME : Elo or MODEL NAME : ESY15i1 FCC ID : RBWESY15I1 STANDARD : 47 CFR Part 2.1091 KDB 616217 D04 v01r01 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 5 TEL : 886-3-327-3456 Report Issued Date : Jan. 12, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 RF Exposure Evaluation Report Report No. : FA4D0213 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 3 1.1. Testing Laboratory ............................................................................................................................. 3 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 3 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 4 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 4 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 5 5.1. Power Density Calculation ................................................................................................................. 5 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA4D0213 Rev. 01 Initial issue of report Jan. 12, 2015 SPORTON INTERNATIONAL INC. Page Number : 3 of 5 TEL : 886-3-327-3456 Report Issued Date : Jan. 12, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 RF Exposure Evaluation Report Report No. : FA4D0213 1. Administration Data 1.1. Testing Laboratory Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name Elo Touch Solutions, Inc. Address 1033McCarthy Blvd, Milpitas, CA95035,USA 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Touch All-in-One Computer Brand Name Elo or Model Name ESY15i1 FCC ID RBWESY15I1 Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz Bluetooth: 2402 MHz ~ 2480 MHz Mode •802.11b/g/n HT20 •Bluetooth v3.0+EDR，Bluetooth v4.0-LE Antenna Type PIFA Antenna HW Version A00 SW Version 0.11 EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 4 of 5 TEL : 886-3-327-3456 Report Issued Date : Jan. 12, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 RF Exposure Evaluation Report Report No. : FA4D0213 3. Maximum RF average output power among production units Mode / Band Average Power (dBm) 1Mbps (GFSK) 2Mbps (π/4-DQPSK) 3Mbps (8-DPSK) BT4.0-LE (GFSK) Bluetooth 3.00 2.00 2.00 3.00 Band / Frequency (MHz) IEEE 802.11 Average Power (dBm) 11b 11g HT20 2.4GHz Band 2412 15.00 14.00 13.50 2437 15.00 14.00 13.50 2462 15.00 11.50 11.00 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna SPORTON INTERNATIONAL INC. Page Number : 5 of 5 TEL : 886-3-327-3456 Report Issued Date : Jan. 12, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY15I1 RF Exposure Evaluation Report Report No. : FA4D0213 5. Radio Frequency Radiation Exposure Evaluation 5.1. Power Density Calculation Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) 2.4GHz WLAN 2412.0 -2.89 15.00 12.110 0.016 16.255 0.003 1.000 Bluetooth 2402.0 -2.89 3.00 0.110 0.001 1.026 0.0002 1.000 Note: For conservativeness, the lowest uplink frequency of each band is used to determine the MPE limit of that band Conclusion: Despite the fact that touch screen capability allows the user’s hands come within 20 cm of the antenna during normal operation, continuously operating with the hand next to the antenna in normal operation is not expected. According to KDB 616217 D04 v01r01, exposures to hands for typical consumer transmitters used in tablets are not expected to exceed the extremity SAR limit; therefore, SAR evaluation for the front surface of tablet display screens are generally not necessary.

SPORTON INTERNATIONAL INC. Page Number : A1 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY10I1 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4D0212A Appendix A. Radiated Spurious Emission Test Engineer : Derreck Chen, Ken Wu and Nick Yu Temperature : 23~25°C Relative Humidity : 48~51% 15C 2.4GHz 2400~2483.5MHz BT (Band Edge @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH00 2402MHz 2316.63 46.93 -27.07 74 41.48 32.07 7.6 34.22 101 360 P H 2316.63 22.17 -31.83 54 - - - - - - A H * 2402.04 98.53 - - 92.9 32.18 7.75 34.3 101 360 P H * 2402.04 73.77 - - - - - - - - A H H H 2356.67 46.69 -27.31 74 41.13 32.13 7.68 34.25 117 8 P V 2356.67 21.93 -32.07 54 - - - - - - A V * 2402.04 96.97 - - 91.34 32.18 7.75 34.3 117 8 P V * 2402.04 72.21 - - - - - - - - A V V V BT CH 39 2441MHz 2316.84 47.35 -26.65 74 41.9 32.07 7.6 34.22 100 359 P H 2316.84 22.59 -31.41 54 - - - - - - A H * 2440.91 98.64 - - 92.96 32.24 7.83 34.39 100 359 P H * 2440.91 73.88 - - - - - - - - A H 2490.12 46.05 -27.95 74 40.27 32.3 7.91 34.43 100 359 P H 2490.12 21.29 -32.71 54 - - - - - - A H 2372.7 46.78 -27.22 74 41.21 32.16 7.68 34.27 252 109 P V 2372.7 22.02 -31.98 54 - - - - - - A V * 2441.1 97.67 - - 91.99 32.24 7.83 34.39 252 109 P V * 2441.1 72.91 - - - - - - - - A V 2488.41 46.58 -27.42 74 40.8 32.3 7.91 34.43 252 109 P V 2488.41 21.82 -32.18 54 - - - - - - A V SPORTON INTERNATIONAL INC. Page Number : A2 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY10I1 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4D0212A BT CH 78 2480MHz * 2480.05 97.55 - - 91.79 32.28 7.91 34.43 122 359 P H * 2480.05 72.79 - - - - - - - - A H 2485.09 47.63 -26.37 74 41.87 32.28 7.91 34.43 122 359 P H 2485.09 22.87 -31.13 54 - - - - - - A H H H * 2479.98 96.8 - - 91.04 32.28 7.91 34.43 127 109 P V * 2479.98 72.04 - - - - - - - - A V 2497.48 47.84 -26.16 74 42.11 32.3 7.91 34.48 127 109 P V 2497.48 23.08 -30.92 54 - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A3 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY10I1 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4D0212A 15C 2.4GHz 2400~2483.5MHz BT (Harmonic @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 00 2402MHz 4806 47.21 -26.79 74 60.81 34.25 11.11 58.96 100 0 P H 4806 22.45 -31.55 54 - - - - - - A H H H 4806 44.79 -29.21 74 58.39 34.25 11.11 58.96 100 0 P V 4806 20.03 -33.97 54 - - - - - - A V V V BT CH 39 2441MHz 4884 43.24 -30.76 74 56.56 34.3 11.21 58.83 100 0 P H 4884 18.48 -35.52 54 - - - - - - A H 7320 44.61 -29.39 74 51.67 35.6 15.08 57.74 100 0 P H 7320 19.85 -34.15 54 - - - - - - A H 4884 42.26 -31.74 74 55.58 34.3 11.21 58.83 100 0 P V 4884 17.5 -36.5 54 - - - - - - A V 7320 46.82 -27.18 74 53.88 35.6 15.08 57.74 100 0 P V 7320 22.06 -31.94 54 - - - - - - A V BT CH 78 2480MHz 4962 44.08 -29.92 74 57.05 34.37 11.32 58.66 100 0 P H 4962 19.32 -34.68 54 - - - - - - A H 7440 47.44 -26.56 74 54.56 35.6 15.13 57.85 100 0 P H 7440 22.68 -31.32 54 - - - - - - A H 4962 42.92 -31.08 74 55.89 34.37 11.32 58.66 100 0 P V 4962 18.16 -35.84 54 - - - - - - A V 7440 48.73 -25.27 74 55.85 35.6 15.13 57.85 100 0 P V 7440 23.97 -30.03 54 - - - - - - A V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A4 of A6 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RBWESY10I1 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR4D0212A 15C Emission below 1GHz 2.4GHz BT (LF) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) (dBμV) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 2.4GHz BT LF 56.46 35.57 -4.43 40 58.7 6.32 1.77 31.22 196 328 P H 120.72 33.64 -9.86 43.5 50.92 11.44 2.38 31.1 P H 240.06 36.68 -9.32 46 53.32 11.4 2.96 31 P H 407.8 35.59 -10.41 46 46.81 16.12 3.52 30.86 P H 664 39.95 -6.05 46 45.72 20.35 4.35 30.47 P H 960.1 30.34 -23.66 54 31.06 24.7 4.94 30.36 P H H H H H H H 60.78 36.95 -3.05 40 60.17 6 2.06 31.28 132 23 P…

Text truncated - open the document above for the full version.
