RBZ-12422Together in Tune Piano

60 7 4 4 5 1 1 2 4 2 2 BU1101-01

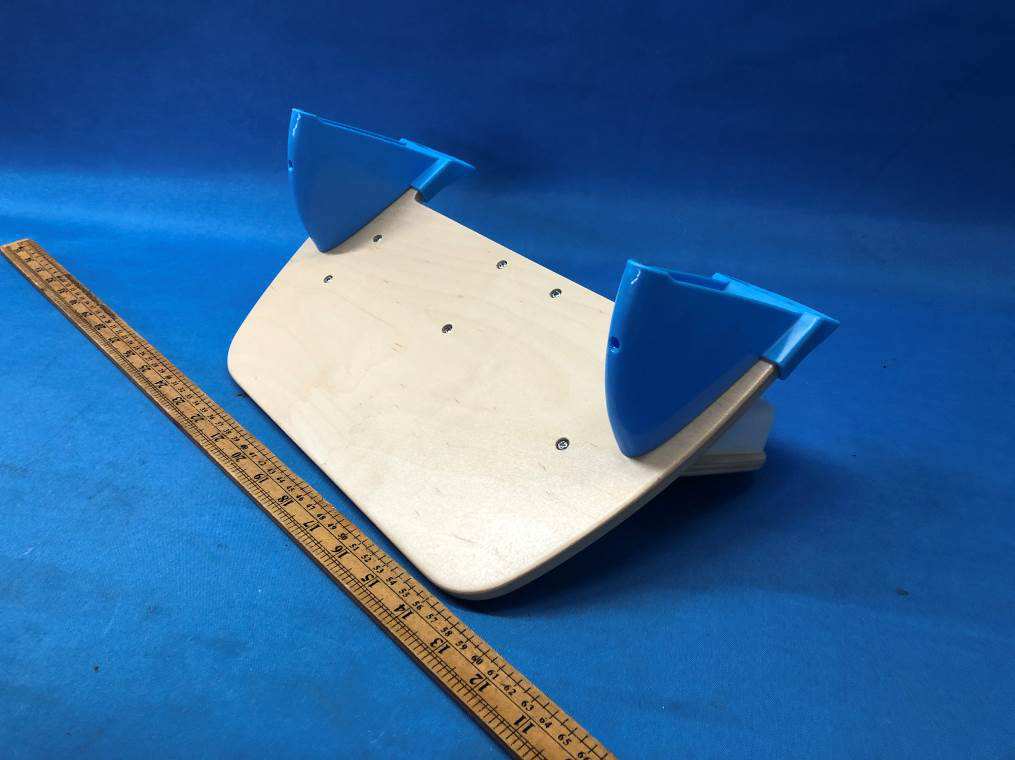

INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (External)

Label Artwork

INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Equipment Photographs (Internal)

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transceiver (Piano Unit) for a RC Piano. The sample supplied operated on 1 channel, normally at 2470MHz. The EUT is powered by 3 x 1.5V AA batteries. After switching on the EUT, the piano will emit sounds based on the keyboard button pressed. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 95.5dBμV/m at 3m (Peak), 84.7dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 87.7dBμV/m at 3m in frequency 2.470GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 21041016HKG‐001 Kids2, Inc. Application For Certification (Original Grant) FCC ID: RBZ‐12422 IC: 27249‐12422 Transceiver Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: June 01, 2021 TEST REPORT Kids2, Inc. Intertek Report No: 21041016HKG‐001 Page 2 of 16 GENERAL INFORMATION Grantee: Kids2, Inc. Grantee Address: 3333 Piedmont Rd NE Suite 1800, Atlanta, GA 30305, United States. Contact Person: Emily Contorno Tel: (678)328‐4169 Fax: N/A e‐mail: [email protected] Manufacturer: Kids2, Inc. Manufacturer Address: 3333 Piedmont Rd NE Suite 1800, Atlanta, GA 30305, United States. Brand Name: Together in Tune Piano Model / HVIN: 12422 PMN: 12422 Type of EUT: Transceiver Description of EUT: Together in Tune Piano Serial Number: N/A FCC ID / IC: RBZ‐12422 / 27249‐12422 Date of Sample Submitted: April 20, 2021 Date of Test: April 20, 2021 to April 29, 2021 Report No.: 21041016HKG‐001 Report Date: June 01, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS‐210 Issue 10 Certification. TEST REPORT Kids2, Inc. Intertek Report No: 21041016HKG‐001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 / RSS‐210 B.10, RSS‐210 4.4 Pass Radiated Emission in Restricted Bands 15.205 / RSS‐210 4.1 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition RSS‐210 Issue 10, December 2019 RSS‐Gen Issue 5 Amendment 1, March 2019 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Kids2, Inc. Intertek Report No: 21041016HKG‐001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................10 5.0 PRODUCT LABELLING..................................................................................................10 6.0 TECHNICAL SPECIFICATIONS .......................................................................................10 7.0 INSTRUCTION MANUAL..............................................................................................10 8.0 MISCELLANEOUS INFOR…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: RBZ-12422 IC: 27249-12422 Configuration Photographs Worst-Case Radiated Emissions (Back View)
