RBZ30877RC Toy

– 1 – ESPAÑOL: PÁGINA 5 • FRANÇAISE : PAGE 9 IMPORTANT! KEEP FOR FUTURE REFERENCE. 30877 move & go music mirror Instruction Sheet Congratulations on your purchase of a new Baby Einstein ™ product! Please read all instructions before assembly and use of the music mirror toy. WARNING Safety Guidelines to Prevent Injury •The music mirror is intended for visual stimulation and is not intended to be grasped by the child. • Do not use music mirror as floor toy for child. POSSIBLE ENTANGLEMENT OR STRANGULATION HAZARD: • Keep the music mirror out of the baby’s reach. • NEVER attach any additional strings or straps to the music mirror. IMPORTANT: • Adult assembly is required to mount the product and to change the batteries. • Care should be taken when unpacking the product. • Examine product frequently for damaged, missing, or loose parts. • Do not use product if damaged or broken. Mounting Instructions 1 Choose the proper mounting configuration... 1A: Rear-facing infant; rear seat with headrest 1B: Rear-facing infant; rear seat without headrest 1C: Forward-facing child Skip to the proper step (1A, 1B, or 1C) and follow the instructions. 1A For rear-facing infant, rear seat with headrest... ARaise the rear seat headrest that the infant will be facing. BUnbuckle the straps on the music mirror unit. CPosition the music mirror on the rear seat as shown. DBuckle the straps around the headrest supports. EAdjust both straps so that your child can easily see the music mirror unit while seated. Skip to Step 2. 1B For rear-facing infant, rear seat without headrest... AUnbuckle the straps on the music mirror unit. BPosition the music mirror on the rear seat as shown. COrient the strap anchors toward the rear seat. DInsert each strap anchor approximately 1.5” (4 cm) into the crevice between the top edge of the rear seat and the shelf (rear deck) at the rear window. EAdjust both straps so that your child can easily see the music mirror unit while seated. Skip to Step 2. – 2 – 1C For forward-facing child ARaise the front-seat headrest that will be in front of the child. BUnbuckle the straps on the music mirror unit. CHold the music mirror behind the front seat as shown. DBuckle the straps around the headrest supports. EAdjust both straps so that your child can easily see the music mirror unit while seated. Continue with Step 2. 2 Adjust the mirror. AReach behind the music mirror unit and unfasten the mirror support strap from the hook-and-loop patch. BHold the mirror in position according to your child’s car seat configuration: •For rear-facing infant – Aim the mirror so that the driver can see the infant in their rear-view mirror. •For forward-facing child – Aim the mirror so that the child can see him/herself in the mirror. CFasten the mirror support strap to the back of the unit, locking it into position. Installing the Batteries The move & go music mirror requires two sets of batteries: •music mirror unit – requires (4) size AA (1.5V) batteries (included) •RF remove control – requires (3) size AAA (1.5V) batteries (not included) Please use alkaline batteries for better performance. Buckles Mirror support strap Hook- and- loop patch CAUTION: Follow the battery guidelines in this section. Otherwise, battery life may be shortened or the batteries may leak or rupture. • Always keep batteries away from children. • Do not mix old and new batteries. • Do not mix alkaline, standard or rechargeable batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Install the batteries so that the polarity of each one matches the markings in the battery compartment. • Do not short-circuit the batteries. • Do not store batteries in areas that have extreme temperatures (such as attics, garages, or automo- biles). • Remove exhausted batteries from the battery compartment. • Never attempt to recharge a battery unless it is specifically marked “rechargeable.” • Rechargeable batteries are to be removed from the toy before being charged. • Rechargeable batteries are only to be charged under adult supervision. • Do not use rechargeable alkaline batteries in a Ni-Cad or Ni-MH battery charger. 1 To access the music mirror unit batteries... ARemove the unit from the car seat mounting location. BUnfasten the fabric cover on the back of the music mirror unit. CLoosen the (2) screws that secure the battery compartment cover. (The screws are retained in the battery cover. DTemporarily remove the cover. 2 To access the RF remote control batteries... ALoosen the (2) screws that secure the battery compartment cover. (The screws are retained in the battery cover.) BTemporarily remove the cover. 3 Install the batteries. AUse the required battery type for the music mirror unit or the RF remote control. BObserve the polarity markings embossed on the bottom of the compartment. CReplace the battery cover on the music mirror unit and/or RF remote control and tighten the screw(s). Do not overtighten. Phillips screwdriver Battery cover Fabric cover Battery cover CorrectIncorrect – 3 – Operating Instructions Introduction The baby einstein™ button and the caterpillar character’s five color lenses are on the front of the music mirror unit. The Power/Mode Switch on the back of the music mirror unit allows you to set the operating mode. Slide the Power/Mode Switch on the back of the music mirror unit to the Play Mode position for normal use of the move & go music mirror. The music mirror unit must be in Play Mode in order to respond to the RF remote control. NOTE: If the RF remote control is not available or it has low batteries, use the baby einstein™ button instead. See “Front Panel Control” on page 3. Power ON/OFF Power ON – Press the baby einstein™ button on the front of the music mirror unit to power ON the unit. A short musical fanfare announces that the unit is ready to accept control input from either the RF remote control or the front panel button. Power OFF – The music mirror unit prepares for auto- shutoff 30 …

Text truncated - open the document above for the full version.

ANT DATE: 06-Dec-2005 Encoder IC (GE-TX2) Modulator Amplifier Q2 Transmitter Melody KEY Learn KEY LightSW KEY Volume KEY 27.145MHz Oscillator Crystal,Q1 COMPANY: PACIFIC INDUSTRIES LTD. CUSTOMER: KIDS II Product Name: Baby Einstein Music'N Motion Caterpillar Product No.: 30877

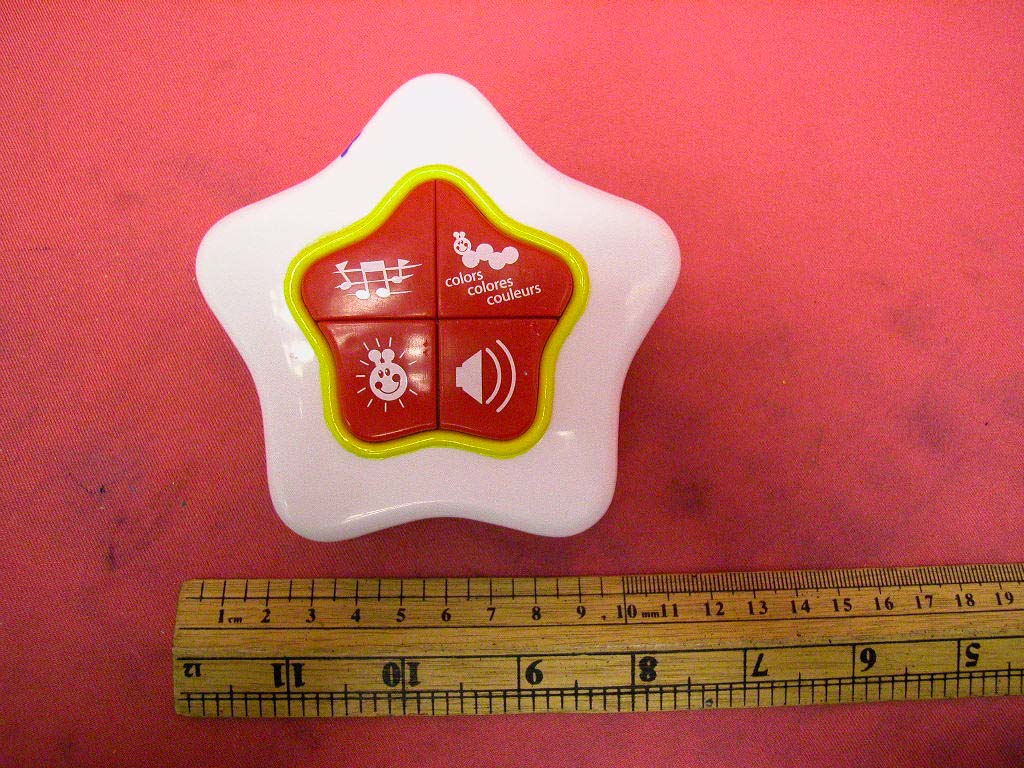

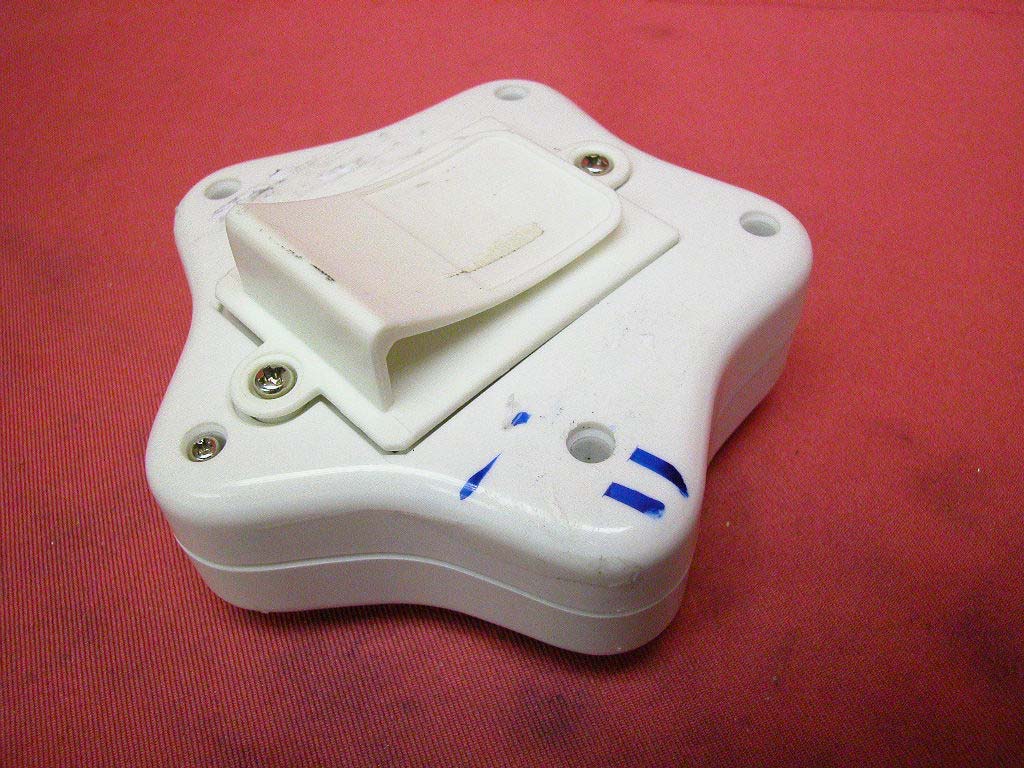

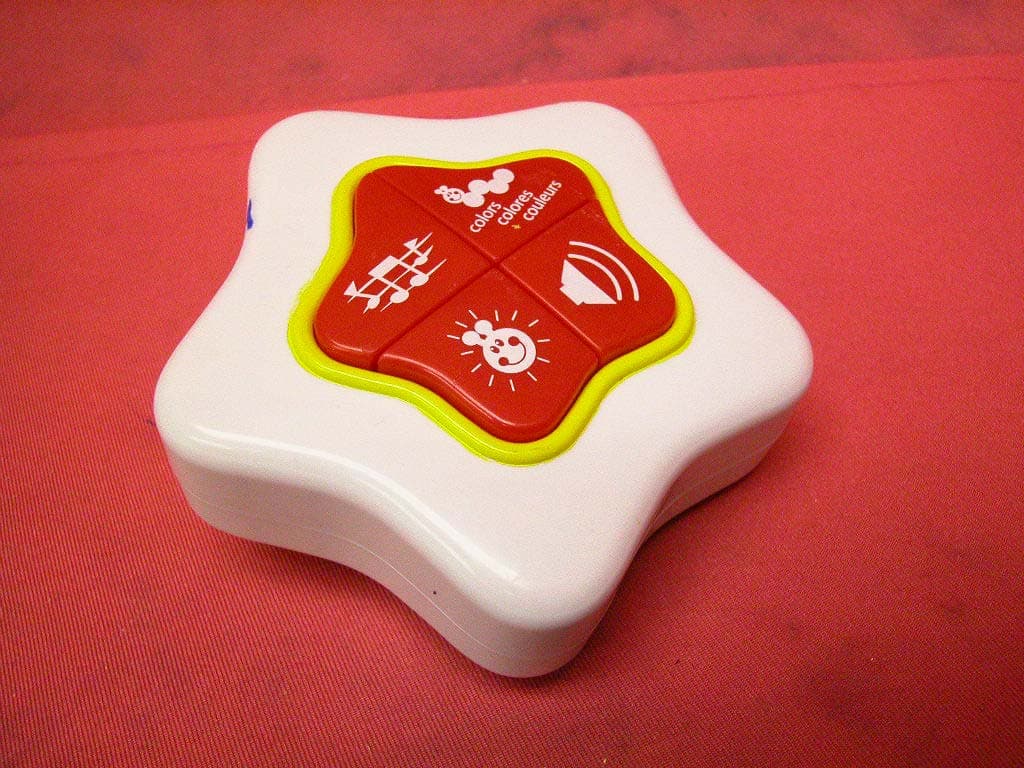

FCC ID: FBZ30877 Ophoto1 Ophoto2 FCC ID: FBZ30877 Ophoto3 Ophoto4

All in mm unit

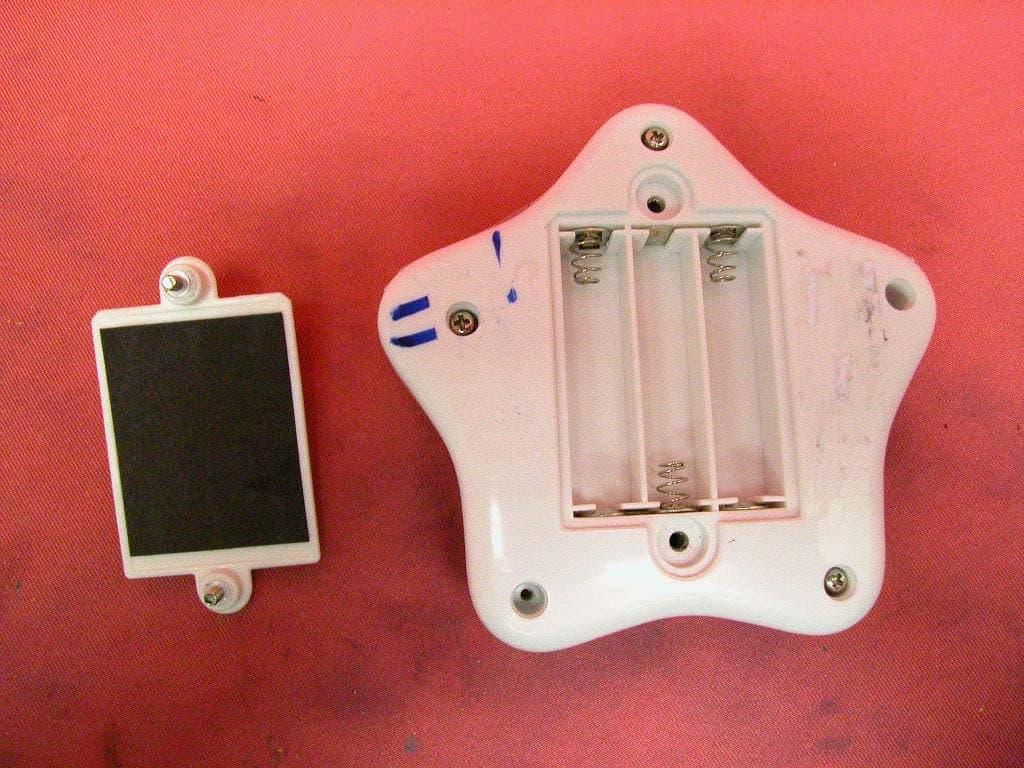

FCC ID: RBZ30877 Iphoto1 Iphoto2 FCC ID: RBZ30877 Iphoto3 Iphoto4

FCC ID: RBZ30877 Technical Description : The brief circuit description is listed as follows : - Q2 and associated circuit act as Modulator and Amplifier. - Q1, 27.145 MHz Crystal and associated circuit act as 27.145 MHz Oscillator. - GE-TX2 and associated circuit act as Encoder. - Melody, Learn, Light SW and Vol act as Control Keys. Antenna Used : A Integral Antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : RBZ30877 Kids II, Inc. Application For Certification (FCC ID: RBZ30877) Transmitter Sample Description : Baby Einstein Music’ N Motion Caterpillar Model : 30877 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-2004] 0525592 BC/at December 13, 2005 INTERTEK TESTING SERVICES FCC ID: RBZ30877 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RBZ30877 ii MEASUREMENT/TECHNICAL REPORT Kids II, Inc. - MODEL: 30877 FCC ID: RBZ30877 December 13, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1- 2004 Edition] provision. Report prepared by: Billy Chow Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: RBZ30877 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor ............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: RBZ30877 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: RBZ30877 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RBZ30877 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC Musical Toy operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 3 AAA batteries. The EUT has…
