RC5RF101ASMARTVP REMOTE CONTROL

RF101 Functional Specification Introduction An RF remote control and USB receiver receptacle that is recognized as an HID device in windows with number 0-9 input,4-way directional pad with OK button in the middle,#(pound or hash) and *(asterisk),and the named function buttons assigned system functionality per the table in the Keys definition. Product ID Pic 1. Transmitter’s ID Product Specification List 1. Transmitter’s parameter modulation GFSK Frequency Range 2.4~2.4835GHz Transmitted Power 0 dBm Battery 2 AAA Battery,3V Working Current <25mA Standby Current <15uA Ambient Temperature -40—85°C RC Dimension 180mm*52mm*24mm PCB Material & Size FR4 1.2mm 134.5*41mm Housing Material ABS List 2. Receiver’s parameter modulation GFSK Frequency Range 2.4~2.4835GHz Transmitted Power 0 dBm Power Supply USB 5V Working Current <25mA Ambient Temperature -40—85°C PCB Material & Size FR4 0.8mm 24*16mm The keys definition: 1. Board Schematics (remote) Pairing Procedure Before operating the remote control, user have to pair the target device with the remote control,the remote should be paired with the target (USB dongle) as steps below pairing process: A. First be sure that the device is on,then approach USB dongle press,hold “1” button and “9” button at the same time for 3 seconds. B. LED of the remote control will turn on to indicate that it is now pairing mode. Remote control will search the target device.Remote control sends pairing request to the device.LED of remote will blink three times slowly(blink one time each second) if pairing procedure finish successfully. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Block Diagram

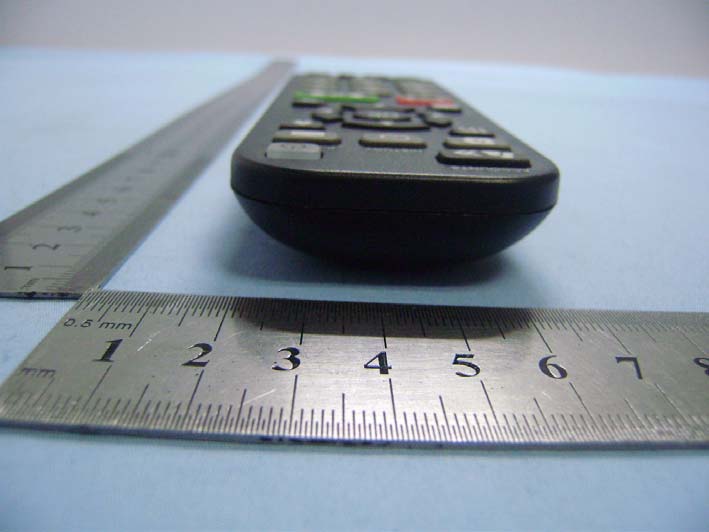

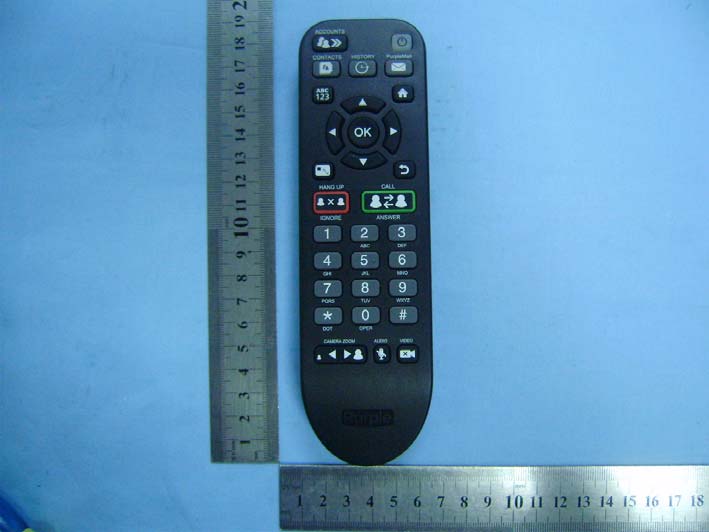

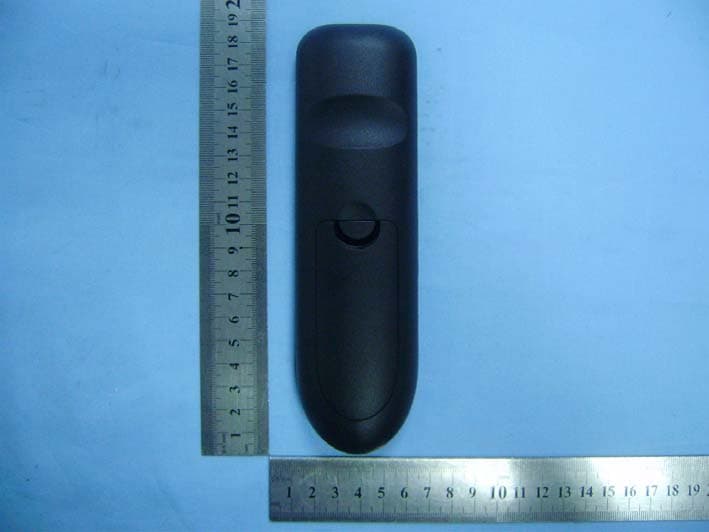

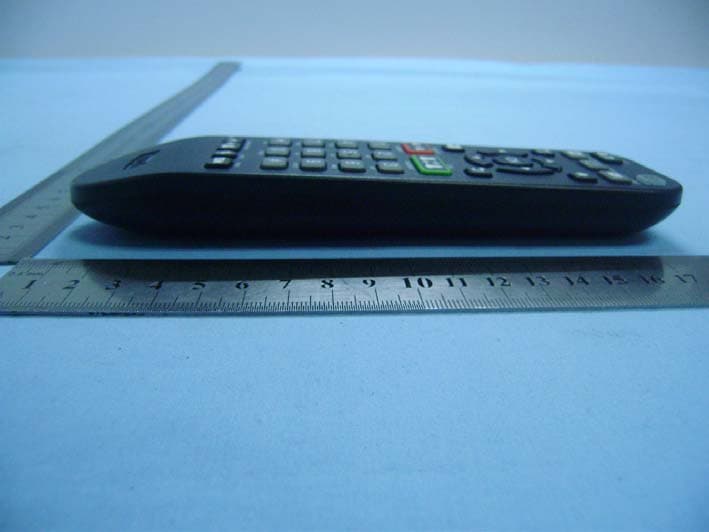

Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 EUT View 3 EUT View 4 Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 EUT View 5 EUT View 6

Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 Solder Board-Component View 2 Antenna View： 2.4G Ant. 2404~2477MHz

Circuit Description It’s a remote control with a RF function for a Set Top Box. The remote control’s working voltage is 3V, its working current is less than 15mA when in operation. Frequency Range is 2.4~2.4835GHz. and a clock frequency of 16MHz as base clock signal. This remote control has 32 keys, these keys were used to control the Set Top Box. And the remote control’s electronic parameters are as follows: 1．Modulation： GFSK 2．Frequency Range： 2.4~2.4835GHz 3．Transmitted Power: 0 dBm 4．Working Current： <25mA 5．Ambient Temperature： 0—40°C 6．Battery： 2 AAA battery,3V 7．PCB Material & Size： FR4 1.2mm 134.5*41mm

1234 A B C D 4321 D C B A DRAWN BY Date CHECKED BY Date APPROVED BY Date Shenzhen C&D Electronics Co .,Ltd Tel:86-755-28142498 MODEL: Size: File:Sheet 1 of 1 Fax:86-755-28142699 TITLE: A4 RF101A_TX V2.3 RF Board Number:1Revsion:A1 Hangzhou.lu 13/06/2012 C&D P3.1P3.2P3.3 P1.7P2.1 P2.3 P2.4 P2.5 P2.7 P3.0 P3.0 P3.1 P3.2 P3.3 P2.3P2.4P2.5P2.7P2.1 VCC3V3 C7 100nF L3 2nH L4 8.2nH L2 2nH C11 NC C10 2.2NF C4 1PF C5 NC R1 22K C2 100nF VCC3V3 C6 100nF C8 100nF C9 33nF C12 33nF VCC3V3 VCC3V3 Y1 16MHz C115PF C315PF P0.1 1 P0.2 2 VDD 3 DEC1 4 DEC2 5 P0.3 6 P0.4 7 P0.5 8 P0.6 9 PROG/VPP 10 P0.7 11 VSS 12 VDD 13 P1.0 14 P1.1 15 P1.2 16 P1.3 17 P1.4 18 P1.5 19 P1.6 20 P1.7 21 P2.0 22 P2.1 23 P2.2 24 P2.3 25 P2.4 26 P2.5 27 P2.6 28 P2.7 29 RESET 30 P3.0 31 VDD_PA 32 ANT1 33 ANT2 34 VSS 35 VDD 36 IREF 37 VSS 38 VDD 39 P3.1 40 P3.2 41 P3.3 42 P3.4 43 P3.5 44 XC2 45 XC1 46 P3.6 47 P0.0 48 U2 NRF24LE1 BT1 3.0V EC1 100uF / 10V 5*8mm P1.7 12 34 56 78 910 P2 Header 5X2 PROG PROG RST RSTP15MOSI P15MOSI P16MISO P16MISO P20CSN P2.0CSN P2.0CSN P12SCK P12SCK VCC3V3 P11X-ray TP6TP3TP4TP8 TP7 TP2 TP1 TP5 D2 red ANT1 ANTENNA D3 red P2.2 P3.5 P3.5 R2 100R S1 Contacts S2 Favorites S3 Puepie Mail S4 ABC S5 Up S6 Home S7 Left S8 OK S9 Right S10 FS/PIP S11 Down S12 Back?? S13 1 S14 2 S15 3 S16 4 S17 5 S18 6 S19 7 S20 8 S21 9 S22 Asterisk S23 0 S24 Pound S25 Zoom out S26 Zoom in S27 Settings S28 Privacy S29 Answer S30 Ignore S31 Change User S32 Power PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I PAGE 1 OF 23 FCC PART 15.249 FCC Part 15C Measurement and Test Report For Purple Communications, Inc. 595 Menlo Drive, Rocklin, CA FCC ID: RC5RF101A FCC Rules: FCC Part 15.249 Product Description: SmartVP Remote Control Tested Model: RF101A Report No.: STR12128479I Tested Date: 2013-01-04 to 2013-01-06 Issued Date: 2013-01-09 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I PAGE 2 OF 23 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT SETUP AND TEST MODE.................................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. ANTENNA REQUIREMENTS................................................................................................................................7 3.1 STANDARD APPLICABLE.........................................................................................................................................7 3.2 TEST RESULT..........................................................................................................................................................7 4. RADIATED EMISSIONS .........................................................................................................................................8 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 4.2 STANDARD APPLICABLE.........................................................................................................................................8 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................9 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................10 5. OUT OF BAND EMISSIONS.................................................................................................................................18 5.1 STANDARD APPLICABLE.......................................................................................................................................18 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 5.3 TEST PROCEDURE.................................................................................................................................................18 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................18 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................18 6. EMISSION BANDWIDTH .....................................................................................................................................21 6.1 STANDARD APPLICABLE.......................................................................................................................................21 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................21 6.3 TEST PROCEDURE.................................................................................................................................................21 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................21 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................21 Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I PAGE 3 OF 23 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Purple Communications, Inc. Address of applicant: 5…

Text truncated - open the document above for the full version.

Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Purple Communications, Inc. Model: RF101A REPORT NO.: STR12128479I FCC PART 15.249 Radiation Emission Test Setup (Above 1GHz)
