RC7CH-409Wireless Remote Control

CH-409 REMOTE CONTROLLER PARTS INSTALLATION SHEET PRODUCT TYPE:WIRLESS CONTROLLER TYPE PRODUCT NAME:REMOTE CONTROLLER PARTS PRODCUT ITEM:CH-409 ▲Preface: The product was made of PT coding & decoding system and 315 M frequency . It has steady work efficiency ,strong secrecy function , lowest work using ,good-looking appearance and so on . Brain box is waterproof . Be applicable to control the electric voltage 6 V , electric current 2.5 A below every kind of load. ▲Technology Data Remote Controller Parts(409) Main Box(CH405)Remote Controller(CH6091) Voltage 6 V(DC) 12V(DC) Current 2.5A(OUT) 10mA Frequency 315M±300K 315M±200K Sensitive >50m Circumstance temperature -25 ~ +55 PA G E 1 O F 3 ▲ Schematic Diagram & Installation Direction: 1 . BL ACK WIRE( GROUND WIRE) 2. WHI T E WIRE(OUT PUT WIRE) 3 . RED WI RE( POWER SUPPL Y , I NPUT WIRE) 4 . BL ACK WI RE( ANT MARKI NG) . . J 1,Please rive off the protect paper on the back of the controller and affix the controller on a suitable place after you finish the connection as per above Schematic Diagram . 2, Press“ ”button 0.5 Second , the indicator light of top left corner of remote controller will be twinkling, It means the loads is working well. 3, Press“ ”button 0.5 Second , the indicator light of top left corner of remote controller will be twinkling, It means the loads stops working . PAGE 2 OF 3 Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. PAGE 3 OF 3

Function Chart of CH-405 Product Cod ing Modulates315MHz Oscillation Radiations 1:Function Chart of Rem ote Controller 315MHz Regeneration Recei ving Decoding Ci r cu it Co n tr o l li n g Perf or m ance Ci r cu it Te r m i n al Output 2:Function Chart of m ain Controller Box

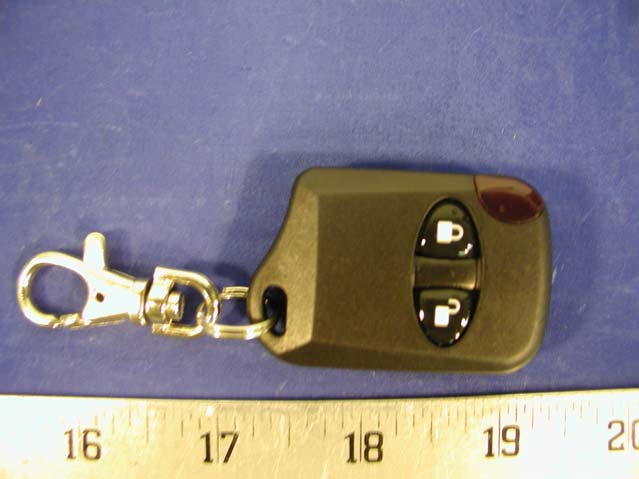

External Photos EUT - Front View EUT- Back View

ID Label Label FCC ID: RC7CH-409

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. Label Location of Base

Internal Photos EUT – Uncovered View EUT – PCB View (1) EUT – PCB View (2)

ATTENTION : 1,The remote controller can not be soaked by water or fallen down,when using it please do not press the button long time. 2,The battery using in the remote controller is 27A 12V,it should be changed by different kind of battery when launching distance is shorted(the light will be darker),Guarantee time is one year. 3, The main controller box can not be soaked by water. 4,The product can not work in strong magnetic field. Circuit Description: 1. Remote controller, This product adopts PT code. Pressing any button, surge signal, which is changed from Modulate signal through 315 SAW surge circuit, will be transmitted around accordingly.(working frequency: 315MH+ 300K, working voltage: 12V, working power: 10Ma. No expense in free time. Rate of code repeat: 1/3 8 ). 2,Main-control box, In this box, once receiving 315M wireless signal, one time is enough, the PT circuit will decode it for further regular working.(working frequency: 315MH+ 300K, working voltage:6v, output power: 2.5A, static power <3mA.)

Test Setup Photos Test Setup Photos Radiated Emission – Front View Radiated Emission – Rear View
