RC7RC007Beer Pager

RC007-Transmitter user manual Products summarize: This is a low consumer universal encode circuit which make by COMS (working with SC2272, 12 bit 3 condition encode); 315MHz +/- 200KHz SAW; ASK modulate fashion. Technical parameter: Appearance Size: 50x31x16mm Black ABS cover, Top & bottom cover assembly with Screw fit Red rubber button Clasp in back Capability Working voltage: 12V (battery)DC Working frequency: 315MHz +/- 200KHz Working temperature: -15°C-50°C Static state current: 0mA Max. Current: <13mA Modulate fashion: ASK Use 3 condition with 12 bit encode, encode group as 531, 441. Useful & note: 1. Please press red button on the transmitter before sure battery valid, the wireless signal will output in same time. Then reach to wireless control via receiver that is same frequency and encode. 2. The new battery can use in one year if activity in 10 times one day. 3. Please keep battery in transmitter and valid one-year time. 4. In normal use, please change to new battery if find to remote control distance become short. Please open the cover by screwdriver and change new battery with same model (27A 12V). 5. The transmitter can hang on the clothes by clasp. 6. Don’t allow to inundate, beat, stress... Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment compliance with FCC radiation exposure limit set forth for uncontrolled environment

1 2 34 ABCD 4 3 2 1 D CBA Edition numbe r A Doc um ent' s na me Cir c ui t d ia g ra m Code na me Size Approve Da te De si gnChec k Docum ent' s serial number No. pa ge s Tota l page s Signature modulate circuit(SC2262) oscil lat or ci rcuit (R25) power circuit(12V) RC007/transmitter 1 tr a ns mi tte r

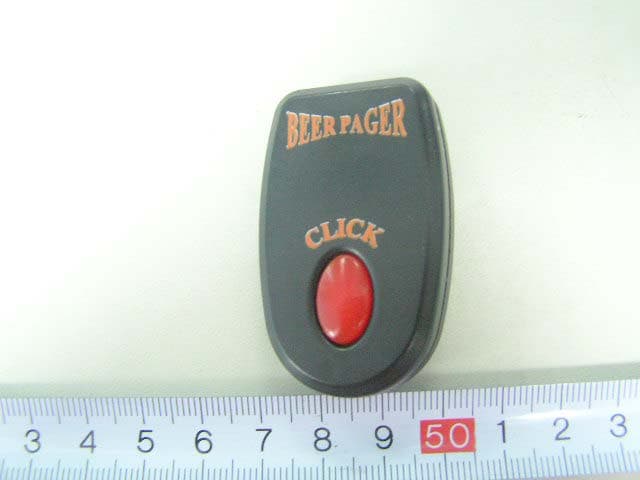

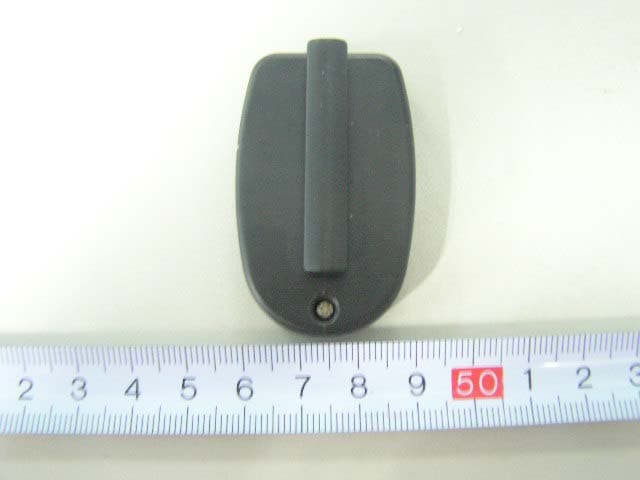

External Photos EUT Front View EUT Rear View

ID Label Label FCC ID: RC7RC007

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT – Uncover View EUT – PCB Top View EUT – PCB Bottom View

RC007 specification Products specification & compose Use Notice Products specification & compose: This is a low consumer universal encode circuit which make by COMS (working with SC2272, 12 bit 3 condition encode); 315MHz +/- 200KHz SAW; ASK modulate fashion. 315MHz regeneration circuit; User can press button of transmitter (transmit 315MHz wireless brewage signal) and looking for receiver that’s attach with beverage (receive 315MHz wireless brewage signal and intercede, then reach to sound & light indicate target via control function circuit), let user know the beverage place by sound & LED light from receiver. The system requested to remote distance <20m (the circumstance with commonly jam); Guarantee to without repeat code in 150,000pcs. RC007 （Remote Controller Parts） Receiver Transmitter Voltage 6V/DC 12V/DC Current ＜120mA ＜13mA Frequency 315MHz±200KHz 315MHz±200KHz Sensitive >20m Circumstance temperature -25°C-55°C Modulation ASK USE 1. Please sure the battery is valid, then put power switch on for standby situation. 2. Press red button of transmitter, the wireless signal will transmitted at same time. 3. The receiver will get signal at availability range and perform with sound & light. Note: The battery can support receiver activity up 50 times. The receiver hasn’t automatic power off function, it’s in working situation and consume power when put switch on till power off. So please off the switch if equipment isn’t used. In normal use, please change to new battery if find to remote control distance become short, sound volume low and light low. Please open the battery cover by and change 4 new battery with same model (AAA, 1.5V). Please put receiver on the table or other suitable place, Don’t allowed put receiver on the place with much shield for avoid to receive signal fault. The new transmitter’s battery can use in one year if activity in 10 times one day. In normal use, please change to new battery if find to remote control distance become short. Please open the cover by screwdriver and change new battery with same model (27A 12V). The transmitter can hang on the clothes by clasp. Don’t allow to inundate, beat, stress...

Circuit Description of transmitter (RC007) If you need to transmitter (RC007) working, please press button switch S1. The current (battery anode)-Q1(EB)-R2-S1-C4-GND, then Q1(EC) supply enough working current to encode chip IC1-SC2262 (Meanwhile the current will be controlled by delay circuit that composing by R1, R2, R4, C4, S1, Q1(EB), and also will turn off automatic within 5 Sec.) for working normally, then the encode pulse signal will output from IC1 and modulate to 315MHz oscillation circuit that composing by Q2, C3, C5, R6, CR1, L2 via R3, the oscillation circuit will work under pulse modulate. So encode signal that’s attached on 315MHz high frequency signal will radiate via L2.

1 2 34 ABCD 4 3 2 1 D CBA Edition numbe r A Doc um ent' s na me Cir c ui t d ia g ra m Code na me Size Approve Da te De si gnChec k Docum ent' s serial number No. pa ge s Tota l page s Signature C2101 C525C310 C1103 R2104 R3473 R5475 R6101 R1103 Q1 2AM Q2R25 S1 SW-PB R4474 L2PB-L2 L1PB-L1 CR1315MSAW BT112V 12345678 9 10111213 14 151617 18 IC 1SC2262 1 RC007 C4 4.7U/16V

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Yuyao Chaohui Electronics Co., Ltd No.11, Maosheng Rd, Yuyao Economy & Technical Deve, Zhejiang, China. FCC ID: RC7RC007 February 21, 2006 This Report Concerns: Original Report Equipment Type: Beer Pager Test Engineer: Merry Zhao Report No.: TSC06012301 Test Date: January 25-February 16, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Yuyao Chaohui Electronics Co., Ltd FCC ID: RC7RC007 Report # TSC06012301 Page 2 of 16 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 B LOCK D IAGRAM OF T EST S ETUP ................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.231 (B)- RADIATED EMISSION...........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 TEST RECEIVER SETUP.................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 §15.231(C) 20DB BANDWIDTH TESTING .............................................................................................................13 REQUIREMENT...........................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST DATA....................................................................................................................................…
