RCDVC10TRF AUDIO TRANSMITTER

DONGYANG Electronics Co., Ltd.
RF AUDIO TRANSMITTER - FCC ID RCDVC10T - DONGYANG Electronics Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Feb 09, 2004
Application Purpose
Original Equipment
Date of Application
Feb 09, 2004
Equipment Note
RF AUDIO TRANSMITTER
Frequency Range
416.00000000 - 418.00000000
Company
DONGYANG Electronics Co., Ltd.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

Attestation Statements

β†—

Block Diagram

β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Operational Description

β†—

Schematics

β†—

Test Report

β†—

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification APPENDIX A : ATTESTATION STATEMENT July 23, 2003 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Ho Seok Gwak, Q.A Manager DONGYANG Electronics Co.,Ltd

Block Diagram

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification APPENDIX C : BLOCK DIAGRAM

External Photos

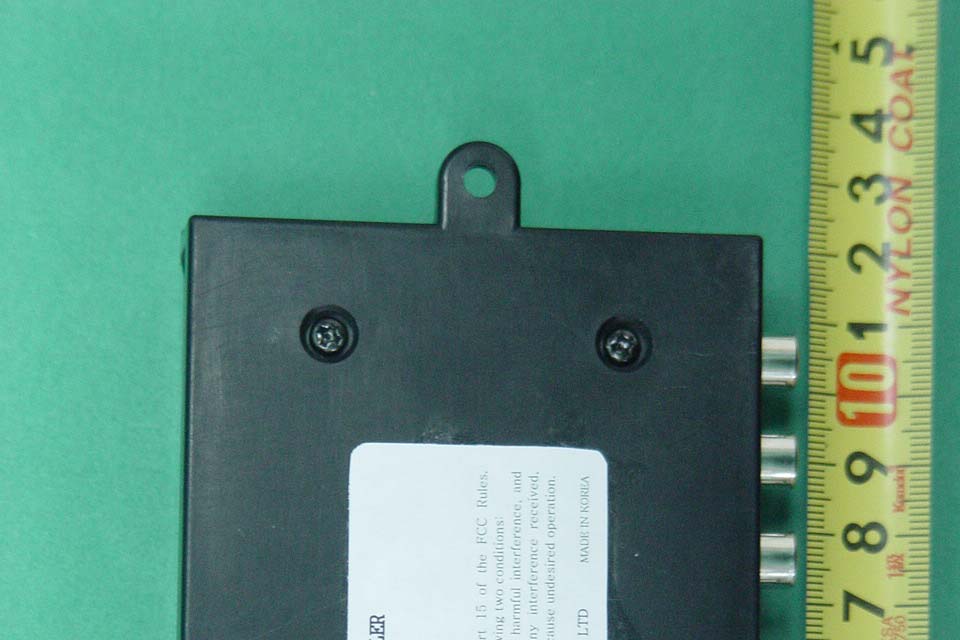

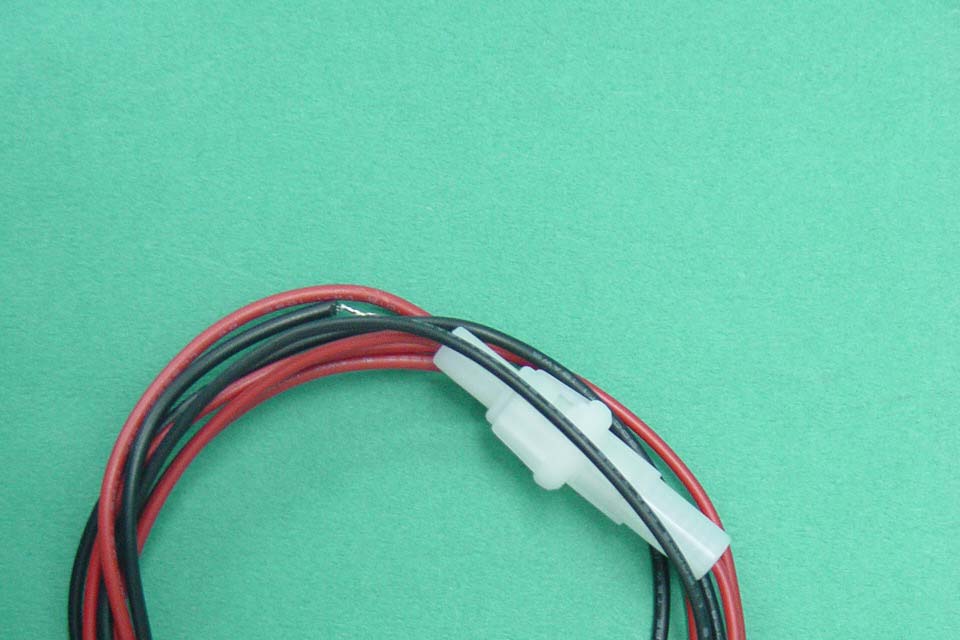

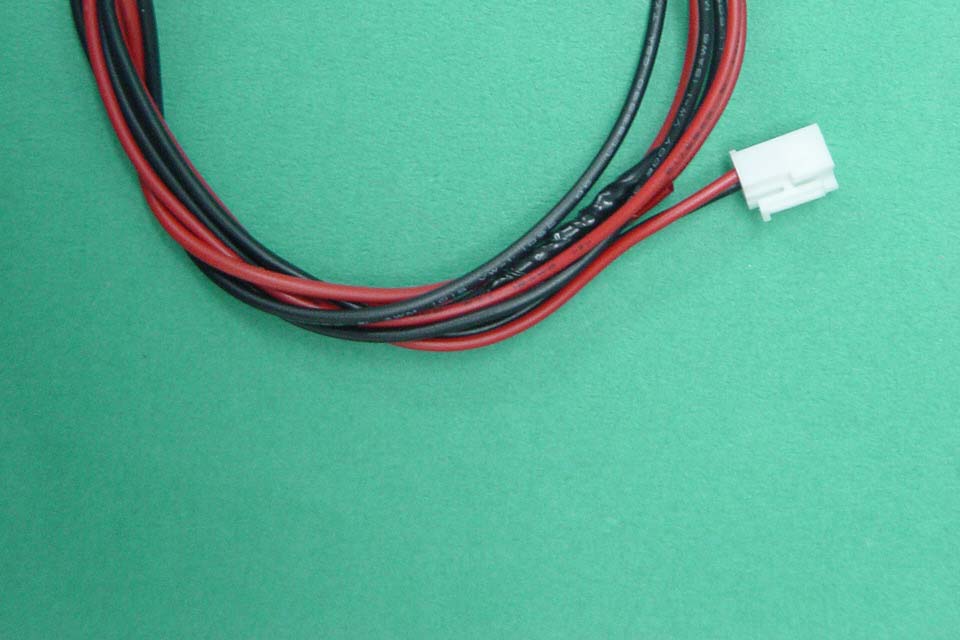

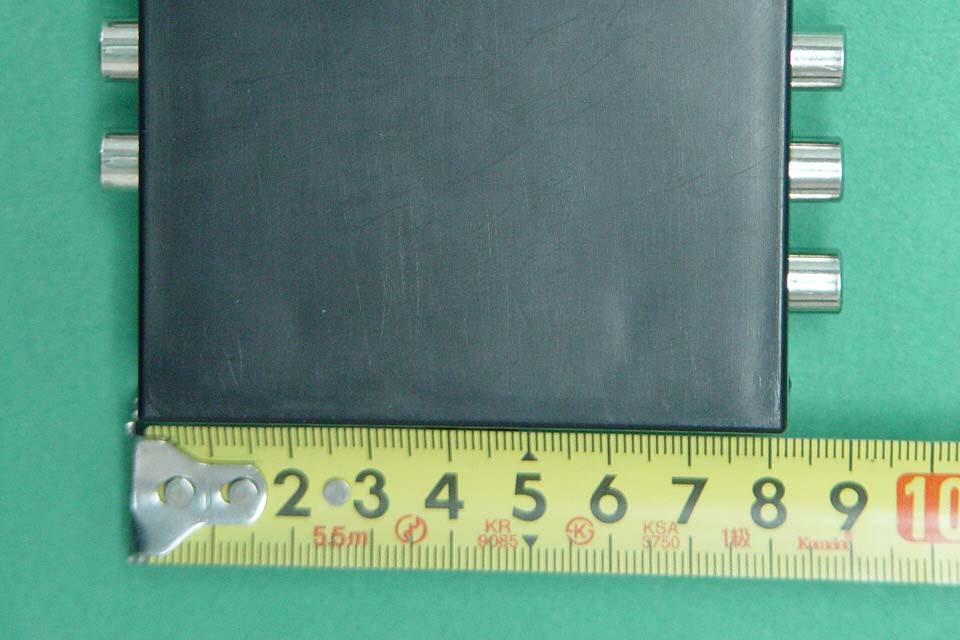

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification APPENDIX G : EXTERNAL PHOTOGRAPHS EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification

ID Label/Location Info

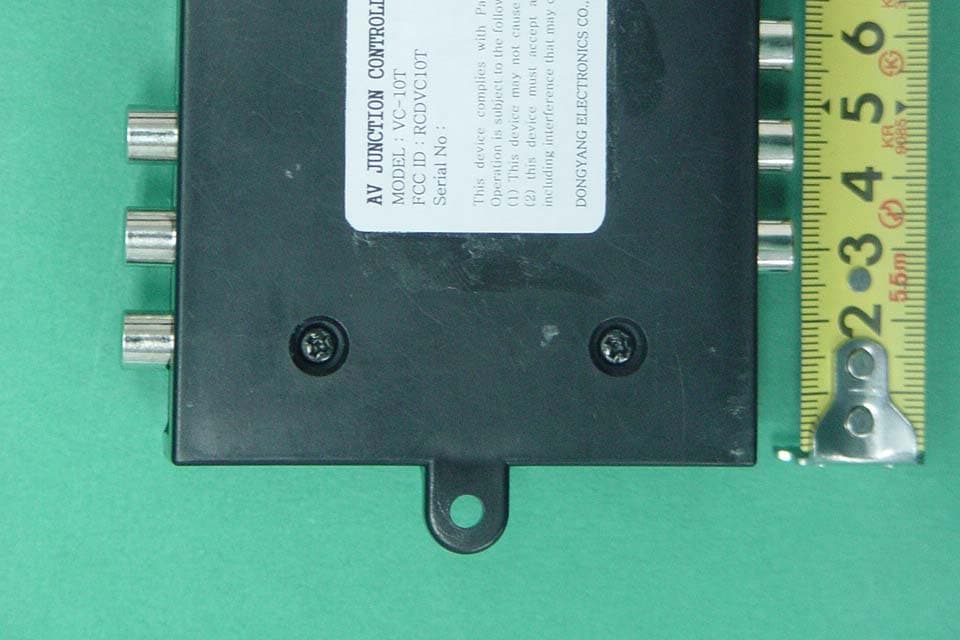

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification APPENDIX D : ID SAMPLE LABEL & LOCATION EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Β„ ID Label Β„ ID Label Location of EUT I.D Label

Internal Photos

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification APPENDIX H : INTERNAL PHOTOGRAPHS EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification

Operational Description

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification APPENDIX B : OPERATIONAL DESCRIPTION Operational Description Β„ The EUT is RF Transmitter built in AV Junction Controller that transmits the Audio signal of the Car Audio and Video equipments to the Wireless Headphone Receiver. Β„ The Audio signal from the Car A/V equipments (Car TV, Car DVD...) change to FM signal via U201 and U301 and modulated by VCO circuit Q202 and Q302. The modulated FM signal is amplified by Q201 and Q301 and then, transmit the signal through the antenna. 9 Transmit Frequency : 416MHz, 418MHz (2CH) 9 Modulation Type : FM 9 Power supply : 12Vdc from the Car battery Β„ MAIN COMPONENT LIST Block Circuit No Name Description GROUND IC U202,U302 BA3121N Ground isolation IC VCO & BUFFER Q202,Q302 STC917 Oscillator RF AMP Q201,Q301 STC917 RF power amplifier X-TAL X201,X301 X-TAL 38KHz VARIABLE CAP VD201,VD301 1SV217 Variable capacitance diode Β„ CIRCUIT DIAGRAM of RF AMP. and Output Part

Schematics

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Test Report No.: GETEC-E3-04-007 FCC Part 15 Subpart C Certification APPENDIX E : SCHEMATIC DIAGRAM

Test Report

EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Page 2 of 12 Test Report No.: GETET-E3-04-007 FCC Part 15 Subpart C Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................5 3.3 CABLE(S)..................................................................................................................................................................5 4. ANTENNA REQUIREMENT-Β§15.203........................................................................................................................6 4.1 DESCRIPTION OF ANTENNA......................................................................................................................................6 5. DESCRIPTION OF TESTS.........................................................................................................................................7 5.1 RADIATED EMISSION................................................................................................................................................7 5.2 CONDUCTED EMISSION............................................................................................................................................7 6. RADIATED EMISSION TEST ...................................................................................................................................8 6.1 OPERATING ENVIRONMENT.....................................................................................................................................8 6.2 TEST SET-UP..............................................................................................................................................................8 6.3 MEASUREMENT UNCERTAINTY................................................................................................................................8 6.4 LIMIT........................................................................................................................................................................9 6.5 TEST EQUIPMENT USED............................................................................................................................................9 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................10 7. SAMPLE CALCULATIONS..................................................................................................................................... 11 8. RECOMMENDATION & CONCLUSION..............................................................................................................12 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – OPERATIONAL DESCRIPTION APPENDIX C – BLOCK DIAGRAM APPENDIX D – ID SAMPLE LABEL & LOCATION APPENDIX E – SCHEMATIC DIAGRAM APPENDIX F – TEST SET-UP PHOTOGRAPHS APPENDIX G – EXTERNAL PHOTOGRAPHS APPENDIX H – INTERNAL PHOTOGRAPHS APPENDIX I – INSTRUCTION MANUAL EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Page 3 of 12 Test Report No.: GETET-E3-04-007 FCC Part 15 Subpart C Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z Equipment Class Lower Power Communication Device Transmitter (DXX) z FCC ID RDCVC10T z EUT Type RF Transmitter (Built in AV Junction Controller) z Power Source DC 12V z Model No. VC-10T z Rule Part(s) FCC Part 15, Subpart C, Section 15.209 z Test Procedure(s) ANSI C63.4 (1992) z Dates of Test February 3, 2004 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-04-007 Responsible Party : DONGYANG Electronics Co., Ltd. Contact Person : Mr. Ho-Seok Gwak, Q.A manager Manufacturer : DONGYANG Electronics Co., Ltd. 760, Daemang-ri, Goa-eub, Gumi-city, Gyeongsangbuk-do, Korea EUT Type : RF Transmitter (Built in AV Junction Controller) FCC ID.: RCDVC10T Page 4 of 12 Test Report No.: GETET-E3-04-007 FCC Part 15 Subpart C Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 1992) was used in determining radiated and conducted emissions emanating from DONGYANG Electronics Co., Ltd. RF Transmitter (Built in AV Junction Controller Model No.: VC-10T), FCC ID.: RCDVC10T These measurement tests were conducted at Gumi College EMC Center. The site address is 407, Bugok-Dong, Gumi-City, Gyeongsangbuk-Do, Korea` This test site is one of the highest point of Gumi 1 college at about 200 kilometers away from Seoul city and 40 kilometers away from Daege city. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of Β§2.948 according to ANSI C63.4 on…
