RCDXM9560CBRFM TRANSMITTER

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX I : USER’S MANUAL OWNER'S MANUAL 9.5" TFT-LCDMOTORIZED DVD COMBO MONITOR tvkl Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAUTION Contents  Caution  Name And Function Of Each Parts Unit Remote Controller    Power And Mode Selection Power ON/OFF Monitor Angle Adjustment Mute Function Volume Control Mode Setting DVD Mode AUX (AV1/AV2) Mode



 Picture Control CONTRAST/BRIGHT/COLOR/TINT   DVD Functions EJECT VOL+ / VOL- MUTE PLAY OR PAUSE AUDIO STOP ARROWS SETUP MENU DISPLAY NUMBER BUTTONS SUBTITLE TITLE SLOW FAST REVERSE SEARCHING FAST FORWARD SEARCHING PREV NEXT REPEAT A-B REPEAT NTSC/PAL ANGLE PBC ZOOM GOTO                           Connection Diagram  Installation  Disc Information  Troubleshooting  Specifications  Screen Mode SCREEN   Sound Control BASS/TREBLE   DVD Setup Setup Menu General Setup TV Display Angle Mark OSD Lang Captions Screen Saver Last Memory Audio Setup Dolby Digital Setup Equalizer Video Setup Quality Preference TV Type PBC Audio Subtitle Disc Menu Parental Country Region Default                        Password Setup Password Mode Password Change    Optional Specification TV Mode How To Select Channels Automatically How To Add And Delete Channels By Manual How To Select Channel '.
59       Caution  Caution  WARNING Installation of all TV monitors must be out of the driver’s field of sight. Do not try and service these products yourself, seek only a qualified service center or factory sevice center. Be careful not to drop or apply under pressure to the front panel of your video monitor. If the screen cracks due to misuse, your warranty will be void! Be careful not to overload your cigarette lighter plug by adding more than one device at a time. Use extra caution with any liquids in your car. If you or your child spill any liquid on these products, pull your vehicle to the roadside and turn the key off to disconnect or wipe the products with a towel. Do not operate the equipment until all liquids have either evaporated or you have had the monitor inspected at a service center by a qualified technician. Severe harm or danger can be occured. Do not mount the product where it will obstruct the deployment of the airbag or in an area where it would affect the vehicular control. Also be careful to avoid mounting the product where it can become hazardous during sudden stops or in the event of an accident. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. The lightening flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to people. $"65*0/ 8"3/*/( Please read and observe all warnings and instructions in this owner’s manual and those marked on the unit. Retain this booklet for future reference. 5IFSF
BSF
UXP
LJOET
PG
BMBSN
TZNCPMT
BT
GPMMPXT Use only a damp cloth to clean the screen and use only purified water on the cloth, wring out all excess water prior to wiping the screen. Do not use any cleaners or chemicals to clean the screen. In most cases a dry cloth will do! B E NZ E NE a l c o h o l CAUTION Quality installations are best performed by qualified and certified installers. Watching the monitor for an extended period of time without the engine running may deplete the vehicle's battery charge. Don't touch the unit there is a flash of lightning. It may receive an electric shock. Do not cover or stop up heater ducts or vents. It may be the origin of a fire or receives an electric shock. This product is designed for operation with a 12 Volt DC, negative ground vehicle. It is not suitable for operation under other conditions or voltages. Do not bring magnetic devices such as credit card or magnetic card near the magnets. 1. 2. 3. 4. 5. 6. The operating temperature of this product is limited to -4ı~ +176ı. Your vehicle can reach temperatures up to 212ıin the summertime. Do not open covers and repair yourself. Refer servicing to qualified personnel. DVD Players use an invisible laser beam which can cause hazardous radiation exposure. Be sure to operate the unit correctly as instructed. Do not cut the car power supply off while a disc is playing. It can cause damage to the DVD Player. Check Point Your optimum picture quality is achieved when you are directly in front of the monitor (+/-30 degrees). From time to time when your vehicle is extremely hot or cold you must allow time for your air conditioner or heater to cool or heat the vehicle and for operating temperatures to return to normal operating ranges. Your monitor will return to its normal functions when these operating ranges are achieved. Name And Function Of Each Parts  Unit Remote Control Eye. This allows transmitting of the remote control's IR signals for controlling all functions of your monitor. Wireless Infrared Receiver. You can hear the sound of audio sound by using wireless infrared headphone. (Wireless IR headphone is optional accessory) LAMP Name And Function Of Each Parts  Disc loading slot AUX Input Jack EJECT Button POWER Button Power ON/OFF button PLAY/PAUSE Button MODE Button DVDĄAV1ĄAV2 (TV function added DVDĄTVĄAV1ĄAV2) VOL/ADJ Button Volume control and adjust button for each menu. FUNCTION Button OSD display button DOOR LAMP Button ROOM LAMP Button ö
Caution Do not bring magnetic devices such as credit card or magnetic card near …

Text truncated - open the document above for the full version.

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX A : ATTESTATION STATEMENT February 15, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Ho Seok Gwak, Q.A Manager DONGYANG Electronics Co.,Ltd

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX C : BLOCK DIAGRAM

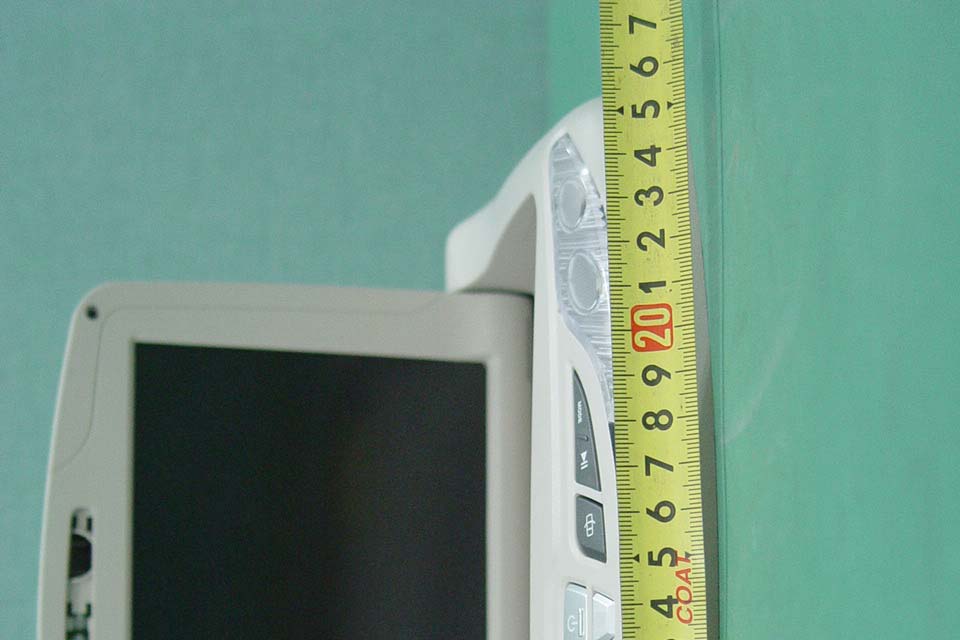

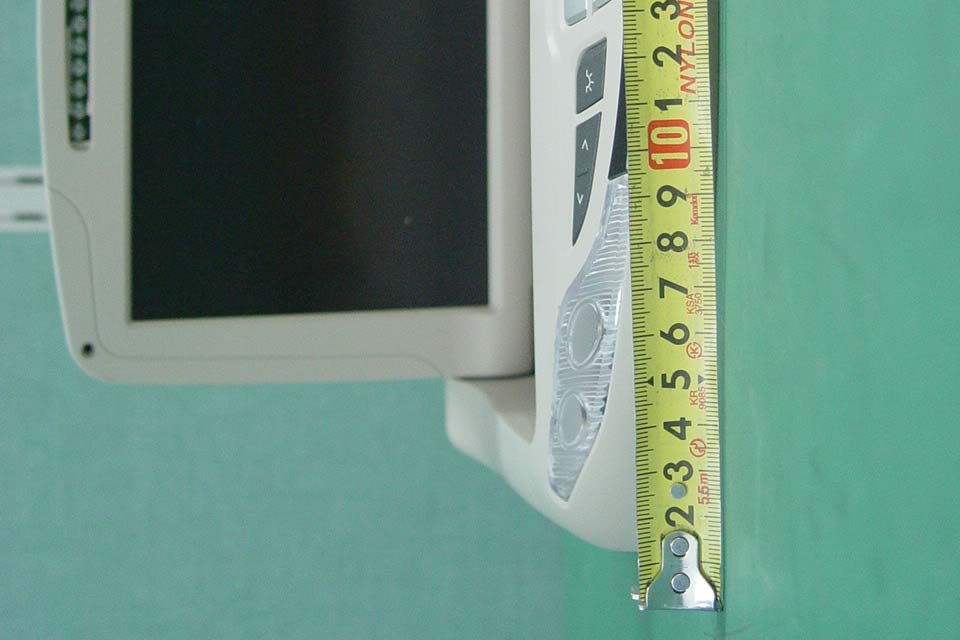

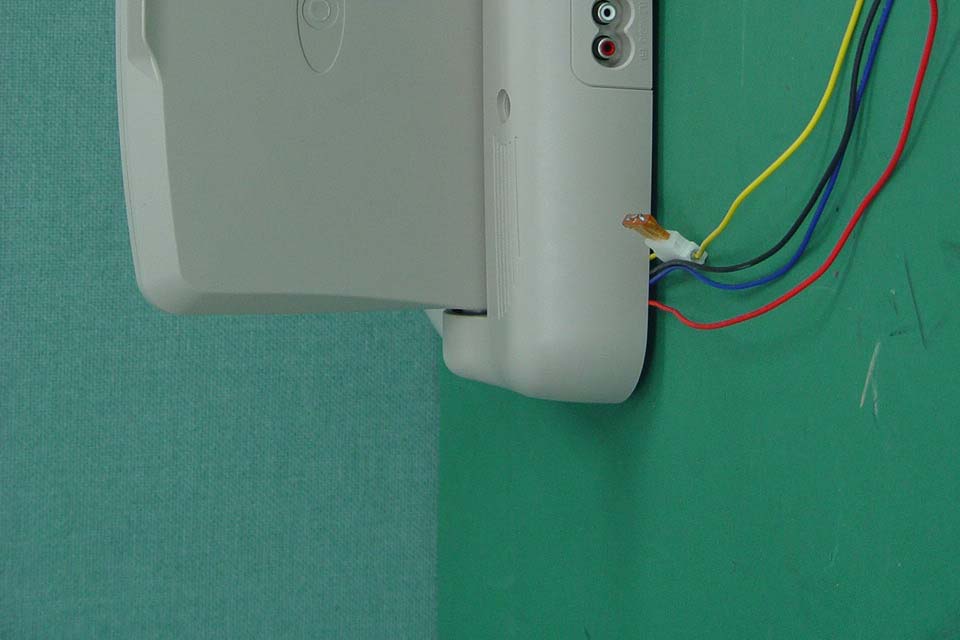

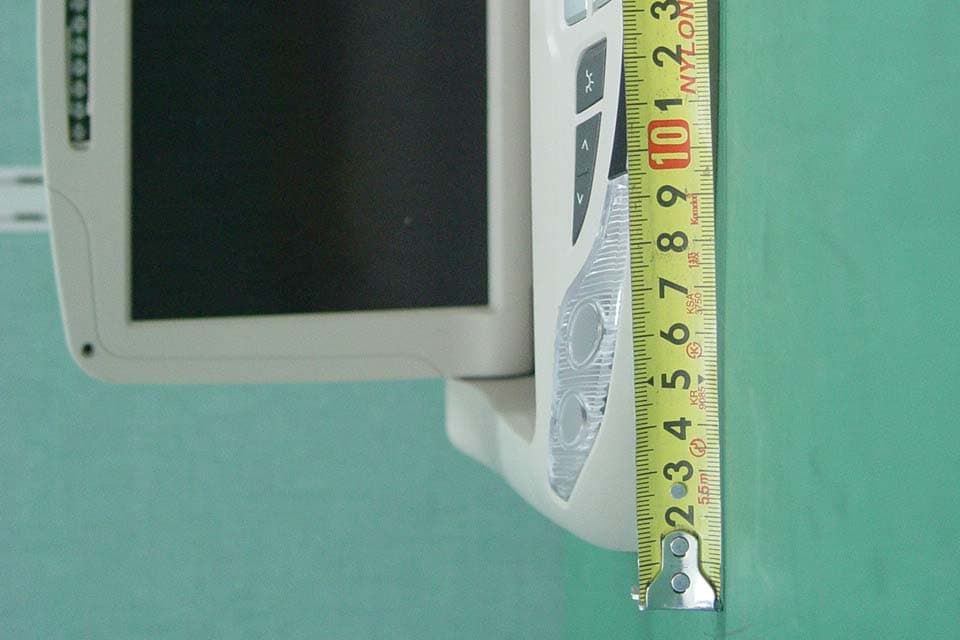

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX G : EXTERNAL PHOTOGRAPHS EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX D : ID SAMPLE LABEL & LOCATION EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX H : INTERNAL PHOTOGRAPHS EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification FM Transmitter board EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX J : OPERATIONAL DESCRIPTION Operational Description □ The EUT is FM Transmitter that can transmit Audio signal of AV Equipment (DVD or TV receiver) to the FM Radio receiver in a car. ☞ TX Frequency Range : 88.3MHz - 90.1MHz ☞ Frequency Step : 100KHz □ Device Description Block Circuit No. Name Description Transmitter IC U1 BH 1415FV FM Stereo Transmit RF Out C6 Capacitor 1000pF TR1 Transistor 2SC2142K C15 Electrolysis Cap 22uF C16 Capacitor 2200pF R7 Resister 2.2kohm C20 Capacitor 1uF VCC and Mixer C12 Capacitor 0.022uF PLL Data In/Out U2 D/A convert M62334FP X1 X - tal 7050 C7 Capacitor 27pF X-Tal OSC Circuit C11 Capacitor 27pF

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX E : SCHEMATIC DIAGRAM

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Page 2 of 14 Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................5 3.3 CABLE(S)..................................................................................................................................................................6 4. ANTENNA REQUIREMENT-§15.203........................................................................................................................6 4.1 DESCRIPTION OF ANTENNA......................................................................................................................................6 5. DESCRIPTION OF TESTS.........................................................................................................................................7 5.1 RADIATED EMISSION................................................................................................................................................7 5.2 CONDUCTED EMISSION............................................................................................................................................7 6. RADIATED EMISSION TEST ...................................................................................................................................8 6.1 OPERATING ENVIRONMENT.....................................................................................................................................8 6.2 TEST SET-UP..............................................................................................................................................................8 6.3 MEASUREMENT UNCERTAINTY................................................................................................................................8 6.4 LIMIT........................................................................................................................................................................9 6.5 TEST EQUIPMENT USED............................................................................................................................................9 6.6 RADIATED EMISSION TEST DATA FOR THE FUNDAMENTAL FREQUENCY...............................................................10 6.7 RADIATED EMISSION TEST DATA FOR THE SPURIOUS FREQUENCY........................................................................10 7. OCCUPIED BANDWIDTH MEASUREMENT......................................................................................................12 7.1 OPERATING ENVIRONMENT...................................................................................................................................12 7.2 TEST SET-UP............................................................................................................................................................12 7.3 LIMIT......................................................................................................................................................................12 7.4 TEST EQUIPMENT USED..........................................................................................................................................12 7.5 TEST RESULT OF OCCUPIED BANDWIDTH...............................................................................................................13 8. RECOMMENDATION & CONCLUSION..............................................................................................................14 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – TEST PLOTS OF OCCUPIED BANDWIDTH APPENDIX C – BLOCK DIAGRAM APPENDIX D – ID SAMPLE LABEL & LOCATION APPENDIX E – SCHEMATIC DIAGRAM APPENDIX F – TEST SET-UP PHOTOGRAPHS APPENDIX G – EXTERNAL PHOTOGRAPHS APPENDIX H – INTERNAL PHOTOGRAPHS APPENDIX I – USER’S MANUAL APPENDIX J – OPERATIONAL DESCRIPTION EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Page 3 of 14 Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID RCDXM9560CBR z Equipment Class Lower Power Communication Device Transmitter (DXX) z EUT Type FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) z Power Source DC 12V z Model No. XM-9560CBR z Rule Part(s) FCC Part 15, Subpart C, Section 15.239 z Test Procedure(s) ANSI C63.4 (2003) z Dates of Test January 3, 2006 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-06-002 Responsible Party : DONGYANG Electronics Co., Ltd. Contact Person : Mr. Ho-Seok Gwak, Q.A Manager Manufacturer : DONGYANG Electronics Co., Ltd. 760, Daemang-re, Goa-eub, Gumi-city, Gyeongsangbuk-do, Korea EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Page 4 of 14 Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification 2. Introduction The measurement procedure described in American…

Text truncated - open the document above for the full version.

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX B : TEST PLOTS OF OCCUPIED BANDWIDTH EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification ■ 88.3MHz EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification ■ 89.2MHz EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification ■ 90.1MHz

EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification APPENDIX F : TEST SET UP PHOTOGRAPHS EUT Type: FM Transmitter (built-in 9.5” Motorized overhead Monitor/DVD combo) FCC ID.: RCDXM9560CBR Test Report No.: GETEC-E3-06-002 FCC Part 15 Subpart C Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
