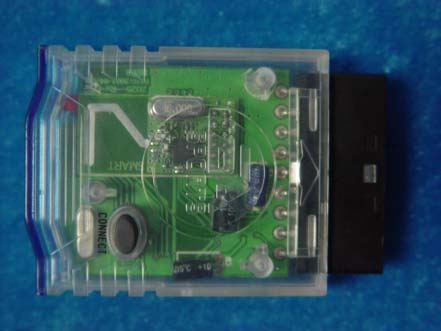

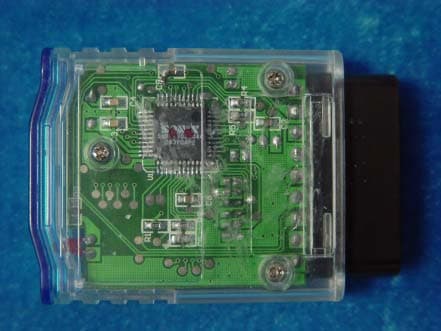

RDDINTECYRRRF PS2 Game Receiver

Helen Zhao Subject: FW: Intec Inc., FCC ID: RDDINTECYRR, Assessment NO.: AN04T4371, Notice#2 1/11/2005 From: CCS(KS) - Eric Wong [mailto:[email protected]] Sent: Monday, January 10, 2005 10:46 PM To: Helen Zhao Cc: 'CCS(KS) - Eric Wong' Subject: RE: Intec Inc., FCC ID: RDDINTECYRR, Assessment NO.: AN04T4371, Notice#2 Dear Helen, Please find the following reply in BROWN. Thank you!! BR, Eric Wong From: Helen Zhao [mailto:[email protected]] Sent: Tuesday, January 11, 2005 6:40 AM To: CCS(KS) - Eric Wong Subject: RE: Intec Inc., FCC ID: RDDINTECYRR, Assessment NO.: AN04T4371, Notice#2 Dear Eric, 1) Please note your revised frequency range of the controller from 2402-2480 MHz to 2402-2482 MHz. Since this device is working with controller, so please revise the frequency range of "Receiver" as well. (Eric: Okay, the correction is made upon your comment.) 2) Please the device is a transceiver, not a receiver, as it will transmit a signal to the controller enabling vibration. Your report (page 14-19) shows the operation mode is "Receiver". How about TX mode? Why did you test that mode?. Please explain. (Eric: As you may still remember, at the beginning the CONTROLLER (gamepad) and RECEIVER (console part - connected with the PS2) are filed single FCC ID and share the same product name. And then we have been noticed that since the receiver is a transceiver that contains the transmitter characteristic so it have to apply certification, then I have divided the submittals into 2 separate submissions under it own FCC ID (one named CONTROLLER and one named RECEIVER), for identifying among them. The test mode shown in the repot just implies the data of the CONTROLLER or RECEIVER (console part) and it just for the ease on identification where the data come from.) 3) The Test setup photo is too dim, the support equipments shown on setup photos do not agree with the one listed on the report. Please make necessary correction. (Eric: I have boosted the contrast and save as another exhibit, please find that in the attachment.) Thank you, Helen From: Helen Zhao [mailto:[email protected]] Sent: Saturday, January 08, 2005 4:11 AM To: CCS(KS) - Eric Wong Subject: Intec Inc., FCC ID: RDDINTECYRR, Assessment NO.: AN04T4371, Notice#2 Dear Eric, Please address the following issues: Question #5: As you mentioned in your answer to Q1, the device is a transceiver, as it will transmit a signal to the controller enabling vibration. But the test report does not even show the fundamental frequency test result. You are testing a transceiver, not a recevier. Also as a 2.4GHz device, you need to test harmonic and spurious above 1GHz, if you check the report again, you will find all the frequency listed on the table for "above 1GHz" are still under 1GHz. Please explain. Question #6: Please include both radiated emission test setup photos and power line conducted emission test setup photos into the Test Setup Photos Exhibit. Thank you, Helen -----Original Message----- From: CCS(KS) - Eric Wong [mailto:[email protected]] Sent: Friday, January 07, 2005 2:50 AM To: Helen Zhao Cc: 'CCS(KS) - Eric Wong' Subject: RE: Intec Inc., FCC ID: RDDDCM-G251-R, Assessment NO.: AN04T4371, Notice#1 Dear Helen, We have discuss with our client, as what’s the situation with the Controller, they’d also decided that the FCC ID belongs to the Receiver will be changed as RDDINTECYRR. Attached are the documents will be effected while such changes take place, and modification have been applied, they are: 1. Test report 2. Label 3. Confidentiality request Please kindly replace the documents with your database. On the other hand, following please find my replies in BROWN Thank you and have a nice weekend!! BR, Eric Wong -----Original Message----- From: Helen Zhao [mailto:[email protected]] Sent: Wednesday, December 01, 2004 10:58 PM To: Eric Wong (E-mail) Subject: FW: Intec Inc., FCC ID: RDDDCM-G251-R, Assessment NO.: AN04T4371, Notice#1 Hello Eric, Below address the following questions: Question #1: Please confirm whether the receiver (connected to PS2 port) has the capability to transmit the signal. Please explain what kind of signal this device will transmit to the controller. This is just for your information: Though the RF chip has transceiver function, since the controller and receiver share the same RF chip, it is possible that the controller has TX function only and the receiver has RX function only. Please confirm. Please note if the receiver is a RX only, this application is not necessary as receiver operating above 960MHz is not subject to certification. (Eric: We have full checked and confirmed that the Receiver is also bearing the Tx function, for the signal enabling the vibration of the Controller. Please refer to our test report for the evaluation towards the transmitter characteristic of the Receiver) Please answer below questions only when you confirm the receiver is a transceiver: 1/11/2005 Question #2: Please submit a test report for the receiver. (Eric: The test report is attached) Question #3: Please submit a new schematic and the one in the filing is for the controller. (Eric: The revised schematics is attached) Question #4: Please remove controller portion from the block diagram (Eric: The revised block diagram is attached) Thank you, Helen Zhao Compliance Certification Services 561F Monterey Rd. Morgan Hill, CA 95037 Tel: (408) 463-0885 ext. 131 Fax: (408) 463-0888 email: [email protected] -----Original Message----- From: CCS(KS) - Eric Wong [mailto:[email protected]] Sent: Tuesday, November 30, 2004 8:04 AM To: Helen Zhao Subject: RE: Intec Inc., FCC ID: RDDDCM-G251, Assessment NO.: AN04T4313, Notice#2 (Updated) Dear Helen, I have divided the job into 2 separate TCB submissions; also harmonize the designation same as the user manual. Attached zipped file contains the submittals toward the “controller” with its own FCC ID: RDDDCM-G251. The "receiver" is under FCC ID: RDDDCM-G251-R Please kindly discard the one uploaded before and r…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No: KS050107A01-RP FCC ID: RDDINTECYRR Date of Issue: January 7, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 24 FCC 47 CFR PART 15 Subpart C TEST REPORT For Intec Inc. RF PS2 Game Receiver Model Number: G7085; G7903; G7086; G7084 & G9875 Trade Name: Intec Prepared for Intec Inc. 5255, NW 159 th Street, Miami, Florida 3304, USA Prepared by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 10#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Lab. Code: 200581-0 Compliance Certification Services (Kunshan) Inc. Report No: KS050107A01-RP FCC ID: RDDINTECYRR Date of Issue: January 7, 2005 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ..... ...................................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.249 REQUIREMENTS.............................................................................................11 7.1 SPURIOUS EMISSION .................................................................................................................11 7.2 POWERLINE CONDUCTED EMISSIONS ..................................................................................20 Compliance Certification Services (Kunshan) Inc. Report No: KS050107A01-RP FCC ID: RDDINTECYRR Date of Issue: January 7, 2005 Page 3 1. TEST RESULT CERTIFICATION Applicant: Intec Inc. 5255, NW 159 th Street, Miami, Florida 3304, USA Equipment Under Test: RF PS2 Game Receiver Trade Name: Intec Model Number: G7085; G7903; G7086; G7084 & G9875 Date of Test: October 29~31, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services (Kunshan) Inc. Report No: KS050107A01-RP FCC ID: RDDINTECYRR Date of Issue: January 7, 2005 Page 4 2. EUT DESCRIPTION Product RF PS2 Game Receiver Trade Name Intec Model Number G7085; G7903; G7086; G7084 & G9875 Model Discrepancy EUT listed above are identical except model designation Power Supply Receiver: Powered by the PS2 (Host) Frequency Range 2402MHz - 2482 MHz Modulation Technique GFSK Modulation Antenna Gain 3dBi (Max) Antenna Designation Monopole Antenna Note: This submittal(s) (test report) is intended for FCC ID: RDDINTECYRR filing to comply with Section 15.107 & 15.109 (FCC Part 15, Subpart B) and Section 15.207, 15.209, 15.249 (FCC Part 15, Subpart C Rules.) Compliance Certification Services (Kunshan) Inc. Report No: KS050107A01-RP FCC ID: RDDINTECYRR Date of Issue: January 7, 2005 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.249. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal applicati…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No: KS050107A01-RP FCC ID: RDDINTECYRR Date of Issue: January 7, 2005 Page 23 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos (Receiver) Compliance Certification Services (Kunshan) Inc. Report No: KS050107A01-RP FCC ID: RDDINTECYRR Date of Issue: January 7, 2005 Page 24 Powerline Conducted Emission Setup Photo (Receiver)
