RDIP-542DBluetooth Speaker

Bluetooth Mini Speaker Respec tfulusers: Thank you for purchasing our Bluetooth Mini speaker . In order to operate it correctly ,Pleasereadthisusermanualcarefullybeforeusingit. ※ Keep speaker away from water and moisture,do not get it wet. ※ Keep speaker away from any heat source. . ※ Please adjust to asuitable volume to avoid damaging your health. Picture1 T echnicalParameters RatedImpedance:4Ohm W eight:187g RatedPower:3w RatedV oltage:DC5V Auxin:3.5mmaudi ojack Frequencyresponse:90-20KHz SNR: ≥ 85db Sensitivity:80d b ±2db Distortion: ≤ 0.3% Size:mm Powersupply:DC5VBuilt-inLi-ion battery Ite ms list Speaker ,USB cable,manual,3.5mm audio cable Functions Intr oduction ● Built -in Bluetoo th 2.1+EDR wireless module ● Blueto oth au d io sound, perfect sound qu ality and bass ef fect ● 10M transmission distance ● Su pp ort iPh on e,iPad and other devices with Bluetooth function ● Bluetoo th hand free function,answer call easily ● Blueto oth music controlling functions ● Built-in li-ion battery ● 3.5 audio input jack Quickly know the function wel l 1,T urn on Bluetooth Speaker: 2,T urn on the power switch, indicator light will be blue,it indicates speaker re-connecting the Bluetooth equipment matched on the last time.Bluetooth indicator light flash quickly is searching new Bluetooth equipment, Picture3 3.T urn on bluetooth equipment to search and connect. For first time use, please enter passport 0000 (high versions may do not need passport,can connect directly),When well connected,the indicator light will flash slowly and have indicating sound. Pr oduct images: Picture4 O O O O peration dir ections 1. 1. 1. 1. Connect toT elephone ● T ur no the speaker will have a “tinkle” warning sound ,at this state,speaker indicator light is flashing slowly ,3 seconds later ,speaker will have “honk” warning sound ,blue in dicator light becomes to quickly flash,it indicates Bluetooth is under searching status. ● T urn on telephone bluetooth setting to enter searching status (dif ferent brand telephones will have dif ferent methods to tirn on blu etooth setting ) searching result will display “MIRCOBOOM ”, use the passport “0000" (4 zeros),then confirmed well connected to the speaker bluetooth,the speaker will have warning sound ,it indicates well connected between bluetooth speaker and telephone.30 seconds for whole operation(dif ference in dif ferent brand telephones)First time it is necessary to use passport for identification of telephone and speaker , for the second time,no need passport just click “HJXAJ-65" to connect. ● After well connected,play music from telephone,then use bluetooth buttons to operate ● Adjust the volume button to suitable level ● Answer call:When call coming from telephone,short press “ directly can answer “ .T o make sure call quality ,it should keep bluetooth within 50 CM distance,press”” directly to hang up call. 2. 2. 2. 2. Connect Connect Connect Connectto flatcomputer Please refer to telephone operation directions 3. 3. 3. 3. Connect Connect Connect Connectto laptop laptop Due to many bluetooth versions about laptops,c onnected methods willbedif ferent.If can not connect for the time,it should be in stored new version bluetooth drive in the laptops. Solutions for common questions 1. 1. 1. 1. Bluetooth can not not notconnect to to device device device Please confirm the bluetooth is under searching status,bluetooth equipment of connected device has already turned on 2. 2. 2. 2. No No No Nosound Please check if the volume switch turned of f, please also check input of the connected device is bluetooth input volume is common 3. 3. 3. 3. Bluetooth can not not be be beturned on on on Please char ge the speaker Attentions: ● When the power is weak,it will have “tinkle” warning so und in every20 seconds. ● When battery built-in spea ker is totally used up,it will enter to pretection state.,at this time,it can not be used un der char ging,please full char ge before use it ● When do no t use spe aker , please pu sh the switch to “OFF” , in case to po wer consumption .

FCC ID: RDIP-542D FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Dongguan PengQiDa Electronics Co., Ltd FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Com pany name Dongguan PengQiDa Electronics Co., Ltd Address No. 27, LingXia Road, TianTouJiao Village, Qiaotou Town City Dongguan City Country China declare that the following representative (agent): Name (person) Daniel Zhu Company name Anbotek Compliance Laboratory Limited Addresss 1/F, 1 /Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth speaker Type or Model(s) P-542A, P-542B, P-542C, P-542D, P-543, P-545, P-546, P-548, P-549, P-560, P-561, P-562, P-563, P-564, P-565, P-566, P-567, P-568 Tradename or Brand(s) Giantech/PengQiDa We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Dongguan City/ China 2012-12-07 Lulu Zhang Sales Manager

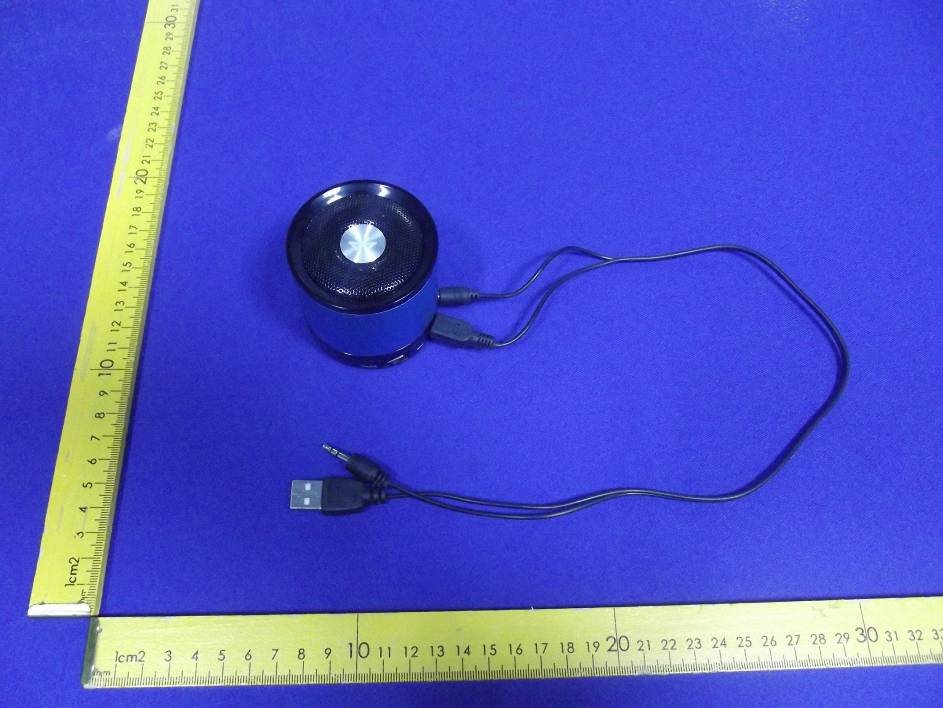

Page 21 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F APPENDIX I (ExternalPhotos) Figure 1 The EUT-Overall View Figure 2 The EUT-Back View Page 22 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F Figure 3 The EUT-Side View Figure 4 The EUT-Side View Page 23 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F Figure 5 The EUT-Side View

FCC ID Label Sample for FCC ID: RDIP-542D FCC ID: RDIP-542D This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

The proposed Label Location on EUT Proposed FCC Label Location Proposed Label Location on EUT The EUT-Side View/Proposed FCC Label Location

Page 24 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F APPENDIX II(InternalPhotos) Figure 6 The EUT-Inside View Figure 7 PCB of the EUT-Front View Page 25 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F Figure 8 PCB of the EUT-Back View Figure 9 PCB of the EUT-Front View( BT module)

Page 1 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F FCC TEST REPORT for Dongguan PengQiDa Electronics Co., Ltd. Bluetooth Speaker Model No.: P-542A, P-542B, P-542C, P-542D, P-543, P-545, P-546, P-548, P-549, P-560, P-561, P-562, P-563, P-564, P-565, P-566, P-567, P-568 Report Number : 201212700F Date of Test : Dec. 06~12, 2012 Date of Report : Dec. 12, 2012 Prepared for : Dongguan PengQiDa Electronics Co., Ltd Address : No. 27, LingXia Road, TianTouJiao Village, Qiaotou Town, Dongguan City, Guangdong, China Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Page 2 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT) ...................................................................................................................4 1.2. Auxiliary Equipment Used during Test ...................................................................................................5 1.3. Description of Test Facility......................................................................................................................6 1.4. Measurement Uncertainty ........................................................................................................................6 2. TEST PROCEDURE ....................................................................................................................... 7 3. CONDUCTED LIMITS .................................................................................................................. 8 3.1. Block Diagram of Test Setup ...................................................................................................................8 3.2. Power Line Conducted Emission Measurement Limits (15.207) .............................................................8 3.3. Configuration of EUT on Measurement ...................................................................................................8 3.4. Operating Condition of EUT ....................................................................................................................9 3.5. Test Procedure ..........................................................................................................................................9 3.6. Power Line Conducted Emission Measurement Results ..........................................................................9 4. RADIATION INTERFERENCE.................................................................................................. 12 4.1. Requirements (15.249, 15.209): .............................................................................................................12 4.2 Test Procedure .........................................................................................................................................12 4.3 Test Results..............................................................................................................................................12 5. OCCUPIED BANDWIDTH..........................................................................................................16 5.1. Requirements (15.249): ..........................................................................................................................16 5.2. Test Procedure ........................................................................................................................................16 5.3. Test Configuration:.................................................................................................................................16 5.4. Test Results.............................................................................................................................................16 6. PHOTOGRAPH............................................................................................................................. 19 6.1. Photo of Power Line Conducted Emission Measurement ......................................................................19 6.2. Photo of Radiation Emission Test ..........................................................................................................19 APPENDIX I (External Photos) (3 Pages) APPENDIX II(Internal Photos) (2 Pages) Page 3 of 25 FCC ID: RDIP-542D Anbotek Compliance Laboratory Limited Report No.201208769F TEST REPORT Applicant : Dongguan PengQiDa Electronics Co., Ltd Manufacturer : Dongguan PengQiDa Electronics Co., Ltd EUT : Bluetooth Speaker Model No. : P-542A, P-542B, P-542C, P-542D, P-543, P-545, P-546, P-548, P-549, P-560, P-561, P-562, P-563, P-564, P-565, P-566, P-567, P-568 Serial No. : N/A Rating : DC 3.7 BY BUILT-IN LI-ION BATTERY Trade Mark : Giantech/PengQiDa Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : Dec. 06~12, 2012 Prepared by : (Tested Engineer / Rock Zeng ) Reviewer : (Project Manager / Andy Chen ) Approved & Authorized Signer :…
