RE7-AP822IDual Radio Access Point

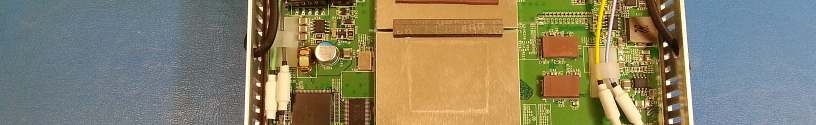

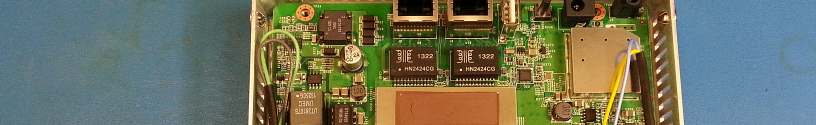

Source Organization： ：： ： USI CVS2/RD2/NS DOC NO.: Original Effective Date： ：： ： 01-09-2014 AP832e / AP832i /AP822e /AP822i Hardware Specification PAGE 1 OF 10 機密等級: 機密 Confidential Level: Confidential USI Controlled Document Document Title(文件名稱 文件名稱文件名稱 文件名稱) : AP832e /AP832i & AP822e /AP822i Hardware Specification Document Number(文件編號 文件編號文件編號 文件編號): Revision(文件版本 文件版本文件版本 文件版本): A1.0 Revise Date: 01-09-2014 Prepared by(撰寫者 撰寫者撰寫者 撰寫者): Create by which Unit(制定單位 制定單位制定單位 制定單位) : USI CVS2/RD2/NS Source Organization： ：： ： USI CVS2/RD2/NS DOC NO.: Original Effective Date： ：： ： 01-09-2014 AP832e / AP832i /AP822e /AP822i Hardware Specification PAGE 2 OF 10 Amendment Records Item: Date: Revision: Page: Change Description: Changed by: 1 01/09/2014 A1.0 ALL Initial Release Paul Source Organization： ：： ： USI CVS2/RD2/NS DOC NO.: Original Effective Date： ：： ： 01-09-2014 AP832e / AP832i /AP822e /AP822i Hardware Specification PAGE 3 OF 10 TABLE OF CONTENTS 1 PURPOSE...................................................................................................................................... 4 2 OVERVIEW.................................................................................................................................... 4 3 HARDWARE DESIGN................................................................................................................. 4 3.3.1 CPU ................................................................................................................................5 3.3.2 SDRAM...........................................................................................................................5 3.3.3 FLASH ............................................................................................................................5 3.3.4 GIGA PHY ......................................................................................................................5 3.3.5 CLOCK AND RESET ......................................................................................................5 3.3.6 WATCHDOG TIMER ......................................................................................................6 3.3.7 LED FUNCTION .............................................................................................................6 3.3.8 GPIO DEFINE.................................................................................................................6 3.3.9 IRQ DEFINITIONS..........................................................................................................7 3.3.10 UART..............................................................................................................................7 3.3.11 JTAG ..............................................................................................................................7 3.3.12 PCIE INTERFACE ..........................................................................................................7 3.3.13 USB INTERFACE ...........................................................................................................7 3.3.14 POWER SUPPLY ...........................................................................................................7 3.3.15 POWER REQUIREMENT ...............................................................................................7 3.3.16 PHYSICAL DIMENSIONS...............................................................................................8 3.3.17 ENVIRONMENTAL REQUIREMENTS............................................................................8 3.3.18 RELIABILITY REQUIREMENTS .....................................................................................9 4 REGULATORY COMPLIANCE REQUIREMENTS................................................................ 9 4.1.1 ETHERNET STANDARDS..............................................................................................9 4.1.2 SAFETY..........................................................................................................................9 4.1.3 UNINTENTIONAL RADIATION STANDARD ..................................................................9 4.1.4 INTENTIONAL RADIATION STANDARD ..............................................................................9 4.1.5 DYNAMIC FREQUENCY SELECTION(DFS)................................................................10 4.1.6 ENVIRONMENTAL COMPLIANCE REQUIREMENTS .................................................10 4.1.7 TIER 1 COUNTRIES.....................................................................................................10 4.1.8 TIER 2 COUNTRIES.....................................................................................................10 Source Organization： ：： ： USI CVS2/RD2/NS DOC NO.: Original Effective Date： ：： ： 01-09-2014 AP832e / AP832i /AP822e /AP822i Hardware Specification PAGE 4 OF 10 1 PURPOSE The AP832e/AP832i & AP822e/AP822i is designed to serve the following purposes: • WiFi 802.11a/b/g/n AP solution • 802.11ac high data rate solution • Indoor AP 2 Overview The AP832e/AP832i & AP822e/AP822i is designed with the following features: • Freescale P1020NSE2HFB 800MHz • IEEE802.3at POE compliance • 12V DC power adaptor ( <15.5W with 1.65mm DC jack) • 2x Giga LAN port. • One console port supported by phone jack. • Flash: 1pcs 32Mbytes x 16 ( optional 64MB x 16) • DDRIII: 2 pcs 64Mx16x2 bit => 256Mbytes/ 32bits • Comply with ROHS 3 Hardware Design 3.1 System Block Diagram for AP832e/AP832i Source Organization： ：： ： USI CVS2/RD2/NS DOC NO.: Original Effective Date： ：： ： 01-09-2014 AP832e / AP832i /AP822e /AP822i Hardware Specification PAGE 5 OF 10 3.2 System Block Diagram for AP822e/AP822i 3.3 Design Features 3.3.1 CPU • Freescale CPU, P1020NSE2HFB (including the security engine) must be used and configured to operate its core at 800 MHz and DDR3 memory at 667MT/s. 3.3.2 SDRAM • 256MB DDR3 Memory with two 64x16x8 memory devices and configured in 32 bit w…

Text truncated - open the document above for the full version.

Meru Networks AP822 Installation Guide xxx-xxxxx January 2014 Copyright © Meru Networks, Inc., 2003–2014. All rights reserved. Other names and brands may be claimed as the property of other iii MERU NETWORKS, INC. Limited Product Warranty This Limited Product Warranty applies to the original end-user customer of the Meru product which you purchased for your own use, and not for resale (“Product”), from Meru Networks, Inc. (“Meru”) or its authorized reseller (“Reseller”). Limited Warranties •One-year limited hardware warranty: Meru warrants to you that Meru hardware (other than Third Party Products as described below) will be free from defects in materials and work- manship for a one-year period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Hardware Warranty Period”). If Meru receives written notice from you of such defects during the Hardware Warranty Period, Meru will, at its option, either repair or replace Meru hardware that Meru determines to be defective. Replacement products may be remanufactured units, and will be warranted for the remainder of the origi- nal Hardware Warranty Period, or if greater, for thirty days from delivery of such replace- ment. Should Meru be unable to repair or replace the Meru hardware, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. •90-Day Limited Software Warranty: Meru warrants to you that, for a 90-day period after the date of delivery of the applicable product to you from Meru or its Reseller (the “Software Warranty Period”), when properly installed and used, (a) the media on which the Meru soft- ware is provided will be free from defects in materials or workmanship; and (b) the Meru software will substantially conform to the functional specifications in the applicable docu- mentation. If Meru receives written notice from you of a breach of this warranty during the Software Warranty Period and is able to reproduce the defect, Meru will, at its option, either repair or replace the defective Meru software. Should Meru be unable to repair or replace the Meru software, Meru (or its Reseller, as applicable) will refund to you the purchase price of the Product. Exclusions The warranty on the Product shall not apply to defects resulting from the following: iv •Alteration or modification of the Product in any way, including without limitation configura- tion with software or components other than those supplied by Meru or integration with parts other than those supplied by Meru. •Abuse, damage or otherwise being subjected to problems caused by negligence or misap- plication (including without limitation improper or inadequate maintenance or calibration), relocation of the products (including without limitation damage caused by use of other than Meru shipping containers), or use of the products other than as specified in the applicable Meru product documentation (including without limitation incompatible operating environ- ments and systems), or improper site preparation or maintenance. •Damage as a result of accidents, extreme power surge, extreme electromagnetic field, acts of nature or other causes beyond the control of Meru. •Use of the Product with software, interfacing, parts or supplies not supplied by Meru. The warranty on the Product does not apply if the Product is sold, or in the case of software, licensed, for free for evaluation or demonstration purposes. Meru expressly disclaims any warranty or obligation to support the Product for all operating environments – for example, as illustration and not limitation, Meru does not warrant or ensure interoperability of the Product with future telecommunication systems or other future software or hardware. You understand and acknowledge that the Products may generate, use or radiate radio fre- quency energy and may interfere with radio communications and/or radio and television receptions if is not used and/or installed in accordance with the documentation for such prod- ucts. WHILE MERU USES COMMERCIALLY REASONABLE EFFORTS TO ENSURE COM- PLIANCE OF THE PRODUCTS WITH APPLICABLE UNITED STATES FEDERAL COMMUNICATIONS COMMISSION AND PROTECT AGAINST HARMFUL INTERFER- ENCES, YOU ACKNOWLEDGE AND AGREE THAT INTERFERENCES WITH RADIO COM- MUNICATIONS AND/OR RADIO AND TELEVISION RECEPTIONS MAY OCCUR AND THAT MERU WILL NOT BE LIABLE FOR ANY DAMAGES OR INCONVENIENCE BASED ON SUCH INTERFERENCES. Third Party Products - The above Limited Warranties are exclusive of products manufac- tured by third parties (“Third Party Products”). If such third party manufacturer provides a sep- arate warranty with respect to the Third Party Product, Meru will include such warranty in the packaging of the Meru Product. Return procedures To obtain warranty service you must: (a) obtain a return materials authorization number (“RMA#”) from Meru by contacting [email protected], and (b) deliver the Prod- uct, in accordance with the instructions provided by Meru, along with proof of purchase in the form of a copy of the bill of sale including the Product’s serial number, contact information, RMA# and detailed description of the defect, in either its original package or packaging provid- ing the Product with a degree of protection equivalent to that of the original packaging, to Meru v at the address below. You agree to obtain adequate insurance to cover loss or damage to the Product during shipment. If you obtain an RMA# and return the defective Product as described above, Meru will pay the cost of returning the Product to Meru. Otherwise, you agree to bear such cost, and prior to receipt by Meru, you assume risk of any loss or damage to the Product. Meru is responsible for the cost of return shipment to you if the Meru Product is defective. Returned products which are found by Meru to be not defective, returned out-of-warranty or otherwise ineligible for warranty service will be repaired or replaced at Meru’s standard charges and shipped back to …

Text truncated - open the document above for the full version.

To Whom It May Concern: We Meru Networks Inc. 894 Ross Drive, Sunnyvale CA 94089 USA Contact: Rajendran V. Chary Tel: +1 408-215-5338 Hereby declare Both AP832I and AP822I are identical and there are no changes to the hardware and enclosure. The only difference is that the AP832I uses 6 internal antennas and the AP822I uses 4 internal antennas for normal operation. Meru Software will enable 2 chains and disable 1 chain per radio in the AP822I model. The AP822I radio transmits power per chain will equal or less than the AP832I radio transmits per chain. The AP822I total transmit EIRP is 1.77dB less than the AP832I total transmit EIRP. The two disabled radios chains in the AP822I will not transmit any signals. ______________________ Rajendran V. Chary Meru Networks Inc. 9 th January 2014

Long Term Confidentiality Request Letter 01/17/14 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Dual Radio Access Point, Model # AP822i and FCC ID # RE7-AP822I To Whom It May Concern This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Block Diagrams, Schematics, PCB Layouts, BOM, Tune-Up Procedure and Operational Descriptions required to be submitted with this application be permanently withheld from public review. The reason for confidentiality is the Block Diagrams, Schematics, PCB Layouts, BOM, Tune-Up Procedure and Operational Descriptions are Meru’s proprietary information and not to disclose to any of the Meru’s competitors. Please contact me if there is any information you may need. Sincerely, Rajendran V. Chary Engineering Architect 408-215-5338

FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People From:Dusmantha Tennakoon To:Jenn Warnell Subject:FW: Response to Inquiry to FCC (Tracking Number 521525) Date:Wednesday, April 17, 2013 9:12:51 AM Meru. Best Regards, Dusmantha Tennakoon Wireless Lab Manager EMC Department MET Labs From: [email protected] [mailto:[email protected]] Sent: Thursday, April 04, 2013 4:11 PM To: Dusmantha Tennakoon Subject: Response to Inquiry to FCC (Tracking Number 521525) Office of Engineering and Technology Inquiry on 03/19/2013 : Inquiry: A client wishes to certify a wireless AP that has two identical 2.4 and 5 GHz dual band radios inside of it. Each radio is a 3x3 MIMO. The antennas for each radio is less than 20 cm apart and could transmit simultaneously. To address co-location, in addition to MPE, we propose to test out of band emissions when both radios are transmitting simultanously. We will test a combination of channel configurations. For example, when radio 1 is on the low channel in 2.4 GHz band we will put radio 2 on 2.4 GHz channels low, mid and high and perform out of band emissions. We will also do this for a combination of 2.4 and 5 GHz channels. We will also ensure that the total out put power does not exceed the limits for a combination of two radios. Since Co-located radios are on the PBA list wanted to verify that the above mentioned test plan would suffice. ---Reply from Customer on 04/03/2013--- Wanted to follow up on this question. Thanks. FCC response on 04/04/2013 Your test plans regarding out-of-band emissions are acceptable. Regarding in-band emissions, note that the total power and power spectral density of the transmissions in any given FCC band (e.g., 2400-2483.5 GHz, and each of the four UNII bands) must satisfy the standard limits for that band even when both radios are transmitting in the same band. If you have questions about RF exposure, please submit those in a separate inquiry. Please follow the standard PBA process. Attachment Details: Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

Short Term Confidentiality Request Letter 01/16/14 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Dual Radio Access Point, Model # AP822i and FCC ID # RE7-AP822I To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Meru Networks, Inc. requests short- term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Meru Networks, Inc considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Meru Networks, Inc feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Rajendran V. Chary Engineering Architect 408-215-5338

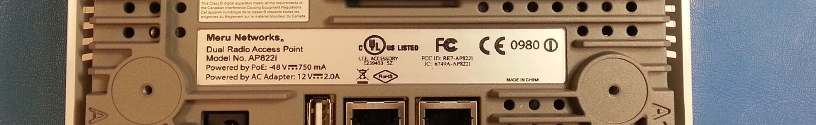

1 DO NOT SCALE THIS DRAWING ±.010 ±.05 ±1.5° 3 PLCS 2 PLCS ANG UNLESS OTHERWISE NOTED DIMENSIONS ARE IN INCHES C2/A1R DWG SIZE REV/REL SHEET USE PURSUANT TO COMPANY INSTRUCTIONS THIRD ANGLE PROJECTION P TITLE DESCRIPTION DATE REV DRAWING NUMBER PROE FILE NAME HS 01/16/14 MERU NETWORKS PROPRIETARY 845-00821 2 1 12/12/13 Initial release to Design Label, Regulatory 1, AP822i SCALE 1:1 102 mm x 15.5 mm NOTES: UNLESS OTHERWISE SPECIFIED) 1. MUST CONFORM TO UL969 MARKING & LABELING SYSTEM PGDQ2; VAL-THERM-D OR EQUIVALENT. 2. ALL TEXT AND GRAPHICS ARE BLACK.3. CE, GITEKI & KOREAN MARK HAVE MINIMUM HEIGHT OF 5mm.4. The diameter of the C-Tick mark has a minimum requirement of 3mm and the suppliers identification characters have a minimum height requirement of 1mm5. For UAE mark, “TRA” min height 3mm, all other characters min height 2mm6. For So. Africa mark, the ICASA logo min requirement is 3 x 3 mm7. Factory Code: Shanghai = “S”, Shenzhen = “SZ” 2 01/16/14 Change FCC ID from AP832i to AP822i IC: 6749A-AP832I FCC ID: RE7-AP822I MADE IN CHINA E239453 SZ I.T.E. ACCESSORY 0980 Meru Networks Dual Radio Access PointModel No. AP822i Powered by PoE: -48 V 750 mAPowered by AC Adapter: 12 V 2.0A V 7 V 2 R 205-130158 N1092

Model # MERU-P1623Rev-04 VSWR at 2.4 GHz band = 1;1.7Gain at 2.4 GHz band = 3.0 dBi Azimuth Beam width = 195 degreesElevation Beam width = 98 degrees AP332i Internal PIFA Antenna 2.4 GHz band Radiation Pattern 2.4 GHz XY-axis (Azimuth) -50-45-40-35-30-25-20-15-10 -5 05 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 XY axis - 2GHz XY axis - ... XZ axis - 2.4 GHz YZ axis - 2.4 GHz 2.4 GHz XZ-axis (Elevation 1) 2.4 GHz YZ -axis (Elevation 2) -50-45-40-35-30-25-20-15-10 -5 05 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XZ axis - 2.4 GHz Elevation1 2G -50-45-40-35-30-25-20-15-10 -5 05 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 YZ axis - 2.4 GHz Elevation1 2G Model # MERU-P1623Rev-04 Elevation Beam width = 100 degrees Gain at 5.0 GHz band = 4.0 dBiVSWR at 5.0 GHz band = 1;2.0 Azimuth Beam width = 190 degrees AP332i Internal PIFA Antenna 5 GHz band Radiation Pattern 5 GHz XY -axis (Azimuth) -50-45-40-35-30-25-20-15-10 -5 05 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XY axis - 5GHz XY axis - 5GHz 5 GHz XY -axis (Azimuth) 5 GHz XZ -axis (Elevation 1) 5 GHz YZ -axis (Elevation 2) -50-40-30-20-10 0 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XZ axis - 5 GHz XZ axis - 5 GHz -50-40-30-20-10 0 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 YZ axis - 5 GHz YZ axis - 5 GHz

§ 15.247(b) Peak Power Output and RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. Test Results: The EUT was compliant with the requirements of this section. Radios are capable of simultaneous operation. The worst case power densities for all bands for a single radio are listed below (non –simultaneous operation). DTS band Unii 1 band Unii 3 band 2.4 GHz 5.8 GHz 8.77 dBi 8.77dbi 8.77dbi 8.77dbi 24.14 dBm 26dbm 12.77dbm 22.39dbm 0.388 mW/cm2 0.597mW/cm² 0.028mW/cm² 0.260mW/cm² When both radios operate at the same time, Meru Networks will lower the power of each radio by 3dB. The Power densities for this case are listed below: DTS band Unii 1 band Unii 3 band 2.4 GHz 5.8 GHz 8.77 dBi 8.77dbi 8.77dbi 8.77dbi 21.14 dBm 23dbm 9.77dbm 19.39dbm 0.195 mW/cm2 0.299 mW/cm² 0.014mW/cm² 0.130mW/cm² As can be seen from the second table above, the power densities do not exceed 100 % per OET 65 requirements when the spectral power density is calculated at least 20cm away from the unit when two bands may operate simultaneously. Therefore, the EUTs meet the Uncontrolled Exposure limit. Test Engineer(s): Jonathan Chao

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5150-5250 MHz; highest conducted power = 12.77 dBm therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (18.92mW) G = Highest Antenna Gain (4dBi antenna x 3) 8.77dBi (7.53 numeric) R = Minimum Distance between User and Antenna (20cm) S = (18.92 *7.53)/(4*3.14*20 2 ) = 0.0283 mW/cm 2 Since S < 1 mW/cm 2 , the minimum distance (R) is 20cm

§ 15.407(f) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5745-5805 MHz; highest conducted power = 22.39 dBm (Sample) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (173.38mW) G = Antenna Gain (4dBi Antenna x3) 8.77dBi (7.53 numeric) R = Minimum Distance between User and Antenna (20 cm) S = (173.38 *7.53)/(4*3.14*20 2 ) = 0.2599 mW/cm 2 Since S < 1 mW/cm 2 , the minimum distance (R) is 20cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408) 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TEXAS 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory January 9, 2014 Meru Networks, Inc. 894 Ross Dr. Sunnyvale, CA 94089 Dear Rajendran Chary, Enclosed is the EMC Wireless test report for compliance testing of the Meru Networks, Inc., AP832i and AP822i as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Title 47 of the CFR, Part 15, Subpart B and ICES-003, Issue 5 August 2012 for Unintentional Radiators and Part 15.407 and Industry Canada RSS-210, Annex 9, Issue 8, December 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Meru Networks, Inc.\EMCS40810B-FCC407 (UNII 1)) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408) 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TEXAS 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 MET Report: EMCSS33266A-FCC407 © 2014, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Meru Networks, Inc. Model AP832i and AP822i Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & FCC Part 15.407 & RSS-210, Annex 9 for Intentional Radiators MET Report: EMCS40810B-FCC407 (UNII 1) January 9, 2014 Prepared For: Meru Networks, Inc. 894 Ross Dr. Sunnyvale, CA 94089 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Meru Networks, Inc. Introduction AP832i and AP822i CFR Title 47, Part 15E; RSS-210 Annex 9 & ICES-003 MET Report: EMCS40810B-FCC407 (UNII 1) © 2014, MET Laboratories, Inc. Page i of viii Electromagnetic Compatibility Criteria Test Report for the Meru Networks, Inc. Model AP832i and AP822i Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & FCC Part 15.407 & RSS-210, Annex 9 for Intentional Radiators Jonathan Chao, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, of the FCC Rules and Industry Canada standards ICES-003, Issue 5 August 2012, RSS-210 Annex 9 under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility Meru Networks, Inc. Introduction AP832i and AP822i CFR Title 47, Part 15E; RSS-210 Annex 9 & ICES-003 MET Report: EMCS40810B-FCC407 (UNII 1) © 2014, MET Laboratories, Inc. Page ii of viii Report Status Sheet Revision Report Date Reason for Revision  January 9, 2014 Initial Issue. Electromagnetic Compatibility Meru Networks, Inc. Table of Contents AP832i and AP822i CFR Title 47, Part 15E; RSS-210 Annex 9 & ICES-003 MET Report: EMCS40810B-FCC407 (UNII 1) © 2014, MET Laboratories, Inc. Page i of viii Table of Contents I. Executive Summary ................................................................................................................................................. 1 A. Purpose of Test ................................................................................................................................................... 2 B. Executive Summary ............................................................................................................................................ 2 II. Equipment Configuration ....................................................................................................................................... 3 A. Overview ............................................................................................................................................................. 4 B. References ........................................................................................................................................................... 5 C. Test Site .............................................................................................................................................................. 5 D. Description of Test Sample ................................................................................................................................. 5 E. Equipment Configur…
