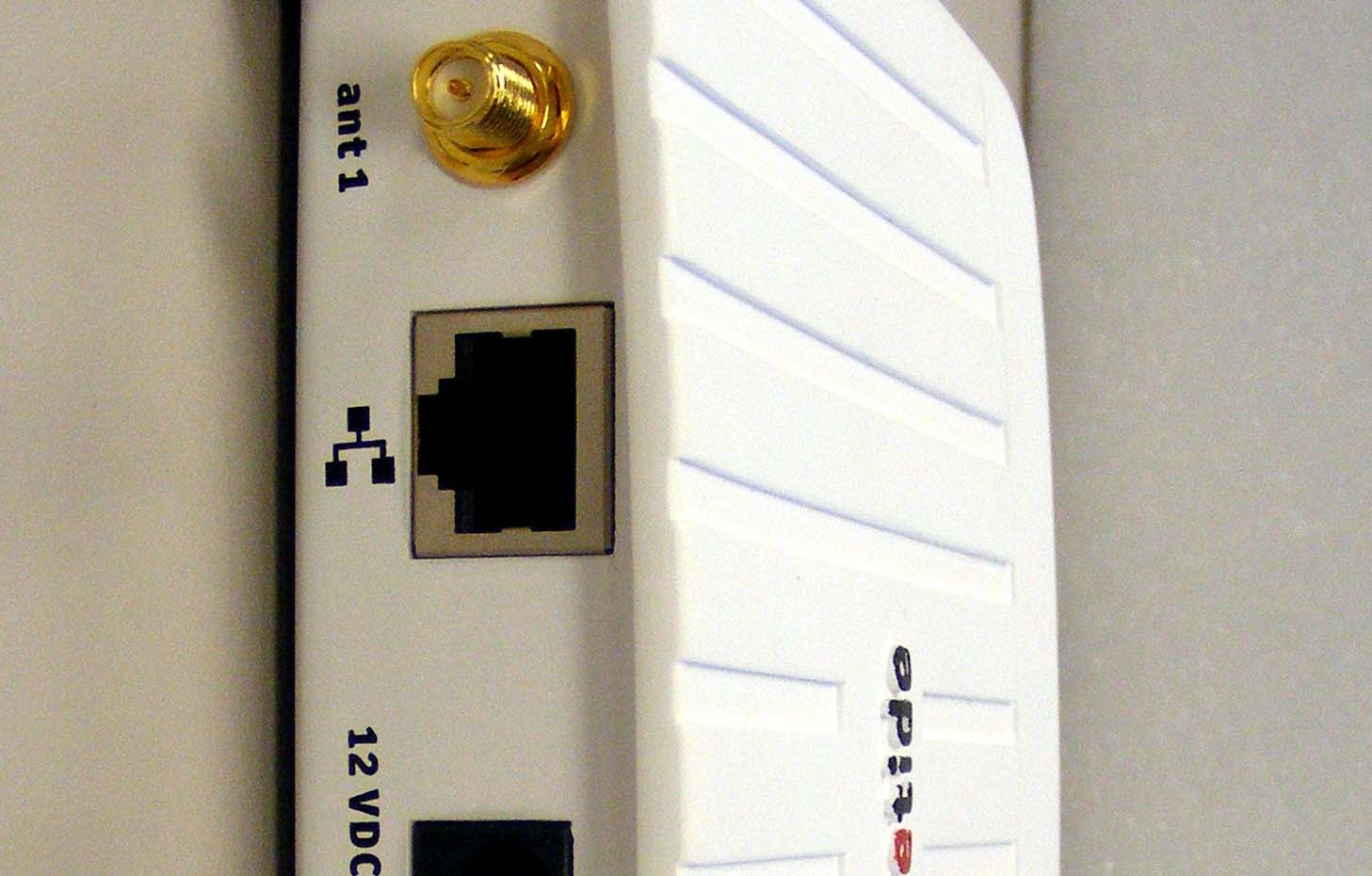

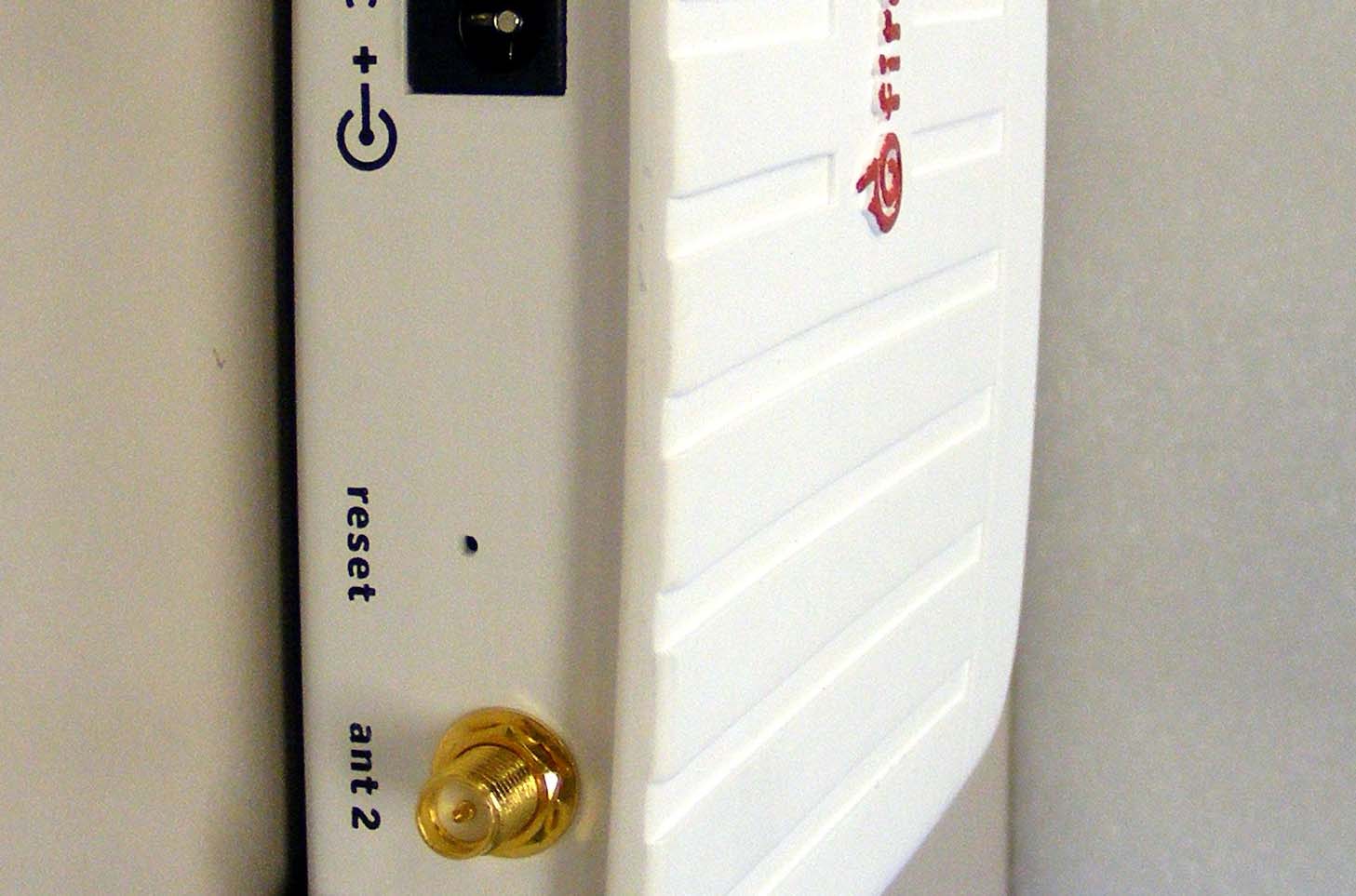

REP-2100-1HotClient Customer Premises Equipment, Model 2100

HotClient Manual Revision 1.0 012908 The contents of this Installation Guide are subject to change without notice. Please refer to the Firetide partners web site, partners.firetide.com, for current versions. Hardware Installation Guide HotClient 2100 / 2200 Customer Premises Equipment Model 2100 Indoor CPEModel 2200 Outdoor CPE 2 CPE Hardware Guide January 2008 Firetide Limited End User Product Warranty Pursuant to all provisions described herein, Firetide hardware products and Firetide antennas are warranted for one (1) year from the date of purchase against defects in the build materials and workmanship. Firetide does not warrant that the Products will meet any requirements or specifications of any End User Customer. This warranty applies to the entire Firetide product, including the AC power adapter. Pursuant to all provisions described herein, Firetide software products are warranted for ninety (90) days from the date of purchase against defects in the build materials and workmanship. Firetide also warrants that the Software will materially conform to the documentation supplied by Firetide with the Software. In the event that the Software fails to materially conform to the documentation and an authorized Firetide reseller is noti- fied in writing of such failure within the warranty period, Firetide or its reseller shall use commercially reason- able efforts to promptly correct the nonconformity. Firetide does not warrant that the use of the Software will be uninterrupted or error free. The above warranties are void if the alleged defect cannot be verified by Firetide or if, as determined by Firetide, the product failure was due to tampering, abuse, misuse, accident, shipping, handling, or storage; or if the product has been installed, used, or maintained in a manner not described in the product user manual; or if the product has been altered in any way; or if product serialization has been altered. Any attempt to disassemble or repair the product by anyone other than Firetide immediately voids this warranty. This warranty applies only to the original End User purchaser of the product and may not be transferred to any other individual or entity. THE FOREGOING ARE THE EXCLUSIVE WARRANTIES APPLICABLE TO THE PRODUCT INCLUDING THE SOFTWARE, AND THE EXCLUSIVE REMEDY FOR DEFECTS IN THE PRODUCT. FIRETIDE DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO IMPLIED WARRAN- TIES OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES SO TO THAT EXTENT THIS LIMITATION MAY NOT APPLY TO YOU. In no event will Firetide be liable for any special, incidental, consequential, punitive or indirect damages whatsoever (including, without limitation, damages for loss of profits, business interruption, loss of informa- tion, or other pecuniary loss) arising out of the use or inability to use the product or the performance, inter- ruption or failure of the product, irrespective of the cause of action, even if Firetide has been advised of the possibility of such damages. Firetide’s cumulative liability for all claims arising out of or in connection with this warranty will not exceed the amount paid by the original End User purchaser to purchase the product. The amounts payable for the product are based in part on these limitations and these limitations shall apply notwithstanding the failure of essential purpose of any remedy. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so to that extent the above limitations or exclusions may not apply to you. By using the product the original End User purchaser agrees to and is bound by these terms and conditions. In the event that a product fails to meet this warranty and Firetide’s authorized reseller is notified in writing of such failure within the warranty period, Firetide shall, at its own discretion, either repair the product or re- place it with the same or a functionally-equivalent product free of charge. Replacement products may contain refurbished materials in whole or in part. Firetide will honor this warranty provided the product is returned through an authorized Firetide reseller or dealer with shipping charges prepaid, along with a proof of purchase describing the original purchase date and product serial numbers if applicable. The authorized reseller must acquire a Return Materials Authorization (RMA) number from Firetide prior to returning any product. Firetide does not accept shipments of defective products without shipping charges prepaid. Copyright Notice: ©2003-2007 Firetide, Inc. All rights reserved. Trademarks: Firetide, the Firetide logo, Instant Mesh Networks, HotPort, HotPoint, and HotClient are trademarks of Firetide, Inc. All other trademarks are the property of their respective owners. Firetide, Inc. 16795 Lark Avenue, Suite 200 Los Gatos, CA 95032 USA Please contact your Firetide dealer for instructions on returning defective or damaged products for repair or replacement. Do not return products to Firetide, Inc. Please keep all original packaging materials in the event they are needed to return the product for servicing. Firetide Instant Mesh Networks 3 January 2008 Chapter 1. Setting Up Your Equipment Introduction The Firetide Model 2100 and 2200 HotClient Customer Premises Equipment (CPE) provide connec- tivity to the Internet without the need for cable, DSL, or other wired connection. The HotClient uses a radio connection to provide Ethernet-equivalent connectivity in your home or business. You connect to the HotClient via a wired Ethernet connection. You can connect a single computer or multiple devices on a LAN. You can also connect an 802.11 a/b/g/n access device, if desired. Unpacking and Setup - Indoor Setup of your new Firetide HotClient is simple. The package contents are shown in Figure 1. Your HotClient needs power. Note that the AC adapter has …

Text truncated - open the document above for the full version.

www.firetide.com 16795 Lark Avenue, Los Gatos, CA 95032, Tel: 408-399-7771, Fax: 408-317-1777 January 12, 2008 Reviewing Engineer MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Re: CONFIDENTIALITY REQUEST FOR HOTCLIENT 2100 FCC ID # REP-2100-1 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 & 0.459. We have requested that the schematic diagrams, parts list/bill of materials (BOM), and block diagram required to be submitted with this application be withheld from public review. The documents are company proprietary information and should not be distributed to the public or posted on the FCC’s OET website. Please contact me if there is any information you may need. Paul Richards Director of Hardware Engineering Firetide Inc. 16795 Lark Ave. Suite 200 Los Gatos, CA 95032

Label Placement for Firetide Model 2100 Place Label on back side of unit; label sits in recessed area

Firetide 2100 Series Theory of Operation The 2100 Series HotClient Customer Premises Equipment (CPE) is comprised of two printed circuit assemblies; a Support Board and a Radio. The boards are connected together via a 2 x 10 pin connector and are mounted inside a plastic enclosure. The HotClent CPE is powered by via an external AC/DC wall adapter (12V out, 1.5 A rating). The Support Board accepts the 12 VDC input through a 2.1mm barrel connector. The Support Board converts the the 12 VDC into the other supply voltages used by the rest of the Radio Card; 3.3, and 5.0 VDC. The support board also contains two LED’s that indicate in the unit is powered and a SW controlled LED that is used to display unit status. The Radio Card runs from 3.3 and 5.0 volts, which is provided by the Support Board. The output TX stage of the radio is powered from +5.0 VDC and has a supply current of 350 mA. The 2100 series uses a Firetide proprietary radio card design, which incorporates an Atheros Communications chipset. The Radio operates from 2412 MHz to 2462 MHz according to the IEEE 802.11b/g specification. The data rates supported are 1 Mbit (DBPSK), 2 Mbit (DQPSK), 5.5 Mbit (CCK), and 11 Mbit (CCK) for .11b and 6, 9, 12, 18, 24, 36, and 54 MBit OFDM for .11a/g. The Hotport Node uses two 5 dBi omni directional antennas or a separate 8 dBi patch antenna. Both antennas attach to the CPE with reverse polarity SMA connectors. Only proprietary software written and distributed by Firetide Inc. can be installed on the Mesh Node. “Source code” is controlled solely by Firetide Inc and is not distributed to end users.

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Electrical Wave............... 1.6 Gain(peak)................... 5dBi 1.7 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse RF Antenna Cable Assembly 1/2ȜDipole 1W 2.4GHz ~ 2.5GHz 50ȍ Nominal 1.92 Max. -10 dB Maximum 2 RF Antenna Assembly P/NO :C812-510010-A SPEC : 2.4GHz 6/24/2005 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of 2.4GHz-5dBi-V5.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C812-510010-A.nsi 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of 2.4GHz,5dBi-H-5.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C812-510010-A.nsi

e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 2.4 GHz 8 dBi Wireless LAN Flat Patch Antenna Applications and Features Applications: • 2.4 GHz ISM Band • IEEE 802.11b and 802.11g Wireless LAN • Bluetooth® • Public Wireless Hotspot • WiFi Features: • Superior performance • Compact size, 4.5" Square • Durable UV-stable, UL flame rated radome • Low loss solid brass element • DC Short lightning protecting • 12 inch coax lead • Can be installed for either vertical or horizontal polarization • Optional mounting brackets available Model: HG2409P Description This very compact flat patch Wi-Fi antenna provides 8 dBi gain with very broad coverage. It is suitable for both indoor and outdoor applications in the 2.4GHz ISM band, including IEEE 802.11b and 802.11g, Bluetooth® and for public wireless hotspot applications. This WiFi antenna is lightweight and features an aesthetic UV-stable, UL flame rated white plastic radome which can also be painted to match the room or building structure. The HG2409P can be installed for horizontal or vertical polarization. It can be wall or ceiling mounted, as well as mast-mounted using U-bolts. web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 e-mail: sales@hyperli ktech.com • tel: 561-995-2256 • fax: 561-995-2432 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 Specifications Electrical Specifications Frequency 2400-2500 MHz Gain 8 dBi Horizontal Beam Width 75 degrees Vertical Beam Width 65 degrees Impedance 50 Ohm VSWR < 1.5:1 avg. Lightning Protection DC Short Mechanical Specifications Weight 0.4 lbs. (.18 Kg) Dimensions 4.5 x 4.5 x .9 inches 114 x 114 x 23 mm Radome Material UV-inhibited Polymer Flame Rating UL 94HB Operating Temperature -40° C to to 85° C (-40° F to 185° F) Mounting Four ¼ in. (6.3 mm) Holes Polarization Horizontal or Vertical Wind Survival >150 MPH (241 KPH) Antenna Gain Patterns n e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 Mounting Options Hyperlink's patch antennas offer several unique mounting options. They can be mounted flat against a wall, or to a mast using a pair of 2 inch U-bolts. The antennas also accept most tilt-and-swivel security camera brackets equipped with standard 1/4-20 threads. Description Part Number Small Metal Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT02 Medium Plastic Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT03 Large Metal Tilt-and-Swivel Mounting Bracket for indoor and outdoor wall or mast mounting. Includes wall-mounting hardware. Can be mast-mounted using U-Bolt Kit (sold separately). HGX-PMT04 Universal Antenna Mount powder coated galvanized steel “DSS-style” arm for outdoor wall mounting. Requires a pair of 2 inch U-bolts (sold separately). HGX-UMOUNT Stationary Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Includes U- Bolts, nuts and mast clamp. HGX-PMT07 60 Degree Tilt-and-Swivel Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Mounting hardware included. HGX-PMT06 Ceiling/Wall Universal Antenna Mount can be used with HyperLink's 4.5" sq and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC bulkhead omni directional antennas. Includes ceiling/wall mounting hardware. HGX-UMOUNT02 Universal Corner Mounting Bracket: This bracket is designed to mount to an outside corner of a structure. It can be used with HyperLink's 4.5" and 8.5" sq. patch antennas, radome enclosed Yagi antennas, the HGX-PMT02 tilt & swivel bracket and can also accommodate the SC2402N and SC5802N 2- Way signal splitters as well as HyperAmp outdoor amplifiers. HGX-UMOUNT03 Window Mounting Kit Includes suction cups and mounting hardware. HGX-PMT08 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487

Electromagnetic Compatibility Firetide Intentional Radiators 2100 CFR Title 47, 15.247; RSS-210, Issue 7, June 2007 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) Peak Power Output and RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2412-2462MHz ; highest conducted power = 26.5dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5 dBi (Dipole Antenna) Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (446.7mW) G = Antenna Gain (3.16 numeric) S = (446.7*3.16/ 4*3.14*20 2 ) = (1411.5 / 5024) = 0.28 mW/cm 2 MPE Limit Calculation: EUT’s operating frequencies @ 2400-2483.5 MHz ; highest conducted power = 26.5dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 8 dBi (Panel Antenna) Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (446.68mW) G = Antenna Gain (6.30 numeric) S = (446.7*6.30/ 4*3.14*20 2 ) = (2818.383/ 5024) = 0.56 mW/cm 2

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 3162 BELICK STREET y SANTA CLARA, CA 95054 y PHONE (408) 748-3585 y FAX (510) 489-6372 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Page ii of vi Electromagnetic Compatibility Criteria Test Report for the Firetide Model 2100 Verified under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS80511-FCC247 January 17, 2008 Prepared For: Firetide 16795 Lark Ave, Suite 200 Los Gatos, CA 95032 Prepared By: MET Laboratories, Inc. 3162 Belick Street Santa Clara, CA 95054 Electromagnetic Compatibility Firetide Cover Page 2100 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Page iii of vi Electromagnetic Compatibility Criteria Test Report for the Firetide Model 2100 Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Minh Ly, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Firetide Report Status 2100 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Page iv of vi Report Status Sheet Revision Report Date Reason for Revision ∅ January 17, 2008 Initial Issue. Electromagnetic Compatibility Firetide Table of Contents 2100 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Page v of vi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................6 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................9 F. Support Equipment ...........................................................................................................................................10 G. Ports and Cabling Information ..........................................................................................................................11 H. Mode of Operation............................................................................................................................................11 I. Method of Monitoring EUT Operation .............................................................................................................11 J. Modifications ....................................................................................................................................................11 a) Modifications to EUT..................................................................................................................11 b) Modifications to Test Standard....................................................................................................11 K. Disposition of EUT ...........................................................................................................................................11 III. Electromagnetic Compatibility Criteria for Unintentional Radiators ..............................................................12 § 15.107(a) Conducted Emissions Limits.............................................................................................................. 13 § 15.109(a) Radiated Emission Limits .................................................................................................................. 17 § 15.09(a) Radiated Emissions Limits................................................................................................................... 17 IV. Electromagnetic Compatibility Criteria for Intentional Radiators .........................................…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility Firetide Unintentional Radiators 2100 CFR Title 47, Part 15B & ICES-003 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Conducted Emission Limits Test Setup Conducted Emissions Test Setup Electromagnetic Compatibility Firetide Unintentional Radiators 2100 CFR Title 47, Part 15B & ICES-003 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Radiated Emission Limits Test Setup Radiated Emission Test Setup 30 MHz - 1 GHz Electromagnetic Compatibility Firetide Intentional Radiators 2100 CFR Title 47, 15.247; RSS-210, Issue 7, June 2007 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Test Equipment and setup for various Radiated Measurements – Dipole Antenna Electromagnetic Compatibility Firetide Intentional Radiators 2100 CFR Title 47, 15.247; RSS-210, Issue 7, June 2007 MET Report: EMCS80511-FCC247 © 2008, MET Laboratories, Inc. Test Equipment and setup for various Radiated Measurements – Panel Antenna
