REP-3500-4HotPort 3500-5003

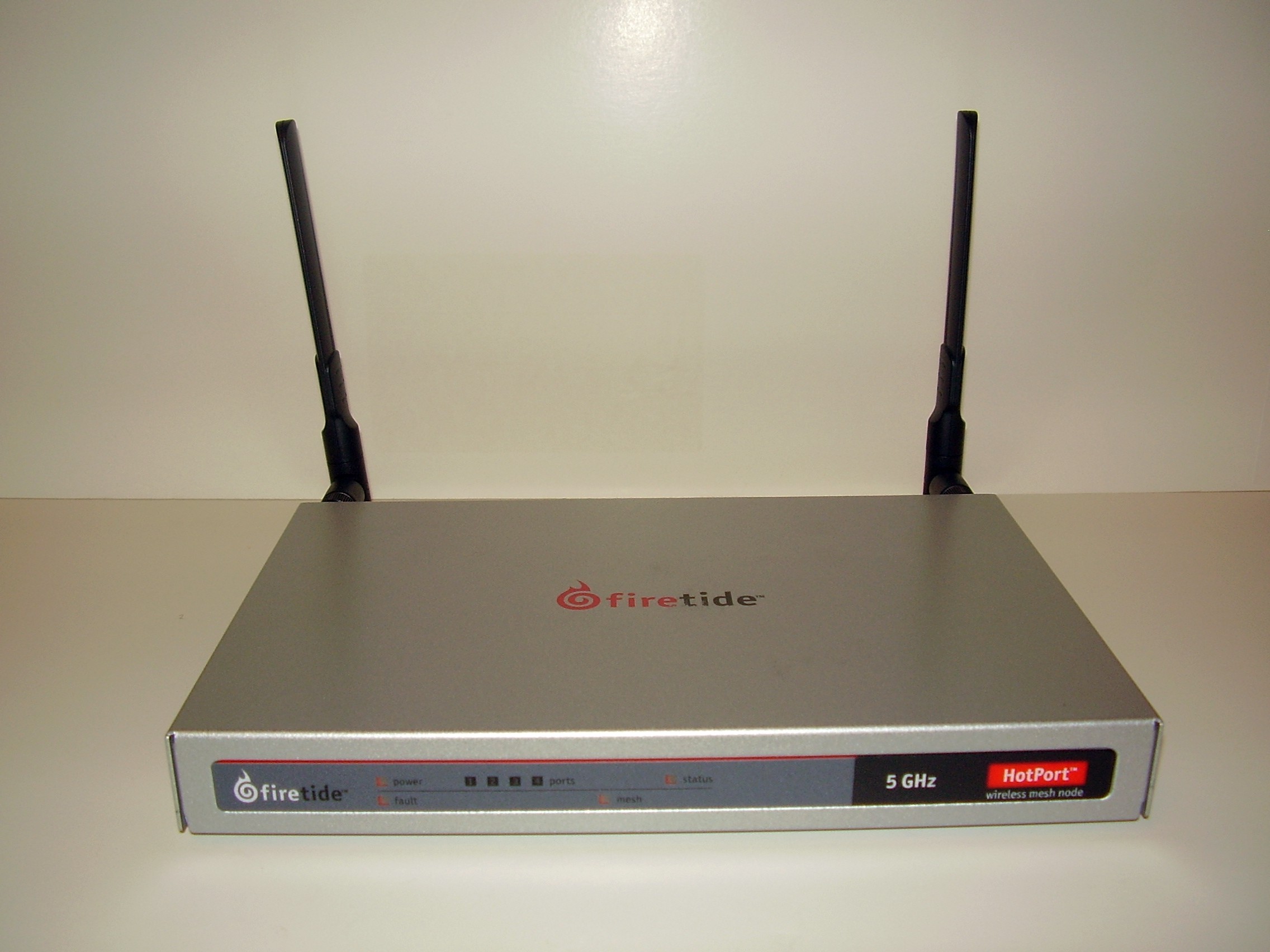

Wireless Mesh Node User Guide HotPort 3100 Series & 3500 Series Indoor Mesh Nodes HotPort 3101 HotPort 3103 HotPort 3100/PS HotPort 3500-2401 HotPort 3500-5001 HotPort 3500-2403 HotPort 3500-5003 (shown) ii Wireless Mesh Node User Guide HotPort 3100 Series / 3500 Series Indoor Mesh Nodes iii Wireless Mesh Node User Guide HotPort 3100 Series & 3500 Series Indoor Mesh Nodes January 2006 © 2005, 2006 Firetide, Inc. All rights reserved. 011006a Firetide, the Firetide logo, Instant Mesh Networks, HotPort, and HotView are trademarks of Firetide, Inc. All other trademarks are the property of their respective owners. iv Wireless Mesh Node User Guide Caution Do not open the HotPort mesh node enclosure. This may damage the components inside and affect proper operation. Opening your HotPort mesh node or peeling the tamper evident labeling will invalidate your warranty. • No serviceable parts inside. • Refer to qualified service personnel. • Unit must be disconnected from power prior to servicing. • Unit has tamper-evident labeling that indicates when cover has been removed. HotPort 3100 Series / 3500 Series Indoor Mesh Nodes v Indoor Manual Contents Introduction......................................................................................................................................................1 Firetide HotPort Wireless Mesh Nodes .............................................................................................................1 The Firetide HotPort Mesh Network .................................................................................................................3 HotPort Mesh Network Features and Benefits ....................................................................................................3 HotPort Mesh Network Applications ................................................................................................................6 HotPort Product Description .................................................................................................................................7 Front Panel LED Indicators ............................................................................................................................7 Rear Panel Connectors .................................................................................................................................8 Transmit Power Control ................................................................................................................................9 Creating a Firetide Mesh Network ..........................................................................................................................10 Planning Your Network ................................................................................................................................10 Understanding HotPort Antenna Patterns .......................................................................................................10 Easy Installation ...............................................................................................................................................12 Unpacking ................................................................................................................................................12 Connections .............................................................................................................................................12 Using the Optional Mounting Hardware ..........................................................................................................13 Getting Started .................................................................................................................................................15 Connecting the HotView Workstation to the Mesh Network .................................................................................15 Getting Started with HotView Mesh Management Software .................................................................................16 Restoring Default Settings ..................................................................................................................................17 HotPort Factory Default Settings ..................................................................................................................17 Appendix A—Contacting Firetide ..........................................................................................................................18 Appendix B—Specifications .................................................................................................................................19 Appendix C—Countries of Operation ......................................................................................................................21 Appendix D—Regulatory Notices...........................................................................................................................22 USA ........................................................................................................................................................22 Canadian Compliance Statement ...................................................................................................................23 European Community ..................................................................................................................................24 vi Wireless Mesh Node User Guide HotPort 3100 Series / 3500 Series Indoor Mesh Nodes 1 Introduction Firetide HotPort Wireless Mesh Nodes The Firetide™ HotPort™ High-Performance Mesh Network provides a high- capacity, self-healing wireless mesh backbone for indoor and outdoor net- works. The HotPort system enables multiple network services and standard Ethernet devices to operate on the wireless backbone, creating secure and reliable wireless networks for video surveillance, voice, and data. HotPort 3100 series mesh nodes provide fast and easy indoor ne…

Text truncated - open the document above for the full version.

SR5 MANUAL The SR5 hi-power mini-PCI 802.11a radio card module has been specifically designed for use in outdoor wireless applications where additional link gain is critical. It is compatible with existing Atheros linux drivers and is capable of operation in the 5725-5850 MHz frequency range. Power and frequency limits are hard programmed into the radio card EEPROM, but card compatibility can be achieved with any Atheros Linux based software. Many SBC host platforms have been qualified for use with the SR5 module including: -Mikrotik Router Boards -PC Engines WRAP boards -Many SBC platforms from large telecommunication companies It is necessary that the system integrators perform all applicable retesting and certification for their final system configurations. EXAMPLE OEM SYSTEM USAGE MODULAR USAGE PC ENGINES WRAP Wireless Router Board ATHEROS PUBLIC MADWIFI Driver Ubiquiti Networks, Inc. 778 N. First St. San Jose, CA 95112 (408)-385-1103 SR5 Pac Wireless Roo Tenna Antenna/Enclosure Software Driver SR5 IMPORTANT MODULAR APPROVAL INFORMATION This device is intended only form OEM integrator under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in visible area with the following: “Contains TX FCC ID SWX-SR5: End Product Manual Information The user manual for end users must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” SR5 IMPORTANT OPERATION INFORMATION Safety Information 20 cm

www.firetide.com 16795 Lark Avenue, Los Gatos, CA 95032, Tel: 408-399-7771, Fax: 408-317-1777 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Agent Authorization To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Date: January 18, 2006 Hoss Hakimi Director of Hardware Engineering Firetide Inc. 16795 Lark Ave. Suite 200 Los Gatos, CA 95032

Ubiquiti Networks, Inc. 1111 Weyburn Ln, Ste. #41 San Jose CA 95129 Phone (408) 873-8760 Fax (408) 351-4973 April 5, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: SWX-SR5 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation . These documents contain detailed system and equipment description and related information about the product that Ubiquiti Networks considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Ubiquiti Networks considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Sincerely Yours, Ram Malasani Senior Engineer Ubiquiti Networks, Inc.

UBIQUITI NETWORKS FCC ID: SWX-SR5 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 2.5V/3.3V power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested in a adapter exposed outside of the laptop host 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. One modular FCC ID is submitted. Second FCC ID will be obtained by OEM customers for use in their hosts. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. There are Specific EEPROM settings inside the module that prohibit illegal usage. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Module is NOT a portable device for laptops. Only can be used in outdoor AP/CPE’s. MPE calculated minimum distance has been included in user manual.

FCC Regulatory Label Placement for 3500 Series View of Bottom Side of Unit Center Label on Back of Unit, Model 3500-2401 Label Shown

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation UBIQUITI NETWORKS, INC. www.ubnt.com FCC ID: SWX-SR5

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. HotPort Wireless Mesh Node No user serviceable parts inside. Warranty void if opened. Firetide, Inc. Made in Taiwan. Serial Number Radio MAC Address Metalized mylar (silver) 54 mm 100 mm Pre-printed (PMS black) 4 mm radius corners Pre-printed (PMS black with reverse type and logos) Separate label (6 mm x 32 mm) Separate label (6 mm x 32 mm) Firetide Model–HotPort 3500-5003 Input Power: 5 VDC, 1.25 A FCC ID REP-3500-4 FCC Part 15 Certification

3500-500X Series Theory of Operation Principle The 3500-500X Series Hotport Mesh Node is comprised of two printed circuit assemblies; a Mother Board and Radio Card. The Motherboard uses the Intel IXP425 as the central processing unit. Memory configuration is 32M bytes of FLASH and 64M bytes SDRAM. The Motherboard is powered by via a AC/DC wall adapter (5V out, 1.2 A rating). The Hotport Node supports up to 4 10/100 Base-TX LAN network interfaces using Admtek 6996L Ethernet switch. The interface to the LAN network is through an RJ45 STP port. The radio card (Type III mini PCI module) plugs into the Motherboard. Communication to/from the Motherboard is made via a 128 pin mini PCI connector. The Radio Card runs from 3.3 volts, which is provided by the Motherboard. The 3500-500X series uses an Ubiquiti Networks SR5 radio card. The SR5 card is a full featured 802.11a client card. The Radio operates in the 5150 MHz to 5350 and 5725 MHz to 5825 MHz bands according to the IEEE 802.11a specification. The data rates supported 6, 9, 12, 18, 24, 36, and 54 MBit OFDM. The Hotport Node uses two 5 dBi omni directional diversity antennas. FCC 15.407 (c) statement: The 3500-5001 and -5003’s data transmission is controlled by Firetide application software running on the IXP425. The software initiates the TX sequence by sending an initialization command to the MAC (Media Access Controller) (Atheros AR5312), which resides on the Radio Card. TX data is passed to the MAC and then to to Radio IC along with TX/RX control signals. Once the data packet has been transmitted, the state machine inside the MAC instructs the Radio to turn off the transmit function and return to receive mode. The MAC also controls “non-data” packets such as ACK’s, RTS/CTS, etc.

Hi Chris. I’ve looked closely at the two worst case Peak Excursion Plots for both the Low and Mid UNII Bands. The top line looks at the absolute maximum that occurred and the lower line looks at the very minimum that occurred. There does not appear to be any point within the occupied band width where the difference between the peak and measured power would exceed the 13dB threshold. Please see graphs below to support finding. Thanks, Shawn McMillen Low UNII Band Mid Channel Mid UNII Band Low Channel

5.8 GHz Model #: NETGATE Type: Dipole Length: 160 mm Max_Gain: 0 dBi ANTENNA INFORMATION

www.firetide.com 16795 Lark Avenue, Los Gatos, CA 95032, Tel: 408-399-7771, Fax: 408-317-1777 January 28, 2006 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Hotport 3500-5003 ; FCC ID # REP-3500-4 To Whom It May Concern: The radio module used in the Hotport 3500 is an “off-the-shelf” product produced by Ubiquiti Networks Inc. (San Jose, CA). The model number of the radio module is SR5. The SR5 is Ubiquiti’s version of the 802.11a mini PCI card developed by Atheros Communications (Sunnyvale, CA). The radio card utilizes the Atheros AR5213 (MAC) and AR5112 (Radio) IC’s, which are designed to cover the 5 GHz UNII bands. Firetide purchases the SR5 module from Ubiquiti as a tested and calibrated card. No tuning or programming of the SR5 card prior to final assembly is performed by Firetide. Tuning of the Hotport 3500 (output power and operating frequency) is done by using the HotView SW application provided with each unit. With Hotview, the end user can change the operating frequency to pre-set/pre-defined channels and can change (increase/decrease) the TX output power. The end user can only increase the power up to a factory set limit and not beyond. The factory set limit is based on the TX power levels measured during the FCC certification testing. Please contact me if there is any information you may need. Hoss Hakimi Director of Hardware Engineering Firetide Inc. 16795 Lark Ave. Suite 200 Los Gatos, CA 95032

Model 3500-5001 § 15.247(b) Peak Power Output and RF Exposure 5120 - 5250MHz RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5120-5250 MHz ; highest conducted power = 15.99dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 4dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (39.7mW) G = Antenna Gain (2.51 numeric) R = (39.7*2.51/ 4*3.14*1.0) 1/2 = (99.6/ 12.56) 1/2 = 2.81cm § 15.247(b) Peak Power Output and RF Exposure 5250 - 5350MHz RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5250-5350 MHz ; highest conducted power = 22.01dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 4dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (158.8mW) G = Antenna Gain (2.51numeric) R = (158.8*2.51/ 4*3.14*1.0) 1/2 = (398.5/ 12.56) 1/2 = 5.63cm § 15.247(b) Peak Power Output and RF Exposure 5745 - 5825MHz RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 24.97dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 4dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (314.1mW) G = Antenna Gain (2.51numeric) R = (314.1*2.51/ 4*3.14*1.0) 1/2 = (788.3/ 12.56) 1/2 = 7.92cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587-3201 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 MET Report: EMCS18793B-FCC407 © 2006, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Firetide HotPort 3500-5003 Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 and 15.247 for Intentional Radiators MET Report: EMCS18793B-FCC407 January 5, 2006 Prepared For: Firetide 16795 Lark Ave. Los Gatos, CA 95032 Prepared By: MET Laboratories, Inc. 33439 Western Ave. Union City, California 94587 Electromagnetic Compatibility Firetide Equipment Configuration HotPort 3500-5003 CFR Title 47, Part 15, Subpart E MET Report: EMCS18793B-FCC407 © 2006, MET Laboratories, Inc. Page ii of vi Electromagnetic Compatibility Criteria Test Report for the Firetide HotPort 3500-5003 Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 and 15.247 for Intentional Radiators Shawn McMillen, Project Engineer Cheryl Anicete Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15.407 and 15.247, of the FCC Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Firetide Equipment Configuration HotPort 3500-5003 CFR Title 47, Part 15, Subpart E MET Report: EMCS18793B-FCC407 © 2006, MET Laboratories, Inc. Page iii of vi Report Status Sheet Revision Report Date Reason for Revision ∅ January 5, 2006 Initial Issue. 1 February 13. 2006 Revision 1 Electromagnetic Compatibility Firetide Equipment Configuration HotPort 3500-5003 CFR Title 47, Part 15, Subpart E MET Report: EMCS18793B-FCC407 © 2006, MET Laboratories, Inc. Page iv of vi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................3 II. Equipment Configuration .......................................................................................................................................4 A. Overview.............................................................................................................................................................5 B. References...........................................................................................................................................................6 C. Test Site ..............................................................................................................................................................6 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................9 F. Support Equipment .............................................................................................................................................9 G. Ports and Cabling Information ..........................................................................................................................10 H. Mode of Operation............................................................................................................................................10 I. Method of Monitoring EUT Operation .............................................................................................................10 J. Modifications ....................................................................................................................................................10 a) Modifications to EUT..................................................................................................................10 b) Modifications to Test Standard....................................................................................................10 K. Disposition of EUT ...........................................................................................................................................10 III. Electromagnetic Compatibility Criteria for Intentional Radiators ...................................................................11 § 15.203 Antenna Requirement ............................................................................................................................. 12 § 15.207 Conducted Emissions Limits .................................................................................................................. 13 § 15.209 Radiated Emissions Limits ..................................................................................................................... 17 § 15.403 26dB Bandwidth ..................................................................................................................................... 20 § 15.407 RF Power Output .................................................................................................................................... 24 § 15.407 Peak…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 5.8 GHz 802.11a Mini-PCI Card MODEL NUMBER: SR5 FCC ID: SWX-SR5 REPORT NUMBER: 05U3280-2 ISSUE DATE: MAY 9, 2005 Prepared for UBIQUITI NETWORKS 1111 WEYBURN LANE, SUITE 41 SAN JOSE, CA 95129 U.S.A. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3280-2 DATE: MAY 9, 2005 EUT: 5.8 GHz 802.11a Mini-PCI Card FCC ID: SWX-SR5 Page 2 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By REPORT NO: 05U3280-2 DATE: MAY 9, 2005 EUT: 5.8 GHz 802.11a Mini-PCI Card FCC ID: SWX-SR5 Page 3 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 3.1. ACCREDITED TESTS .................................................................................................................. 5 3.2. UNACCREDITED TESTS.............................................................................................................5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 7 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE...........................................................…
