REP-6100-1HotPort 620X Wireless Mesh Node

HotView HotViewPro TM Manual Revision 0.95 022807 The contents of this Installation Guide are subject to change without notice. Please refer to the Firetide web site, www.firetide.com, for current versions. Hardware Installation Guide HotPort 6000 Series Indoor and Outdoor Wireless Mesh Nodes Series 6200 - Outdoor NodeSeries 6100 - Indoor Node  HotPort 6000 Series Mesh Nodes February 2007 Firetide Limited End User Product Warranty Pursuant to all provisions described herein, Firetide hardware products and Firetide antennas are warranted for one (1) year from the date of purchase against defects in the build materials and workmanship. Firetide does not warrant that the Products will meet any requirements or specifications of any End User Customer. This warranty applies to the entire Firetide product, including the AC power adapter. Pursuant to all provisions described herein, Firetide software products are warranted for ninety (90) days from the date of purchase against defects in the build materials and workmanship. Firetide also warrants that the Soft- ware will materially conform to the documentation supplied by Firetide with the Software. In the event that the Software fails to materially conform to the documentation and an authorized Firetide reseller is notified in writing of such failure within the warranty period, Firetide or its reseller shall use commercially reasonable efforts to promptly correct the nonconformity. Firetide does not warrant that the use of the Software will be uninterrupted or error free. The above warranties are void if the alleged defect cannot be verified by Firetide or if, as determined by Firetide, the product failure was due to tam- pering, abuse, misuse, accident, shipping, handling, or storage; or if the product has been installed, used, or maintained in a manner not described in the product user manual; or if the product has been altered in any way; or if product serialization has been altered. Any attempt to disassemble or repair the product by anyone other than Firetide immediately voids this warranty. This warranty applies only to the original End User purchaser of the product and may not be transferred to any other individual or entity. THE FOREGOING ARE THE EXCLUSIVE WARRANTIES APPLICABLE TO THE PROD- UCT INCLUDING THE SOFTWARE, AND THE EXCLUSIVE REMEDY FOR DEFECTS IN THE PRODUCT. FIRETIDE DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILIT Y, NON-INFRINGEMENT OR FIT- NESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLU- SION OF IMPLIED WARRANTIES SO TO THAT EXTENT THIS LIMITATION MAY NOT APPLY TO YOU. In no event will Firetide be liable for any special, incidental, consequential, punitive or indirect damages whatsoever (including, without limitation, damages for loss of profits, business interruption, loss of information, or other pecuniary loss) arising out of the use or inability to use the product or the performance, interruption or failure of the product, irrespective of the cause of action, even if Firetide has been advised of the possibility of such damages. Firetide’s cumulative liability for all claims arising out of or in connection with this warranty will not exceed the amount paid by the original End User purchaser to purchase the product. The amounts payable for the product are based in part on these limitations and these limitations shall apply notwithstanding the failure of essential purpose of any remedy. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so to that extent the above limitations or exclu- sions may not apply to you. By using the product the original End User purchaser agrees to and is bound by these terms and conditions. In the event that a product fails to meet this warranty and Firetide’s autho- rized reseller is notified in writing of such failure within the warranty peri- od, Firetide shall, at its own discretion, either repair the product or replace it with the same or a functionally-equivalent product free of charge. Re- placement products may contain refurbished materials in whole or in part. Firetide will honor this warranty provided the product is returned through an authorized Firetide reseller or dealer with shipping charges prepaid, along with a proof of purchase describing the original purchase date and product serial numbers if applicable. The authorized reseller must acquire a Return Materials Authorization (RMA) number from Firetide prior to return- ing any product. Firetide does not accept shipments of defective products without shipping charges prepaid. Safety Instructions & Explanation of Graphic Symbols The HotPort outdoor wireless mesh node must be installed by a qualified professional such as a licensed electrician. Failure to install this equip- ment properly may result in equipment damage and personal injury or death. This symbol is intended to alert the user to the pres- ence of non-insulated dangerous voltage that may be of sufficient magnitude to constitute a risk of lethal electric shock to persons. This symbol is intended to alert the user to the pres- ence of important operating, maintaining and servic- ing instructions in the literature accompanying the HotPort node. Failing to comply with this instruction may result in electrical shock. This symbol is intended to alert the user to the pres- ence of important operating, maintaining and servic- ing instructions in the literature accompanying the HotPort node. Failing to comply with this instruction may result in a hazard. Copyright Notice: ©2003-2007 Firetide, Inc. All rights reserved. Trademarks: Firetide, the Firetide logo, Instant Mesh Networks, HotPort, and HotPoint are trademarks of Firetide, Inc. All other trademarks are the prop- erty of their respective owners. Firetide Instant Mesh Networks  February 2007 Contents HotPort Node Installation . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

www.firetide.com 16795 Lark Avenue, Los Gatos, CA 95032, Tel: 408-399-7771, Fax: 408-317-1777 February 15, 2007 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: CONFIDENTIALITY REQUEST FOR HOTPORT 610X FCC ID # REP-6100-1 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams, parts list/bill of materials (BOM), and block diagram required to be submitted with this application be withheld from public review. The documents are company proprietary information that should not get into the possession of our competition. Please contact me if there is any information you may need. Paul Richards Director of Hardware Engineering Firetide Inc. 16795 Lark Ave. Suite 200 Los Gatos, CA 95032

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 File: Response to Request for Additional Information CRN_33511.doc Page 1 of 2 August 9, 2007 Richard Tseng Federal Communications Commission Office of Engineering and Technology 445 12TH ST SW Washington DC 20554 RE: Firetide, FCC ID: REP-6100-1, Correspondence Reference Number 33511 Dear Richard Tseng, Please see our response to your concerns below: 1. The application lists the entire U-NII bands as operating frequencies. For unlicensed devices you must list the carrier frequency of the lowest and highest channel. Please provide this information. The frequencies on the Form 731 were corrected to 5260 – 5320MHz & 5500 – 5700MHz. 2. The device looked like it was tested with another device of the same type. Did the EUT operate as a master or a client? If neither due to network topology, how was radar detection determined on the EUT? The EUT was tested as a master device while connected to a client of the same type. 3. If the device operates in UNII band as a 802.11a device, why was it not tested with a typical client such as 802.11a wireless card in order to simulate normal operation? The EUT was tested as a master device while connected to a client device which contains an 802.11a wireless card. 4. Does the EUT communicate with other nodes in the same mesh network on the same spectrum as the network traffic? Or the EUT communicates with other nodes in other frequency bands the device operates in? In a typical deployment, the EUT is part of a mesh network with one or more other nodes. Each node in the network is capable of detecting the radar signal. The EUT’s mesh network may be configured to have both radios operate in the same spectrum/band. Or, it may be configured to have one of the two radios operate in a separate band. In either case, if one or two radios are operating in the DFS band, each radio monitors for radar traffic. In the DFS test setup, the second radio of each mesh node was terminated with an antenna to simulate a normal operating scenario. Both of the second radios were manually set to different frequencies so they would not communicate with each other. This guaranteed that the network traffic (i.e. the test video file) was sent over the DFS channel between the EUT master and the second mesh node acting as the client. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 File: Response to Request for Additional Information CRN_33511.doc Page 2 of 2 5. Verify that this device has only one BW mode in frequency bands that require DFS. The EUT only uses on bandwidth mode, OFDM. 6. Please upload the list of antenna to be used with this device. User's manual mentioned there was a list yet it was not seen in any of the exhibits. The list of antennas are provided in the DFS report on page 6 of 41. The Indoor Unit (Model 6100) uses only 1 antenna type. 7. The radar detection BW is incorrect. The minimum radar detection BW should be 80% of the occupied BW. You report the occupied BW of approximately 25 MHz. The minimum radar detection BW is about 20 MHz. Your radar detection BW data reports 16 MHz. This appears to be non-compliant. Also the detection BW datasheet did not include data for FH and FL at 90% detection or less. It is impossible to determine compliance based on the datasheet. The reported occupied bandwidth at 5300MHz from the 99% power bandwidth EMC test report is approximately 16.4MHz, not 25MHz. The 25MHz occupied bandwidth being referred to above is the 26dB bandwidth, not the 99% bandwidth. On page 22 of 41 in the DFS report, the test data for the detection bandwidth demonstrates compliance at both FH and FL for 80% of the 99% bandwidth reported. If you need any additional information, please let me know. Thank you Jennifer Sanchez TCB Administrator MET Laboratories, Inc., Santa Clara, CA 408-213-2359 [email protected] [email protected]

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 November 8, 2007 Attn: Richard Tseng Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Applicant: Firetide Inc. FCC ID: REP-6100-1 Form 731 Confirmation Number: EA361684 Date of Original E-Mail: 11/07/2007 Correspondence Reference Number: 34207 Question: MPE estimation appears to consider only single antenna - as we understand this product has two single-antenna radio-cards. Please revise to consider total exposure, ie [ MPE(f1) / limit(f1) + MPE(f2) / limit(f2) ] < 1 Response: The model 6100, which is intended for indoor use only, has a separation distance of 21.8cm between the two antennas. Therefore, the radios are not collocated. Please let me know if you need any additional information. Thanks! Jennifer Sanchez TCB Administrator MET Laboratories, Inc. 408-213-2359 [email protected] [email protected] www.metlabs.com

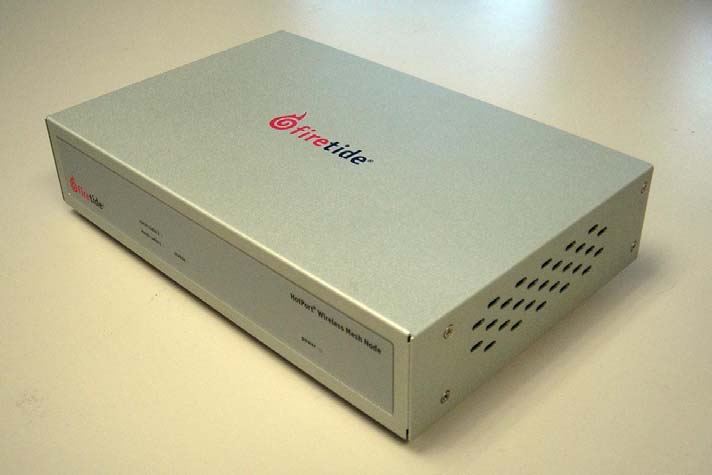

610x Mesh Node External Photos Front View Back View Isometric View

610x Mesh Node Label Placement Label is placed on bottom of unit.

No user serviceable parts inside. Warranty void if opened. Firetide, Inc. Made in China. Metalized mylar (silver) 54 mm 100 mm Pre-printed (PMS black) 4 mm radius corners Pre-printed (PMS black with reverse type and logos) Serial Number Radio MAC Addresses Add separate bar code labels here (up to 25 mm x 48 mm) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. HotPort Wireless Mesh Node Input Power: 15 VDC, 1.8 A Firetide Model–HotPort 6102 FCC ID: REP-6100-1 IC ID: 4988A-6100 0980 R1 R2

610x Mesh Node Internal Photos Cover Removed Component Side of Daughter Card Solder Side of Daughter Card Two Radio Cards mated to Motherboard Component side of Motherboard Solder side of Motherboard Component side of Radio Card w/shield installed Component side of Radio Card w/shield cover removed Solder side of Radio Card

Firetide 6100 Series Theory of Operation The 6100 Series Hotport Mesh Node is comprised of four printed circuit assemblies; a Mother Board, Daughter Card, and two Radio Cards. The HotPort Mesh Node is powered by via an AC/DC desktop adapter (15V out, 1.8 A rating). The Daughter Card accepts the 15 VDC input through a 4 pin mini DIN connector. The Daughtercard converts the the 15 VDC into four other supply voltages used by the rest of the system; 1.3, 1.8, 3.3, and 5.0 VDC. The Motherboard uses the Intel IXP425 as the central processing unit. Memory configuration is 32M bytes of FLASH and 128M bytes SDRAM. The Hotport Node supports up to 4 10/100 Base-TX LAN network interfaces using the Micrel KS8995MA Ethernet switch. The interface to the wired LAN network is through RJ45 ports on the rear of the HotPort. The radio cards plug into the Motherboard. Communication to/from the Motherboard is made via a MMI interface. The Radio Card runs from 3.3 and 5.0 volts, which is provided by the Motherboard. The output TX stage of the radio is powered from +5.0 VDC and has a supply current of 350 mA. The 6100 series uses a Firetide proprietary radio card. Each Radio is a full featured 802.11a/b/g client card. The Radio operates from 2412 MHz to 2462 MHz according to the IEEE 802.11b/g specification and from 4.94 – 4.99 and 5.15 – 5.825 GHz according to the IEEE 802.11a specification. The data rates supported are 1 Mbit (DBPSK), 2 Mbit (DQPSK), 5.5 Mbit (CCK), and 11 Mbit (CCK) for .11b and 6, 9, 12, 18, 24, 36, and 54 MBit OFDM for .11a/g. The Hotport Node uses two 5 dBi omni directional antennas and is housed in a sheetmetal enclosure.

www.firetide.com 16795 Lark Avenue, Los Gatos, CA 95032, Tel: 408-399-7771, Fax: 408-317-1777 February 15, 2007 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Hotport 610x; FCC ID # REP-6100-1 To Whom It May Concern: The radio module used in the Hotport 6100 series is a custom product produced by Wistron NeWeb (Hsinchu, Taiwan) for Firetide. The radio card utilizes the Atheros AR2313 (MAC) and AR5112 (Radio) IC’s, which are designed to cover the 2.4 and 5 GHz UNII bands. Firetide purchases the Radio Card from Wistron as a tested and calibrated card. No tuning or programming of the card prior to final assembly is performed by Firetide. Tuning of the Hotport 6100 (output power and operating frequency) is done by using the HotView SW application provided with each unit. With Hotview, the end user can change the operating frequency to pre-set/pre-defined channels and can change (increase/decrease) the TX output power. The end user can only increase the power up to a factory set limit and not beyond. The factory set limit is based on the TX power levels measured during the FCC certification testing. Please contact me if there is any information you may need. Paul Richards Director of Hardware Engineering Firetide Inc. 16795 Lark Ave. Suite 200 Los Gatos, CA 95032

MPE CALCULATION MPE Limit Calculation: EUT’s operating frequencies @ 5150-5250 MHz ; highest conducted power = 16.5 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5 dBi. Equation from page 18 of OET 65, Edition 97-01 EUT with 5dBi Antenna S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (44.66mW) G = Antenna Gain (3.16 numeric) S = (141.12/4*3.14*20 2 ) = (141.12/5024) = 0.02 mW/cm 2 MPE Limit Calculation: EUT’s operating frequencies @ 5250-5350 MHz, 5470-5725 MHz; highest conducted power = 23.9 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5 dBi. Equation from page 18 of OET 65, Edition 97-01 EUT with 5dBi Antenna S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (245.4mW) G = Antenna Gain (3.16 numeric) S = (775.4/4*3.14*20 2 ) = (775.4/5024) = 0.15 mW/cm 2

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587-3201 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory March 8, 2007 Firetide 16795 Lark Ave, Suite 200 Los Gatos, CA 95032 Dear Paul Richards, Enclosed is the EMC test report for compliance testing of the Firetide, 6100 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-03 ed.), Title 47 of the CFR, Part 15.407 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\Firetide\EMCS21543A-FCC407) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, A2LA, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by these organizations or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587-3201 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Firetide Model 6100 Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 for Intentional Radiators MET Report: EMC21543-FCC407 March 8, 2007 Prepared For: Firetide 16795 Lark Ave, Suite 200 Los Gatos, CA 95032 Prepared By: MET Laboratories, Inc. 4855 Patrick Henry Dr., Building 6 Santa Clara, CA 95054 Electromagnetic Compatibility Firetide Equipment Configuration 6100 CFR Title 47, Part 15, Subpart E MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Firetide Model 6100 Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 for Intentional Radiators Shawn McMillen, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15.407, of the FCC Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Firetide Report Status 6100 CFR Title 47, Part 15, Subpart E MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page i of vi Report Status Sheet Revision Report Date Reason for Revision ∅ March 8, 2007 Initial Issue. Electromagnetic Compatibility Firetide Table of Contents 6100 CFR Title 47, Part 15, Subpart E MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page i of vi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................9 F. Support Equipment ...........................................................................................................................................10 G. Ports and Cabling Information ..........................................................................................................................11 H. Mode of Operation............................................................................................................................................11 I. Method of Monitoring EUT Operation .............................................................................................................11 J. Modifications ....................................................................................................................................................12 a) Modifications to EUT.................................…

Text truncated - open the document above for the full version.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587-3201 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory March 27, 2007 Firetide 16795 Lark Ave, Suite 200 Los Gatos, CA 95032 Dear Paul Richards, Enclosed is the Dynamic Frequency Selection (DFS) test report for compliance testing of the Firetide, 6100 & 6200 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-03 ed.), Title 47 of the CFR, Part 15.407 sub part E for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\Firetide\EMCS21543-FCCDFS) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, A2LA, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by these organizations or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587-3201 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page i of vi Dynamic Frequency Selection Test Report for the Firetide Model 6100 & 6200 Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 for Intentional Radiators MET Report: EMC21543-FCCDFS March 27, 2007 Prepared For: Firetide 16795 Lark Ave, Suite 200 Los Gatos, CA 95032 Prepared By: MET Laboratories, Inc. 4855 Patrick Henry Dr., Building 6 Santa Clara, CA 95054 Electromagnetic Compatibility Firetide Cover Page 6100& 6200 CFR Title 47, Part 15, Subpart E MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page ii of vi Dynamic Frequency Selection Test Report for the Firetide Model 6100& 6200 Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 for Intentional Radiators Shawn McMillen, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15.407, of the FCC Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Firetide Report Status 6100& 6200 CFR Title 47, Part 15, Subpart E MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page i of vi Report Status Sheet Revision Report Date Reason for Revision ∅ March 27, 2007 Initial Issue. Electromagnetic Compatibility Firetide Table of Contents 6100& 6200 CFR Title 47, Part 15, Subpart E MET Report: EMCS21543-FCC407 © 2007, MET Laboratories, Inc. Page i of vi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 III. DFS Radar Waveform Description and Calibration ............................................................................................9 DFS Requirements ................................................................................................................................................ 10 Required Radar Test Waveforms .......................................................................................................................... 11 Radar Waveform Calibration ................................................................................................................................ 14 Test Setup for EUT................................................................................................................................................ 18 IV. DFS Procedures and Test Results.........................................................................................................................20 UNII Detection Bandwidth.................................................................................................................................... 21 Initial Channel Avai…

Text truncated - open the document above for the full version.

Conducted Emission Limits Test Setup Conducted Emissions Test Setup Radiated Emission Limits Test Setup Radiated Emission Test Setup 30 MHz - 1 GHz Test Equipment and setup for various Radiated Measurements (5dbi Omni Antenna)
