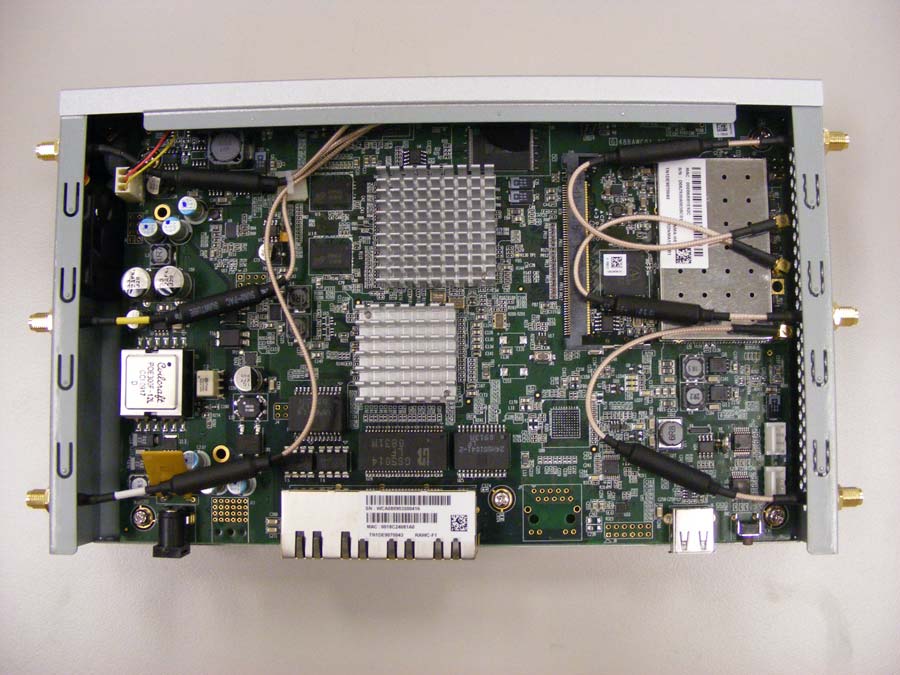

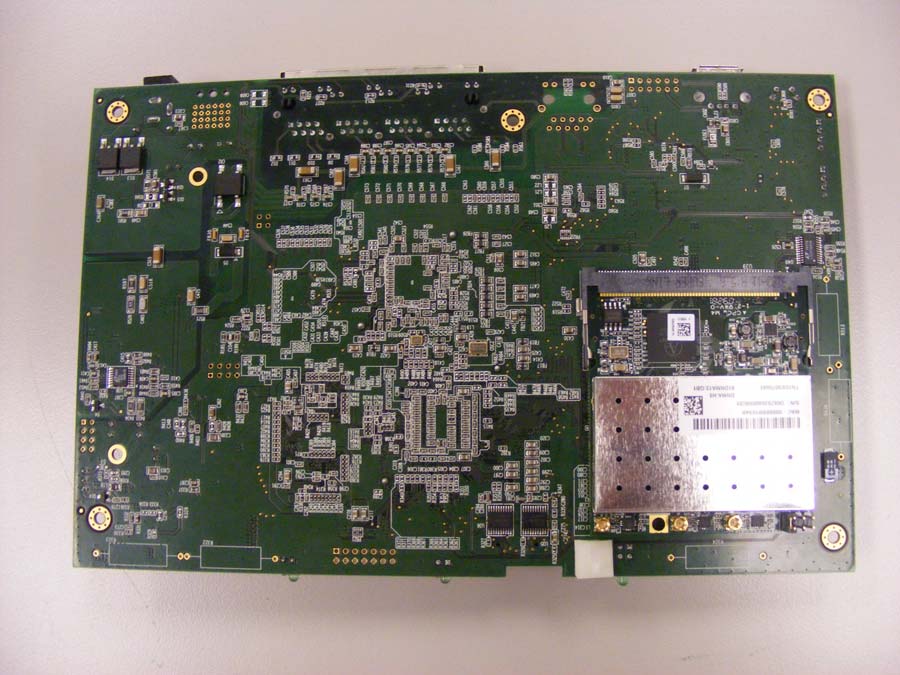

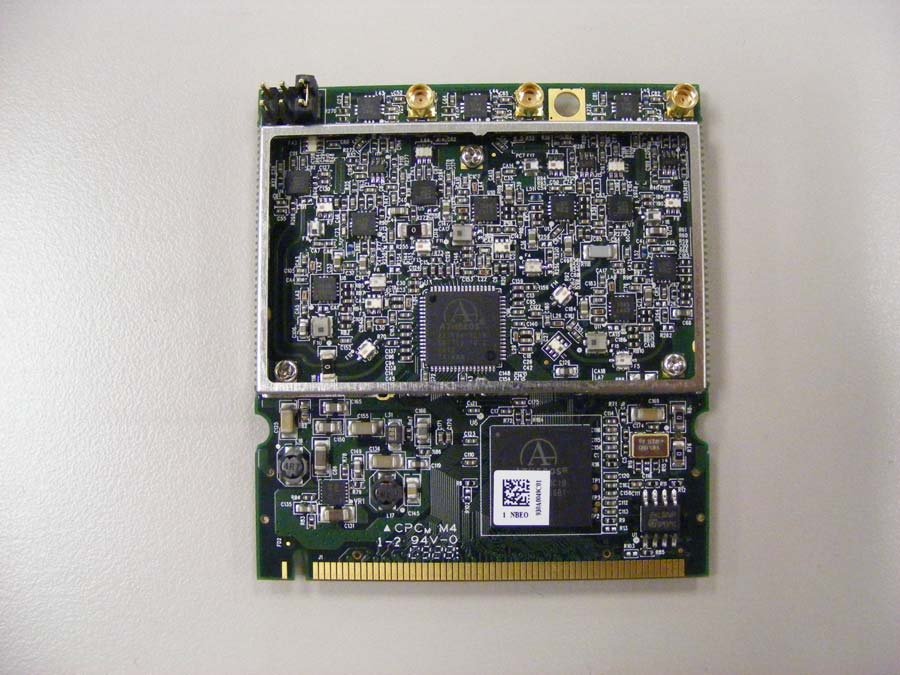

REP-7100-1Hotport Model 7100 Mesh Node

HotPort Manual Revision 1.01-DRAFT 2010-01-07 The contents of this Installation Guide are subject to change without notice. Please refer to the Firetide partners web site, partners.firetide.com, for current versions. Hardware Installation Guide HotPort Series 7000 Indoor and Outdoor Wireless Mesh Nodes HotPort 7200 - Outdoor NodeHotPort 7100 - Indoor Node mesh radio 1 mesh radio 2 statuspower 2 HotPort Series 7000 Mesh Nodes January 2010 Firetide Limited End User Product Warranty Pursuant to all provisions described herein, Firetide hardware products and Firetide antennas are warranted for one (1) year from the date of purchase against defects in the build materials and workmanship. Firetide does not warrant that the Products will meet any requirements or speci- fications of any End User Customer. This warranty applies to the entire Firetide product, including the AC power adapter. Pursuant to all provisions described herein, Firetide software products are warranted for ninety (90) days from the date of purchase against de- fects in the build materials and workmanship. Firetide also warrants that the Software will materially conform to the documentation supplied by Firetide with the Software. In the event that the Software fails to materi- ally conform to the documentation and an authorized Firetide reseller is notified in writing of such failure within the warranty period, Firetide or its reseller shall use commercially reasonable efforts to promptly correct the nonconformity. Firetide does not warrant that the use of the Software will be uninterrupted or error free. The above warranties are void if the alleged defect cannot be verified by Firetide or if, as determined by Firetide, the product failure was due to tampering, abuse, misuse, accident, shipping, handling, or storage; or if the product has been installed, used, or maintained in a manner not described in the product user manual; or if the product has been altered in any way; or if product serialization has been altered. Any attempt to disassemble or repair the product by anyone other than Firetide immedi- ately voids this warranty. This warranty applies only to the original End User purchaser of the prod- uct and may not be transferred to any other individual or entity. THE FOREGOING ARE THE EXCLUSIVE WARRANTIES APPLICABLE TO THE PRODUCT INCLUDING THE SOFTWARE, AND THE EXCLUSIVE REMEDY FOR DEFECTS IN THE PRODUCT. FIRETIDE DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, NON-IN- FRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES SO TO THAT EXTENT THIS LIMITATION MAY NOT APPLY TO YOU. In no event will Firetide be liable for any special, incidental, consequen- tial, punitive or indirect damages whatsoever (including, without limita- tion, damages for loss of profits, business interruption, loss of informa- tion, or other pecuniary loss) arising out of the use or inability to use the product or the performance, interruption or failure of the product, irrespective of the cause of action, even if Firetide has been advised of the possibility of such damages. Firetide’s cumulative liability for all claims arising out of or in connection with this warranty will not ex- ceed the amount paid by the original End User purchaser to purchase the product. The amounts payable for the product are based in part on these limitations and these limitations shall apply notwithstanding the failure of essential purpose of any remedy. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so to that extent the above limitations or exclusions may not apply to you. By using the product the original End User purchaser agrees to and is bound by these terms and conditions. In the event that a product fails to meet this warranty and Firetide’s authorized reseller is notified in writing of such failure within the war- ranty period, Firetide shall, at its own discretion, either repair the prod- uct or replace it with the same or a functionally-equivalent product free of charge. Replacement products may contain refurbished materials in whole or in part. Firetide will honor this warranty provided the product is returned through an authorized Firetide reseller or dealer with shipping charges prepaid, along with a proof of purchase describing the original purchase date and product serial numbers if applicable. The authorized reseller must acquire a Return Materials Authorization (RMA) number from Firetide prior to returning any product. Firetide does not accept ship- ments of defective products without shipping charges prepaid. This symbol is intended to alert the user to the pres- ence of important operating, maintaining and servic- ing instructions in the literature accompanying the HotPort node. Failing to comply with this instruction may result in electrical shock. This symbol is intended to alert the user to the pres- ence of important operating, maintaining and servic- ing instructions in the literature accompanying the HotPort node. Failing to comply with this instruction may result in a hazard. Copyright Notice: ©2003-2010 Firetide, Inc. All rights reserved. Trademarks: Firetide, the Firetide logo, Instant Mesh Networks, HotPort, and HotPoint are trademarks of Firetide, Inc. All other trademarks are the property of their respective owners. Safety Instructions The HotPort outdoor wireless mesh node must be installed by a quali- fied professional such as a licensed electrician. Failure to install this equipment properly may result in equipment damage and personal injury or death. This symbol is intended to alert the user to the pres- ence of non-insulated dangerous voltage that may be of sufficient magnitude to constitute a risk of lethal electric shock to persons. Firetide Instant Mesh Networks 3 January 2010 Contents HotPort Node Installation ...............…

Text truncated - open the document above for the full version.

www.firetide.com 140 Knowles Drive, Los Gatos, CA 95032, Tel: 408-399-7771, Fax: 408-317-1777 September 1, 2009 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Confidentiality Request for the Firetide Hotport Model 7100, REP‐7100‐1 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the schematics, bill of materials, operational description, and system block diamgram required to be submitted with this application be permanently withheld from public review. Firetide considers the documents listed above as containing confidential, proprietary information which shoul d not be disclosed to the public. Please contact me if there is any information you may need. Sincerely, Paul Richards Director of Hardware Engineering Firetide Inc. 140 Knowles Drive Los Gatos, CA 95032

No user serviceable parts inside. Warranty void if opened. Firetide, Inc. Made in Taiwan. 54 mm 100 mm 4 mm radius corners Pre-printed (PMS black with reverse type and logos) Serial Number Radio MAC Addresses Add separate bar code labels here (up to 25 mm x 48 mm) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. HotPort Wireless Mesh Node Input Power: 12 VDC, 1.2 A Firetide Model 7100 FCC ID: REP-7100-1 IC ID: 4988A-7100 UL 60950-1 CSA C22.2 No. 60950-1 E112694 MET C US R Label Material: polyester, adhesive back Corner radius 4 mm (four places) Background: Pantone Cool Gray 3C or equivalent 0980 Leo Model 7100 Regulatory Label Updated 042209 Firetide p/n 130-0078-001 Rev. 1 Camera Artwork Leo Model 7100 Regulatory Label Updated 042209 Firetide p/n 130-0078-001 Rev. 1 No user serviceable parts inside. Warranty void if opened. Firetide, Inc. Made in Taiwan. Serial Number Radio MAC Addresses This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. HotPort Wireless Mesh Node Input Power: 12 VDC, 1.2 A Firetide Model 7100 FCC ID: REP-7100-1 IC ID: 4988A-7100 UL 60950-1 CSA C22.2 No. 60950-1 E112694 MET C US R 0980

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Electrical Wave............... 1.6 Gain(peak)................... 5dBi 1.7 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse RF Antenna Cable Assembly 1/2λDipole 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum 1 2 RF Antenna Assembly P/NO :C812-510010-A SPEC : 2.4GHz 6/24/2005 3 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of 2.4GHz-5dBi-V5.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C812-510010-A.nsi 4 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of 2.4GHz,5dBi-H-5.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C812-510010-A.nsi 5 Arnitel UnitsEM400EM460EL550EL630EL740PL380 Einheiten Unites 1.231.271.18 195185202212221197 m/m.k220160180140110150 \\110115120\ 130150180200200145 \5085115150\ %0.300.300.200.200.150.40 %0.750.700.550.600.907.0 *HBHBHBHBHBHB Mpa5511022037590060 Mpa4.07.113.220.226.93.5 Mpa5.49.015.72322.65.2 Mpa8.411.416.622.026.38.5 Mpa172132404516 %700800600600360450 kj/NBNBNBNBNBNB kj/NBNBNBNB200NB kj/NBNBNBNB9NB kj/NBNB2044NB 384555637438 MV/m\\\\\\ .cm5*101010101010 >10>10>10>10>10>10 \4.1\\3.8\4.7 \4.04.44.03.43.34.4 x1010\\3.8\310 x10170350400350300350 \800800600600600800 \600600600800800600 polyether esters polyetherester esters de polyether 14 1414141212 1414141013 13 14 14 10 11 12 13 14 15 16 _____________________________________________________________________________________________________________________________________ CHIMEI-ASAHI CORPORATION 59-1 Tel: 886-6-266-3000, Fax: 886-6-266-7983/4 ONDERLITE ® PC-110 June 9, 2004 ,v2.0 W PC-110 Melt Flow Index ASTM D1238 g/10min 300 , 1.2 kg 10 Specific Gravity ASTM D792 - 23/23 1.20 Water Absorption (immersion) ASTM D570 % 24hr at 23 0.20 Light Transmission ASTM D1003 % 3 mm thick 89 Haze ASTM D1003 % 3.2 mm thick < 0.8 Refractive Index ASTM D542 - - 1.585 , Tensile Strength at Yield ASTM D638 Kg/cm 2 23 630 Yield 23 6 Tensile Elongation Break ASTM D638 % 23 110 Flexural Strength ASTM D790 Kg/cm 2 23 920 Flexural Modulus ASTM D790 Kg/cm 2 23 24000 1/4” 14.3 Izod Izod Impact Strength (Notched) ASTM D256 Kg cm/cm 1/8” 87 Rockwell Hardness ASTM D785 M Scale - M-77 Compressive Strength ASTM D695 Kg/cm 2 - 780 4.6 Kg/cm 2 , 120 /hr 136 , Heat Distortion Temperature (unannealed) ASTM D648 18.6 Kg/cm 2 , 120 /hr 125 Vicat Softening Temperature ASTM D1525 1 Kg, 50 /hr 153 Coefficient of Linear Expansion ASTM D696 x10 -5 cm/cm/ 40~100 6~8 Thermal Conductivity ASTM C177 W/m - 0.2 parallel 0.5-0.7 Mold Shrinkage ASTM D955 % across 0.5-0.7 Flammability UL 94 1/16” - V-2 Volume Resistivity ASTM D257 x10 16 cm - 3 60 Hz 2.95 Dielectric Constant ASTM D150 - 10 6 Hz 2.9 60 Hz 0.0004 Dielectric Dissipation Factor (tan ) ASTM D150 - 10 6 Hz 0.009 Dielectric Breakdown Strength ASTM D149 kV/mm 1.6mm 30 Arc Resistance (Tungsten electrode) ASTM D495 sec - 110 / Characteristics/Principal Applications Medium Viscosity WONDERLITE – PCWONDERLOY – PC/ABS 17 ® ³ 18 19 ® © 20 21 22 23 24 25 SGS Test Report Product：RF Antenna Contents No Description Report No. Page 1 Cable RG-178 Cable CE/2004/C1640 P.27~29 2 Antenna BodyTPE EL-550 CE/2004/C2040 P.30~32 3 Antenna Base PC -110 GZSCR050529SS2/LP GZSCR040833297/LP P.33~34 4 Antenna Base PBT CE/2005/30689A P.35~37 5 Rivet POM ; Black CE/2005/50700 P.38~41 6 Connector Big SMA Plug/ReverseCE/2004/73632 P.42~46 Result for RoHS：PASS 26 27 28 29 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw Test Report Type of Product: Sample Received : Testing Date : ============================================================================== = Test Result : - Please see the next page - DSM ENGINEERING PLASTICS. Page : 1 of 3 Report No. : CE/2004/C2040 Date : 2004/12/17 The following merchandise was (were) submitted and identified by the client as : EL550 2004/12/10 2004/12/10 TO 2004/12/17 30 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw Test Report Test Result PART NAME NO.1: Test Item (s):UnitMethodMDLNo.1 PBBs(Polybrominated biphenyls)(CAS NO:059536-65-1) %With reference to USEPA3540 or USEPA3550. Analysis was performed by HPLC/DAD, LC/MS or GC/MS. (prohibited by 2002/95/EC (RoHS), 83/264/EEC, and 76 /769/EEC) 0.0005N.D. PBBEs(PBDEs)(Polybromi nated biphenyl ethers) %With reference to USEPA3540 or USEPA3550. Analysis was performed by HPLC/DAD, LC/MS or GC/MS. (prohibited by 2002/95/EC (RoHS), 83/264/EEC, and 76 /769/EEC) 0.0005N.D. Test Item (s):UnitMethodMDLNo.1 Chromium VI (Cr+6)ppm As per US EPA 7196A and US EPA 3060A. 2N.D. Cadmium (Cd)ppm ICP-AES after as per EN 1122, method B:2001 or other acid di gestion. 2N.D. Mercury (Hg)ppm ICP-AES after as per US EPA 3052 or other acid di gestion. 2N.D. Lead (Pb)ppm ICP-AES after as per US EPA 3050B or other acid di gestion. 2N.D. WHITE PLASTIC PELLETS(PLEASE REFER TO THE PHOTO ATTACHED) (2) ppm = mg/kg (3) …

Text truncated - open the document above for the full version.

2 RF Antenna Assembly P/NO :C812-510012-A SPEC : 5GHz 6/24/2005 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C056-510211-A-H.nsi 4.900000 GHz5.150000 GHz5.250000 GHz 5.350000 GHz5.725000 GHz5.825000 GHz C812-510012-A.nsi 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C056-510211-A-V.nsi 4.900000 GHz5.150000 GHz5.250000 GHz 5.350000 GHz5.725000 GHz5.825000 GHz C812-510012-A.nsi

Electromagnetic Compatibility Firetid e, Inc. Intentional Radiators 7100 Indoor Unit CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81748A-FCC247 Rev. 1 © 2009, MET Laboratories, Inc. Page 58 of 153 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2412-2462 MHz ; highest conducted power = 28.13dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5dBi Omni Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (650.13mW) G = Antenna Gain (3.16 numeric) S = (650.13*3.16 / 4*3.14*20.0 2 )= (2055.89/ 5024) = 0.409mW/cm 2 @ 20cm separation MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825 MHz ; highest conducted power = 29.57dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5dBi Omni Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (905.73mW) G = Antenna Gain (3.16 numeric) S = (905.73*3.16 / 4*3.14*20.0 2 )= (2864.17/ 5024) = 0.57 mW/cm 2 @ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory January 5, 2010 Firetide, Inc. 16795 Lark Ave. Suite 200 Los Gatos, CA 95032 Dear Paul Richards, Enclosed is the EMC Wireless test report for compliance testing of the Firetide, Inc., 7100 Indoor Unit as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Firetide, Inc.\EMCS81748A-FCC247 Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Firetide, Inc . Cover Page 7100 Indoor Unit CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81748A-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page ii of viii Electromagnetic Compatibility Criteria Test Report for the Firetide, Inc. 7100 Indoor Unit Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS81748A-FCC247 Rev. 2 January 5, 2010 Prepared For: Firetide, Inc. 16795 Lark Ave. Suite 200 Los Gatos, CA 95032 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Firetide, Inc . Cover Page 7100 Indoor Unit CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81748A-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page iii of viii Electromagnetic Compatibility Criteria Test Report for the Firetide, Inc. 7100 Indoor Unit Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Minh Ly, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Firetide, Inc . Report Status 7100 Indoor Unit CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81748A-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page iv of viii Report Status Sheet Revision Report Date Reason for Revision  October 23, 2009 Initial Issue. 1 December 24, 2009 Revised to correct RF Exposure information. 2 January 5, 2010 Correct Harmonics Table Column headers Electromagnetic Compatibility Firetide, Inc . Table of Contents 7100 Indoor Unit CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81748A-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page v of viii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................7 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................8 H. Mode of Operation.................................................…

Text truncated - open the document above for the full version.

Conducted Emissions, Test Setup. Side View Conducted Emissions, Test Setup. Front View Radiated Emission, Test Setup, 30 MHz – 1 GHz Radiated Emission, Test Setup, 1 GHz – 6 GHz Conducted Emissions, 15.207, Test Setup Test Equipment and Setup for Various Radiated Measurements – Combined Omni Antennas
