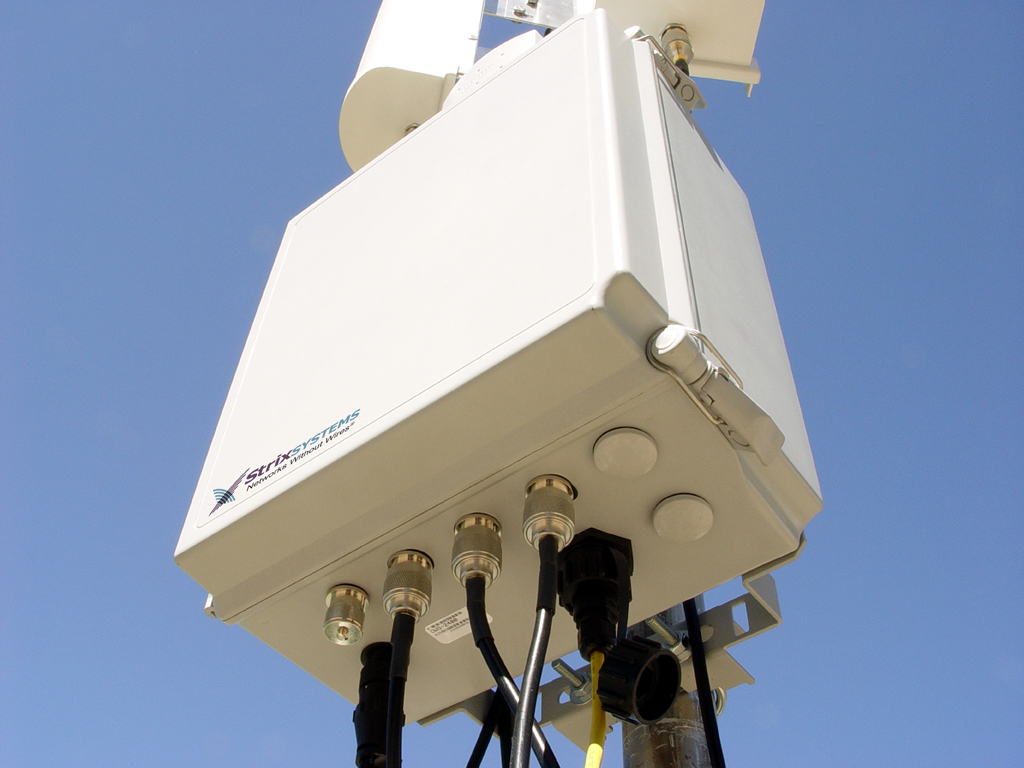

RFM-ACCESS-ONE-O2Strix Outdoor Wireless System

OWS Hardware Installation Access/One ® Network Strix Outdoor Wireless System (OWS) Field Installation Copyright © 2003 – 2005 Strix Systems, Inc. 26610 Agoura Road, Suite 110 Calabasas, CA 91302 USA http://www.strixsystems.com ii OWS Hardware Installation Copyright Notice Copyright © 2003 – 2005 Strix Systems, Inc. All rights reserved. This document may not be reproduced or disclosed in whole or in part by any means without the written consent of Strix Systems, Inc. Access/One Network is a registered trademark of Strix Systems, Inc. All other trademarks and brand names are marks of their respective holders. FCC Notice The enclosed wireless network device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. This wireless network device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This wireless network device generates, uses, and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this wireless network device does cause harmful interference to radio or television reception, which can be determined by turning the wireless network device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ◗Reorient or relocate the receiving antenna. ◗Increase the separation between the wireless network device and the affected receiver. ◗Connect the wireless network device into an outlet on a circuit different from that to which the receiver is connected. ◗Consult the dealer or an experienced radio/TV technician for help. Other Notices Industry Canada Notice This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. VCCI Notice This is a Class B wireless network device based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this wireless network device is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the wireless network device according to the instruction manual. European Community (EC) Directives and Conformity This wireless network device is in conformity with the Essential Requirements of R&TTE Directive 1999/5/EC of the European Union. iii OWS Hardware Installation Non-Modification Statement Unauthorized changes or modifications to Strix devices are not permitted. Modifications to Strix devices will void the warranty and may violate FCC regulations. RF Exposure Requirements To ensure compliance with FCC RF exposure requirements, the antenna used for this wireless network device must be installed to provide a separation distance of a minimum of 2 meters (6.56 feet) or more from all persons, and must not be co-located or operated in conjunction with any other antenna or radio transmitter. Installers and end-users must follow these installation instructions. Safety Warnings This unit must be installed by a trained professional installer only. Read all safety warning before commencing an installation. General Safety Warning Electrical Power Warning Lightning Activity Warning Explosive Device Proximity Warning You can be killed installing this device! You can be killed if any antennas come near electrical power lines. Carefully read and follow all instructions in this manual. By performing these installation instructions, you may be exposed to hazardous environments and high voltage. Use caution when installing the Strix OWS product. This unit must be installed by a trained professional installer only. Read the installation instructions before you connect the wireless network device to its power source. Do not connect or disconnect cables during periods of lightning activity. A surge protective device meeting IEC 61000-4-5, Level 4 or IEEE C 62.41 A3/B3 requirements must be used to prevent potential damage from very high surges (for example, surges caused by lightning). Do not operate your wireless network device near unshielded blasting caps or in an explosive environment. iv OWS Hardware Installation Antenna Placement Warning Ground Warning Battery Caution Product Images The images used in this document have been modified for clarity. For additional information, please visit us at: http://www.strixsystems.com. Do not locate any antenna near overhead power lines or other electric light or power circuits, or where the antenna can come into contact with such circuits. When installing antennas, take extreme care not to come into contact with such electrical circuits, as they can cause serious injury or death. For the correct installation and grounding of antennas, please refer to national and local codes (for example, US:NFPA 70, National Electrical Code, Article 810; in Canada: Canadian Electrical Code, Section 54). You must ALWAYS install an external grounding wire. The ground connection must be complete before connecting power to the OWS enclosure—a simple continuity check between the enclosure and the ground termination point can confirm this. Grounding of the OWS must comply with National Electrical Code (NEC) requirements, unless local codes in your area take precedence over the NEC code. This product contains a non-rechargeable, non-user-serviceable lithium ion battery. Exercise caution to avoid shorting the terminals of this device. Table of Contentsv OWS Hardware Installation Table of Contents Copyright Notice .............................…

Text truncated - open the document above for the full version.

Strix Systems, Inc. 26610 Agoura Road, Suite 110 Calabasas, CA 91302 (818) 251-1000 telephone (818) 251-1098 facsimile www.strixsytems.com 21 April, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Request for withholding from public disclosure schematics, block diagrams, assembly drawings, operational specification and/or theory of operation. Gentlemen, Strix Systems, Inc., would like to request that all schematics, block diagrams, assembly drawings, operational specification and/or theory of operation submitted with our application for certification be withheld from from public disclosure per Section 0.459 of the FCC rules. This request is made under the provisions of Section 0.457(d) of the Commissions rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions or need any additional information, please feel free to call me at 818-251-1000. Sincerely, Leonid Kalika COO

Strix Systems, Inc. 26610 Agoura Road, Suite 110 Calabasas, CA 91302 (818) 251-1000 telephone (818) 251-1098 facsimile www.strixsytems.com 3 January, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen, This letter is your authorization to accept JMR Electronics as an agent for Strix Systems, Inc., for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Strix Systems product(s): 802.11a/b/g WLAN Access/One Network under FCC Docket Number 20780, and General Docket Number 80-284, pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Strix Systems, Inc., nor any of it's officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under Section 5301 of the Anti-Drug-Abuse act of 1988, 21 U.S.C. 853(a). In addition, Strix Systems, Inc., will notify the Federal Communications Commission if, at any time, the situation changes causing Strix Systems, Inc., to be denied federal benefits. If you have any questions or need any additional information, please feel free to call me at 818-251-1000. Sincerely, Leonid Kalika COO

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 2, 2005 RE: FCC ID: RFM-ACCESS-ONE-O2_ATCB002375 Attention: Leon Kogan I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the FCC ID number on the 731 and the FCC ID number on the label are not the same. Please provide a 731 with the correct FCC ID number. Please note that this would include all characters including the “-“. 2. Please note that the “Confidential_BOARD DESCRIPTION” says there are three transmitter boards in the system. However, other documentation and the internal photos only show 2 transmitter boards. Please be consistent in your documentation. Please provide a board description document that reflects this device and this application. 3. FYI - Please note that the MPE report and the installation manual mentions correction of power levels necessary to comply to FCC rules. The manual mentions a document called “Access/One Network User’s Guide” that contains instructions on this power reduction. While this was not asked for in the previous similar application, as this is an installation criterion it is expected that the FCC may desire to have this information. It may be advantageous to provide the section of this document that instructs the installer on how to compute and adjust the power level. 4. Please note that on pages 47, 49 and 51 of part 1 of the report the tables state the emissions are from 18 to 34 GHz. However, several entries state 2430.8MHz. Are these typographical errors and is this frequency meant to be 24308MHz? If so, please not that this is very close to the restricted band at 24GHz and more data may be needed showing levels at the emissions mask edges of this frequency to obtain compliance data. Please explain. 5. When not using the prescribed method of calculating EIRP for 15.407 devices, please provide the method used to calculate the associated limits (i.e. limits of 68.3 and 48.3 conversions of -27dBm limit). This formula and sample calculation needs to be in the report otherwise the results are ambiguous. 6. Please note that while the peak reading on page 25 of part 3 of the report (page 142) may be compliant with the 74dB limit, it fails the average limit. Please provide average data that shows this signal meets the average limits. 7. Please note that on page 31 of part 3 of the report (page 148) several frequencies have 10 to 20MHz differences between the peak and average measurements. While 1 or 2 MHz is a reasonable deviation for peak and average measurements, 20MHz is a significant deviation and needs explanation. Please confirm if these are the same signals being averaged. If they are not the same signal, please show compliance to the average limits. (Please note that this occurs several places in the report. Please confirm all readings of this nature). 8. Please note that for the 5.2GHz range operation the report is not clear if the output power was reduced to that specified in the rules for this test. Please note that operation in the 5.2GHz range requires the conducted output power to be reduced from 24dBm by 1dB for every dB the antenna gain exceeds 6dBi. While testing at the full output power may be worse case, it is not what the requirements state. Thus for a 23dBi antenna in this range a device with a conducted power of 21.22dBm would have to be reduced to 7dBm. Please explain. z Page 2 May 2, 2005 Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

E l e c t r o n i c s Inc May 2, 2005 To: Dennis Ward American Telecommunications Certification Body Inc. From : Leon Kogan JMR Electronics Inc. Applicant : Strix Systems Inc. FCC ID: RFM-ACCESS-ONE-02 Dear Mr. Ward: Below you will find the information that was requested in your letter on May 2, 2005. All items concur with the numbered questions in your letter. 1. Corrected 731 Form is uploaded to ATCB website 2. Corrected for just this model Board Description is uploaded to ATCB website 3. FYI- no action needed. However, the portion of the Network User’s Guide referred to, will be provided separately. 4. The 2430.8 MHz is the transmitter fundamental setup frequency used during the Spurious and Harmonics Emissions measurements. 5. The following formula is used to convert the equipment isotropic radiated power -27dBm/MHz = 1.995uW/MHz conducted 1.995uW/(4*pi*3m^2) = 0.018uW/m at 3meters sqrt (0.000000018 x 377) = 2605uV/m at 3 meters 0(log(2605))= 68.32dBuV/m at 3 meters for peak measurement or for average measurement (68.32dBuV/m - 20dB) = 48.3dBuV/m The Report is corrected and revised as you suggest. 6. The revised Part 3 of the Report is uploaded to ATCB website. Pages 142 and 144 include average measurements and plot. 7. Due to the very large bandwidth captured for the 1-18GHz peak measurements there may be differences between the marker frequency for peak vs. the average case. In all cases the actual interferer was located when performing the average measurements, ensuring accurate test results. In the future we will configure the software to capture the wide band peak data with more measurement points to minimize the frequency differences for these two cases. We apologize for any confusion this may have caused. 8. The maximum power “worst case” was used for all radiated measurements. In the future when testing similar devices, power control will be used to ensure compliance with EIRP standards during the radiated tests. Sincerely, Leon Kogan Technical Director JMR Electronics [email protected] <mailto:[email protected]> Phone: (818) 739-1122 Fax: (818) 727-2215 20400 Plummer Street Chatsworth, CA 91311 Tel (818) 993-4801 Fax (818) 993-9173 Internet; www.jmr.com

Strix Systems, Inc. 26610 Agoura Road, Suite 110 Calabasas, CA 91302 (818) 251-1000 telephone (818) 251-1098 facsimile www.strixsytems.com 15 April, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: RF Exposure Information for Strix Systems’ DTS and U-NII Devices Gentlemen, The Strix Access/One Network OWS 2400 contains two independent 802.11 a/b/g radios, each transmitting independently in the same or different frequency bands. The system may be configured with 2 omni-directional antennas (one for one channel of 802.11a and one for one channel of 802.11b/g with the other ports terminated) or a system with two directional 802.11a antennas for fixed point-to-point service (one for each radio) and two directional 802.11b/g antennas for fixed point-to-point service (one for each radio). The worst possible case for RF exposure will be with the highest gain antennas. Our system requires professional installation and the installation instructions require that the system be installed such that a minimum of 2meters (200cm) separates the antennas and any person and that the antennas are not to be installed in such a way to allow the beams to overlap. The maximum possible EIRP values and power densities at 2meters (200cm) in each operating band are: Maximum Possible EIRP Power Density In Each Band Notes: Maximum conducted power determined by during 15.247 and 15.407 compliance testing. Pd, power density in mW/cm 2 , at r=200 cm where Pd=Pout/(4*π*r 2 ), Pout is EIRP in mW. 2.4 GHz ISM, 16.4dBi Sectored Antenna: Maximum conducted power: 398 mW (26dBm) EIRP: 26dBm + 16.4dBi= 42.4dBm Power Density at 200cm: 0.035mW/cm 2 5.2 GHz U-NII, 29dBi Parabolic Reflector Antenna for fixed point-to-point service: Maximum conducted power: 158 mW (22dBm) EIRP: 22dBm + 29dBi= 51dBm this is limited in software during installation to an EIRP of 30dBm to comply with 15.407a(2) Power Density at 200cm: 0.002mW/cm 2 5.8 GHz ISM, 29dBi Parabolic Reflector Antenna for fixed point-to-point service: Maximum conducted power: 126 mW (21dBm) EIRP: 21dBm + 29dBi= 50dBm Power Density at 200cm: 0.2mW/cm 2 The power density generated by the Strix Access/One Node is well below the 1mW/ cm 2 limit allowed in FCC Title 47 CFR1.1310. Sincerely, Leonid Kalika Chief Operating Officer Strix Systems, Inc.

Supplemental explanation of multiple antenna transmission. The MPE calculations for the Strix Systems OWS3600 were done for each operating band using the highest gain antenna for the worst case situation. For the 2.4GHz band the highest gain antenna is a 120 degree 16.4dBi sectored antenna and for the 5GHz bands the worst case would be the 29dBi parabolic antenna. In a standard sectored solution with 120 degree spacing between antennas, there will generally be a small amount of overlap at the 120 degree -3dB point of the antenna. In this situation, the maximum EIRP is down by 3dB and the sum of the two antenna patterns will produce no more than the maximum EIRP of a single antenna. For the 29dBi parabolic, in the 5GHz bands, the beamwidth is very narrow and any overlap of emissions would be at levels significantly below the -3dB point. Thus the maximum EIRP case is still for a single channel of 802.11a when a person is directly in the beam at 2 meters. However, this does not address the situation of a person being presented with the emissions of an 2.4GHz antenna and a 5GHz antenna which is possible in any 802.11a/b/g device. For this situation the person would be exposed to 0.035mW/cm2 plus 0.2mW/cm2 for a maximum exposure of 0.235mW/cm2. This is still well below the 1mW/cm2 limit. The above calculations are provided by Strix Systems.

Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 1 NVLAP LAB CODE: 200413- Test Firm Registration Number:90720 FRN: 0010502672 IC LAB Code: 3695A April 15, 2005 Test Record Product Verification According to FCC Part 15 Subparts B,C,E for Strix Systems, Inc MODEL: OWS 2400 ACCESS/ONE NETWORK This report contains confidential information. The owner of this report may make duplicates of it, provided all pages are copied. Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 Table of Contents CERTIFICATION........................................................................................................6 SUMMARY OF TEST RESULTS.....................................................................................7 GENERAL INFORMATION..........................................................................................10 3.1 GENERAL DESCRIPTION OF EUT..................................................................10 3.2 DESCRIPTION OF TEST MODES....................................................................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................14 4 TEST TYPES AND RESULTS (FOR PART 802.11B & 802.11G).................................15 4.1 CONDUCTED EMISSION MEASUREMENT......................................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................15 4.1.2 TEST INSTRUMENTS............................................................................15 4.1.3 TEST PROCEDURES..............................................................................16 4.1.4 DEVIATION FROM TEST STANDARDS.....................................................16 4.1.5 TEST SETUP........................................................................................17 4.1.6 EUT OPEARTING CONDITIONS...............................................................19 4.1.7 TEST RESULTS....................................................................................20 4.2 RADIATED EMISSION MEASUREMENT.........................................................24 4.2.1 LIMITS OF RADIATED EMISSIONT MEASUREMENT..................................24 4.2.2 TEST INSTRUMENTS............................................................................25 4.2.3 TEST PROCEDURES..............................................................................26 4.2.4 DEVIATION FROM TEST STANDARD......................................................26 4.2.5 TEST SETUP........................................................................................27 4.2.6 EUT OPERATING CONDITIONS...............................................................29 4.2.7 TEST RESULTS....................................................................................30 4.2.8 TEST RESULTS (A)...............................................................................35 4.2.9 TEST RESULTS (B)...............................................................................50 4.3 6dB BANDWIDTH MEASUREMENT...............................................................54 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..........................................54 4.3.2 TEST INSTRUMENTS............................................................................54 4.3.3 TEST PROCEDURE...............................................................................55 4.3.4 DEVIATION FROM TEST STANDARD......................................................55 4.3.5 TEST SETUP........................................................................................55 4.3.6 EUT OPERATING CONDITIONS...............................................................55 4.3.7 TEST RESULTS (A)...............................................................................56 4.3.8 TEST RESULTS (B)............................................................... .............65 2 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.4 MAXIMUM PEAK OUTPUT POWER...............................................................67 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..................67 4.4.2 INSTRUMENTS....................................................................................67 4.4.3 TEST PROCEDURES..............................................................................67 4.4.4 DEVIATION FROM TEST STANDARD......................................................67 4.4.5 TEST SETUP........................................................................................68 4.4.6 EUT OPEARTING CONDITIONS...............................................................69 4.4.7 TEST RESULTS (A)...............................................................................69 4.4.8 TEST RESULTS (B)...............................................................................73 4.4.9 TEST RESULTS (C)...............................................................................85 4.5 POWER SPECTRAL DENSITY MEASUREMENT...............................................87 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..........................87 4.5.2 TEST INSTRUMENTS............................................................................87 4.5.3 TEST PROCEDURE...............................................................................87 4.5.4 DEVIATION FROM TEST STANDARD......................................................87 4.5.5 TEST SETUP........................................................................................88 4.5.6 EUT OPERATING CONDITION................................................................88 4.5.7 TEST RESULTS (A)...............................................................................89 4.5.8 TEST RESULTS (B)......................................................... ...................100 4.6 BAND EDGES MEASUREMENT............................................................... ...102 4.6.1 LIMITS OF BAND EDGES MEASUREMENT 102 4.6.2 T…

Text truncated - open the document above for the full version.

Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Device Model No. Serial No. Last Cal. Next Cal ROHDE & SCHWARZ EMI Test Receiver ESIB 40 100201 01/23/05 01/23/06 54 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100kHz RBW and 100kHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 4.3.4 DEVIATION FROM TEST STANDARD No deviation 4.3.5 TEST SETUP 4.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest channel frequency individually. 55 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.3.7 TEST RESULTS (A) EUT IEEE 802.11 A/B/G WIRELESS ACCESS POINT MODEL ACCESS / ONE NETWORK: OWS2400 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 23deg. C, 49%RH TESTED BY: Sandra Sohn Channel 1 Data Rate (Mbps) CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 2 2412 12.424 0.5 PASS 6 2412 11.422 0.5 PASS 9 2412 9.518 0.5 PASS 11 2412 16.832 0.5 PASS 12 2412 11.322 0.5 PASS 16 2412 13.026 0.5 PASS 24 2412 12.223 0.5 PASS 54 2412 11.322 0.5 PASS 56 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 2Mbps 57 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 6Mbps 58 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 9Mbps 59 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 11Mbps 60 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 12Mbps 61 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 16Mbps 62 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 24Mbps 63 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 1 Data rate: 54Mbps 64 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.3.8 TEST RESULTS (B) EUT IEEE 802.11 A/B/G WIRELESS ACCESS POINT MODEL ACCESS / ONE NETWORK: OWS 2400 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 23deg. C, 49%RH TESTED BY: Sandra Sohn Turbo mode, Channel 6 CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 6 (turbo mode) 2437 33.667 0.5 PASS 65 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 6dB BW Channel 6 Turbo mode A UnitdBm Mixer-20 dBm 2.3 dB Offset TRG RBW 100 kHz SWT 17.5 ms LN VBW 100 kHz IN1 1MA1MAX Center 2.437 GHzSpan 70 MHz7 MHz/ Ref Lvl 27.3 dBm Ref Lvl 27.3 dBm RF Att 40 dB -70 -60 -50 -40 -30 -20 -10 0 10 20 -72.7 27.3 1 T1 T2 Marker 1 [T1 ndB] ndB 6.00 dB BW 33.66733467 MHz 1 [T1] 0.01 dBm 2.43735070 GHz ndB 6.00 dB BW 33.66733467 MHz T1 [T1] -8.15 dBm 2.42023647 GHz T2 [T1] -6.57 dBm 2.45390381 GHz Title: 6turbo-108-6db B/W Date: 21.MAR.2005 15:57:45 66 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Device Model No. Serial No. Last Cal. Next Cal ROHDE & SCHWARZ EMI Test Receiver ESIB 40 100201 01/23/05 01/23/06 4.4.3 TEST PROCEDURES The transmitter output was connected to the spectrum analyzer through an attenuator. The maximum power level of the fundamental frequency was measured by spectrum analyzer with 10MHz RBW and 10MHz VBW. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 67 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. The lowest channel is seen as highest and repeat with the different data rates. 68 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.4.7 TEST RESULTS (A) EUT IEEE 802.11 A/B/G WIRELESS ACCESS POINT MODEL ACCESS / ONE NETWORK: OWS 2400 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 22deg. C, 49%RH TESTED BY: Sandra Sohn CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2414 26.11 30 PASS 6 2439 25.37 30 PASS 11 2464 25.37 30 PASS 69 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 PP Channel 1 Data rate: 11Mbps 70 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 PP Channel 6 Data rate: 11Mbps 71 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 PP Channel 11 Data rate: 11Mbps 72 Report No:050237 rev.02 FCC ID: RFM-ACCESS-ONE-O2 4.4.8 TEST RESULTS (B) EUT IEEE 802.11 A/B/G WIRELESS ACCESS POINT MODEL ACCESS / ONE NETWORK: OWS 2400 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 21deg. C, 48%RH TESTED BY: Sandra Sohn Channel 1 Data Rate (Mbps) CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2414 25.93 30 PASS 2 2414 25.81 30 PASS 6 2414 25.03 30 PASS 9 2413 25.27 30 PASS 11 2414 26.11 30 PASS 12 2413 24.48 30 PASS 18 2413 24.68 30…

Text truncated - open the document above for the full version.
