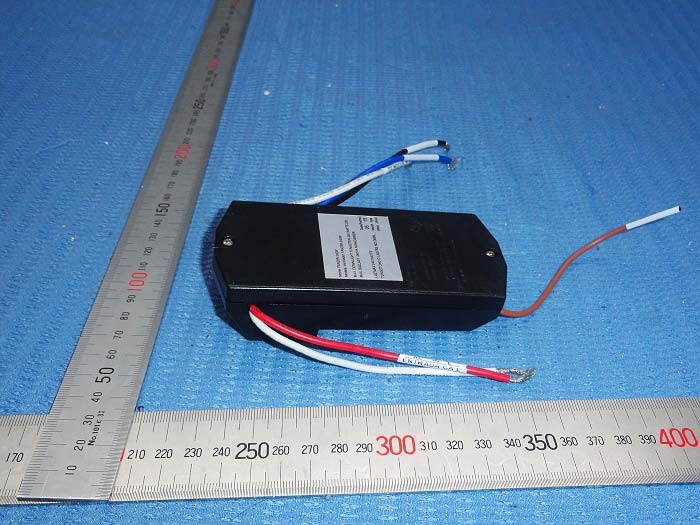

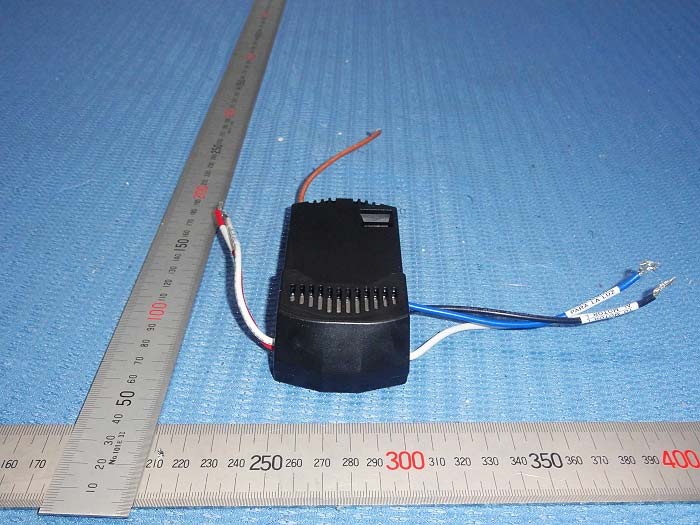

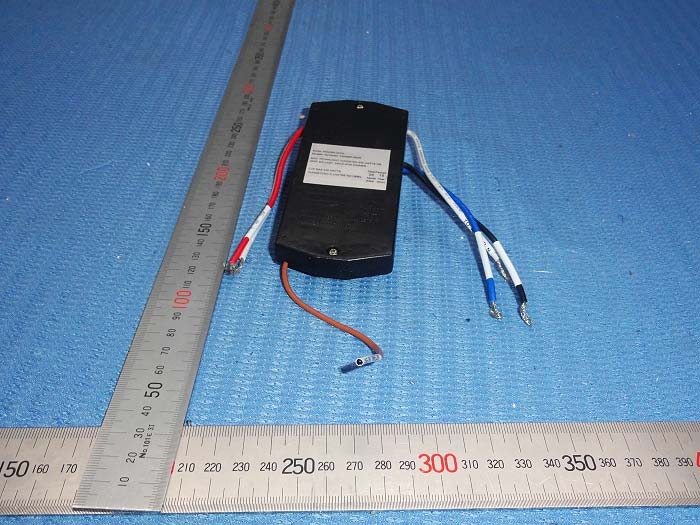

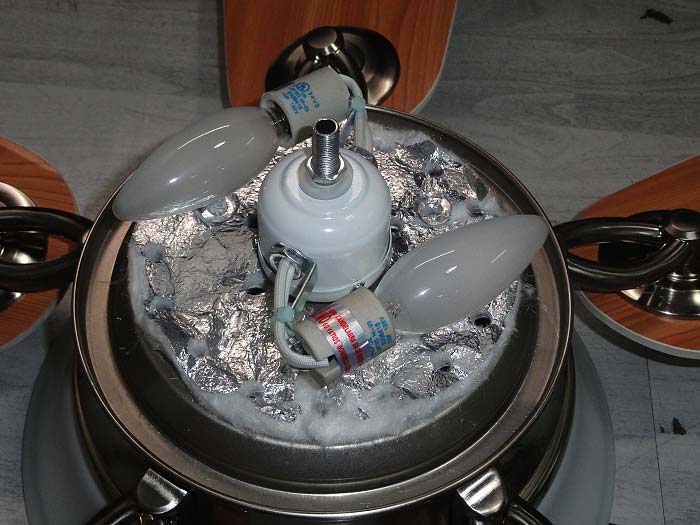

RGB-52MNCC52 inch Minorca

52” Minorca Ceiling Fan by Hampton Bay Dual-Mount Installation Aero-Breeze™ Technology Moves up to 25% More Air 3-Speed Reverse Function for Year-Round Comfort and Savings Handheld Remote Control QUESTIONS, PROBLEMS, MISSING PARTS: Before returning to your local Home Depot, please call our Customer Service Team at 1-877-527-0313 or visit www.homedepot.com. Please reference your SKU (916 010 brushed nickel) or UPC (082392 512217 brushed nickel). Thank you for purchasing this Hampton Bay ceiling fan. This product has been manufactured with the highest standards of safety and quality. The finish of this fan is weather resistant, but over time will naturally weather and fade. Safety Rules ...............................................1 Unpacking Your Fan .................................2 Installing Your Fan ...................................3 Operating Your Fan ..................................9 Operating Your Remote Control .............10 Care of Your Fan .......................................11 Troubleshooting .........................................11 Specifications .............................................12 Warranty Information ..............................13 Table of Contents UL Model Number: 52-MNC 1. To reduce the risk of electric shock, insure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with the National Electrical Code ANSI/NFPA 70-1999 and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. 3. WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. 4. CAUTION: To reduce the risk of personal injury, use only the screws provided with the outlet box. 5. The outlet box and support structure must be securely mounted and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL Listed outlet boxes marked “Acceptable for Fan Support of 35 lbs. (15.9 kg) or less.” 6. The fan must be mounted with a minimum of 7 feet clearance from the trailing edge of the blades to the floor. 7. Do not operate reversing switch while fan blades are in mo- tion. Fan must be turned off and blades stopped before re- versing blade direction. 8. Avoid placing objects in path of the blades. 9. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan. 10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning. 11. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box, and the ungrounded conductor on the other side of the outlet box. 12. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL Listed and marked suitable for use with the model fan you are installing. Switches must be UL General Use Switches. Refer to the instructions packaged with the light kits and switches for proper assembly. 13. All set screws must be checked and retightened where necessary before installation. Safety Rules 1. READ AND SAVE THESE INSTRUCTIONS TO REDUCE THE RISK OF SHOCK. THIS FAN MUST BE INSTALLED WITH AN ISOLATION WALL CONTROL/SWITCH. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO - VIDED WITH THE OUTLET BOX. TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE BRACKETS WHEN INSTALLING THE BRACKETS, BALANCING THE BLADES, OR CLEANING THE FAN. a. Blade Attachment Hardware (15 Screws) b. Mounting Hardware (1 bolt, 1 clevis pin, 3 plastic wire connectors) c. Blade Bracket Attachment Hardware (10 screws) 7. Blades (5) 8. Blade Bracket Set (5) 9. Glass Bowl 10. Hand unit/Receiver (Battery included) 11. Bulbs (6) 1. Mounting Plate (inside canopy) 2. Ball/Downrod Assembly 3. Canopy 4. Fan Motor Assembly 5. Light Kit with finial pre-attached 6. Decorative Glass Housing 2. Unpacking Your Fan IMPORTANT: THIS PRODUCT AND/OR COMPONENTS ARE COVERED BY ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,947,436; 5,988,580; 5,971,573; 6,010,306; 6,039,541; 6,046,416 AND OTHER PATENTS PENDING. Unpack your fan and check the contents. You should have the following items: 1 2 3 4 5 6 7 8 9 10 11 (2PCS) (4PCS) a b c CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Installing Your Fan 3. Tools Required Phillips screw driver, straight slot screw driver, adjustable wrench, step ladder, and wire cutters. Mounting Options If there isn’t an existing outlet box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 35 lbs.) Do not use plastic outlet boxes. Figures 1, 2, and 3 are examples of different ways to mount the outlet box. Outlet Box Note: You may need a longer downrod to maintain proper blade clearance when install- ing on a steep, sloped ceiling. The maximum angle allowable is 30 ̊. If the canopy touches downrod, remove the decorative canopy bottom cover and turn the canopy 180 ̊ before attaching the canopy to the mounting plate. Outlet Box To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown in Figure 4 (available at your Hampton Bay retailer). TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PROVID…
