RGB-52RMGC2-52 inch Southwind

Item # 1002 705 999, 1002 717 208, 1002 706 115 Model #91371, 91372, 91379 UL Model # 52-RMG USE AND CARE GUIDE SOUTHWIND 52-INCH CEILING FAN Questions, problems, missing parts? Before returning to the store call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay! To view an instructional video on how to install this product: 1. Go to www.homedepot.com and enter either the Item or Model number, found in the top right corner of the cover of this instruction manual, in the search eld. 2. Click on your product from the list of search results and click on the video link in the “Product Overview” section. 2 Table of Contents ................................................................2 Safety Information ...............................................................2 Warranty ...............................................................................3 Pre-Installation ....................................................................3 Installation ............................................................................6 Assembly ..............................................................................7 Operation ...........................................................................15 Care and Cleaning .............................................................16 Troubleshooting .................................................................16 1. To reduce the risk of electric shock, ensure the electricity has been turned off at the circuit breaker or fuse box before you begin. 2. All wiring must be in accordance with the National Electrical Code ANSI/NFPA 70-1999 and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. 3. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35 lbs. (15.9 kg). Use only UL-listed outlet boxes marked “For Fan Support.” 4. The fan must be mounted with a minimum of 7 ft. (2.1 m) clearance from the trailing edge of the blades to the floor. 5. Do not operate the reversing switch while the fan blades are in motion. You must turn the fan off and stop the blades before you reverse the blade direction. 6. Do not place objects in the path of the blades. 7. To avoid personal injury or damage to the fan and other items, use caution when working around or cleaning the fan. 8. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and marked suitable for use with the model fan you are installing. Switches must be UL General Use Switches. Refer to the instructions packaged with the light kits and switches for proper assembly. 9. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box. 10. All setscrews must be checked and retightened where necessary before installation. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. Do not insert objects in the path of the blades. WARNING: Remove the rubber motor stops on the bottom of the fan before installing the blades or testing the motor. WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. WARNING: To avoid possible electrical shock, turn the electricity off at the main fuse box before wiring. If you feel you do not have enough electrical wiring knowledge or experience, contact a licensed electrician. WARNING: Electrical diagrams are for reference only. Optional use of any light kit shall be UL-listed and marked suitable for use with this fan. WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part no. FAN28R-240W, manufactured by Chia Wei Electric Co.,LTD. Safety Information Table of Contents CAUTION: To reduce the risk of personal injury, use only the screws provided with the outlet box. 3 HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. Pre-Installation Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing, or peeling. Brass finishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby…

Text truncated - open the document above for the full version.

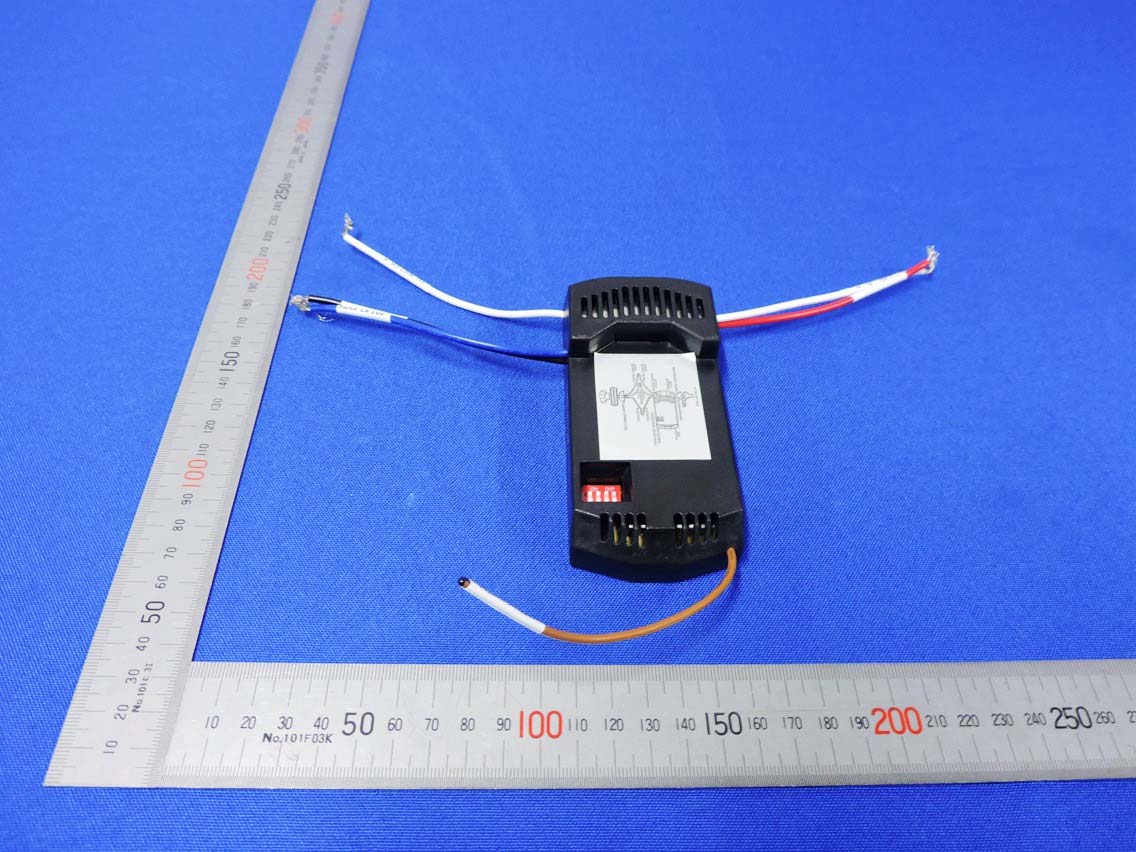

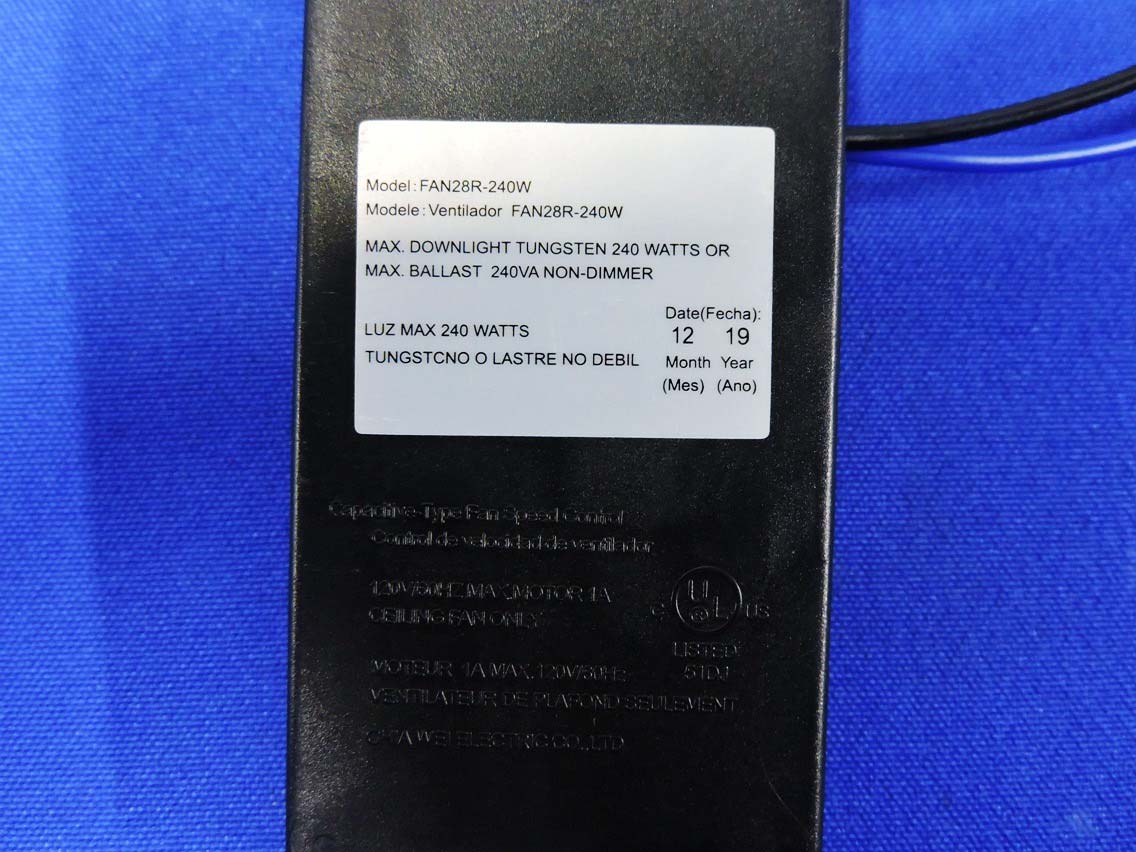

4 AABB CC DD FF EE GG Pre-Instalación (continuación) PiezaDescripciónCantidad AAHerrajes para montaje de las aspas16 BBConector plástico para cable 3 CCPasador de soporte1 DDPasador de cierre1 PiezaDescripciónCantidad EEEnchufe adicional de plástico (para utilizar con el ventilador sin kit de luces) 1 FFHerrajes adicionales para montaje de aspas (1 tornillo y arandela de seguridad) 1 GGHerrajes para montaje “Cerca del Techo” (1 junta de goma) 1 HERRAJES INCLUIDOS NOTA: No se muestra el tamaño real de los herrajes. 5 HAMPTONBAY.COM Llama al 1-855-HD-HAMPTON para asistencia adicional. D C B A E F H G I K J Pre-Instalación (continuación) CONTENIDO DEL PAQUETE PiezaDescripciónCantidad ASoporte deslizante de montaje (dentro de la cubierta) 1 BEnsamblado de tubo bajante/bola1 CCubierta con aro incorporado colocado1 DEnsamblaje del motor del ventilador1 EEnsamblaje del soporte del kit de luces 1 PiezaDescripciónCantidad FAspa5 GSoporte (reborde) de aspa, tornillos preinstalados 5 HTazón de vidrio1 IBombillas, máximo de 9.5 Watts2 JUnidad de mano (incluye batería)1 KReceptor1 IMPORTANTE: Este producto y/o componentes están gobernados por una o más de las siguientes Patentes estadounidenses: 5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117 y otras patentes pendientes. 6 Caja Eléctrica Caja Eléctrica Caja Eléctrica Empotrada Dar Apoyo Estable Placa de Montaje de Tech o Caja Eléctrica Barra Colgante Instalación OPCIONES DE MONTAJE ADVERTENCIA: Para disminuir el riesgo de incendio, descarga eléctrica o lesiones personales, instala el ventilador en una caja eléctrica marcada como “aprobada como soporte de ventiladores de 35 lb. (15,9 kg) o menos”, y usa los tornillos de montaje que vienen con la misma. Las cajas eléctricas utilizadas comúnmente para el soporte de lámparas pueden no servir como soporte de ventilador, y tal vez deban reemplazarse. En caso de duda, consulta a un electricista calificado. Si tu ventilador de techo no posee una caja de montaje aprobada por UL, instala una siguiendo las instrucciones a continuación: □Desconecta la energía retirando los fusibles o apagando los cortacircuitos. □ Asegura la caja eléctrica directamente a la estructura del edificio. Usa sujetadores y materiales apropiados. La caja eléctrica y su soporte deben sostener completamente el peso del ventilador en movimiento (al menos 35 lb). No uses una caja eléctrica de plástico. Las ilustraciones a continuación muestran tres formas diferentes de montar la caja eléctrica. Si la cubierta toca el tubo bajante, retira la cubierta inferior decorativa y gira la cubierta 180º antes de fijar la cubierta a la placa de montaje. Para colgar tu ventilador donde haya una lámpara pero ninguna viga de techo, tal vez necesites una barra colgante de instalación como se muestra arriba (disponible en cualquier tienda de The Home Depot). NOTA: Tal vez necesites un tubo bajante más largo para mantener la altura mínima adecuada de las aspas, al instalar el ventilador en un techo inclinado. El ángulo máximo permitido es de 30º de la posición horizontal. 7 HAMPTONBAY.COM Llama al 1-855-HD-HAMPTON para asistencia adicional. 2 3 1 JJ B D D DD P CC HH II JJ C A Ensamblaje – Montaje de Techo Estándar Preparación para el montaje □ Retira el aro (JJ) de la cubierta (C) girándolo hacia la izquierda hasta que se libere. □Retira el soporte de montaje (A) de la cubierta (C) aflojando los dos tornillos de la cubierta (HH) ubicados en las ranuras en forma de “L”. □Quita y guarda los dos tornillos de la cubierta (II) en los orificios redondos. Esto te permitirá retirar el soporte de montaje (A). Ensamblar el ventilador ADVERTENCIA: Si el pasador de cierre no se instala correctamente, es posible que el ventilador se afloje y caiga. □ Afloja, sin quitarlos, los tornillos en el collarín (P) ubicado en la parte superior de la carcasa del motor. □ Alinea los orificios en la parte inferior del tubo bajante (B) con los orificios en el collarín (P) de la parte superior de la carcasa de motor. □ Inserta con cuidado el pasador de soporte (CC) a través de los orificios del collarín (P) y del tubo bajante (B). Ten cuidado de no apretar el pasador de sujeción (CC) contra el cableado dentro del tubo bajante (B). □ Inserta el pasador de cierre (DD) en el orificio cercano al extremo del pasador de sujeción (CC) hasta que quede encajado en su posición. □ Vuelve a ajustar los tornillos del collarín (P) en la parte superior de la carcasa del motor. Insertar los cables □Inserta los cables que salen por la parte superior del motor del ventilador (D) y a través del aro de la cubierta (K). □Asegúrate de que las ranuras estén en la parte superior y pasa los cables a través de la cubierta (C) y luego a través del ensamblaje del tubo bajante/bola (B). 8 12 C JJ KK A II HH C GG D LL JJ P LL Ensamblaje – Montaje cerca del techo □ Retira el aro de cubierta (JJ) de la cubierta (C), girándolo en sentido a las manecillas del reloj hasta soltarlo. □ Retira el soporte de montaje (A) de la cubierta (C) aflojando los dos tornillos de la cubierta (HH) ubicados en las ranuras en forma de L. □ Quita y guarda los dos tornillos de la cubierta (II) en los orificios redondos. Esto te permitirá retirar el soporte de montaje (A). □ Retira la cubierta inferior decorativa (KK) de la cubierta (C) oprimiendo los tres pernos. □ Retira tres de los seis tornillos y arandelas de seguridad (LL) (alternados) que sujetan el collarín del motor (P) a la parte superior de la carcasa del motor del ventilador (D). □ Pasa los cables que salen de la parte superior del ensamblaje del motor del ventilador (D) a través de la junta de goma (GG) y alinea los orificios de la junta de goma (GG) con los tres orificios para los tornillos del ensamblaje del motor del ventilador (D). □ Pasa los cables que salen de la parte superior del ensamblaje del motor del ventilador (D) a través del aro de la cubierta (JJ) y la cubierta (C) (asegúrate de que las aberturas en forma de ranura para el anillo de la cubierta y la cubier…

Text truncated - open the document above for the full version.
