RGB29523-71523Low Voltage LED Bluetooth Audio Path Light

2 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. Care & Cleaning Bluetooth Pairing Bluetooth Audio Play Troubleshooting Warranty □Before attempting to clean the fixtures, disconnect the power to the fixtures by unplugging the transformer from the outlet. □To clean the fixtures, use a dry or slightly dampened, clean cloth. □Do not use cleaners with chemicals, solvents, or harsh abrasives, as damage to the fixtures may occur. The Bluetooth audio path light kit is compatible with iPhone, iPad, Android, Blackberry, or similar devices whose Bluetooth protocol is compatible with 3.0+EDR protocol. To pair, ensure that the audio path lights are plugged in and powered up. In the first 30 seconds, the primary audio path light and the other three secondary audio path lights (labeled on the wire) will pair with each other and synchronize automatically. At the same time, the Bluetooth function is available for pairing. Follow the below instructions to pair your audio path lights with your music source. □Position the Bluetooth device within 33 feet (10 meters) from the primary audio path light. □On your Bluetooth device, search for a new Bluetooth device called “Path Light ****” under the list of devices available. Please note that **** will actually be a number that corresponds to your specific set of path lights. □If you are asked for a password, enter ‘1234’. Pairing is successful when you hear a short confirmation tone from the audio path lights. □Start streaming audio from your music source. When the audio path light is turned ON, for the first 15 seconds it will automatically search for the last device it was connected to. Most of the Bluetooth audio sources support this function, but some of them might not. In this case, you must manually set up the connection again. If the previous Bluetooth device is not available, the audio path light will search for new devices. For some Bluetooth devices and mobile phones, ‘Stereo Speaker’ mode should be enabled to stream audio wirelessly. The audio path light is compatible with the 3.0+EDR protocol. Full Bluetooth functionality and volume control cannot be guaranteed if the audio source has an older Bluetooth protocol. To pair to a new Bluetooth device, you need to disable the current paired device. After about 30 seconds, the audio path light will be available for the new device. □Once paired, you will be able to control the playback and volume through your device. □If available on your device, access the sound settings or equalizer settings. Selecting the correct audio profile or sometimes turning off the equalizer will improve the quality and maximum volume of the playback. □If you should wander out of range of the Bluetooth device, simply move closer to the primary audio path light. No pairing actions will be needed if the lost connection is regained within 30 minutes; the devices will regain the lost connection automatically. If the lost connection is more than 30 minutes, you are required to manually connect the Bluetooth device and audio path light again. □The Bluetooth audio path lights feature a built-in privacy mode which disconnects speaker playback when a phone call is being received from the device. It will automatically resume playback when the call is completed. □Since the lights are activated by photo sensors independently from the audio function, audio play operation is not affected during day or night hours. The manufacturer warrants this product to be free for two (2) years against any defects that are due to faulty materials or workmanship. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set up, or used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence, alteration, or faulty installation or any other failure not relating to faulty workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not warrant and specifically disclaims any warranty, whether expressed or implied, or fitness for a particular purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including any labor/expense costs involved in the replacement or repair of said product. Contact the Customer Service Team at 1-877-527-0313 or visit www.HomeDepot.com. ProblemPossible CauseSolution □The lights do not turn on at night. □There is no power. □There is a disconnected wire/ break in the wire. □The audio lights are installed too close to a light source. □Check the outlet and ensure that a breaker or GFI circuit has not been tripped. □Follow the wires from the fixture and ensure a continuous connected path back to the transformer. □Move the audio path lights away from other fixtures or light sources. □The lights do not turn off during the day. □The audio path lights are in too much shade. □Move the audio path lights to an area with adequate light (away from shrubs and trees). □One fixture light flickers. □There is a loose wire connector to the fixture. □Tighten the wire connector, and ensure the metal contacts pierce the insulation on the low voltage cable from the transformer. □All of the lights flicker. □There is a loose connection at the transformer. □Unplug the transformer from the outlet and visually inspect…

Text truncated - open the document above for the full version.

DATE : Dec 17, 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Shenzhen Timeway Technology Consulting Co., Ltd. East 5/Block 4, Anhua Industrial Zone, No.8,Tairan Rd. CheGongMiao, FuTian District, Shenzhen City, Guangdong Province, China_, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with King of Fans, Inc. 1951 N.W. 22 nd Street,Fort Lauderdale, FL33311,USA Dated this Dec 17, 2012 By: Rivera Eli Signature Printed Title: Manager On behalf of : King of Fans, Inc. Telephone: 954 484 7500

DATE : Dec 17, 2012 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: RGB29523-71523 Product Name: Low Voltage LED Bluetooth Audio Path Light Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description • Part List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Dec 17, 2012 By: Rivera Eli Signature Printed Title: Manager On behalf of : King of Fans, Inc. Telephone: 954 484 7500

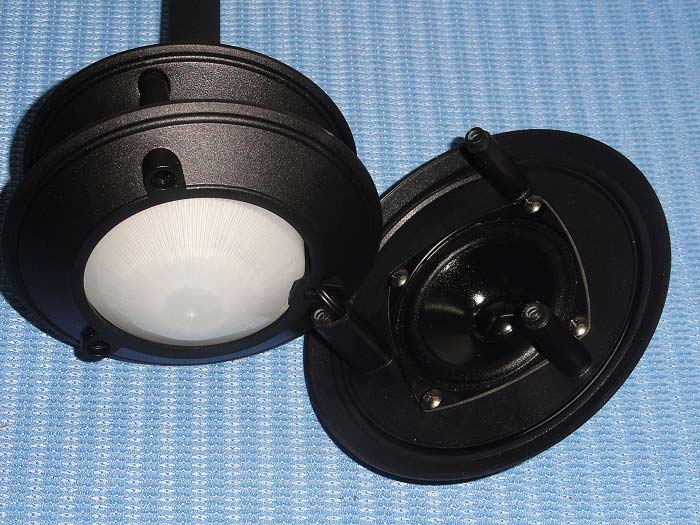

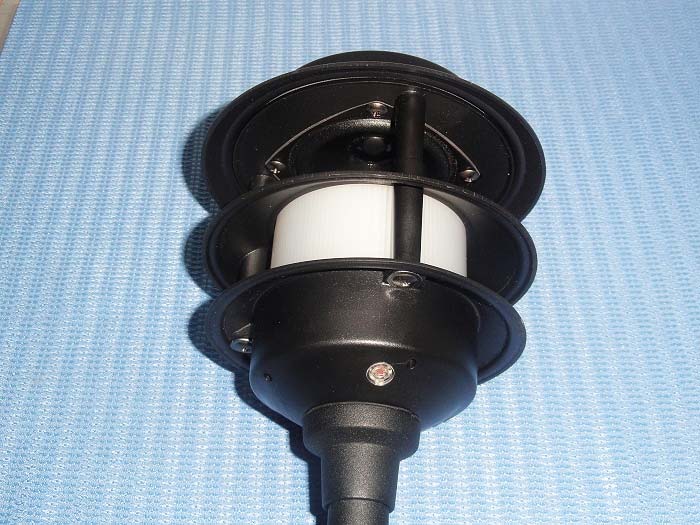

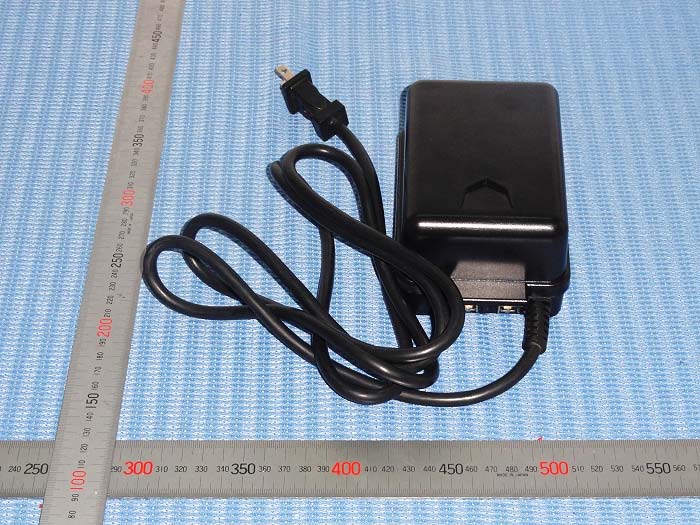

Photo for the EUT-TX Photo for the EUT-TX Photo for the EUT-TX Power Supply Power Supply

Mark Location: FCC ID Label Location

Model / Modèle / Modelo : 29523 FCC ID : RGB29523‐71523 SKU No. / UGS n° / SKU Núm.#916445 UPC NO. / CUP n° / UPC Núm. #082392295233 CONFORMS TO UL STD.1838 CERTIFIED TO CSA STD.C22.2 No.250.7 12VAC, 10W MAX FOR OUTDOOR USE ONLY. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CONFORME À LA NORME UL.1838 HOMOLOGUÉ SELON LA NORME C22.2 N°.250.7 DE L'ACN 12 V c.a.,10W MAXIMO POUR USAGE À L'EXTÉRIEUR SEULEMENT. CUMPLE CON LAS NORMAS UL STD.1838 CERTIFICADO PARA LA NORMA CSA STD C22.2 Núm.250.7 12V CA, 10W MAXIMUM SÓLO PARA USO EN EXTERIORES Vendor No. / N° de vendeur / No. Vendedor : 11688 Made in China / Fabriqué en Chine / Hecho en China Trade Name / Nom commercial / Nombre Comercial：Hampton Bay Date / Fecha / La fecha: 12‐2012

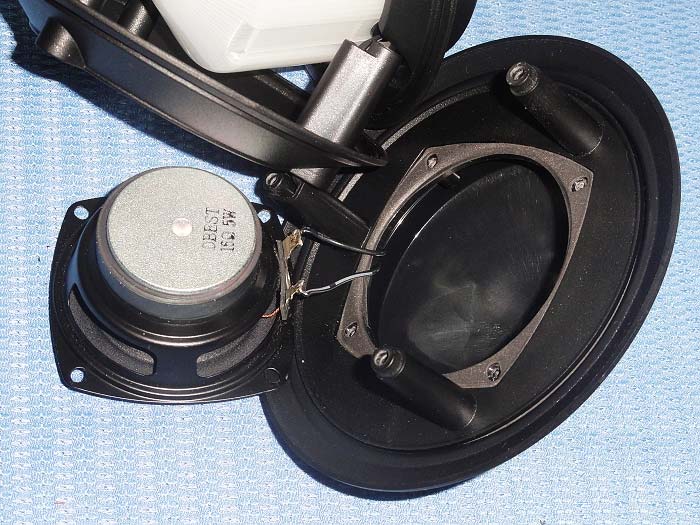

Photo for the EUT-TX Photo for the EUT-TX Photo for the EUT-TX Photo for the EUT-TX FM Antenna Bluetooth Antenna Photo for the EUT-TX Photo for the EUT-TX

ISO/IEC17025 Accredited Lab. Report No: FCC1211104-02 File reference No: 2012-12-17 Applicant: King of Fans, Inc. Product: Low Voltage LED Bluetooth Audio Path Light Model No: 29523/71523 Trademark: Commercial Electric Test Standards: FCC Part 74H and Part 2 Test result: The test item passed the test specification(s) Approved By Jack Chung Manager Dated: Dec 17, 2012 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1211104-02 Page 2 of 37 Date: 2012-12-17 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: 1211104-02 Page 3 of 37 Date: 2012-12-17 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ............................................................................................... 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 4 1.5 Test Duration................................................................................................... 5 1.6 Test Uncertainty................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards................................................................................................. 7 4.0 EUT Modification.............................................................................................7 5.0 Test Results.................................................................................................... 8 5.1 E.U.T. Operation Condition................................................................................. 8 5.2 Test Procedure & Measurement Data...................................................................... 8 5.2.1 Carrier Radiated Power & Radiated Spurious Emissions................................................ 8 5.2.2 Occupied Bandwidth.......................................................................................... 11 5.2.3 Frequency Stability...............................................................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
