RGN-ACRO-MWireless Communication Device

ACRO-M User Manual ACRO-M User Manual ACRO-M User Manual - 2 - < Contents > 1. Composition ········································································································································ 3 1.1 Components ································································································································································· 3 1.3 Terminal Usage ························································································································································· 4 1.4 Detailed Information ················································································································································· 5 2. Screen Description··························································································································· 6 3. How to Use ······································································································································· 7 3.1 Turning ‘On’ and ‘Off’ the radio ·························································································································· 7 3.2 Group Communication·············································································································································· 7 3.3 1:1 Communication Mode ······································································································································· 7 3.4 GPS Mode ··································································································································································· 7 3.5 Camera Mode ····························································································································································· 8 3.6 Bluetooth Mode ························································································································································· 8 3.7 Text messaging ························································································································································· 9 3.8 Checking the message ··········································································································································· 10 3.9 Controlling the Volume ········································································································································· 10 3.10 Activate and inactivate the vibration mode ································································································· 10 3.12 Enable / disable the relay function ·············································································································· 11 3.13 Activate / inactivate camera flash mode ···································································································· 11 3.14 LCD brightness control ······································································································································· 11 Warranty ················································································································································ 12 ACRO-M User Manual - 3 - 1. Composition 1.1 Components 1.1.1. Basic Items TerminalChargerUser Manual 1.1.2. Additional Items ∎ Pouch, Belt Clip, Basic Battery, Additional Battery, Earset, Mike Earset, External PTT key ACRO-M User Manual - 4 - 1.2Terminal specifications DivisionCategorySpecification Standard Size13 5(H)mm x 68(W)mm x 21(D)mm Weight250g Components Organization Appearance: Polycarbonate (PC) LCD Window: Acrylic PCB: 8L-C Shield cans: Sus Battery Output Voltage3.7 V Output Current4000 mAh TypeLithium-ion polymer RF Radio Frequency4a㎒ Outpu Range 1W ~ W (Set by S/W) Receiving Sensitivity- 110dBm Spurious Sensitivity- 40dBm Etc. Operation Hour10 Hours (When the battery is fully charged) Audio OutputDual (1W each) 1.3 Terminal Usage ∎ Leisure Activity (Hiking, Survivor, etc.) ∎ Service Industry ∎ Industrial Sites (Factory, Tunnel) ∎ Special Operation (Fire Fighters, Police, Military, etc.) ACRO-M User Manual - 5 - 1.4 Detailed Information #TitleDescription (1) 3.5mm earphone jackEar Microphone Connector (2) Receiver Not in use. (decoration only) (3) Screen2.3 " terminal control screen (4) Push to Talk button (PTT : For the radio call) PTT button for the radio call (5) Menu keyKey to enter the menu (6) Volume Control keyHandset speaker volume control (up / down) (7) Call keyButton for 1:1 communication (8) Micro 5pin connector Terminal connector for charging and PC connection (9) AntennaTerminal Antenna (10) 4 directional keysMenu direction key for operations (11) Power on / off key Power key for the terminal (12) Emergency key / Cancel key Used for emergency situation (13) Keypad Keys to enter the letters and numbers (14) Flash Function to use at night and in the dark (15) Dual Speaker Built-in dual speaker for enhanced audio performance (16) Battery lock Removable battery function (17) Camera 1600 X 1200 (UXGA) (18) Battery Pack 3.7V, 4000mAh ACRO-M User Manual - 6 - 2. Screen Description IconTitleDescription ID statusDisplays the terminal ID# while transmitting data MessageDisplays the received message Bluetooth Bluetooth is available and it displays that the device is not connected to other bluetooth device Bluetooth connected Bluetooth is available and it displays that the device is connected to other bluetooth device BatteryDisplays the battery status (1~3level, Discharge status) GPS Able to determine the location of the device user. VolumeAble to control the volume. (1~5 level) MuteAble to mute the volume VibrationAble to use vibration mode. ACRO-M User Manual - 7 - 3. How to Use 3.1 Turning ‘On’ and ‘Off’ the radio ∎ Press key for 2~3 seconds where …

Text truncated - open the document above for the full version.

INSOPACK. CO., LTD. 101/508, Digital Empire Building, Sin-dong, Yeongtong-gu, Suwon, Kyeonggi-do, Korea. 443-734 Date: September 04, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; INSOPACK. CO., LTD. 101/508, Digital Empire Building, Sin-dong, Yeongtong-gu, Suwon, Kyeonggi-do, Korea. 443-734 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jeong Hyun, Cho / Manager INSOPACK. CO., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

INSOPACK. CO., LTD. 101/508, Digital Empire Building, Sin-dong, Yeongtong-gu, Suwon, Kyeonggi-do, Korea. 443-734 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: RGN-ACRO-M To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics / Block Diagram / Operational Description / Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. 2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos / Internal Photos / Test Setup Photos / User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Jeong Hyun, Cho / Manager INSOPACK. CO., LTD.

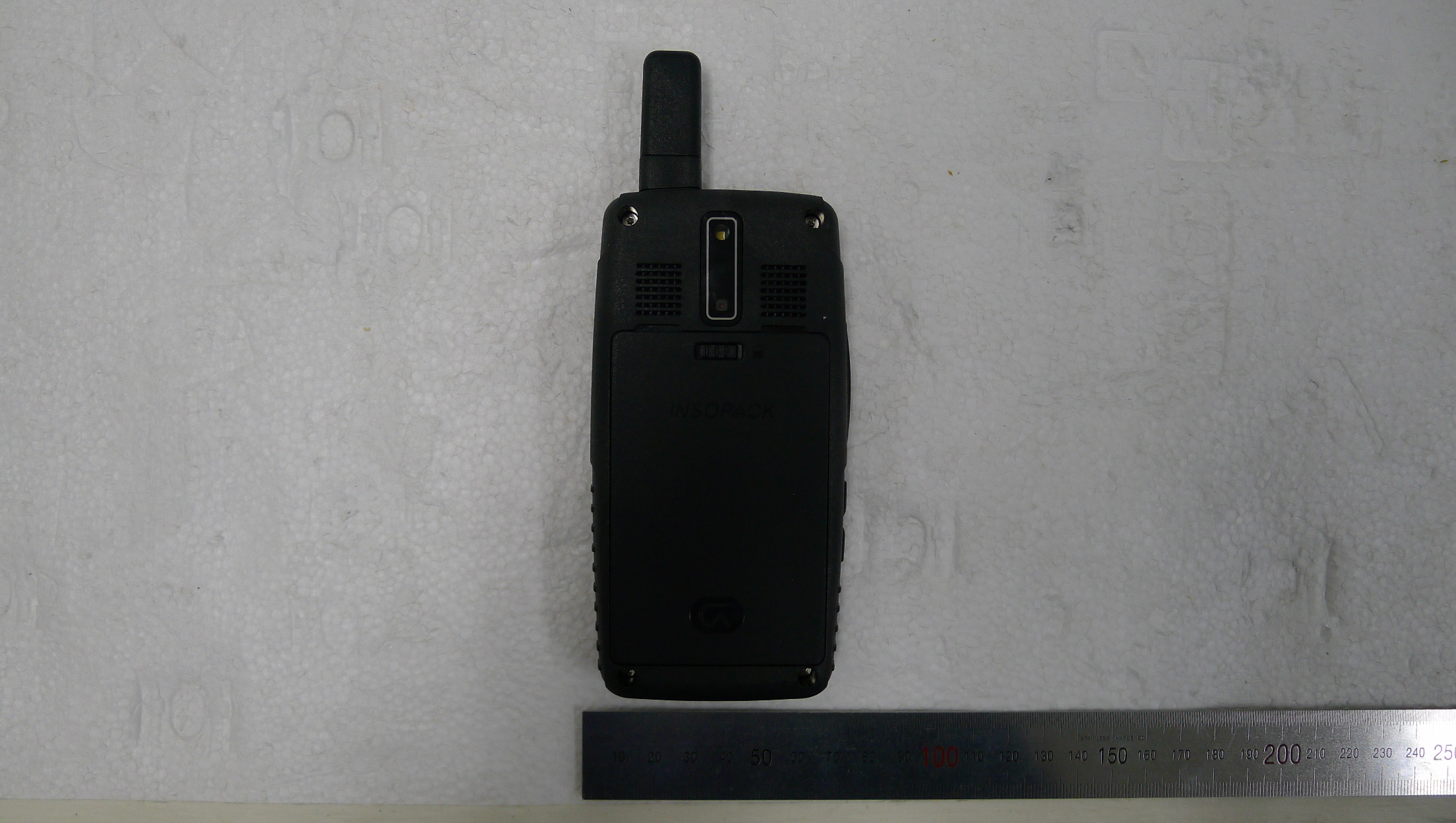

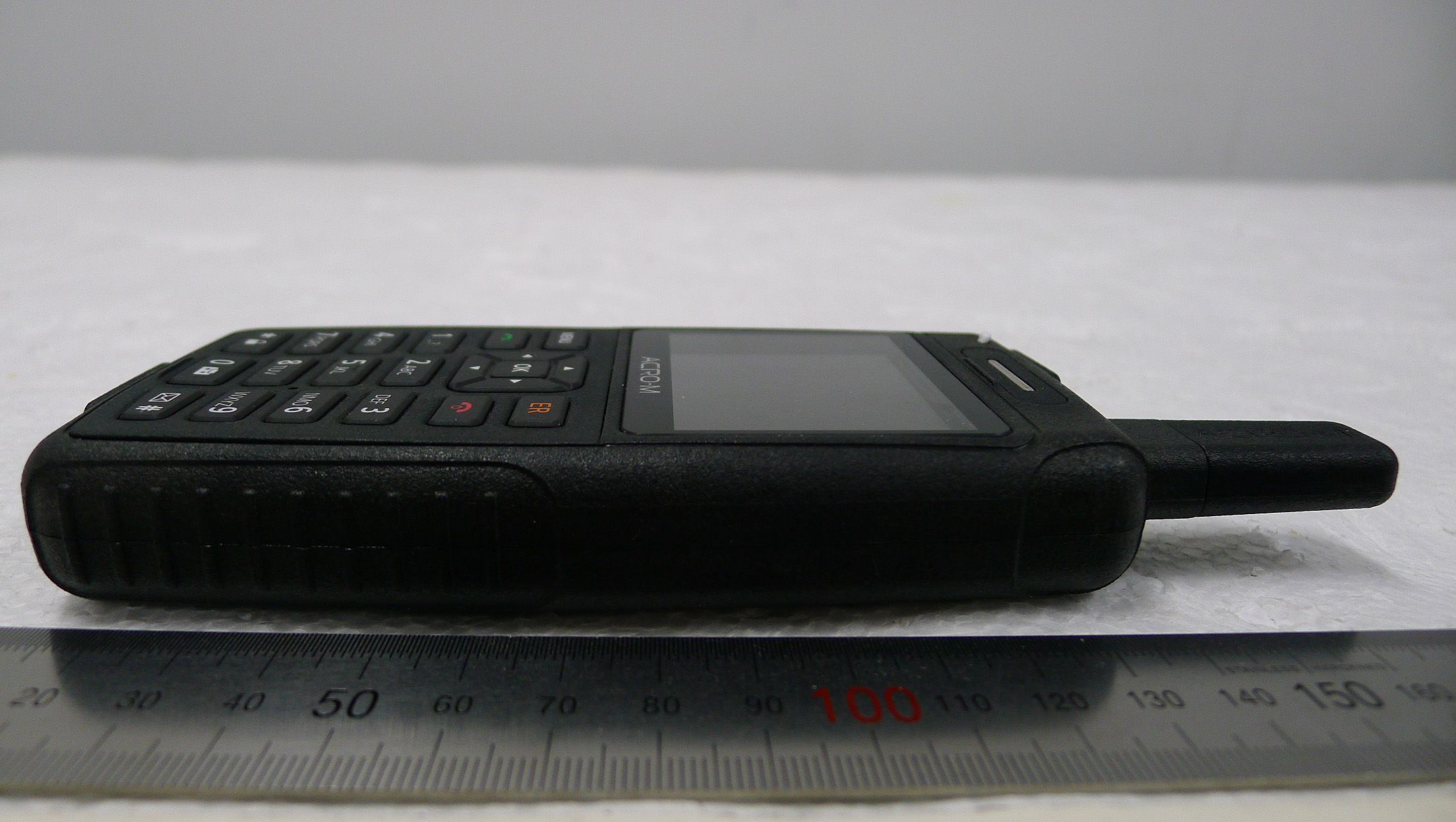

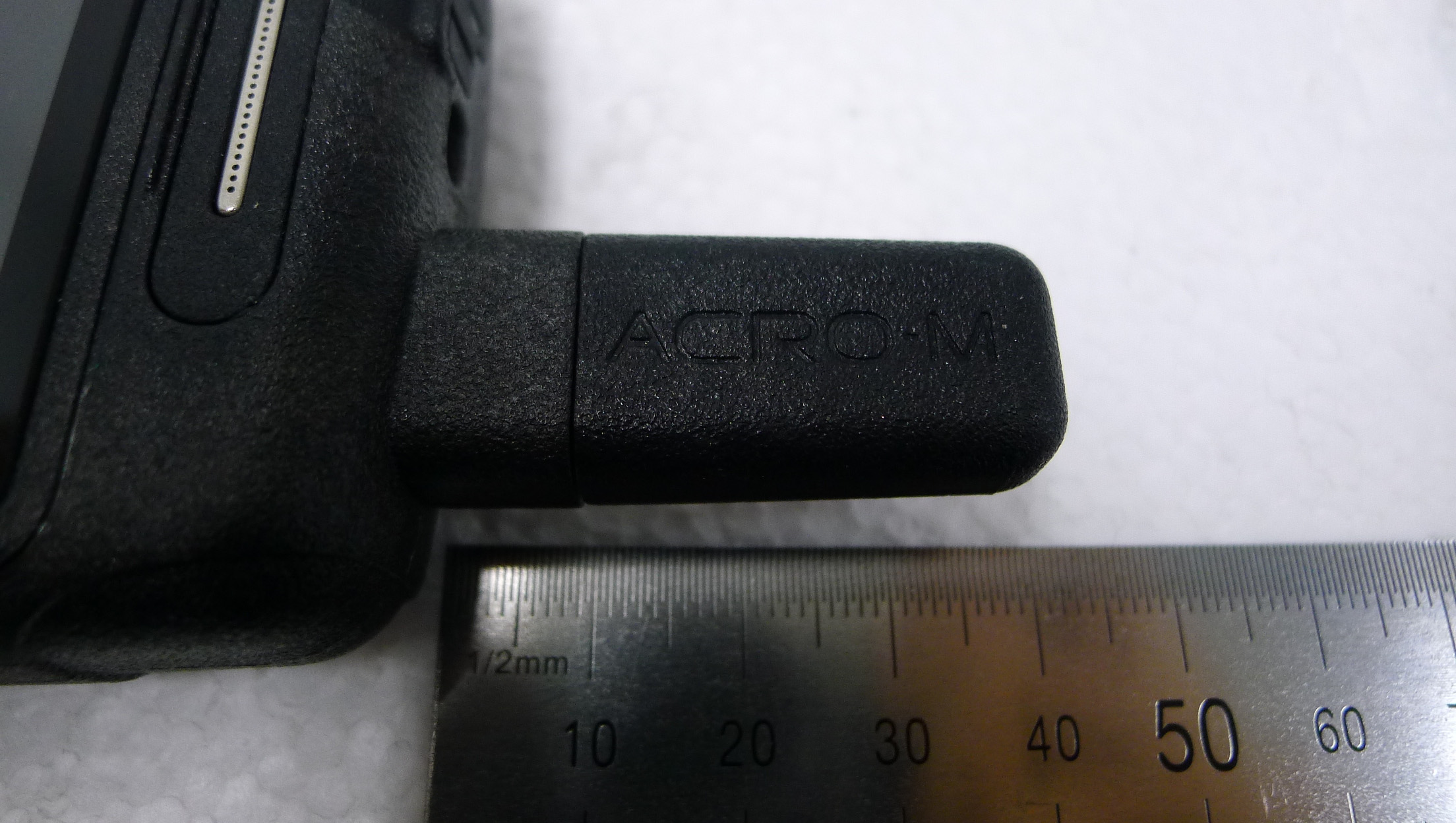

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT Side view of EUT Side view of EUT Side view of EUT Antenna(PTT) Antenna (Bluetooth)

This device complies with part 90 if the FCC Rules operation is subject to the conditions that device does not cause harmful interference. Restricted to occupational use to satisfy FCC RF exposure limits. See user manual for operation requirements. RGN-ACRO-M Restricted to occupational use to satisfy FCC RF energy exposure limits. See user manual for awareness and control information. This device complies with part 90 if the FCC Rules operation is subject to the conditions that device does not cause harmful interference. Restricted to occupational use to satisfy FCC RF exposure limits. See user manual for operation requirements. RGN-ACRO-M Restricted to occupational use to satisfy FCC RF energy exposure limits. See user manual for awareness and control information.

INSOPACK. CO., LTD. 101/508, Digital Empire Building, Sin-dong, Yeongtong-gu, Suwon, Kyeonggi-do, Korea. 443-734 Date: September 23, 2015 Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Label justification letter Proposed FCC ID label location (Labeling requirements per 2.925) The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. When the user purchases the device, they can see the label information as soon since the battery and main device are wrapped separately. To use the device, user needs to clip-on the battery, the user shall be read the label on the device. The label is placed for waterproof the device and external appearance reason as placed in battery compartment clause accordingly. Sincerely Yours, Jeong Hyun, Cho / Manager INSOPACK. CO., LTD.

Internal photos of EUT Main board(Front) Main board (Rear) Internal photo

MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (1) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 Test Report ` Equipment Under Test Wireless communication device Model Name ACRO-M Applicant INSOPACK. CO., LTD. FCC ID RGN-ACRO-M Manufacturer INSOPACK. CO., LTD. Date of Test(s) 2015. 08. 03 ~ 2015. 08. 28 Date of Issue 2015. 09. 17 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by INSOPACK. CO., LTD. 101/508, Digital Empire Building, Sin-dong, Yeongtong-gu, Suwon, Kyeonggi-do, Korea. Tel.: +82-31-695-8400 Fax: +82-31-695-8406 MOVON Corporation 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (2) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- Sep. 17, 2015 Initial -- MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (3) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. ATTESTATION OF TEST RESULTS ............................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 6 3. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................... 7 4. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 9 5. CONDUCTED POWER LINE TEST .............................................................................. 32 6. 20 ㏈ BANDWIDTH MEASUREMENT ........................................................................ 35 7. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 40 8. HOPPING CHANNEL SEPARATION ........................................................................... 45 9. NUMBER OF HOPPING FREQUENCY ........................................................................ 47 10. TIME OF OCCUPANCY (DWELL TIME) .................................................................... 49 11. ANTENNA REQUIREMENT ....................................................................................... 54 12. RF EXPOSURE EVALUATION .................................................................................. 55 MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (4) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 1. Attestation of test results 1.1. Details of applicant & manufacturer Applicant : INSOPACK. CO., LTD. Address : 101/508, Digital Empire Building, Sin-dong, Yeongtong-gu, Suwon, Kyeonggi-do, Korea. Contact Person : Jeong Hyun, Cho Telephone : +82-31-695-8400 Fax : +82-31-695-8406 MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (6) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Wireless communication device Model Name ACRO-M FCC ID RGN-ACRO-M Serial Number N/A Power supply DC 3.8V Frequency range 2 402 ㎒ ~ 2 480 ㎒ Modulation technique GFSK, Pi/4DQPSK, 8DPSK Number of channels 79 Antenna gain -2.17㏈i (Max.) TEST SITE REGISTRATION NUMBER FCC(670686), FCC(287786) 2.1. Declarations by the manufacturer : None 2.2. Details of modification : None 2.3. MEASUREMENT EQUIPMENT Equipment Manufacturer Model Serial number Calibration Interval Calibration due. EMI Receiver R&S ESVN30 832854/010 1 year 2016-01-12 Signal Generator R&S SMBV100 257379 1 year 2015-09-29 Spectrum Analyzer R&S FSV-40 100832 1 year 2016-03-06 Test Receiver R&S ESPI 100012 1 year 2016.01.12 Horn Antenna SCHWARZBECK MESS-ELECTRONIK BBHA 9120 D BBHA 9120 D 517 2 year 2016-10-16 Bi-Log Antenna SCHWARZBECK VULB 9160 9160-3122 2 year 2016-04-02 Biconical Antenna SCHWARZBECK VHA9103 2502 2 year 2017-08-31 EMC Analyzer H.P E7403A US39150108 1 year 2016.01.12 RF Amplifier COM-POWER PAM-118A 551019 1 year 2016-07-21 High Pass Filter Wainwright WHK3.0/18G-10SS508 1 year 2015-09-29 Tunable Controller AUDIX ACT N/A N/A N/A Antenna Master AUDIX N/A N/A N/A N/A Loop Antenna R&S HEH2-Z2 881056/6 2 year 2017-01-06 ※ Remark : Support equipment Description Manufacturer Model Serial number - - - - MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (7) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 3. Frequency Hopping System Requirements 3.1. Standard Applicable According to FCC Part 15.247(a)(1), The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. (g) Frequency hopping spread spectrum systems are not required to employ all available hopping …

Text truncated - open the document above for the full version.

MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (35) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 6. 20 ㏈ bandwidth measurement 6.1. Test setup EUT Spectrum analyzer 5.2. Limit Not applicable 5.3. Test procedure 1. The 20 ㏈ band width was measured with a spectrum analyzer connected to RF antenna connector (conducted measurement) while EUT was operating in transmit mode at the appropriate center frequency. The analyzer center frequency was set to the EUT carrier frequency, using the analyzer. Display Line and Marker Delta functions, the 20 ㏈ band width of the emission was determined. 2. The bandwidth of the fundamental frequency was measured with the spectrum analyzer using RBW ≥ 10 ㎑, VBW ≥ 10 ㎑, Span = 3 ㎒. 5.4. Test results Ambient temperature: 22 °C Relative humidity: 45 % R.H. Operation mode Frequency(㎒) 20 ㏈ bandwidth(㎒) BASIC 2 402 0.803 2 441 0.808 2 480 0.803 EDR 2 402 1.272 2 441 1.298 2 480 1.298 MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (36) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Operation mode: Basic mode A. Low channel (2 402 ㎒) – 20 ㏈ bandwidth B. Middle channel (2 441 ㎒) – 20 ㏈ bandwidth MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (37) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. C. High channel (2 480 ㎒) – 20 ㏈ bandwidth MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (38) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Operation mode: EDR A. Low channel (2 402 ㎒) – 20 ㏈ bandwidth B. Middle channel (2 441㎒) – 20 ㏈ bandwidth MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (39) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. C. High channel (2 480㎒) – 20 ㏈ bandwidth MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (40) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 7. Maximum peak output power measurement 7.1. Test setup. EUT Spectrum analyzer 6.2. Limit The maximum peak output power of the intentional radiator shall not exceed the following: 1. §15.247(a)(1), Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 ㎑ or the 20 ㏈ bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 ㎽ 2. §15.247(b)(1), For frequency hopping systems operating in the 2 400 – 2 483.5 ㎒ employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5 725 – 5 805 ㎒ band: 1 Watt. 6.3. Test procedure 1. The RF power output was measured with a Spectrum analyzer connected to the RF Antenna connector(conducted measurement) while EUT was operating in transmit mode at the appropriate center frequency, A spectrum analyzer was used to record the shape of the transmit signal. 2. The bandwidth of the fundamental frequency was measured with the spectrum analyzer using; Span = approximately 5 times the 20 ㏈ bandwidth, centered on a hopping channel RBW ≥ 20 ㏈ BW, VBW ≥ RBW, Sweep = auto, Detector function = peak, Trace = max hold 6.4. Test results Ambient temperature: 22 °C Relative humidity: 45 % R.H. Operation mode Frequency(㎒) Peak output power(㏈m) Limit(㏈m) BASIC 2 402 -2.44 30 2 441 -1.22 30 2 480 -0.39 30 EDR 2 402 -3.52 30 2 441 -2.22 30 2 480 -1.28 30 MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (41) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Operation mode: Basic mode A. Low channel (2 402 ㎒) B. Middle channel (2 441 ㎒) MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (42) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. C. High channel (2 480 ㎒) MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (43) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Operation mode: EDR A. Low channel (2 402 ㎒) B. Middle channel (2 441㎒) MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (44) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. C. High channel (2 480㎒) MOVON CORPORATION Report Number: MOV-15-RF-I076 Page : (45) of (55) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 8. Hopping channel separation 8.1. Test setup EUT Spectrum analyzer 7.2. Limit §15.247(a)(1) Frequency hopping system operating in 2 400 – 2 483.5 ㎒. Band may have hopping channel carrier frequencies that are separated by 25 ㎑ or two-third of …

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30 ㎒ Photo of radiated spurious emission at 30 ㎒ ~ 1 000 ㎒ Photo of radiated spurious emission at above 1 000 ㎒ Photo of conducted power line test
