RGTMT-8001KFM TRANSMITTER

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX I : USER’S MANUAL

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX C : BLOCK DIAGRAM 5 5 4 4 3 3 2 2 1 1 DD CC BB AA :AUDIO Transmitter IC :VCO and Mixer Regulator DC Convert RGTMK8001K1.2 FM Transmitter Blockdiagram A 11Wednesday, May 18, 2005 Title SizeDocument NumberRev Date:Sheet of LEFT CH GND ANTENNA RIGHT CH Vcc(12V) PLL DATA Battery(1.5V)

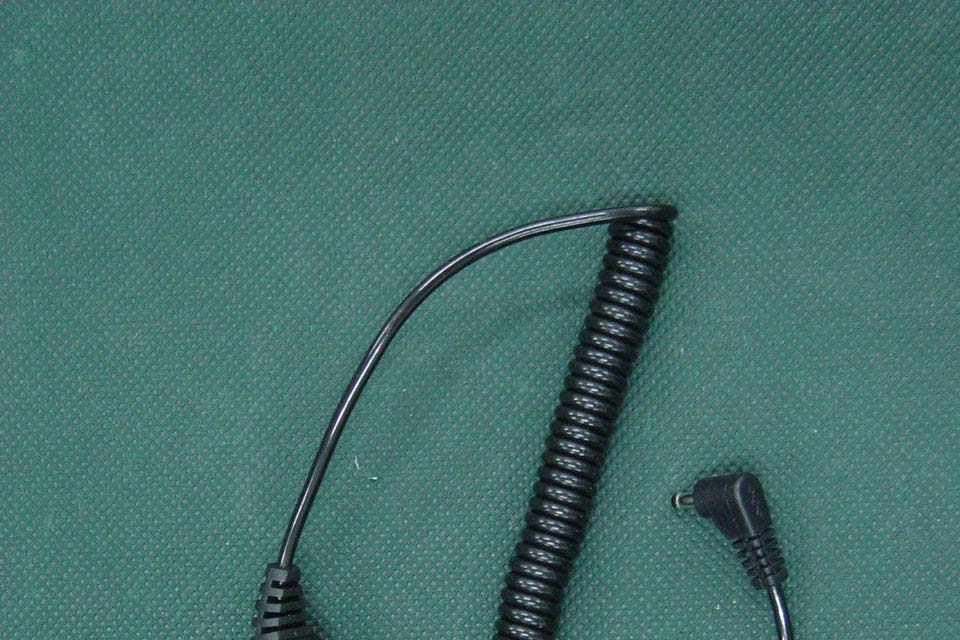

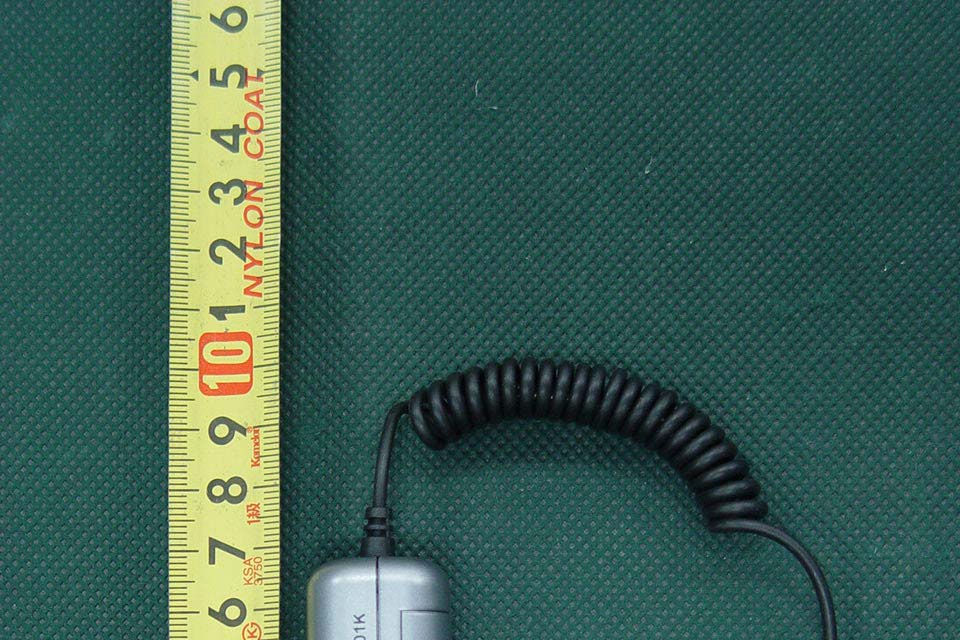

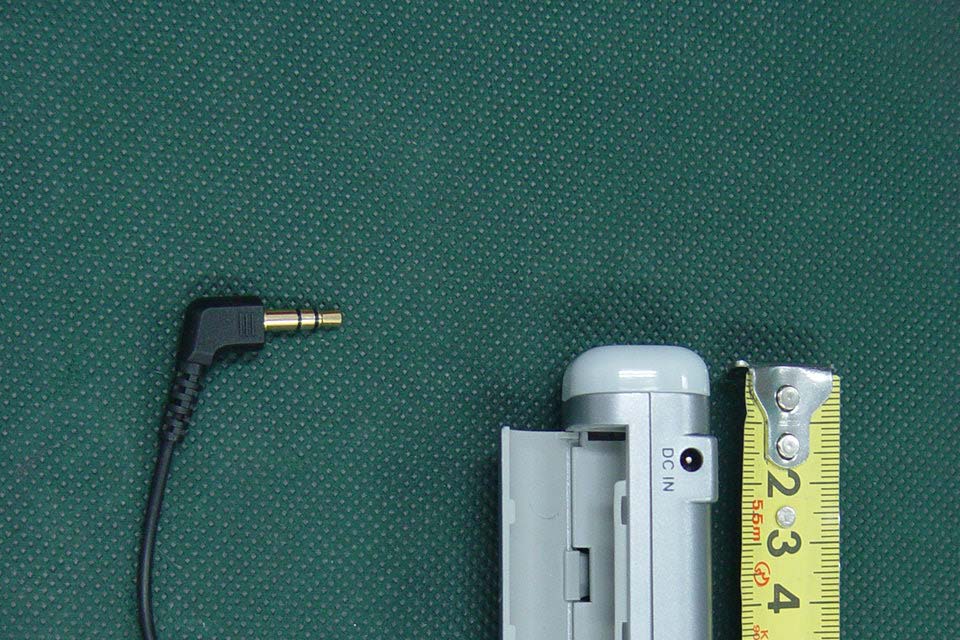

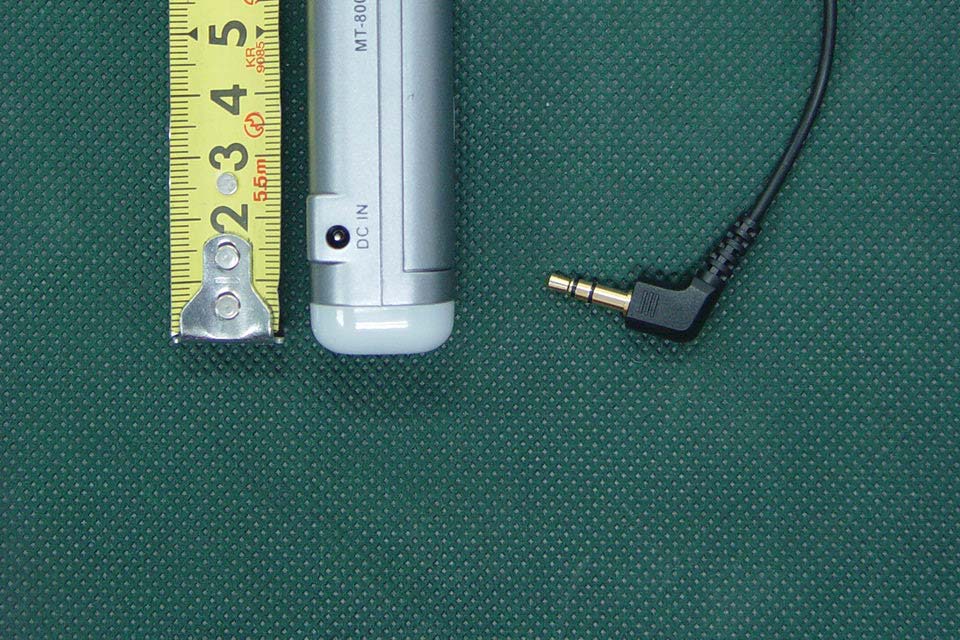

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX G : EXTERNAL PHOTOGRAPHS EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX D : ID SAMPLE LABEL & LOCATION EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX H : INTERNAL PHOTOGRAPHS EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX J : OPERATIONAL DESCRIPTION EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification Operational Description □The EUT is FM Transmitter that can transmit Audio signal of AV Equipment (DVD or TV receiver,MP3, PDA, CDP, etc) to the FM Radio receiver in a car. ☞ TX Frequency Range : 88.1/88.3/88.5MHz ☞ Frequency Step : 200 kHz □ Device Description Block Circuit No.Name Description Transmitter IC U1 BH 1417F FM Stereo Transmit IC C16 Capacitor 100pF RF Out L 5 Inductor 470 nH VCO and Mixer Q 1 Transistor KTC3882 CE2 Electrolysis Cap 4.7uF/16V VD1 Diode Capacitor KDV1472V C11 Capacitor 33pF C15 Capacitor 56pF L3 Inductor 120nH U2 DC Convertor IC ELM9333C Power IC U3 Regulator IC 78L05F X-Tal OSC Circuit X1 X - tal 7.6MHz C17 Capacitor 27pF C18 Capacitor 27pF

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX E : SCHEMATIC DIAGRAM 55 44 33 22 11 D D C C B B A A ******** Notes ********* USA R20 OPENSHORTSHORTSHORT R21R22R24R25R14R17 OPEN100K100K <Doc> <RevCode> RGTMT8001K B 11 Tuesday, May 17, 2005 TitleSize Document Number Rev Date: Sheet of VCC C22X C20104p L43.3uH R10 C2150p U3KIA78L05F 2 3 1 IN OUT GND R21* C12200pR140 VD1KDV1472V-B R24* C16100pF C10102p R13330 R25* C3470p L5 470nH C727P C240.047uF R23.3K C1556p R18220Q1 KTN2222 C910nF R8120k Q2 KTC3882 C19104p C827P R105.1K R6100K U1 BH1416F 12 1110 98765432 1314 1 1516171819202122 PLL Vcc RF OUTRF GNDOSCVccPHASE OUTGNDCOM OUTFILLTCPETC X-talX-tal R-ch IN D0D1D2D3 PLT ADJ LTC PETC L-ch IN C12104p C14x C5150P D1 KDR729 X17.6M R1922K + CE6 47uF/50V + CE310u/16V C11220p R22* U3ELM9333C 2 3 1 OUT LX Vss R16100K C42200P SW2 SW SLIDE-DP3T 7 6 81 2 3 45 L3 3.3uH R17* R115.1K L1120nH C1333P + CE24.7u/16V R20* D2 KDR729 R910K R30 R75.1K LD1 31 + CE4 47uF/16V R43.3K JK1 TDC-018 123 SW1SW SLIDE-DPDT 5 4 61 2 3 + CE510uF BAT1.5V L2 33uH R1210K R15100K C610n vccGNDRIGHT LEFT ANT

EUT Type : FM Transmitter FCC ID.: RGTMT-8001K Page 2 of 15 Test Report No.: GETET-E3-05-039 FCC Part 15 Subpart C Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................5 3.3 CABLE(S)..................................................................................................................................................................5 3.4 TEST CONDITIONS....................................................................................................................................................5 4. DESCRIPTION OF TESTS.........................................................................................................................................6 4.1 RADIATED EMISSION................................................................................................................................................6 4.2 CONDUCTED EMISSION............................................................................................................................................6 5. RADIATED EMISSION TEST ...................................................................................................................................7 5.1 OPERATING ENVIRONMENT.....................................................................................................................................7 5.2 TEST SET-UP..............................................................................................................................................................7 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................7 5.4 LIMIT........................................................................................................................................................................8 5.5 TEST EQUIPMENT USED............................................................................................................................................8 5.6 RADIATED EMISSION TEST DATA FOR THE FUNDAMENTAL FREQUENCY.................................................................9 5.7 RADIATED EMISSION TEST DATA FOR THE SPURIOUS FREQUENCY........................................................................10 6. OCCUPIED BANDWIDTH MEASUREMENT......................................................................................................14 6.1 OPERATING ENVIRONMENT...................................................................................................................................14 6.2 TEST SET-UP............................................................................................................................................................14 6.3 LIMIT......................................................................................................................................................................14 6.4 TEST EQUIPMENT USED..........................................................................................................................................14 6.5 TEST RESULT OF OCCUPIED BANDWIDTH...............................................................................................................14 7. RECOMMENDATION & CONCLUSION..............................................................................................................15 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – TEST PLOTS OF OCCUPIED BANDWIDTH APPENDIX C – BLOCK DIAGRAM APPENDIX D – ID SAMPLE LABEL & LOCATION APPENDIX E – SCHEMATIC DIAGRAM APPENDIX F – TEST SET-UP PHOTOGRAPHS APPENDIX G – EXTERNAL PHOTOGRAPHS APPENDIX H – INTERNAL PHOTOGRAPHS APPENDIX I – USER’S MANUAL APPENDIX J – OPERATIONAL DESCRIPTION EUT Type : FM Transmitter FCC ID.: RGTMT-8001K Page 3 of 15 Test Report No.: GETET-E3-05-039 FCC Part 15 Subpart C Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z Equipment Class Lower Power Communication Device Transmitter (DXX) z FCC ID RGTMT-8001K z EUT Type FM Transmitter z Power Source DC 12V z Model No. MT-8001K z Rule Part(s) FCC Part 15, Subpart C, Section 15.209, 15.239 z Test Procedure(s) ANSI C63.4 (2003) z Dates of Test May 7 ~ 9, 2005 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-05-039 EUT Type : FM Transmitter FCC ID.: RGTMT-8001K Page 4 of 15 Test Report No.: GETET-E3-05-039 FCC Part 15 Subpart C Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 2003) was used in determining radiated and conducted emissions emanating from Kubong Information Technology Co., Ltd. FM Transmitter ( Model No.: MT-8001K), FCC ID.: RGTMT-8001K These measurement tests were conducted at Gumi College EMC Center. The site address is 407, Bugok-Dong, Gumi-City, Gyeongsangbuk-Do, Korea. This test site is one of the highest point of Gumi 1 college at about 20…

Text truncated - open the document above for the full version.

EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification APPENDIX F : TEST SET UP PHOTOGRAPHS EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification „ Radiated Test Picture ( X axis ) „ Radiated Test Picture ( Y axis ) EUT Type: FM Transmitter FCC ID : RGTMT-8001K Test Report No.: GETEC-E3-05-039 FCC Part 15 Subpart C Certification „ Radiated Test Picture ( Z axis )
