RI2AP-100Digital Audio Player

USER’S MANUAL AP-100 ACHOM EP Co., Ltd. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC RF INTERFERENCE STATEMENT Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. ◎ Caution () Do not change or modify the product without permission or authority of manufacturer. It may cause undesirable operations, permanent damages or harmful interferences. ◎ Notice () · Design and specification are subject to change without notice for product improvement purposes. INSTRUCTION MANUAL Please read the manual prior to using the product to fully understand all the various function available on this product. Thank you and congratulations on purchasing our compact digital audio player, iLyn!!! iLyn's digital audio players are designed and manufactured to meet the international quality requirements. The products undergo humidity, impact, dust, vibration, and drop tests to assure high quality. MODEL : AP-100 Components Parts of the iLyn AP-100 ........................... LCD Display ..................... Software CD Installation ............... DESK Instruction ................................. *Transferrnig/Saving music files *Transferring/Saving music files from PC to iLyn *Transferring/Saving music files from iLyn to PC *Deleting files/Firmware Upgrade MENU 1............................................. MENU 2............................................. MENU 3................................................ MENU 4................................................ Real-time Recording ........................... Deleting Files................................. Formatting....................................... Checking Memory .................. Using Timer.............................. Adjusting LCD Screen ........................... Selecting Language.................................... HOLD....................................... Warnings ........................... Product Specification................................. ƒ INTRODUCTION ‰ Table of Contents ƒAPPLICATION We are sure that you’ll be satisfied with the superior quality of AP-100. We would like to thank you once more for purchasing the iLyn AP-100!!! ACHOM EP reserves the copyrights to the product manual, pictures, and software. These cannot be used or redistributed in any forms without a prior written approval from ACHOM EP. Violating copyrights law will result in legal actions. *Contents of this manual and the products specification may change without prior notices. Product Features -. MP3, WMA,ASF music file playback This player can store and play typical MP3 files as well as Microsoft Window Media Audio files. -. FM RADIO/RECORDING FM Radio functions which are only available on high-end mp3 players and FM Radio digital recording! -. Music Recording Transforms and saves voice signals of all analog audio into mp3 files. -. DATA STORAGE Can be used as a portable data-storage device to move files between one PC to another. -. Band 5 preset equalizers to choose from during playback (Normal, Rock, Pop, Live, Classic). -. Voice Recording 38 hours(128MB memory) of high quality voice recording in mp3 format. -. Playback You can select such functions like “repeat one song”, “repeat all”, “random” to while listening to -. Folder MP3, WMA, REC are stored in folders for easier access and organization. -. Language Support and EL BACK LIGHT The graphic LCD Display supports 35 different languages and Korean ID3 Tags. The EL BACK LIGHT is also available to facilitate controls. -. Adjusting Playback Speed 7 levels of playback speed (normal, fast, slow) for listening to lyrics and language studies. -. VAD(Voice Activity Detection) Recording Function To maximize memory efficiency, this function only records when there’s a sound. -. Firmware Upgrade Firmware download are available to easily upgrade the functions on this product. -. Bookmark (Resume) If the power is turned off during a playback, the player will play the same file when it’s turned back on. -. Play list You can select your favorite music files and save it into a play list. -. Sync (net sync) The track is saved automatically during real-time music recording. -. Delete Files (Folder) You can delete a single file or a folder. -. Alarm Functions You can designate music or a voice recording to be played for a set period of time (0~180 minutes) -. Memory Status The status of the memory is displayed to inform you of how much more voice recording and/or mp3 can be saved. ‰ Components ‰ Parts Power/Playback/Pause REC/A.B FM RADIO Mic. HOLD Audio Jack Earphone Jack USB Cable Manual AAA Battery USB CABLE AUDIO CABLE Install CD Portable necklace w/ earphone Please verify that the above components are included in the package that you’ve purchased. If any of the above item is missing, …

Text truncated - open the document above for the full version.

아더텍 Single chip En/Decoder MCU Single chip En/Decoder MCU FM Module FM Module Flash Memory Flash Memory ADCDAC WM 8731 Sample data Sample data Decoded audio data Decoded audio data AUDIO MICFM Encoded Data Data for Decoding Control FM Control FM Control DAC FM Audio SignalFor Encoding FM Audio SignalFor Hearing PC Program Upload Download DC/DC Converter MAX1706 POWER 1*AAA 3V 3V LCD Driver ALL VOL JAZZ CLASSIC POP ROCK VOICE MUSIC REC FM I love you

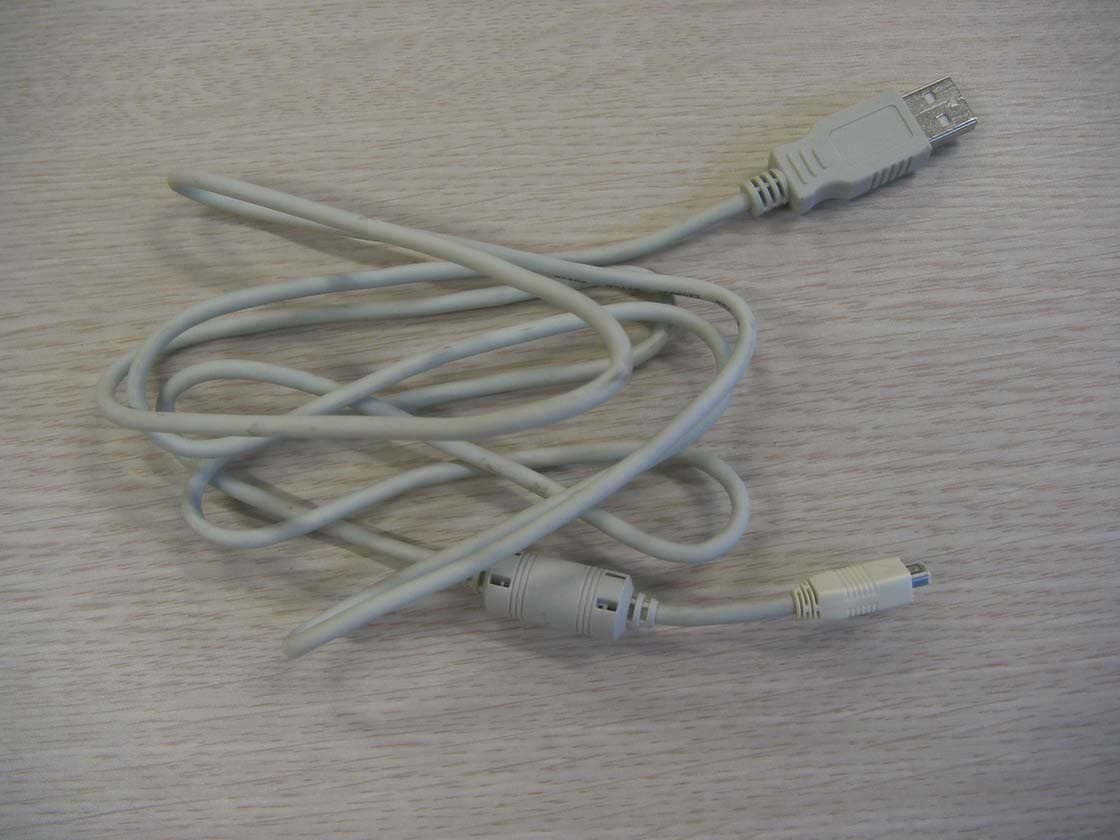

IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253

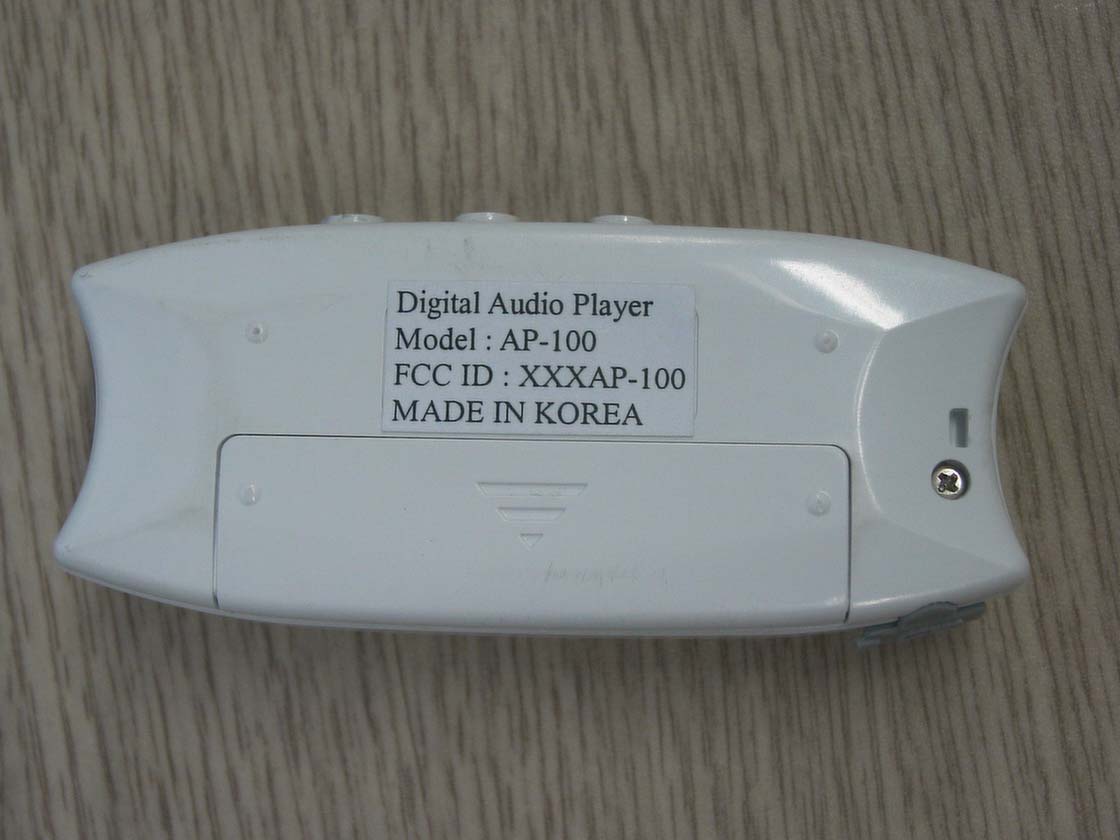

IST Co., Ltd. FCC ID & Label Information of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 FCC ID : RI2 AP-100

IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253 IST Co., Ltd. Inner Photos of AP-100 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-253

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-253 1 of 15 Certification of Compliance CFR 47 Part 15 Subpart B / Class B PC Peripherals Test Report File No. 03-IST-253 Date of Issue Sep. 22. 2003 Model AP-100 Kind of Product MP3 Player Applicant ACHOM EP Co.,LTD. Address 678-7, Changman-ri, Kwangtan-myun, Paju City, Kyunggi Province, Korea Manufacturer ACHOM EP Co.,LTD. Address 678-7, Changman-ri, Kwangtan-myun, Paju City, Kyunggi Province, Korea Test Result (*)Positive ( ) Negative Reviewed By Approved By J.H. Lee / General Manager of EMCG. Chung / Chief - Investigations requested : Measurement to the relevant clauses of F.C.C rules and regulations Part 15 Subpart B – Class B PC Peripherals / FM Broadcast receivers - The test report with appendix consists of 15 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 1992. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-253 2 of 15 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental condition, Power used 3 Description of test Conducted Emission 4 Radiated Emission 5 Summary 6 Test conditions and data Conducted emissions 0.15 MHz – 30 MHz Applicable Test equipment 7 Data and plots 8-11 Radiated emissions 30 MHz – 1 GHz Applicable Test equipment 12 Data 13-15 IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-253 3 of 15 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (Yongin Lab., Filed to FCC) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 EMC LABORATORY of IST Co., Ltd. (Yangji Lab., Filed to FCC ) 80, Jeil-RI, Yangji-Myun, Yongin-City Kyonggi-Do, 449-825, Korea TEL : +82 31 323 3012 FAX : +82 31 323 3014 ENVIRONMENTAL CONDITIONS Temperature 23 °C Humidity 50 % Atmospheric pressure 1002 mbar POWER SUPPLY SYSTEM USED Product Information VOLTAGE 1.5V(1 AAA Size Battery) MEMORY Internal Memory 128MB LCD DISPLAY Graphic LCD Letter(128 x64 dot) SIZE / WEIGHT 33 x 77 x 17mm(WxHxD) / 33g (w/o battery) CASE Plastic FILE TRANSFERING SPEED 4.5 Mbps VOICE RECORDING MPEG I,II Layer-3,VAD Method NOISE RATIO 90dB EAR PHONE OUTPUT 10mW OUTPUT FREQUENCY RANGE 20Hz ~ 20KHz Find product information in User’s manual. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-253 4 of 15 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an bandwidth of 10KHz or for “quasi-peak” within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located in a shielded room. The wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The LISNs are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the powered LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cutting power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the appropriate LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was re-measured using Quasi-Peak detector and average detector by manual measurement or final measurement program of R&S, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. 215 >150 >40 80 Receiver DUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Front side Equipment under test Coaxial cable Artificial mains network Screened room Non-metallic support 80 IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-253 5 of 15 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for “quasi-peak” within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turn-table azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30MHz to 230MHz using bi-conical antenna and 230 to 1000MHz using log-periodic antenna. Above 1GHz, linearly polarized double ridge horn antennas were used. Final measurements were made at open site with 3 or 10 meters test distance using Bi-log antenna, Bi-conical antenna, Log-periodic antenna or horn antenna. The OATS have been verified in regular for its normalized site attenuations. The test equi…
