RI5SBT2015TV BT SOUND BAR

SBT2015 Functions AUX-INBluetoothFM Radio. Front Panel “ ”button : Standby power – press to turn ON/OFF. “MODE” button : Press to change playing mode - AUX-IN Bluetooth,FM Radio. “VOL-” button: Decrease volume. “VOL+” button: Increase volume. Remote Control 1. “ ”key : Standby power – press to turn ON/OFF. 2. “MODE” key : Press to change playing mode - AUX-IN BluetoothFM Radio. 3. key : Press to mute 4. “FM SCAN” key : Auto scan FM Radio. 5. “CH-” key : Preset FM Radio station. 6. “CH+” key : Preset FM Radio station. 7. key : Quickpress to skip to previous track. Press and HOLD to scan FM stations. 8. key : Quickpress to skip to next track. Press and HOLD to scan FM stations. 9. key : Play/pause. 10. “PAIR” key : Press to enter pairing mode or to unpair. 11. “VOL -“ key : Decrease volume. 12. “VOL +“ key : Increase volume. Using Instruction 1. Press the “ ”button to turn on the unit.Default AUX-IN mode, the volume of 32 default to 22. 2. Bluetooth Mode Press ”MODE” button on the speaker or the “MODE” key on the remote control to switch to Bluetooth mode and begin to pair automatic, the LED display will light up quickly. Using the native controls on your Bluetooth device, select the “SBT2015” in your Bluetooth settings to pair. When pairing , press “PAIR” on remote control to unpair. 3. FM Radio Mode. Under FM Radio Mode, press “FM SCAN” key on the remote control to search all available stations,Press it again to stop on a station. Specication: Power : Adapter AC IN 100-240V 50/60HZ OUTPUT:12VDC 2A RMS : 34W Impedance : 4Ω Frequency Response : 30Hz~20kHz S/N Ratio : 65db Distortion : ≤1%

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Dongguan Earson Audio Technology Co., Ltd 2014.08.14 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Dongguan Earson Audio Technology Co., Ltd ____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description： TV BT SOUND BAR model name: SBT2015 Additional Model: SBT2015XX, AR3002, AR3002XX，ER822F FCC ID: RI5SBT2015 Sincerely, Client’s signature Client’s name / title ： Shi Qiang. Lu / Product Specialist Contact information / address: Chuangye Industrial Area, Guanqiaojiao Community Wanjiang District, Dongguan City ，Guangdong, China SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Dongguan Earson Audio Technology Co., Ltd 2014.08.11 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ___ Dongguan Earson Audio Technology Co., Ltd _hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description： TV BT SOUND BAR model name: SBT2015 Additional Model: SBT2015XX, AR3002, AR3002XX，ER822F FCC ID: RI5SBT2015 We affirm that between SIEMIC, Inc. and __ Dongguan Earson Audio Technology Co., Ltd. _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title ： Shi Qiang . Lu / Product Specialist Contact information / address ：Chuangye Industrial Area, Guanqiaojiao Community Wanjiang District, Dongguan City ，Guangdong, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Dongguan Earson Audio Technology Co., Ltd 2014/08/14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RI5SBT2015 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Shi Qiang.Lu / Product Specialist Contact information / address: Chuangye Industrial Area, Guanqiaojiao Community Wanjiang District, Dongguan City ，Guangdong, China

Dongguan Earson Audio Technology Co., Ltd **************************************************************************** I, the undersigned, hereby confirm that any of our production units bearing the following models numbers are said to be identical in cosmetics, materials, PCB layout, electrical, mechanical, and physical design, including software/firmware . The just the colour and Trade Name，the PCB boards inside are identical. The “SBT2015” and “SBT2015XX” apply to Trade Name “SHARPER IMAGE”; The “AR3002” and “AR3002XX”apply to Trade Name"AR+SOUND";. The “ER822F” apply to Trade Name"EARSON" FCC ID：ESXWC603 1) Model No.: SBT2015 2) Model No.: SBT2015XX 3）Model No.:AR3002 4）Model No.:AR3002XX 5）Model No.:ER822F （Note: X=A~Z Any letters or Spaces.） I Client’s signature: Client’s name / title: Shi Qiang Lu / Product Specialist Contact information / address: Chuangye Industrial Area, Guanqiaojiao Community Wanjiang District, Dongguan City ，Guangdong, China ****************************************************************************

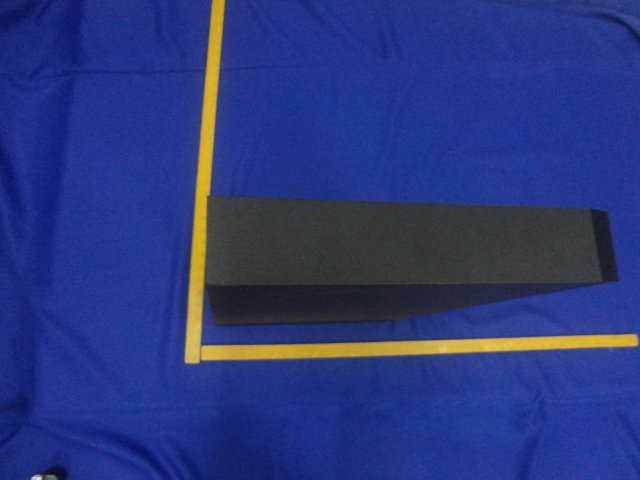

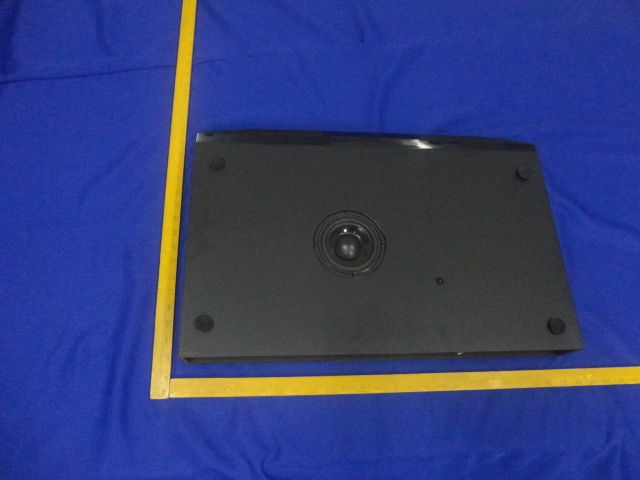

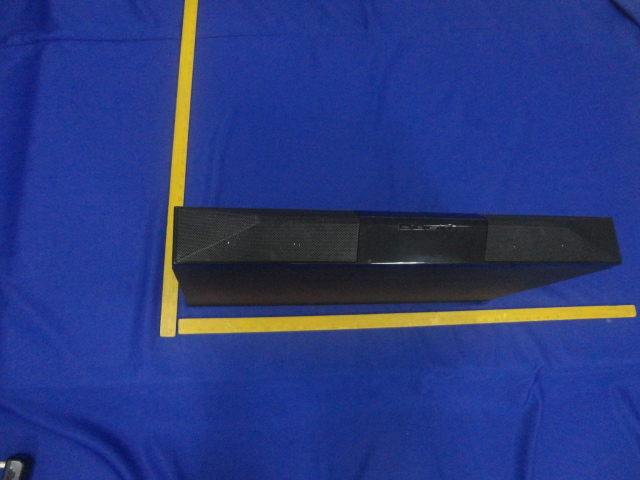

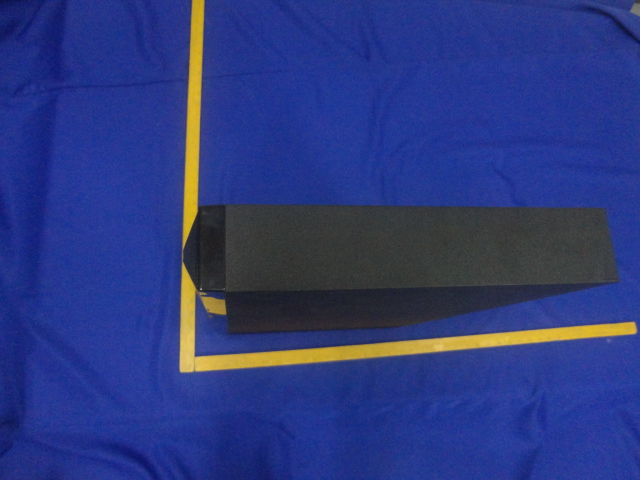

FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 95 of 102 13. PHOTOS OF EUT External Photos M/N: SBT2015 FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 96 of 102 External Photos M/N: SBT2015 FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 97 of 102 External Photos M/N: SBT2015

FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 99 of 102 Internal Photos M/N: SBT2015 FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 100 of 102 Internal Photos M/N: SBT2015 Bluetooth Antenna FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 101 of 102 Internal Photos M/N: SBT2015 FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 102 of 102 Adapter Photos

FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408027 Page 1 of 3 FCC 47 CFR MPE REPORT Dongguan Earson Audio Technology Co., Ltd TV BT SOUND BAR Model Number: SBT2015 Additional Model: SBT2015XX, AR3002 AR3002XX，ER822F FCC ID: RI5SBT2015 Prepared for : Dongguan Earson Audio Technology Co., Ltd Chuangye Industrial Area, Guanqiaojiao Community Wanjiang District, Dongguan City ，Guangdong, China Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1408027 Date of Test : July 30,2014~ Aug 13, 2014 Date of Report : Aug 14, 2014 FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408027 Page 2 of 3 Maximum Permissible Exposure 1、Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a)、Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Times︱E︱ 2 , ︱H︱2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b)、Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Times︱E︱ 2 , ︱H︱2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 2、MPE Calculation Method E (V/m) = (30*P*G) 0.5/d Power Density: Pd (W/m2) = E2/377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d2) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408027 Page 3 of 3 3、Calculated Result and Limit Antenna gain Model Frequency (MHz) Peak output power (dBm) Peak output power (mW) (dBi) (Linear) Power Density (S) (mW/cm2) Limited of Power Density (S) (mW/cm2) Test Result 2402 -0.900 0.8130 1.00 0.00016 1 Compiles 2441 -0.788 0.8340 1.00 0.00017 1 Compiles GFSK 2480 -0.649 0.8610 1.00 0.00017 1 Compiles 2402 0.538 1.1320 1.00 0.00023 1 Compiles 2441 0.699 1.1750 1.00 0.00023 1 Compiles 8-DPSK 2480 0.823 1.2090 1.00 0.00024 1 Compiles

FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No.ESTE-R1408026 Page 1 of 102 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Dongguan Earson Audio Technology Co., Ltd TV BT SOUND BAR Model Number: SBT2015 Additional Model: SBT2015XX, AR3002 AR3002XX，ER822F FCC ID: RI5SBT2015 Prepared for : Dongguan Earson Audio Technology Co., Ltd Chuangye Industrial Area, Guanqiaojiao Community Wanjiang District, Dongguan City ，Guangdong, China Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1408026 Date of Test : July 30,2014~ Aug 13, 2014 Date of Report : Aug 14, 2014 FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No.ESTE-R1408026 Page 2 of 102 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION.........................................................................................................................3 1. GENERAL INFORMATION.................................................................................................................5 1.1. Description of Device (EUT) ........................................................................................................... 5 2. SUMMARY OF TEST.........................................................................................................................6 2.1. Summary of test result...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Assistant equipment used for test ..................................................................................................... 8 2.4. Block Diagram ................................................................................................................................. 8 2.5. Test mode ......................................................................................................................................... 9 2.6. Channel List for Bluetooth ............................................................................................................... 9 2.7. Test Equipment............................................................................................................................... 10 3. MAXIMUM PEAK OUTPUT POWER.................................................................................................11 3.1. Limit ............................................................................................................................................... 11 3.2. Test Procedure ................................................................................................................................ 11 3.3. Test Result ...................................................................................................................................... 11 3.4. Test Data ........................................................................................................................................ 12 4. 20 DB BANDWIDTH.......................................................................................................................16 4.1. Limit ............................................................................................................................................... 16 4.2. Test Procedure ................................................................................................................................ 16 4.3. Test Result ...................................................................................................................................... 16 4.4. Test Data ........................................................................................................................................ 17 5. CARRIER FREQUENCY SEPARATION..............................................................................................21 5.1. Limit ............................................................................................................................................... 21 5.2. Test Procedure ................................................................................................................................ 21 5.3. Test Result ...................................................................................................................................... 21 5.4. Test Data ........................................................................................................................................ 22 6. NUMBER OF HOPPING CHANNEL..................................................................................................26 6.1. Limit ............................................................................................................................................... 26 6.2. Test Procedure ................................................................................................................................ 26 6.3. Test Result ...................................................................................................................................... 26 6.4. Test Data ........................................................................................................................................ 27 7. DWELL TIME.................................................................................................................................29 7.1. Limit ............................................................................................................................................... 29 7.2. Test Procedure ................................................................................................................................ 29 7.3. Test Result ...................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 92 of 102 12. TEST SETUP PHOTO Conducted Test FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 93 of 102 Radiated Test (30-1000 MHz) FCC ID: RI5SBT2015 EST Technology Co.,Ltd Report No. ESTE-R1408026 Page 94 of 102 Radiated Test (1000-25000 MHz)
