RI7DE910-DUALDUAL BAND CDMA/GPS module

Preliminary DE910-DUAL Hardware User Guide 1vv0300951 Rev.1 – 2011-12-09 HW User Guide Template 1vv0300951 Rev.1 – 2011-12- Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 2 of 60 APPLICABILITY TABLE PRODUCT DE910-DUAL HW User Guide Template 1vv0300951 Rev.1 – 2011-12- Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 3 of 60 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Telit reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Telit does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Telit products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Telit intends to announce such Telit products, programming, or services in your country. Copyrights This instruction manual and the Telit products described in this instruction manual may be, include or describe copyrighted Telit material, such as computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Telit and its licensors contained herein or in the Telit products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit, as arises by operation of law in the sale of a product. Computer Software Copyrights The Telit and 3rd Party supplied Software (SW) products described in this instruction manual may include copyrighted Telit and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and other 3rd Party supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Telit or other 3rd Party supplied SW computer programs contained in the Telit products described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express written permission of Telit or the 3rd Party SW supplier. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit or other 3rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. HW User Guide Template 1vv0300951 Rev.1 – 2011-12- Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 4 of 60 Usage and Disclosure Restrictions License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Telit High Risk Materials Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities"). Telit and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks TELIT and the Stylized T Logo are registered in Trademark Office. All other product or service names are the property of their respective owners. Copyright © Telit Communications S.p.A. 2011. HW User Guide Template 1vv0300951 Rev.1 – 2011-12- Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 5 of 60 Contents 1.Introduction ................................................. 8 1.1.Scope ..................................................... 8 1.2.Audience .................................................. 8 1.3.Contact Information, Support .............................. 8 1.4.Document Organization ..................................... 9 1.5.Text Conventions ............................…

Text truncated - open the document above for the full version.

Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 55 of 55 ● View of Antenna

Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Korea Co.,Ltd. (300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi Korea) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Telit Communications S.p.A.(Via Stazione di Prosecco, 5/B 34010 Sgonico Trieste Italy). Dated this 30 Day of November 2011 Agency agreement expiration date: 30, June 2012 By: Brian Tucker Signature Printed Title: Global VP, Quality On behalf of : Telit Communicaitons S.p.A. Telephone: 919-439-7977 ext 1002

Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification 2011.12.6 Dear: Reviewing Engineer We, Telit Wireless Solutions Co., Ltd., hereby requests for licensed modular transmitter approval of our device, described as follows: FCC ID: RI7DE910-DUAL Request for modular approval Transmitter Module Characteristics 1. The modular transmitter must have its own shielding. The DUT does provide RF shielding. Refer to DUT picture. 2. The modular transmitter must have buffered modulation/data inputs All inputs to the modules are buffered through logic or microprocessor inputs. 3. The modular transmitter must have its own power supply regulation The DUT has its own power supply regulation it’s integrated in PMIC chip 4. The modular transmitter must comply with the antenna requirements of Section 15.203 Device is equipped with antenna SMT pad. Refer to H/W user guide. 5. The modular transmitter must be tested in a stand-alone configuration The DUT was tested in a stand-alone configuration via a test kit. Refer to H/W User Guide. 6. The modular transmitter must be labelled with its own FCC ID number Refer to label provided. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Refer to H/W User Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. MPE was calculated. Sincerely, Brian Tucker Global VP, Quality Telit Communications S.p.A.

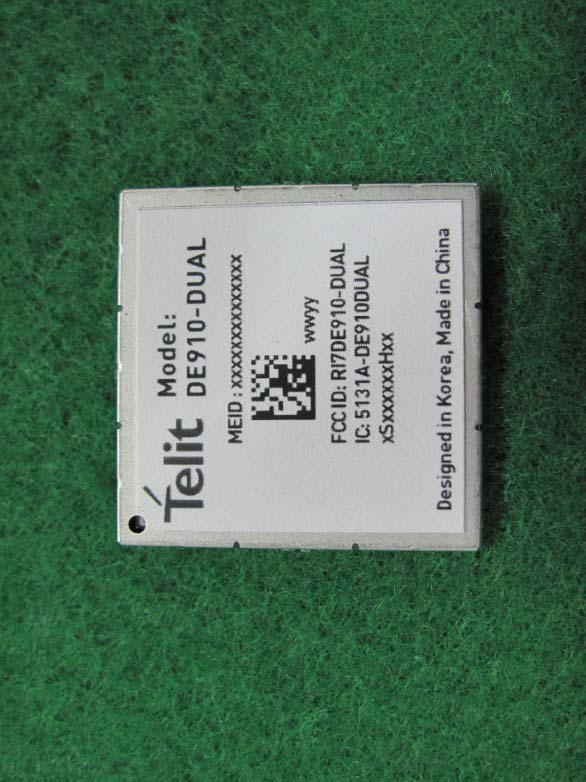

Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 50 of 55 Appendix C – EUT Photographs ● Front Side View of EUT Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 51 of 55 ● Rear Side View of EUT Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 52 of 55 ● Side View of EUT Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 53 of 55 ● Side View of EUT

Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 48 of 55 Appendix A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. * The following paragraph specified in the user manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Labelling Requirements

Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 54 of 55 ● Inside View of EUT without Shield

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = power density P = output power G = antenna gain R = distance 22H24E Output Power24.74(dBm)24.37(dBm) Output Power298(mW)274(mW) Antenna Gain5.12(dBi)6.12(dBi) Antenna Gain3.25(numeric)4.09(numeric) Distance20(cm)20(cm) Duty Cycle:100(%)100(%) Frequency825(MHz)1900(MHz) MPE Limit General Public0.550(mW/cm^2)1.000(mW/cm^2) Power Density0.193(mW/cm^2)0.223(mW/cm^2) Margin4.56(dB)6.52(dB) 2.1091EIRP29.86(dBm)30.49(dBm) ERP27.72(dBm)28.35(dBm) ERP0.59(W)0.68(W) ERP Limit1.5(W)3(W) Margin4.04(dB)6.42(dB) 22.913ERP Limit7(W) ERP0.59(W) 24.232EIRP Limit 2(W) EIRP1.12(W) Margin10.73(dB)2.520(dB) 2 4R PG S π =

Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 2 of 55 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 2.1 Test facility 5 2.2 Accreditation and listing 6 3. Test Conditions & EUT Information 7 3.1 Operating During Test 7 3.2 Environmental Conditions 7 3.3 Description of EUT 7 4. Measuring Instrument Calibration 8 5. Summary of Test Results 9 6. Recommendation / Conclusion 9 7. Description of Test 10 7.1 Effective Radiated Power / Equivalent Isotropic Radiated Power 10 7.2 Radiated Spurious & Harmonic Emission 11 7.3 Conducted Output Power 12 7.4 Conducted Spurious Emission 13 7.5 Frequency Stability / Temperature Variation 15 7.6 Conducted Output Power 16 8. Test Data 17 8.1 Conducted Output Power 17 8.2 Effective Radiated Power (ERP) 19 8.3 Equivalent Isotropic Radiated Power (EIRP) 20 8.4 Occupied Bandwidth / 26 dB Emission Bandwidth 21 8.5 Radiated Spurious & Harmonic Emission (Cellular) 22 8.6 Radiated Spurious & Harmonic Emission (PCS) 24 8.7 Frequency Stability / Temperature Variation (Cellular) 26 8.8 Frequency Stability / Temperature Variation (PCS) 28 8.9 Receiver Spurious Emissions 30 Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 3 of 55 9. Accuracy of Measurement 31 10. Test Plots (Cellular) 33 11. Test Plots (PCS) 40 12. Test Equipment List 47 Appendix A: Labelling Requirement 48 Appendix B: Photographs of Test Set-up 49 Appendix C: EUT Photographs 50 Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 4 of 55 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 2 & Part 22 & 24 and Industrie Canada under RSS-Gen & 132 & 133. Responsible Party : Contact Person : Manufacturer : Telit Communications S.p.A. Brian Tucker Tel No. : +919 439 7977 Telit Communications S.p.A. Viale Stazione di Prosecco 5/B, 34010 Sgonico, Trieste, Italy z FCC ID: RI7DE910-DUAL z IC 5131A-DE910DUAL z Model: DE910-DUAL z Brand Name: Telit z EUT Type: DUAL BAND CDMA/GPS Module z Classification: Licensed Potable Transmitter(PCB) z Applied Standard: FCC 47 CFR Part & 2, 22, 24 RSS-Gen, 132,133 z Test Procedure(s): ANSI C63.4 (2003) z Dates of Test: November 22, 2011 ~ November 30, 2011 z Place of Tests: Nemko Korea Co., Ltd. Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 5 of 55 2. Introduction (Site Description) 2.1 Test facility The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Telit Communications S.p.A. FCC ID : RI7DE910-DUAL and IC: 5131A-DE910DUAL These measurement tests were conducted at Nemko Korea Co., Ltd. The site address is 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA The area of Nemko Korea Corporation Ltd. Test site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. and Incheon Airport. Nemko Korea Co., Ltd. 300-2,Osan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyunggi-Do, KOREA 449-852 Tel) +82-31-322-1700 Fax) +82-31-322-2332 Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 6 of 55 2.2 Accreditation and listing Accreditation type Accreditation number FCC part 15/18 Filing site Registration No. 97992 CAB Accreditation for DOC Designation No. KR0026 KOLAS Accredited Lab. (Korea Laboratory Accreditation Scheme) Registration No. 155 Canada IC Registered site Site No. 2040E-1 VCCI registration site(RE/CE/Telecom CE) Member No. 2118 EMC CBTL - KCC(RRL)Designated Lab. Registration No. KR0026 SASO registered Lab and Certification Body Registration No. 2008-15 Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 7 of 55 3. Test Conditions & EUT Information 3.1 Operating During Test The EUT was tested at the lowest channel, middle channel and the highest channel with maximum RF power and all data were recorded in the report. 3.2 Environmental Conditions Temperature 21°C ~ 26°C Relative Humidity 35% ~ 60% 3.3 Description of EUT Frequency Band Tx 824.70 MHz ~ 848.31 MHz 1851.25 MHz ~ 1908.75 MHz Rx 869.70 MHz ~ 893.31 MHz 1931.25 MHz ~ 1988.75 MHz Output Power (Conducted power) Cellular CDMA : 0.298 W(24.74 dBm) PCS CDMA : 0.274 W(24.37 dBm) Emission Designator 1M29F9W Antenna Type Magnet Mount Antennas Antenna Gain 5.12 dBi for Cellular, 6.12 dBi for PCS Dimensions 28.2 mm(W) x 28.2 mm(D) x 2.5 mm(H) Weight Approx. 4.7 g Operating Temperature -30°C ~ +85 °C Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 8 of 55 4. Measuring Instrument Calibration All measurements were made with instruments calibrated according to the r…

Text truncated - open the document above for the full version.

Test Report No.: NK-11-R-299 FCC and IC Certification Telit Communications S.p.A. FCC ID: RI7DE910-DUAL / IC: 5131A-DE910DUAL Page 49 of 55 Appendix B – Photographs of Test Set-up z Conducted Test Picture z Radiated Test Picture
