RI7GM862GQuad-Band GSM/GPRS module - Type: GM862-GPS

GM862-GPS Hardware User Guide GM862-GPS HW User Guide 1vv0300728 Rev. 0 - 27/04/06 GM862-GPS Hardware User Guide 1vv0300728 Rev. 0 - 27/04/06 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 2 of 55 Contents 1 Overview ...........................................................................................................................4 2 Hardware Commands ......................................................................................................5 2.1 Turning ON the GM862-GPS .................................................................................................. 5 2.2 Turning OFF the GM862-GPS ................................................................................................ 7 2.2.1 Hardware shutdown ..........................................................................................................................7 2.2.2 Hardware Unconditional Reboot.......................................................................................................8 3 Power Supply .................................................................................................................10 3.1 Power Supply Requirements ............................................................................................... 10 3.2 General Design Rules .......................................................................................................... 11 3.2.1 Electrical design Guidelines........................................................................................................... 11 3.2.1.1 + 5V input Source Power Supply Design Guidelines ................................................................ 11 3.2.1.2 + 12V input Source Power Supply Design Guidelines .............................................................. 13 3.2.1.3 Battery Source Power Supply Design Guidelines ..................................................................... 14 3.2.1.4 Battery Charge control Circuitry Design Guidelines .................................................................. 15 3.2.2 Thermal Design Guidelines ........................................................................................................... 17 3.2.3 Power Supply PCB layout Guidelines ........................................................................................... 18 4 Serial Ports .....................................................................................................................19 4.1 level translation .................................................................................................................... 21 4.2 5V UART level translation .................................................................................................... 23 5 Audio Section Overview ................................................................................................25 5.1 Microphone paths characteristic and requirements ......................................................... 27 5.2 General Design Rules .......................................................................................................... 30 5.3 Other considerations . .........................................................................................................30 5.4 Microphone Biasing .............................................................................................................31 5.4.1 Balanced Microphone biasing........................................................................................................ 31 5.4.2 Unbalanced Microphone biasing ...................................................................................................32 5.5 Microphone buffering...........................................................................................................34 5.5.1 Buffered Balanced Mic................................................................................................................... 34 5.5.2 Buffered Unbalanced (Single Ended) Microphone ....................................................................... 36 6 OUTPUT LINES (Speaker)..............................................................................................39 6.1 Short description. ................................................................................................................. 39 6.2 Output lines characteristics . ............................................................................................. 40 6.3 General Design rules............................................................................................................41 GM862-GPS Hardware User Guide 1vv0300728 Rev. 0 - 27/04/06 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved page 3 of 55 6.3.1 Noise Filtering ................................................................................................................................ 41 6.4 Handset earphone design.................................................................................................... 42 6.5 Hands-free earphone (low power) design .......................................................................... 43 6.6 Car Kit speakerphone design .............................................................................................. 44 7 General Purpose I/O.......................................................................................................45 7.1 Using a GPIO pin as INPUT ................................................................................................. 45 7.2 Using a GPIO pin as OUTPUT ............................................................................................. 45 7.3 Using the Alarm Output GPIO6 ........................................................................................... 46 7.4 Using the Buzzer Output GPIO7..............................................................................…

Text truncated - open the document above for the full version.

TELIT GM862-GPS Quad Band GPS Data Terminal Module TECHNICAL MANUAL Code: 1vv0300730 Rev. 0 May. 20, 2006 TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.2 of 79 Rev. 0 REVISION INDEX REV. SUBJECT OF MODIFICATION DATE TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.3 of 79 Rev. 0 MASTER INDEX 1 INTRODUCTION ................................................................................... 4 2 MECHANICAL VIEW ............................................................................ 6 2.1 Mechanical view of Telit GM862-GPS module................................................................. 6 3 TECHNICAL SPECIFICATIONS ........................................................... 7 3.1 GM862-GPS Transceiver Module ..................................................................................... 8 3.2 Environmental requirements ........................................................................................... 11 3.3 Transceiver module interface connectors ....................................................................... 12 3.4 Audio levels specifications .............................................................................................. 13 3.5 Interface connector.......................................................................................................... 15 3.6 Mechanical characteristics .............................................................................................. 18 3.7 GM862-GPS Data Terminal System ............................................................................... 19 3.8 EMC ................................................................................................................................ 22 3.9 Camera support............................................................................................................... 22 3.10 Software Features ........................................................................................................... 23 3.11 Jammed Detect & Report Extension ............................................................................... 30 3.12 Easy Script Extension - Python interpreter...................................................................... 31 3.13 Python implementation description ................................................................................. 33 3.14 AT Commands ................................................................................................................ 50 3.15 GPS Receiver characteristic ........................................................................................... 55 3.16 Conformity Assessment Issues ...................................................................................... 57 TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.4 of 79 Rev. 0 1 INTRODUCTION The Telit GM862-GPS Quad Band GSM-GPRS Data Terminal Module is a small, lightweight and low power consumption device that allow digital communication services wherever there is a GSM - GPRS 850 MHz, 900 MHz, 1800 MHz or PCS 1900 MHz network with an integrated GPS receiver. The Telit GM862-GPS includes a 20 channels GPS receiver. It provides all the features of the Telit GM862 family versions such as Voice, Circuit Switched Data transfer, Phonebook, SMS, four bands GSM capability, hot removal sensing on board SIM Reader, GPRS Class 10 and battery charger circuitry. Moreover, the Telit GM862-GPS integrates the “EASY SCRIPT “ functionality. This is a PYTHON engine script interpreter allowing self-controlled operations. It is specifically designed and developed for OEM usage and dedicated to portable data, voice and telematics applications needing the added triband and GPRS Class 10 improved speed features and the battery charger such as: • Fast Worldwide GPRS Telemetry and Telecontrol (SCADA applications) • Worldwide Smart GPRS Security systems • Worldwide Smart GPRS Vending machines • Fast Worldwide GPRS POS terminals • Worldwide PDAs • Worldwide Phones and Payphones • Worldwide Smart Automotive and Fleet Management applications • Battery powered applications needing a battery charger Moreover, for the GM862-GPS: • Automotive and Fleet Management applications • Position reporting and tracking The Telit GM862-GPS module is specifically designed and developed for OEM usage and it is intended to be installed inside an equipment. The Telit GM862-GPS family modules is LEAD FREE Green products compliant with RoHS directive. TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.5 of 79 Rev. 0 The design and development of the Telit GM862-GPS module is in line with the following documents: 3GPP TS 51.010–1 GSM/EDGE Radio Access Network; Digital cellular telecommunications system (Phase 2+): Mobile Station (MS) Conformance Specification; Part 1. Conformance Specification. EN 301 511 Global system for mobile communications (GSM); Harmonised standard for mobile stations in the GSM 900 and DCS 1800 bands covering essential requirements under Article 3(2) of the R&TTE directive (1999/5/EC). EN 60950 Safety of information technology equipment, including business equipment. EN 301 489–07 Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecommunications systems (GSM and DCS). TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.6 of 79 Rev. 0 2 MECHANICAL VIEW 2.1 Mechanical view of Telit GM862-GPS module. GPS antenna connector TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.7 of 79 Rev. 0 3 TECHNICAL SPECIFICATIONS Herein will be described the technical characteristics of GM862-GPS Transceiver Module. The block diagram in Figure 1 shows the interconnection between GM862-GPS Transceiver and Other Equipment Manufacturer Hard…

Text truncated - open the document above for the full version.

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 July 26, 2006 RE: 15.19 Statement (FCC ID: RI7GM862G) TO WHOM IT MAY CONCERN The statement: "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” Is not placed in the label of the equipment due to the following reasons: - Type label is too small (No room for this writing). - Required text is already included in the user guide This statement is placed in a prominent location in the instruction manual. Please contact me if there is any information you may need. If you have any questions, please feel free to contact me at the address shown below. Sincerely, P.A. Mr. Sandro Spanghero Technical Director Telit Communications S.p.A. Via Stazione di Prosecco 5/B, I-34010 Trieste, Italy

attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION July 26, 2006 To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorizations (FCC ID: RI7GM862G), including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, P.A. Mr. Sandro Spanghero Technical Director Telit Communications S.p.A. Viale Stazione di Prosecco 5/B, I-34010 Trieste, Italy

DOC-FCC009 4/14/2005 Page 1 of 3 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 2006-03-14 Item 1. Applicant's complete, legal business name: Telit Communications S.p.A. Item 2. Applicant's mailing address Line 1: Via Stazione di Prosecco 5/B Line 2: P.O.Box: City: Trieste State: Country (if foreign address): Italy Zip/Postal Code: I-34010 Item 3. FCC ID: RI7GM862G Grantee code: RI7 Equipment Product Code (14 characters maximum): GM862G Item 4. Person at the applicant's address to receive grant or for contact: First Name: Mail Stop: Last Name: Telephone: Ext: Title: E-mail: Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: Centro de Tecnología de las Comunicaciones S.A. (CETECOM) Paque Tecnologico de Andalucía Severo Ochoa 2 E-29590 Campanillas, Málaga SPAIN ATTN: Ricardo Orejas Phone: +34952619317 Fax: +34952619113 E-mail: [email protected] Item 6. Technical Contact: Firm Name: Telit Communications S.p.A. Telephone: +39 040 4192111 Ext: Fax No: +39 040 4192110 First Name: Sandro Middle Initial: Last Name: Spanghero Address Line 1: Via Stazione di Prosecco 5/B P.O.Box: Address Line 2: City: Trieste Country (if foreign address): Italy Zip/Postal Code: I-34010 E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: Telit Communications S.p.A. Telephone: +39 040 4192111 Ext: Fax No: +39 040 4192110 First Name: Sandro Middle Initial: Last Name: Spanghero Address Line 1: Via Stazione di Prosecco 5/B P.O.Box: Address Line 2: City: Trieste Country (if foreign address): Italy Zip/Postal Code: I-34010 E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) X Yes Ο No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) NO If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: PCE Licensed transmitter * Description of Product as it is Marketed: Quad-Band GSM/GPRS module -Model: GM862-GPS (NOTE: This text will appear below the equipment class on the grant) Item 11. * Application is for: (please mark as appropriate) X Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) DOC-FCC009 4/14/2005 Page 2 of 3 Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes X No Ο Yes X No (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: Centro de Tecnologia de las Comunicaciones S.A. Last Name: Telephone +34952619100 Ext Fax No. +3495261913 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 22H 824.2 - 848.8 1.48 1.0 PM 290KGXW 24E 1850.2 - 1909.8 0.25 1.0 PM 290KGXW WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? X Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It i…

Text truncated - open the document above for the full version.

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 July 26, 2006 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Telit Communications S.p.A. requests confidentiality for the following products: FCC ID Number Product Title/Model RI7GM862G Quad-Band GSM/GPRS module / Model: GM862-GPS For the product stated above, we request that the following information be held confidential: 1) Circuit diagrams 2) Block Diagrams 3) Bill of materials 4) Operational Description 5) Tune up information No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Telit Communications S.p.A. trade secrets and proprietary information that could be of benefit to our competitors. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Sandro Spanghero P.A. Date: July 26, 2006 Place: Telit Communications S.p.A., Via Stazione di Prosecco 5/B, I-34010 Trieste, Italy Signature and company stamp

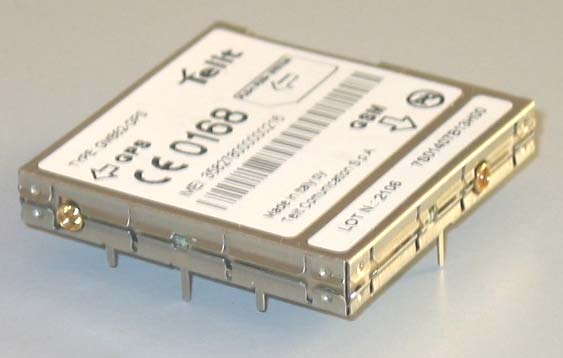

TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.74 of 79 Rev. 0 8 PHOTOS AND ASSEMBLIES 8.1 Photos Telit GM862-GPS Module Final assembly

LABEL LAYOUT Doc Center: Daniele Lucà Date: 23/06/06 2001701616 IMEI LABEL GM862-GPS PAG. 1/1 The only purpose of this document is to show the layout.Do not use it to print the real label. FILE : imei RAW LABEL code : 1vv0200502fpe Dimensions : 40 x h34 mm LEGEND: 1) Model Type: GM862-GPS 2) Telit logo (11x6mm) (File telit.tif). 3) GPS Antenna indication (4x4mm):Write: GPS (File Freccia sx.jpg) 4) SIM insertion symbol (12x7mm) (File simmod.tif) 5) CE logo CE0168 – minimum height 5 mm (22x5mm) (File CE0168babt.tif) 6) IMEI code both in figures and in barcode type 128 7) Clear writing FCC ID:RI7GM862G 8) Clear writing IC: 5131A-GM862G 9) Country of production “Made in ______ by Telit Communications S.p.A.” (insert the Production Country) 10) PB Free Logo (4x4mm) (File pb_logo.tif) 11) GSM antenna indication (4x4mm):Write: GSM (File Freccia giu.jpg) This document complies with: Procedura “DEFINIZIONE E REALIZZAZIONE DELLE ETICHETTE” 80000PR10001 1 2 3 5 6 4 7 11 10 8 9

TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.75 of 79 Rev. 0 8.2 Photos of CS1187b PCB primary layer TECHNICAL MANUAL Telit GM862-GPS Quad Band GPS Data Terminal Module Pag.76 of 79 Rev. 0 8.3 Photos of CS1187b PCB secondary layer

Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer RE: RF exposure information for the equipment GM862-GPS (FCC ID: RI7GM862G) RF exposure information The device GM862-GPS (FCC ID: RI7GM862G) is designed as module to be installed in other devices. This device is to be used only for fixed and mobile applications. If the final product after integration is intended for portable use, a new application and FCC is required. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: The equipment GM862-GPS transmits in the following frequency ranges so that the applicable limits are: Frequency range Limit 1850.2 - 1909.8 MHz 1 mW/cm 2 824.2 - 848.8 MHz 0.54 mW/cm 2 The equipment is a GPRS Class 10, so that the maximum duty cicle is 2/8 = 1/4 Under conditions stated above MPE limits can be guaranteed as the calculation below shows: 850 MHz frequency band Maximum conducted output power: 2.06 W Duty cicle: 1/4 Equivalente conducted output power = Maximum conducted output power x Duty cicle = 2.06 W x 1/4 = 0.515 W = 515 mW Maximum antenna gain (as stated in the User’s guide) = 3 dBi (numerical gain) Using the eqution: S = P·G/4·pi·R 2 Where, S = power density in mW/cm 2 P = power input to the antenna in mW G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna in cm (20 cm Prediction distance) S = 515 mW·2 / 4·pi·(20 cm) 2 = 0.21 mW/cm 2 < 0.54 mW/cm 2 (limit) 1900 MHz frequency band Maximum conducted output power: 0.90 W Duty cicle: 1/4 Equivalente conducted output power = Maximum conducted output power x Duty cicle = 0.90 W x 1/4 = 0.225 W = 225 mW Maximum antenna gain (as stated in the User’s guide) = 3 dBi (numerical gain) Using the eqution: S = P·G/4·pi·R 2 Where, S = power density in mW/cm 2 P = power input to the antenna in mW G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna in cm (20 cm Prediction distance) S = 225 mW·2 / 4·pi·(20 cm) 2 = 0.089 mW/cm 2 < 1 mW/cm 2 (limit) These predictions demonstrate that: The power density levels at a distance of 20 cm with typical antennas of a gain of less than 3 dBi are below the maximum levels allowed by the FCC rules. Conclusion: The equipment GM862-GPS complies with the MPE limits if used with antennas with a gain of less than 3 dBi and this antenna is installed to provide a separation distance of at least 20 cm from all the persons. Warning: To ensure the compliance with the MPE limits the antenna gain has been limited in page 13 of the technical manual and a warning statement has been included in page 57. Signed on behalf of Telit Communications S.p.A. by P.A. Mr. Sandro Spanghero Technical Director Telit Communications S.p.A. Via Stazione di Prosecco 5/B, I-34010 Trieste, Italy Phone: +39 040 4192111 E-mail: [email protected] Date: 2006-07 -26

Report No.: 22345RET Date: 2005-11-29 Page: 1 of 6 Annex D FET18_00.DOC ANNEX D PHOTOGRAPHS (Number of photographs: 5) Report No.: 22345RET Report No.: 22345RET Date: 2005-11-29 Page: 2 of 6 Annex D FET18_00.DOC 1. Equipment with evaluation board. Report No.: 22345RET Date: 2005-11-29 Page: 3 of 6 Annex D FET18_00.DOC 2. Equipment with removed evaluation board Report No.: 22345RET Date: 2005-11-29 Page: 4 of 6 Annex D FET18_00.DOC 3. General test set-up for radiated measurements. Report No.: 22345RET Date: 2005-11-29 Page: 5 of 6 Annex D FET18_00.DOC 4. Test set-up for radiated measurements below 1 GHz. Report No.: 22345RET Date: 2005-11-29 Page: 6 of 6 Annex D FET18_00.DOC 5. Test set-up for radiated measurements above 1 GHz.

Report No.: 22345RET Date: 2005-11-29 Page: 2 of 10 FDT08_04 INDEX 1. COMPETENCE AND GUARANTEES..........................................................................................3 2. GENERAL CONDITIONS..............................................................................................................3 3. CHARACTERISTICS OF THE TEST............................................................................................3 3.1 TEST REQUESTED.................................................................................................................3 3.2 REQUIREMENTS AND METHOD........................................................................................4 4. IDENTIFICATION DATA SUPPLIED BY THE APPLICANT.....................................................5 4.1 APPLICANT.............................................................................................................................5 4.2 REPRESENTATIVE................................................................................................................5 4.3 TEST SAMPLES SUPPLIER...................................................................................................5 4.4 IDENTIFICATION OF ITEM/ITEMS TESTED.....................................................................6 5. USAGE OF SAMPLES, PERIOD OF TESTING AND ENVIRONMENTAL CONDITIONS.....6 5.1 USAGE OF SAMPLES............................................................................................................6 5.2 PERIOD OF TESTING............................................................................................................7 5.3 ENVIROMENTAL CONDITIONS..........................................................................................7 6. TEST RESULTS..............................................................................................................................9 7. REMARKS AND COMMENTS......................................................................................................9 8. SUMMARY....................................................................................................................................10 ANNEXES ANNEX A. TEST RESULTS FOR FCC PART 22 ANNEX B. TEST RESULTS FOR FCC PART 24 ANNEX C. MEASURING RESULTS FOR ELECTROMAGNETIC EMISSION ANNEX D. PHOTOGRAPHS Report No.: 22345RET Date: 2005-11-29 Page: 3 of 10 FDT08_04 1. COMPETENCE AND GUARANTEES Centro de Tecnología de las Comunicaciones (CETECOM), S.A. is a laboratory with a measurement facility in compliance with the requirements of Section 2.948 of the FCC rules and has been added to the list of facilities whose measurements data will be accepted in conjunction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Registration Number: 905266. Centro de Tecnología de las Comunicaciones (CETECOM), S.A. is a laboratory with a measurement site in compliance with the requirements of RSS 212, Issue 1 (Provisional) and has been added to the list of filed sites of the Canadian Certification and Engineering Bureau. Reference File Number: IC 4621. In order to assure the traceability to other national and international laboratories, CETECOM has a calibration and maintenance programme for its measuring equipment. CETECOM guarantees the reliability of th…
