Telit GM862 PCS Tri Band GPRS Data Terminal System TECHNICAL MANUAL Code: 1vv0300638 Rev. 2 Oct. 23, 2003 REV SUBJECT OF MODIFICATION DATESIGNATURE REVISION INDEX TECHNICAL MANUAL Telit GM862 PCS Tri Band GPRS Data Terminal System MOD. 1Change pcb revision from CS1083 to CS1083a17/07/03 2Change value on a PCB components21/10/03 INDEX Part1 CAP TITLE REV 1INTRODUCTION2 2MECHANICAL VIEW0 3TECHNICAL SPECIFICATIONS1 TECHNICAL MANUAL Telit GM862 PCS Tri Band GPRS Data Terminal System Rev. 2 TECHNICAL MANUAL Telit GM862 PCS Tri Band GPRS Data Terminal System Page 1 of 2 1INTRODUCTION The Telit GM862 PCS is a Tri Band transceiver with integrated Data Terminal Adapter functions that emulates a traditional modem allowing the compatibility in GSM/DCS/ PCS environment with many data communication software. The design and development of the Telit GM862 PCS Tri Band cellular data terminal system is in line with the following documents: 3GPP TS 51.010–1 v. 4.4.0 GSM/EDGE Radio Access Network; Digital cellular telecommunications system (Phase 2+): Mobile Station (MS) Conformance Specification; Part 1. Conformance Specification. EN 301 511 Global system for mobile communications (GSM); Harmonised standard for mobile stations in the GSM 900 and DCS 1800 bands covering essential requirements under Article 3(2) of the R&TTE directive (1999/5/EC). EN 60950 Safety of information technology equipment, including business equipment. EN 301 489–07 Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecommunications systems (GSM and DCS). Rev. 2 TECHNICAL MANUAL Telit GM862 PCS Tri Band GPRS Data Terminal System Page 2 of 2 1.1 Delta HW between GM862–PCS HW rev.1 and GM862–PCS HW rev.2 The changes that determines the difference between the GM862–PCS HW rev.1 and the GM862–PCS HW rev.2 are the following: On the GM862–PCS HW rev.2 the following components are added/changed: Added:R103 47KOhm 0402 between AXE and Vcore. See CP030027 for further details. Changed:R327 changed value from 220R 5% 0402 to 820R 5% 0402 See CP030041 for further details. TECHNICAL MANUAL Telit GM862 PCS Tri Band GPRS Data Terminal System Page 1 of 1 2MECHANICAL VIEW 2.1 Mechanical view Telit GM862 PCS DIS Verif. Progetto Denominazione dell’oggetto: CODICE N.fogli Sostituisce il N. Foglio Valido da: Data MODIFICA Scala: DATA Toll.gen. Materiale: Annotazioni: Il presente disegno a termini di legge non deve essere utilizzato per la costruzione del particolare ne’ riprodotto o reso pubblico senza il nostro permesso scritto. 0260 Lucà 03.07.2003 1:1 11 MECHANICAL VIEW GM862 PCS 40260NT10072 Rev. 1 TECHNICAL MANUAL Telit GM862 PCS Tri Band GPRS Data Terminal System Page 1 of 1 3TECHNICAL SPECIFICATIONS The scope of this document is to summarize the technical characteristics of the Telit GM862 PCS Data Terminal System. Page 1 of 187 TECHNICAL MANUAL Telit GM862 PCS Tri Band GPRS Data Terminal SystemRev.1 Contents 1GENERAL PRODUCT DESCRIPTION.................................................................................7 1.1Dimensions.............................................................................................................................................................................7 1.2Weight......................................................................................................................................................................................8 1.3Environmental requirements............................................................................................................................................8 1.3.1Temperature range.......................................................................................................................................................8 1.3.2Vibration Test (non functional).................................................................................................................................8 1.4Operating Frequency...........................................................................................................................................................9 1.5Transmitter output power..................................................................................................................................................9 1.6Reference sensitivity.............................................................................................................................................................9 1.7Antenna................................................................................................................................................................................10 1.7.1Antenna connector.....................................................................................................................................................10 1.8Supply voltage....................................................................................................................................................................12 1.9Power consumption...........................................................................................................................................................12 1.10Embodied Battery charger..............................................................................................................................................12 1.11User Interface.....................................................................................................................................................................13 1.11.1Speech Coding............................................................................................................................................................13 1.11.2Sim Reader.........................................................................…

Text truncated - open the document above for the full version.

DAI TELECOM S.p.A. Dai Telecom Group Via Stazione di Prosecco, 5/b 34010 Sgonico (Trieste) – ITALY Tel. +39 040 41.92.111 Fax +39 040 25.11.11 Capitale Sociale € 100.000,00 Codice fiscale e Partita Iva 03711600266 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 November 21, 2003 RE: Request for confidentiality TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, DAI TELECOM S.p.A. requests confidentiality for the following products: FCC ID Number Product Title/Model RI7GM862P PCS module For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Part Lists 4) Operational Description No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain DAI TELECOM S.p.A. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, P.A. Andrea Fragiacomo EMC Manager DAI TELECOM S.p.A. Via Stazione di Prosecco 5/b 34010 Sgonico TS Italy

FROM VIEW REAR VIEW SIDE VIEWS

LABEL LABEL LOCATION INFO

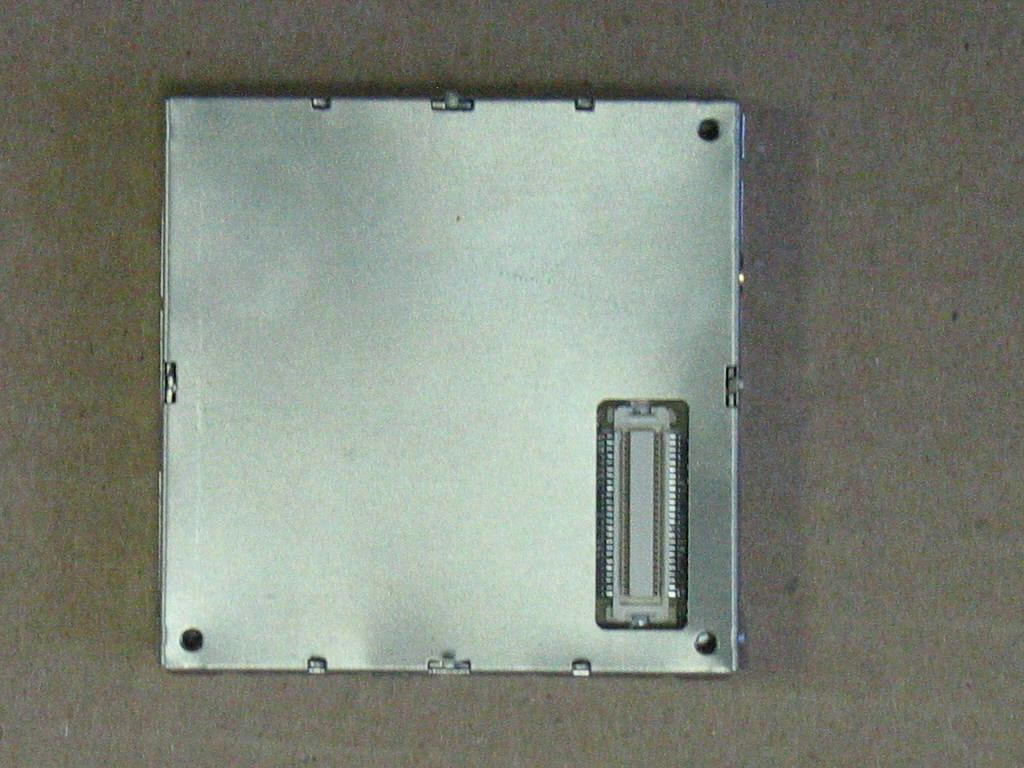

FRONT VIEW REAR VIEW UNSHIELDED TX

Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer RE: RF exposure information for the equipment GM682PCS (FCC ID: RI7GM862P) RF exposure information The device GM862PCS (FCC ID: RI7GM862P) is designed as module to be installed in other devices. This device is to be used only for fixed and mobile applications. If the final product after integration is intended for portable use, a new application and FCC is required. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 ñ 1500 f/1500 30 1500 ñ 100.000 1.0 30 The equipment GM862PCS transmits in the 1850.2 ñ 1909.8 MHz frequency range, so the applicable MPE limit is 1 mW/cm 2 . Under conditions stated above MPE limits can be guaranteed as the calculation below shows: Conducted peak outupt power = 29.27 dBm at 1850.2 MHz = 845.28 mW Using Equation from page 18 of OET Bulletin 65, Edition 97-01: S = P∑G/4πR 2 Where, S = power density in mW/cm 2 (1 mW/cm 2 used for G) P = power input to the antena G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna in cm (20 cm Prediction distance) We obtain the following results: Antenna gain (dBi) P∑G - EIRP (dBm) P∑G - EIRP (mW) R - Prediction distance (cm) S - Power density (mW/cm 2 ) 0 29.27 845.28 20 0.17 1 30.27 1064.14 20 0.21 2 31.27 1339.68 20 0.26 3 32.27 1628.55 20 0.32 4 33.27 2123.24 20 0.42 5 34.27 2673.01 20 0.53 6 35.27 3365.11 20 0.67 7 36.27 4236.43 20 0.84 7.74 37.01 5026.40 20 1 These predictions demonstrate that: 1. The power density levels at a distance of 20 cm with typical antennas of 0-7 dBi are below the maximum levels allowed by the FCC rules. 2. The antenna gain for which 1 mW/cm 2 limit would be reached at 20 cm distance is 7.74 dBi. Conclusion: The equipment GM862PCS complies with the MPE limits if used with antennas with a gain of less than 7.74 dBi and these antenna is installed to provide a separation distance of at least 20 cm from all the persons. Warning: To ensure the compliance with the MPE limits a warning statement has been included in page 185 of the users manual.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 58 PagesPage 1 (58) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3395-01-01/03 FCC Part 24/15 Telit GM862 PCS FCC ID: RI7GM862P CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 2 (58) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 3 (58) 1.3Details of applicant Name : DAI Telecm S.p.A. Street : Viale Stazione di Prosecco 5/B City : I-34010 Trieste Country : Italy Telephone : +39 040 4192111 Telefax : Contact : Andrea Fragiacomo Telephone : +39 040 4192111 e-mail: [email protected] 1.4Application details Date of receipt of application : 2003-09-16 Date of receipt of test item : 2003-09-22 Date of test : 2003-09-24/25 re-issue: - 1.5Test item Type of equipment : Triple Band GSM Module (900/1800/1900 MHz) Type designation:GM862 PCS Manufacturer:see applicant Street: City: Country: Serial numbers:IMEI : 004400.44.190001.00.4 Additional information: : Frequency:1850.2 – 1909.8 MHz Type of modulation:300KGXW Number of channels :300 (PCS1900) Antenna:MMCX Coax connector female Power supply:3,8V DC ext. Output power GSM 850: Output power GSM 1900 :cond : 29.27 dBm Peak , ERP: - dBm (Burst); EIRP: 31.3 dBm (Burst) with 2 dBi Kathrein Antenna Type of equipment:Temperature range : -30°C - +60°C FCC – ID: RI7GM862P IC :- Hardware:Ver. 1.00 Software:Ver. 5.00.223 1.6Test standards: FCC Part 24, 22 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 4 (58) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GSM mode. Device is able to transmit data in GPRS mode also. But because the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link ). Remarks: For this test we used two different types of covers, a Normal cover and a so called “active cover” with some active parts inside. There were no differences in the RF-behavior between the two covers. We made additional measurements for unwanted radiated emissions according to Part15 and Part24. For AC-conducted measurements we used an AC/DC Power supply. Test setups : Radiated measurements :with Kathrein 80010147 Antenna with 2.0 dBi gain 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-09-25RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2003-09-25RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 5 (58) 2.2Test report TEST REPORT Test report no. : 2_3395-01-01/03 CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 6 (58) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE § 24.2327 FREQUENCY STABILITY SUBCLAUSE § 24.2359 AFC FREQ ERROR VS. VOLTAGE10 AFC FREQ ERROR VS. TEMPERATURE10 EMISSIONS LIMITS §24.23812 CONDUCTED SPURIOUS EMISSIONS28 BLOCK EDGE COMPLIANCE FOR BLOCK37 OCCUPIED BANDWIDTH §2.98939 CONDUCTED EMISSIONS § 15.107/20746 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS48 TEST SITE50 PHOTOGRAPHS OF THE EQUIPMENT53 CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 7 (58) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summary: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 56 (64) Test site CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 57 (64) Test site CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 58 (64) Test site CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 59 (64) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 60 (64) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 61 (64) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 62 (64) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 63 (64) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3395-01-01/03Issue Date: 2003-09-25Page 64 (64) Photographs of the equipment Antenna we used for radiated measurements (KATHREIN 80010147, 2 dBi gain)
