HE863 Family Hardware User Guide 1vv0300891 Rev.5 – 2011-03-18 HE863 Family Hardware User Guide 1vv0300891 Rev.5 - 2011-03-18 Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 2 of 89 APPLICABLE PRODUCT PRODUCT HE863-EUD HE863-EUR HE863-EUG HE863-NAD HE863-NAR HE863-NAG HE863-AUD HE863-AUG HE863 Family Hardware User Guide 1vv0300891 Rev.5 - 2011-03-18 Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 3 of 89 Disclaimer The information contained in this document is the proprietary information of Telit Communications S.p.A. and its affiliates (“TELIT”). The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Telit, is strictly prohibited. Telit makes every effort to ensure the quality of the information it makes available. Notwithstanding the foregoing, Telit does not make any warranty as to the information contained herein, and does not accept any liability for any injury, loss or damage of any kind incurred by use of or reliance upon the information. Telit disclaims any and all responsibility for the application of the devices characterized in this document, and notes that the application of the device must comply with the SAFETY standards of the applicable country, and where applicable, with the relevant wiring rules. Telit reserves the right to make modifications, additions and deletions to this document due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this document. Copyright: Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights are reserved. Copyright © Telit Communications S.p.A. 2010. HE863 Family Hardware User Guide 1vv0300891 Rev.5 - 2011-03-18 Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 4 of 89 Contents 1. INTRODUCTION ................................................................................................................................................. 6 1.1. S COPE ................................................................................................................................................................. 6 1.2. A UDIENCE ............................................................................................................................................................ 6 1.3. C ONTACT INFORMATION, SUPPORT ................................................................................................................... 6 1.4. D OCUMENT ORGANIZATION ................................................................................................................................ 7 1.5. T EXT CONVENTIONS ........................................................................................................................................... 8 1.6. R ELATED DOCUMENTS ....................................................................................................................................... 8 1.7. D OCUMENT HISTORY .......................................................................................................................................... 9 2. OVERVIEW ....................................................................................................................................................... 11 2.1. HE863 FAMILY PRODUCT SPECIFICATION ................................................................................................................... 12 3. HE863 FAMILY MECHANICAL DIMENSIONS ....................................................................................................... 14 4. HE863 FAMILY MODULE CONNECTIONS ........................................................................................................... 15 4.1. HE863-EUD/NAD/AUD PIN-OUT ................................................................................................................ 15 4.2. HE863-EUR/NAR PIN-OUT .......................................................................................................................... 20 4.3. HE863-EUG/NAG/AUG PIN-OUT ................................................................................................................ 25 4.4. BALLS LAYOUT ............................................................................................................................................. 30 5. HARDWARE COMMANDS ................................................................................................................................. 31 5.1. T URNING ON THE HE863 ................................................................................................................................ 31 5.2. I NITIALIZATION AND ACTIVATION STATE ............................................................................................................ 31 5.3. T URNING OFF THE HE863 .............................................................................................................................. 34 5.3.1. Hardware Unconditional Restart ......................................................................................................... 36 5.4. S UMMARY OF TURNING ON AND OFF THE HE863 ......................................................................................... 37 6. POWER SUPPLY................................................................................................................................................ 38 6.1. P OWER SUPPLY REQUIREMENTS ....................…
Text truncated - open the document above for the full version.
Telit Communications S.p.A. Viale Stazione di Prosecco 5/b , Tel : 1-919-439-7977 FAX: 1-919-840-0337 Date: Jan. 27, 2011 Federal Communications Commission Authorization and Evaluation Division ATTESTATION FCC ID: RI7HE863NA Product: HE863-NAD Model: HE863-NAD We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Brian Tucker Telit Communications S.p.A.
Telit Communications S.p.A. Viale Stazione di Prosecco 5/b , Tel : 1-919-439-7977 FAX: 1-919-840-0337 Date: Jan. 27, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: RI7HE863NA Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics: (RI7HE863NA) Schematics Block Diagram: (RI7HE863NA) Block Diagram BOM: (RI7HE863NA) BOM Tune up procedure: (RI7HE863NA) Tune up procedure Operation Description: (RI7HE863NA) Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Brian Tucker Telit Communications S.p.A.
Telit Communications S.p.A. Viale Stazione di Prosecco 5/b , Tel : 1-919-439-7977 FAX: 1-919-840-0337 Declaration of Authorization We Name: Telit Communications S.p.A. Address: Viale Stazione di Prosecco 5/b City: Trieste . Country: Italy . Declare that: Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: HE863-NAD . Type designation: HE863-NAD . Trademark: Telit on our behalf. Date: 2011/01/27 .. City: Trieste .. Name: Brian Tucker Function: ...Global VP, Quality........... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.
Telit Communications S.p.A. Viale Stazione di Prosecco 5/b , Tel : 1-919-439-7977 FAX: 1-919-840-0337 Attestation for FCC Declaration of Conformity FCC ID: RI7HE863NA Date: Jan. 27, 2011 Please be notified that we, the undersigned, Telit Communications S.p.A.. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001(10B334R-HPUSP01V01-A). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Brian Tucker Telit Communications S.p.A.

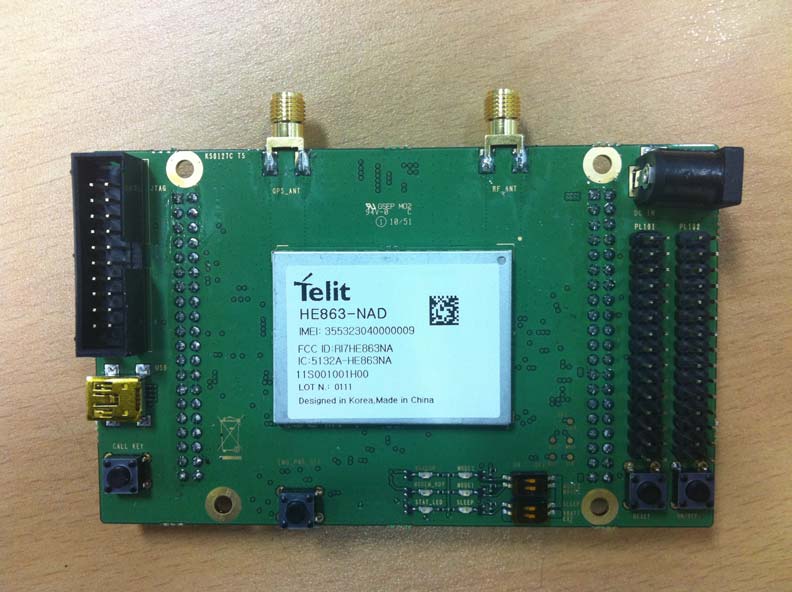

Report No.: 10B334R-HPUSP07V01-A Page : 1 of 2 Attachment 2 : EUT Detailed Photographs (1) EUT (Module) + Test Board Front Photo (2) Test Board Back Photo Report No.: 10B334R-HPUSP07V01-A Page : 2 of 2 (3) Connecter Photo
Telit Communications S.p.A. FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.
Telit Communications S.p.A. FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.
Report No.: 10B334R-HPUSP07V01-A Page : 1 of 3 Attachment 2 : EUT Detailed Photographs (1) EUT Front Photo (2) EUT Internal Photo Report No.: 10B334R-HPUSP07V01-A Page : 2 of 3 (3) EUT Back Photo (4) Cable Photo Report No.: 10B334R-HPUSP07V01-A Page : 3 of 3 (5) Antenna Photo
Report No. 10B334R-RF-US-RFEXP-A Page: 1 of 6 RF Exposure Evaluation declaration Product Name : HE863-NAD Model No. : HE863-NAD FCC ID : RI7HE863NA Applicant : Telit Communications S.p.A. Address : Viale Stazione di Prosecco 5/b Date of Receipt : Nov. 17, 2009 Date of Declaration : Jan. 28, 2011 Report No. : 10B334R-RF-US-RFEXP-A The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 10B334R-RF-US-RFEXP-A Page: 2 of 6 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 30 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*Pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 23°Cand 58% RH. Report No. 10B334R-RF-US-RFEXP-A Page: 3 of 6 1.3. Test Result of RF Exposure Evaluation Product : HE863-NAD Test Item : RF Exposure Evaluation Test Site : N/A 850 Peak Time-Average Peak Time-Average Peak Time-Average 128 189 251 GPRS 8 (1 Uplink) 32.54 23.51 32.54 23.51 32.6 23.57 GPRS 10 (2 Uplink) 32.27 26.25 32.31 26.29 32.27 26.25 GPRS 11 (3 Uplink) 32 27.74 32.04 27.78 32.04 27.78 GPRS 12 (4 Uplink) 30.89 27.88 30.96 27.95 30.95 27.94 EGPRS 8 (1 Uplink) 27.37 18.34 27.33 18.3 27.42 18.39 EGPRS 10 (2 Uplink) 26.96 20.94 27.06 21.04 27.03 21.01 EGPRS 11 (3 Uplink) 26.06 21.8 26.17 21.91 26.13 21.87 EGPRS 12 (4 Uplink) 25.06 22.05 25.03 22.02 25.05 22.04 1900 Peak Time-Average Peak Time-Average Peak Time-Average 512 698 885 GPRS 8 (1 Uplink) 29.09 20.06 29.13 20.1 29.08 20.05 GPRS 10 (2 Uplink) 28.99 22.97 28.97 22.95 28.92 22.9 GPRS 11 (3 Uplink) 28.8 24.54 28.77 24.51 28.73 24.47 GPRS 12 (4 Uplink) 28.45 25.44 28.34 25.33 28.44 25.43 EGPRS 8 (1 Uplink) 25.89 16.86 25.91 16.88 25.93 16.9 EGPRS 10 (2 Uplink) 25.78 19.76 25.79 19.77 25.81 19.79 EGPRS 11 (3 Uplink) 25.64 21.38 25.51 21.25 25.53 21.27 EGPRS 12 (4 Uplink) 24.68 21.67 24.65 21.64 24.62 21.61 Note : The calculated method are shown as below : 1 uplink(Duty cycle=1/8) : Time-Average = peak -9.03 2 uplink(Duty cycle=2/8) : Time-Average = peak -6.02 3 uplink(Duty cycle=3/8) : Time-Average = peak -4.26 4 uplink(Duty cycle=4/8) : Time-Average = peak -3.01 Report No. 10B334R-RF-US-RFEXP-A Page: 4 of 6 GSM 850 GPRS-Peak Gain: 4.2dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 824.2 30.89 1/2 27.88 613.7 0.3211 0.55 Pass 836.4 30.96 1/2 27.95 623.7 0.3264 0.55 Pass 848.8 30.95 1/2 27.94 622.3 0.3256 0.55 Pass GSM 850 EGPRS-Peak Gain: 4.2dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 824.2 25.06 1/2 22.05 160.3 0.0839 0.55 Pass 836.4 25.03 1/2 22.02 159.2 0.0833 0.55 Pass 848.8 25.05 1/2 22.04 159.9 0.0837 0.55 Pass PCS 1900 GPRS-Peak Gain: 4.2dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 1850.2 28.45 1/2 25.44 349.9 0.1831 1 Pass 1880 28.34 1/2 25.33 341.2 0.1785 1 Pass 1909.8 28.44 1/2 25.43 349.1 0.1827 1 Pass PCS 1900 EGPRS-Peak Gain: 4.2dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 1850.2 24.68 1/2 21.67 146.9 0.0769 1 Pass 1880 24.65 1/2 21.64 145.9 0.0763 1 Pass 1909.8 24.62 1/2 21.61 144.9 0.0758 1 Pass Report No. 10B334R-RF-US-RFEXP-A Page: 5 of 6 WCDMA V-Peak Gain: 4.2dBi Frequency (MHz) Conducted Power (dBm) Duty Cycle Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 826.4 22.82 1 191.4 0.1002 0.55 Pass 836.6 22.93 1 196.3 0.1027 0.55 Pass 846.6 22.98 1 198.6 0.1039 0.55 Pass WCDMA V HSDPA-Peak Gain: 4.2dBi Frequency (MHz) Conducted Power (dBm) Duty Cycle Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 826.4 23.02 1 200.4 0.1049 0.55 Pass 836.6 22.96 1 197.7 0.1035 0.55 Pass 846.6 22.90 1 195.0 0.1020 0.55 Pass WCDMA V HSUPA-Peak Gain: 4.2dBi Frequency (MHz) Conducted Power (dBm) Duty Cycle Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 826.4 22.68 1 185.4 0.0970 0.55 Pass 836.6 22.59 1 181.6 0.0950 0.55 Pass 846.6 22.74 1 187.9 0.0983 0.55 Pass WCDMA II -Peak Gain: 4.2dBi Frequency (MHz) Conducted Power (dBm) Duty Cycle Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 1852.4 22.96 1 197.7 0.1035 1 Pass 1880 23.04 1 201.4 0.1054 1 Pass 1907.6 22.98 1 198.6 0.1039 1 Pass Report No. 10B334R-RF-US-RFEXP-A Pa…
Text truncated - open the document above for the full version.
Report No.:10B334R-HPUSP07V01-A Page: 1 of 120 Test Report Product Name : HE863-NAD Model No : HE863-NAD FCC ID : RI7HE863NA Applicant : Telit Communications S.p.A. Address : Viale Stazione di Prosecco 5/b Date of Receipt:2010/11/17 Issued Date :2011/01/28 Report No. :10B334R-HPUSP07V01-A Report Version:V 2.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.:10B334R-HPUSP07V01-A Page: 2 of 120 Test Report Certification Issued Date : 2011/01/28 Report No.: 10B334R-HPUSP07V01-A Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : HE863-NAD Applicant : Telit Communications S.p.A. Address : Viale Stazione di Prosecco 5/b Manufacturer : TELIT COMMUNICATIONS S.P.A. Trade Name : Telit Model No. : HE863-NAD EUT Rated Voltage : DC 3.4V~4.2V EUT Test Voltage : DC 3.8V Measurement Standard : FCC CFR Title 47 Part 2 22 24 Measurement Reference : TIA/EIA 603-C Test Result : Complied Documented By : (Adm. Assistant / Anny Chou) Tested By : (Engineer / Vorana Chen) Approved By : (Manager /Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.:10B334R-HPUSP07V01-A Page: 3 of 120 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ........................................................................................................... 4 1.2. Operational Description............................................................................................... 5 1.3. Configuration of tested System .................................................................................. 6 1.4. EUT Setup Procedures ................................................................................................ 6 1.5. Test Facility ...................................................................................................................7 1.6. Type of Emission .......................................................................................................... 8 1.7. DC voltages and DC currents ...................................................................................... 8 2. Peak Power Output ....................................................................................................... 9 2.1. Test Equipment.............................................................................................................9 2.2. Test Setup ..................................................................................................................... 9 2.3. Limits ........................................................................................................................... 10 2.4. Test Procedure ........................................................................................................... 10 2.5. Test Specification ....................................................................................................... 10 2.6. Test Result of Peak Power Output ............................................................................ 11 3. Occupied Bandwidth .................................................................................................. 27 3.1. Test Equipment........................................................................................................... 27 3.2. Test Setup ................................................................................................................... 27 3.3. Test Procedure ........................................................................................................... 27 3.4. Test Specification ....................................................................................................... 28 3.5. Test Result of Occupied Bandwidth ......................................................................... 29 4. Spurious Emission At Antenna Terminals (+/-1MHz) .............................................. 51 4.1. Test Equipment........................................................................................................... 51 4.2. Setup ........................................................................................................................... 51 4.3. Limits ........................................................................................................................... 52 4.4. Test Procedure ........................................................................................................... 52 4.5. Test Specification ....................................................................................................... 52 4.6. Test Result of Spurious Emission At Antenna Terminals (+/-1MHz)...................... 53 5. Spurious Emission ..................................................................................................... 63 5.1. Test Equipment........................................................................................................... 63 5.2. Test Setup ................................................................................................................... 64 5.3. Limits ........................................................................................................................... 64 5.4. Test Procedure ........................................................................................................... 65 5.5. Test Specification ....................................................................................................... 65 5.6. Test Result of Spurious Emission .....................................…
Text truncated - open the document above for the full version.
Report No.:10B334R-HPUSP07V01-A Page: 51 of 120 4. Spurious Emission At Antenna Terminals (+/-1MHz) 4.1. Test Equipment The following test equipments are used during the spurious emission test Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer Agilent N9020A/ MY48010570 May., 2010 Universal Radio Communication Tester R & S CMU200 / 104846 May., 2010 Directional coupler Agilent 87300C / MY44300353 Sep., 2010 Directional coupler Agilent 778D-012/ 50550 Sep., 2010 Note: All equipments upon which need to be calibrated are with calibration period of 1 year. 4.2. Setup Report No.:10B334R-HPUSP07V01-A Page: 52 of 120 4.3. Limits Cellular Band Transmitter limits for narrowband spurious emission Lower Block Edge Test Frequencies Upper Block Edge Test Frequencies Block A Channel : 128 Frequency : 824.2 MHz Block B Channel : 251 Frequency : 848.8 MHz PCS Band Transmitter limits for narrowband spurious emission Lower Block Edge Test Channels/Frequencies Upper Block Edge Test Channels/Frequencies Block A Channel : 512 Frequency : 1850.2 MHz Block C Channel : 810 Frequency : 1909.8 MHz 4.4. Test Procedure In accordance with Part 22.917 and 24.238, at least 1% of the emission bandwidth was used for the resolution and video bandwidths up to 1MHz away from the Block Edge. At greater than 1MHz, the resolution and video bandwidth were increased to 1MHz. The reference power and path losses of all channels used for testing in each frequency block were measured. 4.5. Test Specification According to Part 2.1049, 22.917,24.238. Report No.:10B334R-HPUSP07V01-A Page: 53 of 120 4.6. Test Result of Spurious Emission At Antenna Terminals (+/-1MHz) Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/11/19 Test Site CTR Test Condition Block Edge Test (GSM 850 GPRS) GSM 850 GPRS Lower Channel 128 (824.2MHz) GSM 850 GPRS Upper Channel 251(848.8MHz) Report No.:10B334R-HPUSP07V01-A Page: 54 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/11/19 Test Site CTR Test Condition Block Edge Test (GSM 850 EGPRS) GSM 850 EGPRS Lower Channel 128 (824.2MHz) GSM 850 EGPRS Upper Channel 251(848.8MHz) Report No.:10B334R-HPUSP07V01-A Page: 55 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/11/19 Test Site CTR Test Condition Block Edge Test (PCS 1900 GPRS) PCS 1900 GPRS Lower Channel 512 (1850.2MHz) PCS 1900 GPRS Upper Channel 810(1910.0MHz) Report No.:10B334R-HPUSP07V01-A Page: 56 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/11/19 Test Site CTR Test Condition Block Edge Test (PCS 1900 EGPRS) PCS 1900 EGPRS Lower Channel 512 (1850.2MHz) PCS 1900 EGPRS Upper Channel 810(1910.0MHz) Report No.:10B334R-HPUSP07V01-A Page: 57 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/12/20 Test Site CTR Test Condition Block Edge Test (WCDMA BAND V RMC) WCDMA BAND V RMC Lower Channel 4132 (826.4MHz) WCDMA BAND V RMC Upper Channel 4233 (846.6MHz) Report No.:10B334R-HPUSP07V01-A Page: 58 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/12/20 Test Site CTR Test Condition Block Edge Test (WCDMA BAND V HSDPA) WCDMA BAND V HSDPA Lower Channel 4132 (826.4MHz) WCDMA BAND V HSDPA Upper Channel 4233 (846.6MHz) Report No.:10B334R-HPUSP07V01-A Page: 59 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/12/20 Test Site CTR Test Condition Block Edge Test (WCDMA BAND V HSUPA) WCDMA BAND V HSUPA Lower Channel 4132 (826.4MHz) WCDMA BAND V HSUPA Upper Channel 4233 (846.6MHz) Report No.:10B334R-HPUSP07V01-A Page: 60 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/12/20 Test Site CTR Test Condition Block Edge Test (WCDMA BAND II RMC) WCDMA BAND II RMC Lower Channel 9262 (1852.4MHz) WCDMA BAND II RMC Upper Channel 9538 (1907.6 MHz) Report No.:10B334R-HPUSP07V01-A Page: 61 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/12/20 Test Site CTR Test Condition Block Edge Test (WCDMA BAND II HSDPA) WCDMA BAND II HSDPA Lower Channel 9262 (1852.4MHz) WCDMA BAND II HSDPA Upper Channel 9538 (1907.6 MHz) Report No.:10B334R-HPUSP07V01-A Page: 62 of 120 Product HE863-NAD Test Mode Spurious Emission At Antenna Terminals (+/-1MHz) Date of Test 2010/12/20 Test Site CTR Test Condition Block Edge Test (WCDMA BAND II HSUPA) WCDMA BAND II HSUPA Lower Channel 9262 (1852.4MHz) WCDMA BAND II HSUPA Upper Channel 9538 (1907.6 MHz) Report No.:10B334R-HPUSP07V01-A Page: 63 of 120 5. Spurious Emission 5.1. Test Equipment The following test equipments are used during the radiated emission test: Note: 1. All equipments that need to be calibrated are with calibration period of 1 year. Test Site Equipment ManufacturerModel No./Serial No. Last Cal. Spectrum Analyzer Agilent N9020A/ MY48010570 May., 2010 Dual Directional couple Agilent 778D-012/50550 Sep., 2010 CTR Directional coupler Agilent 87300C/ MY44300353 Sep., 2010 Test Receiver R & S ESCS 30 / 100122 Feb., 2010 Universal Radio Communication Tester R & S CMU200 / 104846 May., 2010 Spectrum Analyzer Agilent E4408B/ MY45102743 Aug., 2010 Pre-Amplifier QTK AP-180C Sep., 2010 Bilog Antenna SCHAFFNER CBL6112B / 2697 May., 2010 Horn Antenna Schwarzbeck BBHA9120D / D305 Oct., 2010 SITE1 Pre-Amplifier QTK QTK-AMP-01 / 0001 Jul., 2010 Report No.:10B334R-HPUSP07V01-A Page: 64 of 120 5.2. Test Setup 5.2.1.1 Spurious emissions at antenna terminals. 5.2.1.2 Field strength of spurious radiation. 5.3. Limits Limit <-13dBm 43 + 10Log(P) down on the carrier where P is the power in Watts. Report No.:10B334R-HPUSP07V01-A Page: 65 of 120 5.4. Test Procedure In accordance with Part 2.1051, the spurious emissions from the antenna terminal were measured. The transmitter output power was atten…
Text truncated - open the document above for the full version.
Report No.:10B334R-HPUSP07V01-A Page: 76 of 120 Report No.:10B334R-HPUSP07V01-A Page: 77 of 120 Report No.:10B334R-HPUSP07V01-A Page: 78 of 120 Product HE863-NAD Test Mode Spurious Emission (Conducted) Date of Test 2010/12/20 Test Site CTR Test Condition WCDMA BAND V RMC Test Range 30MHz~10GHz WCDMA BAND V RMC High-Channel 4233 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 1693.2 -44.555 0.58 -43.975 -13 2539.8 -51.738 0.7 -51.038 -13 3386.4 -53.869 1.01 -52.859 -13 4233 -64.908 1.18 -63.728 -13 5079.6 -61.389 1.23 -60.159 -13 5926.2 -60.371 1.45 -58.921 -13 6772.8 -61.406 1.56 -59.846 -13 7619.4 -63.509 1.59 -61.919 -13 8466 -65.510 1.82 -63.690 -13 Report No.:10B334R-HPUSP07V01-A Page: 79 of 120 Report No.:10B334R-HPUSP07V01-A Page: 80 of 120 Report No.:10B334R-HPUSP07V01-A Page: 81 of 120 Product HE863-NAD Test Mode Spurious Emission (Conducted) Date of Test 2010/12/20 Test Site CTR Test Condition WCDMA BAND V HSDPA Test Range 30MHz~10GHz WCDMA BAND V HSDPA Low-Channel 4132 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 1652.8 -40.511 0.58 -39.931 -13 2479.2 -49.746 0.7 -49.046 -13 3305.6 -51.310 1.01 -50.300 -13 4132 -65.097 1.18 -63.917 -13 4958.4 -62.462 1.23 -61.232 -13 5784.8 -59.364 1.45 -57.914 -13 6611.2 -59.662 1.56 -58.102 -13 7437.6 -64.302 1.59 -62.712 -13 8264 -65.177 1.82 -63.357 -13 Report No.:10B334R-HPUSP07V01-A Page: 82 of 120 Report No.:10B334R-HPUSP07V01-A Page: 83 of 120 Report No.:10B334R-HPUSP07V01-A Page: 84 of 120 Product HE863-NAD Test Mode Spurious Emission (Conducted) Date of Test 2010/12/20 Test Site CTR Test Condition WCDMA BAND V HSUPA Test Range 30MHz~10GHz WCDMA BAND V HSUPA High-Channel 4233 Frequency (MHz) Reading Level (dBm) Path Loss (dB) Emission Level (dBm) Limit (dBm) 1693.2 -52.049 0.58 -51.469 -13 2539.8 -59.568 0.7 -58.868 -13 3386.4 -60.689 1.01 -59.679 -13 4233 -64.042 1.18 -62.862 -13 5079.6 -62.004 1.23 -60.774 -13 5926.2 -60.420 1.45 -58.970 -13 6772.8 -62.279 1.56 -60.719 -13 7619.4 -63.695 1.59 -62.105 -13 8466 -65.071 1.82 -63.251 -13 Report N…
