RI7LE70FHFHSS and DTS Module

xE70-915 RF Module User Guide 1VV0301106 rev.3 – 2015-03-04 xE70-915 RF Module User Guide 1VV0301106 rev.3 – 2015-03-04 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 2 of 34 APPLICABILITY TABLE PRODUCT LE70-915 xE70-915 RF Module User Guide 1VV0301106 rev.3 – 2015-03-04 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 3 of 34 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Telit reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Telit does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Telit products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Telit intends to announce such Telit products, programming, or services in your country. Copyrights This instruction manual and the Telit products described in this instruction manual may be, include or describe copyrighted Telit material, such as computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Telit and its licensors contained herein or in the Telit products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit, as arises by operation of law in the sale of a product. Computer Software Copyrights The Telit and 3rd Party supplied Software (SW) products described in this instruction manual may include copyrighted Telit and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and other 3rd Party supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Telit or other 3rd Party supplied SW computer programs contained in the Telit products described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express written permission of Telit or the 3rd Party SW supplier. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit or other 3rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. xE70-915 RF Module User Guide 1VV0301106 rev.3 – 2015-03-04 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 4 of 34 Usage and Disclosure Restrictions License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Telit High Risk Materials Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities"). Telit and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks TELIT and the Stylized T Logo are registered in Trademark Office. All other product or service names are the property of their respective owners. Copyright © Telit Communications S.p.A. xE70-915 RF Module User Guide 1VV0301106 rev.3 – 2015-03-04 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 5 of 34 Contents 1. Introduction ................................................. 7 1.1. Scope ..................................................... 7 1.2. xE70-915 Product Description .............................. 7 1.3. Audience .................................................. 7 1.4. Contact Information, Support .............................. 7 1.5. Text Conventions .......…

Text truncated - open the document above for the full version.

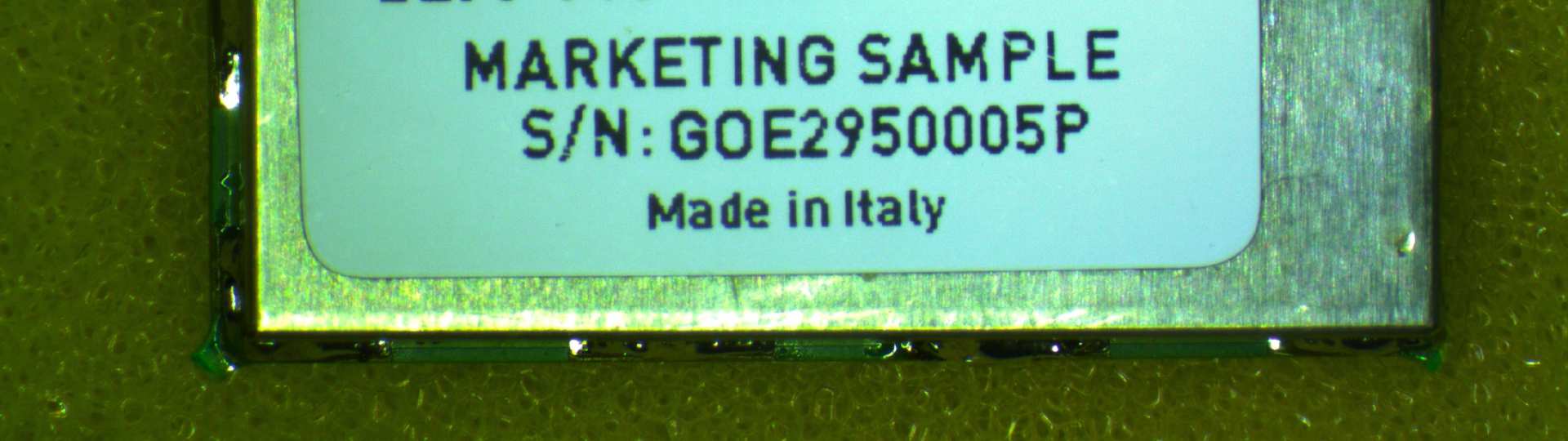

Label location

TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: 06/16/2015 REF: RF exposure analysis Model: LE70-915 FCC ID: RI7LE70FH IC: 5131A-LE70FH The device is designed as module to be installed in and used in a mixed mobile and portable exposure h ost platform. Portable exposure conditions are eval uated in a separate exhibit. The analysis provided in thi s document only covers mobile exposure conditions a nd for that the antenna(s) used for this transmitte r must be installed to provide a separation distance of at le ast 20 cm from all the persons and must not be co-l ocated or operating in conjunction with any other a ntenna or transmitter except in the conditions described in t his document. MPE exposure limits The table below is excerpted from Table 1B of 47 CF R 1.1310 titled Limits for Maximum Permissible Expo sure (MPE), Limits for General Population/Uncontrol led Exposure: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 The table below is excerpted from RSS-102, Issue 4, 4.2, titled “RF Limits for Devices used by the Gen eral Public”: Frequency Range (MHz) Power density (W/m 2 ) Averaging time (minutes) 300-6000 0.02619 ƒ 0.6834 6 As all the operating frequencies of this device are higher than 1500 MHz, the applicable maximum permi ssive exposure is: 1 mW/cm 2 . Using the equation 2 4 R PG S π = to calculate the exposure to electromagnetic field s where: S = power density (in appropriate units, e. g. mW/cm 2 ) P = power input to the antenna (in appropriate uni ts, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the ant enna (appropriate units, e.g., cm) Compliance with FCC and IC maximum permissive expos ure limits is demonstrated based on the following c alculations. 1. Standalone operations analysis 902-928 MHz DSS 915,3 - 927,6 915,3 27,11 1,90 20 0,158 0,610 0,277 COMPLIANT 0,5723506 902-928 MHz DTS 908,88-908,88 908,88 12,65 1,90 20 0,006 0,606 0,275 COMPLIANT 0,0205945 Frequency Band Mode Frequency Range (MHz) Reference frequency (Lowest freq.) (MHz) RELATIVE EXPOSURE MPE ratio (S/S Limit ) FCC MPE limit (mW/cm 2 ) IC MPE limit (mW/cm 2 ) COMPLIANCE (S<Sl Limit ) Evaluation distance for compliance with MPE limits (cm) Antenna gain (dBi) Maximum conducted output power (dBm) (mW/cm2) 2 4 R PG S π = Under all conditions the equipment complies with th e FCC/IC MPE limits and the maximum MPE ratio obtai ned is 0,5723506 . 2. Co-location analysis 2.1. Co-location with other transmitter in mobile e xposure conditions According to KDB 447498 D01 General RF Exposure Gui dance v05r2, 7.2: Simultaneous transmission MPE test exclusion applie s when the sum of the MPE ratios for all simultaneo us transmitting antennas incorporated in a host device, based on calculated or measured field stren gths or power density, is ≤ 1.0. As the maximum calculated MPE ratio for the device is 0,030 , the product can be co-located with other antennas providing that the sum of the MPE ratios for all the other simultaneous transmitting antennas incorp orated in a host device, based on calculated or mea sured field strengths or power density is ≤ 1.0 – 0,5723506 = 0,4276494 . 2.2. Co-location with other transmitter in mixed mo bile and portable host platform exposure conditions According to KDB 447498 D01 General RF Exposure Gui dance v05r2, 7.2: When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment appr oval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and p ortable host platform exposure conditions. The gran tee is responsible for documenting this according to Cl ass I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must app ly the estimated standalone SAR to determine simultane ous transmission test exclusion. • The [ ∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for max imum tune-up tolerance) / 1.6 W/kg] + [ ∑ of MPE ratios] is ≤ 1.0. • The SAR to peak location separation ratios of all s imultaneous transmitting antenna pairs operating in portable exposure conditions are all ≤ 0.04 and the [ ∑ of MPE ratios] is ≤ 1.0. As the maximum calculated MPE ratio for the device is 0,5723506 , the equipment can be co-located with other transm itters in a mixed mobile and portable conditions providing that the exposure of the co-lo cated transmitter complies with: • The [ ∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for max imum tune-up tolerance) / 1.6 W/kg] + [ ∑ of MPE ratios] is ≤ 1.0 – 0,5723506 = 0,4276494 OR • The SAR to peak location separation ratios of all simultaneous transmitting antenna pairs operating i n portable exposure conditions are all ≤ 0.04 and the [ ∑ of MPE ratios] is ≤ 1.0 – 0,5723506 = 0,4276494 Yours sincerely, p.a. Name: Mr Brian Tucker Position: Global VP, Quality Company: Telit Communications S.p.A. Phone: 1-919-439-7977 Ext. 1002 e-mail: [email protected]

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 2015-06-30 FCC LISTED, REGISTRATION NUMBER: 720267 IC LISTED REGISTRATION NUMBER IC 4621A-1 Informe de ensayo nº: Test report No: NIE: 42959RRF.002 Test report USA FCC Part 15.247, 15.209 CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence- Exempt Local Area Network(LE-LAN) Devices General Requirements and Information for the Certification of Radio Apparatus. Identificación del objeto ensayado ...................... : Identification of item tested S-ONE 915MHZ WITH FREQUENCY HOPPING CONFIGURATION Marca ................................................................... : Trade TELIT LE70-915 Modelo y/o referencia tipo .................................. : Model and /or type reference LE70-915 Other identification of the product .................... : FCC ID: RI7LE70FH IC: 5131A-LE70FH Final HW version ................................................ : 3990401152 Final SW version ................................................. : GO.S01.01.03-B001 GO.B00.01.0C Características ..................................................... : Features --- Fabricante ............................................................ : Manufacturer Telit communication s.p.a Via stazione di prosecco 5/B, 34010 Sgonico (ITALY) Método de ensayo solicitado, norma ................... : Test method requested, standard USA FCC Part 15.247 10-1-13 Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 10-1-14 Edition: Radiated emission limits; general requirements. CANADA RSS-247 Issue 1 (May 2015). CANADA RSS-Gen Issue 4 (November 2014). FCC part 15.247 and Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum System DA 00-705 Released March 30, 2000. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Resultado .............................................................. : Summary IN COMPLIANCE Aprobado por (nombre / cargo y firma) ........... : Approved by (name / position & signature) A. Llamas RF Lab. Manager AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 2 of 33 2015-06-30 Fecha de realización ........................................... : Date of issue 2015-06-30 Formato de informe No. ...................................... : Report template No FDT08_16 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 3 of 33 2015-06-30 Index Competences and guarantees ......................................................................................................................... 4 General conditions ......................................................................................................................................... 4 Uncertainty .................................................................................................................................................... 4 Usage of samples ........................................................................................................................................... 4 Test sample description ................................................................................................................................. 5 Identification of the client ............................................................................................................................. 5 Testing period ................................................................................................................................................ 5 Environmental conditions .............................................................................................................................. 5 Remarks and comments ................................................................................................................................. 6 Testing verdicts ............................................................................................................................................. 7 Appendix A – Test result ............................................................................................................................... 8 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 4 of 33 2015-06-30 Competences and guarantees AT4 wireless is a laboratory with a measurement facility in compliance with the requirements of Section 2.948 of the FCC rules and has been added to the list of facilities whose measurements data will be accepted in conjunction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Registration Number: 720267. AT4 wireless is a laboratory with a measurement site in compliance with the requirements of RSS 212, Issue 1 (Provisional) and has been added to the list of filed sites of the Canadian Certification and Engineering Bureau. Reference File Number: IC 4621A-1. In order to assure the traceability to other national and international laboratories, AT4 wireless has a calibration and maintenance program for its measurement equipment. AT4 wireless guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at…

Text truncated - open the document above for the full version.

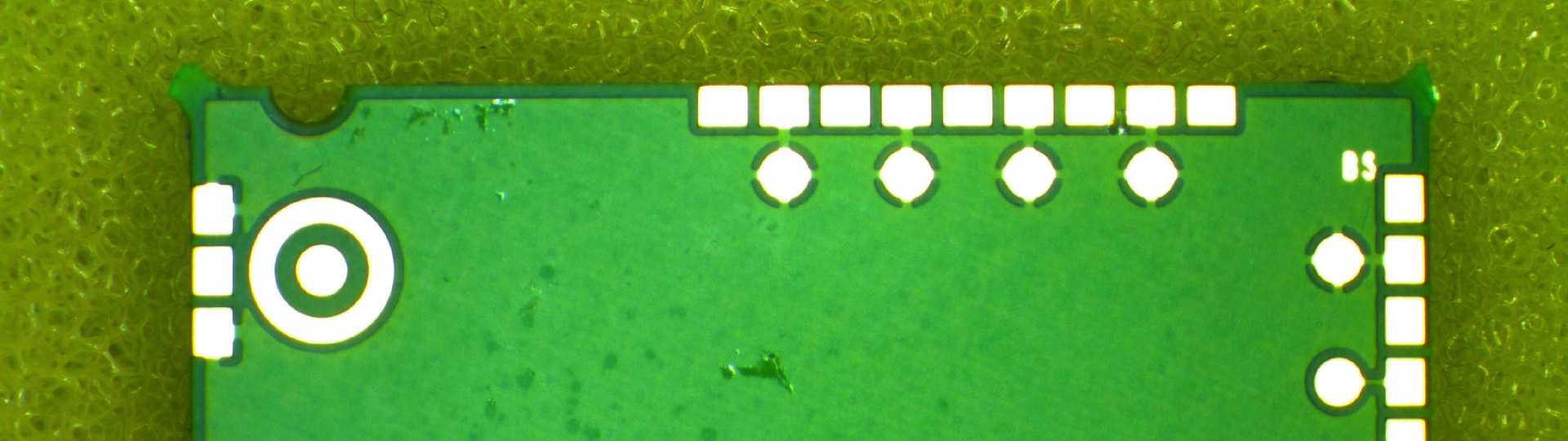

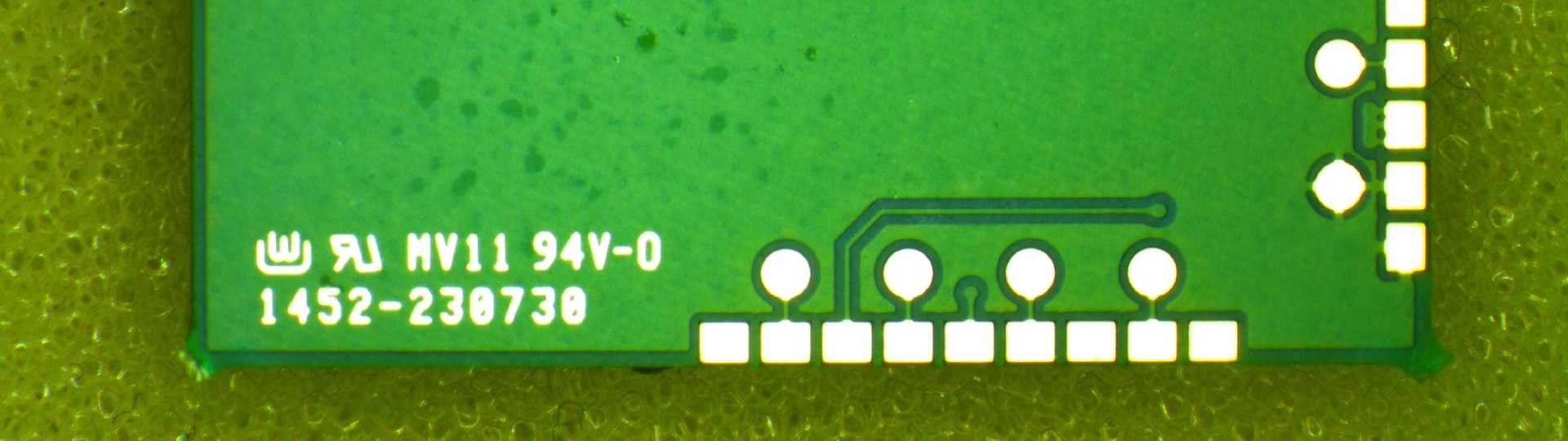

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 1 of 7 2015-06-30 Appendix B - Photographs AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 2 of 7 2015-06-30 EQUIPMENT FOR RADIATED MEASUREMENTS AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 3 of 7 2015-06-30 EQUIPMENT FOR CONDUCTED MEASUREMENTS Front view of module Rear view of module Front view of test board Rear view of test board AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 4 of 7 2015-06-30 GENERAL SET-UP FOR RADIATED MEASUREMENTS AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 5 of 7 2015-06-30 TEST SET-UP FOR RADIATED MEASUREMENTS BELOW 1 GHz AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 6 of 7 2015-06-30 TEST SET-UP FOR RADIATED MEASUREMENTES ABOVE 1GHz AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 42959RRF.002 Page 7 of 7 2015-06-30 TEST SET-UP FOR CONDUCTED MEASUREMENTS
