UE910 V2 Hardware User Guide 1VV0301065 Rev.1 – 2013-12-12 UE910 V2 Hardware User Guide 1VV0301065 Rev.1 – 2013-12-12 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 2 of 67 APPLICABILITY TABLE PRODUCT UE910-EU V2 UE910-NA V2 UE910 V2 Hardware User Guide 1VV0301065 Rev.1 – 2013-12-12 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 3 of 67 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DISCLAIMER While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Telit reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Telit does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Telit products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Telit intends to announce such Telit products, programming, or services in your country. Copyrights This instruction manual and the Telit products described in this instruction manual may be, include or describe copyrighted Telit material, such as computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Telit and its licensors contained herein or in the Telit products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit, as arises by operation of law in the sale of a product. Computer Software Copyrights The Telit and 3rd Party supplied Software (SW) products described in this instruction manual may include copyrighted Telit and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and other 3rd Party supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Telit or other 3rd Party supplied SW computer programs contained in the Telit products described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express written permission of Telit or the 3rd Party SW supplier. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit or other 3rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. UE910 V2 Hardware User Guide 1VV0301065 Rev.1 – 2013-12-12 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 4 of 67 Usage and Disclosure Restrictions License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Telit High Risk Materials Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities"). Telit and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks TELIT and the Stylized T Logo are registered in Trademark Office. All other product or service names are the property of their respective owners. Copyright © Telit Communications S.p.A. UE910 V2 Hardware User Guide 1VV0301065 Rev.1 – 2013-12-12 Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 5 of 67 Contents 1. Introduction ............................................................................................................................. 8 1.1. Scope .................................................................................................................................. 8 1.2. Audience .................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Telit Communications S.p.A. December 12, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Telit Communications S.p.A. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): UE910-NA V2 We affirm that between SIEMIC and Telit Communications S.p.A. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Brian Tucker / VP Quality Contact information / address : Viale Stazione di Prosecco 5/b Trieste 34010 Italy

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 Telit Communications S.p.A. November 14, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RI7UE910NAV2 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Brian Tucker / VP Quality Contact information / address : Viale Stazione di Prosecco 5/b Trieste 34010 Italy SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 Telit Communications S.p.A. November 14, 2013 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID : RI7UE910NAV2 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - External Photos - Internal Photos - User Manual - Set Up Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signat ure : Client’s name / title : Brian Tucker / VP Quality Contact information / address : Viale Stazione di Prosecco 5/b Trieste 34010 Italy

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (current) 6.0 7.0 Jan-31-2012 SCS-F26 Modular Approval Letter Page 1 of 4 Rev 7.0 Telit Communications S.p.A. November 14, 2013 (Product name) FCC ID : RI7UE910NAV2 , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questi ons are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter mus t have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Contact Person Name: Brian Tucker Title: VP Quality Telephone: +1-919-415-1505 Fax: +1-919-840-0337 Address: Viale Stazione di Prosecco 5/b Trieste 34010 Italy SCS-F26 Modular Approval Letter Page 2 of 4 Rev 7.0 Telit Communications S.p.A. November 14, 2013 (Product name) IC ID : 5131A-UE910NAV2 , is seeking IC Authorization as a modular transmitter / Limited Modular Transmitter (Please check one). The EUT meets the requirements for modular approval / Limited Modular Approval (Please check one) as detailed in RSS GEN. Compliance to each of the requirements is described below: * Please provide a detailed explanation if the answer is “No.” a. The radio elements must have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Yes / No b. The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes / No c. The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module Yes / No d. The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. Yes / No e. The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing Yes / No f. The module shall comply with the Category I equipment labelling requirements. Yes / No g. The module shall comply with applicable RSS-102 exposure requirements, which are based on the intended use/configurations. Yes / No h. (h) Is the modular device for an Industry Canada licensed exempt service? Yes / No Note: (1) LM…

Text truncated - open the document above for the full version.

December 18, 2013 To: FCC From: Compliance Certification Services Inc. RE: request for supersede test report for FCC ID: RI7UE910NAV2 Grantee: Telit Communications S.p.A. FCC ID: RI7UE910NAV2 (granted on 12/16/2013) This is to request to update type error of table on test report page 41 on peak power value to be consistent with report section 7.2 peak power measurement. The peak power on FCC grant is no change and not affected, but test report needs correction. Signature Thank you, David Wang Vice President Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) TEL: +886-2-2299-9720 FAX: +886-2-2299-9721 [email protected]

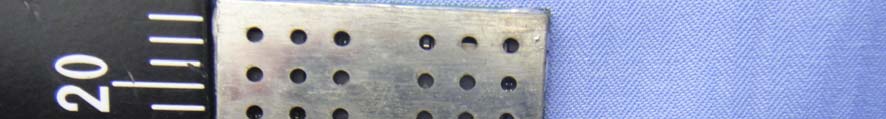

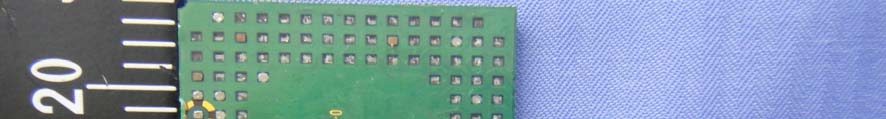

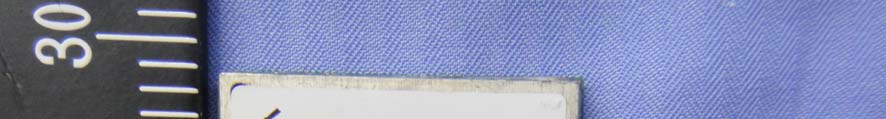

Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: August 14, 2013 A1 - 1 / 5 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: August 14, 2013 A1 - 2 / 5 Rev. 00 Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: August 14, 2013 A1 - 3 / 5 Rev. 00 Antenna

Label Location “Contains FCC ID：RI7UE910NAV2 “Contains IC：5131A-UE910NAV2

Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: August 14, 2013 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: August 14, 2013 A1 - 5 Rev. 00

Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: October 24, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 2G,3G wireless module Model UE910-NA V2 Frequency band (Operating) GSM 850MHz: 824.2MHz ~ 848.8MHz GSM 1900MHz: 1850.2MHz ~ 1909.8MHz WCDMA: 826.4MHz ~ 846.6MHz WCDMA: 1852.4MHz ~ 1907.6MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification HANKOOK TB-800/1900-SMA Gain: 2dBi (824~2170MHz) Average output power GSM850 32.40 dBm (1737.801 mW) GSM1900 29.30 dBm (851.138 mW) WCDMA Band V 23.33 dBm (215.278 mW) WCDMA Band II 22.78 dBm (189.671 mW) Tune up limit (Frame Average Power) Avg. burst power (dBm) Frame Avg Pwr (dBm) GSM85032.50 dBm23.47 dBm GSM190029.50 dBm20.47 dBm WCDMA Band V 23.50 dBm23.50 dBm + 0.5 / -1 dBm WCDMA Band II 23.50 dBm23.50 dBm + 0.5 / -1 dBm ± 0.5 dB ± 0.5 dB Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: October 24, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2013/10/24 Initial Issue ALL Scott Hsu 01 2013/11/01 Tune up limit (Frame Average Power) Page 1 Scott Hsu 02 2013/11/19 Added Antenna gain (dBi) to comply with EIRP limits Page 4 Scott Hsu 03 2013/12/10 Revise Maximum Permissible Exposure Page 4 Scott Hsu Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: October 24, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130801W01 Date of Issue: October 24, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 GSM850 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 190 836.6 249.408 11.19 20 0.5554 0.558 Antenna gain (dBi) to comply with EIRP limits: 10.49 dBi (11.19 numeric gain.) GSM1900 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 661 1880.0 125 40.09 20 0.9972 1 Antenna gain (dBi) to comply with EIRP limits: 16.03 dBi (40.09 numeric gain.) WCDMA Band V mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 4182 836.4 251.1886 11.09 20 0.5544 0.558 Antenna gain (dBi) to comply with EIRP limits: 10.45 dBi (11.09 numeric gain.) WCDMA Band II mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 9538 1907.6 251.1886 20 20 0.9997 1 Antenna gain (dBi) to comply with EIRP limits: 13.01 dBi (20 numeric gain.)

Compliance Certification Services Inc. FCC ID: RI7UE910NAV2 IC: 5131A-UE910NAV2 Report No.: T130801W01-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 148 Rev.00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E & INDUSTRY CANADA RSS-132 & RSS-133 TEST REPORT For UE910-NA V2 Trade Name: Telit Model: UE910-NA V2 Issued to Telit Communications S.p.A. Via Stazione di Prosecco, 5/B 34010 Sgonico [TS] Italy Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: August 12, 2013 Compliance Certification Services Inc. FCC ID: RI7UE910NAV2 IC: 5131A-UE910NAV2 Report No.: T130801W01-RP Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 12, 2013 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: RI7UE910NAV2 IC: 5131A-UE910NAV2 Report No.: T130801W01-RP Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 7 3.1 EUT CONFIGURATION .............................................................................................................. 7 3.2 EUT EXERCISE ......................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES .................................................................................................. 7 3.4 DESCRIPTION OF TEST MODES ................................................................................................. 8 4. INSTRUMENT CALIBRATION ................................................................................................. 9 4.1 MEASURING INSTRUMENT CALIBRATION ........................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ............................................................................ 10 4.3 MEASUREMENT UNCERTAINTY .................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ................................................................................. 12 5.1 FACILITIES ............................................................................................................................ 12 5.2 EQUIPMENT ........................................................................................................................... 12 5.3 LABORATORY ACCREDITATIONS AND LISTING ..................................................................... 12 5.4 TABLE OF ACCREDITATIONS AND LISTINGS .......................................................................... 13 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 14 6.1 SETUP CONFIGURATION OF EUT ............................................................................................ 14 6.2 SUPPORT EQUIPMENT ..................................................................................................... 14 7. FCC PART 22 & 24 REQUIREMENTS & INDUSTRY CANADA RSS-132 & RSS-133 ... 15 7.1 99% BANDWIDTH ............................................................................................................. 15 7.2 PEAK POWER ......................................................................................................................... 33 7.3 AVERAGE POWER ............................................................................................................... 36 7.4 ERP & EIRP MEASUREMENT .......................................................................................... 39 7.5 OUT OF BAND EMISSION AT ANTENNA TERMINALS .............................................. 42 7.6 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................. 72 7.7 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT .......................... 136 7.8 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT .................................... 142 APPENDIX II PHOTOGRAPHS OF TEST SETUP .................................................................... 148 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: RI7UE910NAV2 IC: 5131A-UE910NAV2 Report No.: T130801W01-RP Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: Telit Communications S.p.A. Via Stazione di Prosecco, 5/B 34010 Sgonico [TS] Italy Manufacturer: Telit Communications S.p.A. Via Stazione di Prosecco, 5/B 34010 Sgonico [TS] Italy Equipment Under Test: UE910-NA V2 Tr a d e N a m e : Telit Model Number: UE910-NA V2 Date of Test: August 1 ~ December 10, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E & IC RSS-132 Issue 2: September 2005 and IC RSS-133 Issue 5: February 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-C and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rule FCC PART 22 Subpart H, PART 24 Subpart E, IC RSS-132 Issue 2 and IC RSS-133 Issue 4. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee An…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: RI7UE910NAV2 IC: 5131A-UE910NAV2 Report No.: T130801W01-RP Page 148 Rev.00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Set Up Photo Radiated Emission Set up Photos
