RIJES401MID Tablet PC

USER MANUAL Hardware rules: 1: VOL + 2: VOL- 3: Back to the home screen 4: Press the buttom to show the tools. 5: Return (Return to last interface.) 6: Earphone Connector 7: MICRO SD Card slot 8: USB Connector 9: Power ON/OFF, Short press to enter or leave the hibernation. 10: RESET 11: MIC Slot MID hardware parameters CPU BOXCHIP F20 533MHz Memory 256MB DDR2 RAM Storage Memory built-in 2GB/4GB/8GB/16GB Support Micro SD card to expand memory upto 16GB Wireless WiFi 802.11B/G/ N USB USB2.0 OTG high speed interface Audio 3.5mm headphone jack High-quality stereo loud speaker Built-in microphone Frequency response: 20Hz-20KHz SNR: greater than 90db Screen Size 4.3 inch Resolution 480X272 Color 65K colors Operating Resistive touch panel Other Size 115*76*11 mm Battery Built-in lithium polymer battery 1200MAH Startup and shutdown *Boot: Press and hold the power button, the system will enter the startup process, System has been started, are entering the Android system: The system enters the default home interface. *Shutdown: Press the power button, pop-up device options, select Shut Down, as follows: Click OK, you can safely shut down. *Sleep: the machine under normal operating conditions, Short press the power button, Into hibernation, Now, Screen will close. Short press the power button again, Be able to resume normal mode. When the time being use this MID can enable this feature when, To reduce power consumption. Desktop: System after the completion of normal start, Desktop can see Status Bar、Quick Search Bar、Main menu labels and market. Main Menu Operation: Click to show the main menu ,And is as follows: In the main menu, the system can be set to run existing applications, music player, video player, web browsing and other operations. System Settings: Click the main menu interface in the "Settings" icon, you can open the system settings interface, as shown below: Select the appropriate operation of the relevant items, such as: * Wireless and network * display * Date & time * About Device Etc *Date and time settings: Set interface options "time and date settings options" to enter the date and time settings interface: Can also select to set the date, select the time zone, set the time, time format, date format and other information. For example, choose to set the date, as follows: Select +: that the increase of 1 unit, Select -: that the reduction of 1 unit. Also can choose the number, enter the input mode. Directly entering the desired number, then select Done. As follows: Select "Settings." If you enter the number of legitimate, then the operation is successful, the system will set the option to use the new. *Display: In the setup interface choose "Display" to enter the display settings interface, select "Brightness", there are interface: *screen timeout: Screen timeout: the screen automatically locks the delay before. In the setup interface choose " display settings" to enter the display settings interface, scroll down section, select the " screen timeout " interface appears, as follows: Note: In the video, the screen auto-standby function does not. *WIFI Wireless Connection: Click the main menu "Settings" icon, go to "System Settings" screen, click on "Wireless and network" into the "Wireless and network" setup interface. Click the "WIFI" section to quickly open the WIFI feature, click on "WIFI settings" column enter "WIFI set interface" as shown below: In the "WIFI settings" interface (above), click on the WIFI column also can open and close the WIFI feature, click on the "Network Notice" lists MID search to the wireless router,click the search name will pop up settings window , please follow the prompts to complete the WIFI network links. Some encrypted network, need to enter a valid key. Link diagram below: According to the above method to connected Wi-Fi. Touch Calibration When you first start the system by default called touch calibration procedures. Users can also in the main menu, select "touch calibration", enter the touch calibration procedures. Follow the prompts to complete the calibration operation, if successful touch calibration, the system prompts and automatically exit the touch calibration interface. As follows: After complete calibration,must reboot the MID to keep calibraiton valid. Network: Web browsing: When the connected network, open the Web browser enter the URL, you can quickly browse the Web; or through the main desktop search bar enter the URL, open the web page. Free page can use the zoom controls zoom, as shown below: Online video: Through "Android market" or other means to download online video player software, online TV player, online music software, then install to this MID. Open the software installed, you can watch online video or online TV, listening to online radio stations. Users can also download other third-party Web applications, including web browsing, video playback, Web client, instant messaging software, etc. Music: Click the main menu in the "music" icon, you can enter the music player interface. Here lists the system default user data area of all audio files. As shown below: We can spread through the USB audio files synchronized manner, or by inserting the SD card with audio files were audio files, you can also download the audio files via the network. Select the appropriate tab key, you can see for example "Artist", "album", "songs" and other interfaces. Select song to play. Video: Click the main menu in the " Video Player " into the "Video Player" the main interface, there will list all the video files. As shown below: Select video file into the video player interface, as shown below. Can select "Play", "stop", "Volume +", "Volume -", "fast forward", "rewind", "progress bar" and control keys to control playback of the progress. Photo Browse: Click the "Photo Browser" , there will list all the picture files . As shown below: Select a picture file, enter the picture playback interface, as shown below. Can select "Zoom", "narrow" "set" and "del…

Text truncated - open the document above for the full version.

Date:2012-12-20 FCC ID: RIJES401 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Hongyu Tan Title: manager Tel: 0755-61156588

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name EPUDO（DongGuan）Digital Technology Co.Ltd Addresss No.71,Luyuan Road,Keyuancheng,Tangxia Town, City Dongguan,Guangdong, Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: RIJ ES401 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) X Operational Description X Block Diagrams X Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Dongguan 2012/12/20 Hongyu Tan manager EPUDO（DongGuan）Digital Technology Co.Ltd

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 Date:2012-12-20 FCC ID: RIJES401 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Regards, Yours sincerely, Signatory Signature Name: Hongyu Tan Title: manager Tel: 0755-61156588 Company:EPUDO（DongGuan）Digital Technology Co., Ltd. Add: No.71, Luyuan Road, Keyuancheng, Tangxia Town, Dongguan, Guangdong, China

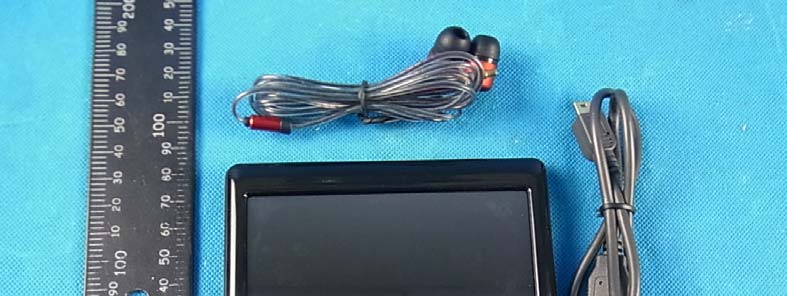

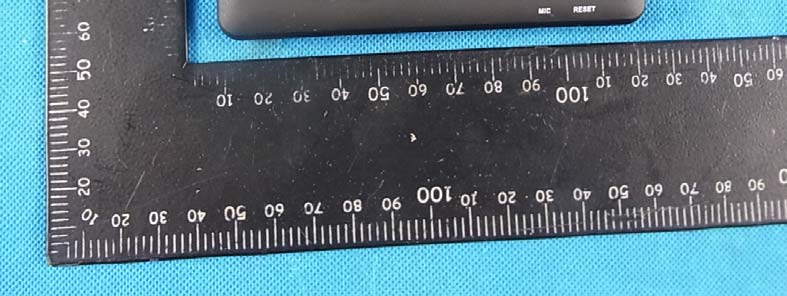

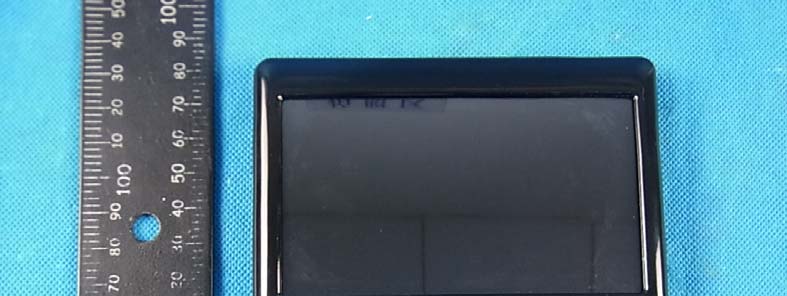

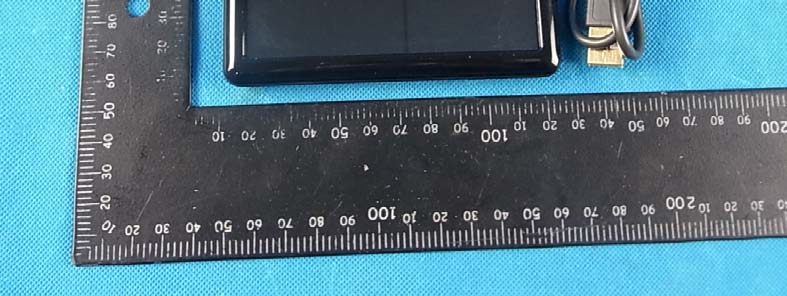

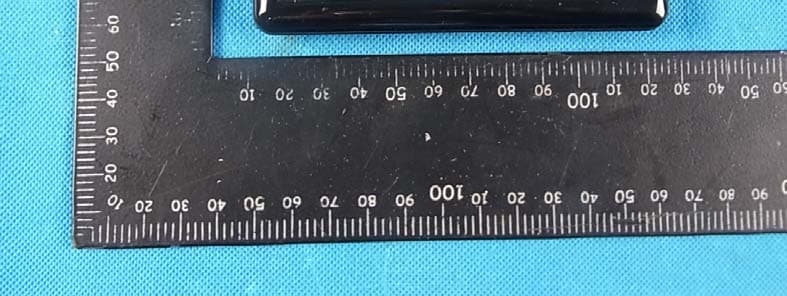

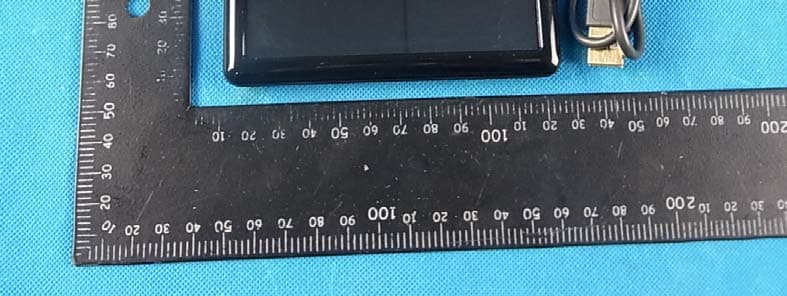

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17

FCC RF Exposure FCC ID: RIJES401 Frequency: 2412-2472 MHz (11 channels) Modulation: DSSS, OFDM Mid-Channel: 2.437 GHz (channel 6) Mid-Channel Peak Power Conducted, or highest Conducted: 11.85 dBm Antenna Gain: G = 1 dBi Peak, Radiated = 11.85 dBm + 1 dBi = 12.85 dBm = 19.28 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: The Calculated Radiated Peak output power is taken as worst case, and the distance for SAR exclusion at 19.28 mW is 10 to 15 mm distance. This device is a handheld or table/desk top positioned, inside the product enclosure, the (internal) antenna is positioned more than 15 mm away from the outside surface of the plastic shell (the product enclosure). Conclusion: Given the position and distance this device is used towards the body, this device emits under the exposure limit, and is excluded for SAR evaluation, so PASS.

FCC RADIO TEST REPORT FCC ID: RIJES401 Product： MID Trade Name： N/A Model Name： ES401 Serial Model： N/A Report No.： NTEK- 2012NT1214545F Prepared for EPUDO（DongGuan）Digital Technology Co., Ltd. No.71, Luyuan Road, Keyuancheng, Tangxia Town, Dongguan, Guangdong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 72 Report No.: NTEK-2012NT1214545F TEST RESULT CERTIFICATION Applicant’s name ................. : EPUDO（DongGuan）Digital Technology Co., Ltd. Address ................................. : No.71, Luyuan Road, Keyuancheng, Tangxia Town, Dongguan, Guangdong, China Manufacture's Name ............ : EPUDO（DongGuan）Digital Technology Co., Ltd. Address ................................. : No.71, Luyuan Road, Keyuancheng, Tangxia Town, Dongguan, Guangdong, China Product description Product name ........................... : MID Model and/or type reference : ES401 Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 14 Dec. 2012 ~18 Dec. 2012 Date of Issue ........................................... : 19 Dec. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 72 Report No.: NTEK-2012NT1214545F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 54 4.1 APPLIED PROCEDURES / LIMIT 54 4.1.1 TEST PROCEDURE 54 4.1.2 DEVIATION FROM STANDARD 54 4.1.3 TEST SETUP 54 4.1.4 EUT OPERATION CONDITIONS 54 4.1.5 TEST RESULTS 55 5 . BANDWIDTH TEST 61 5.1 APPLIED PROCEDURES / LIMIT 61 5.1.1 TEST PROCEDURE 61 Page 4 of 72 Report No.: NTEK-2012NT1214545F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 61 5.1.3 TEST SETUP 61 5.1.4 EUT OPERATION CONDITIONS 61 5.1.5 TEST RESULTS 62 6 . PEAK OUTPUT POWER TEST 68 6.1 APPLIED PROCEDURES / LIMIT 68 6.1.1 TEST PROCEDURE 68 6.1.2 DEVIATION FROM STANDARD 68 6.1.3 TEST SETUP 68 6.1.4 EUT OPERATION CONDITIONS 68 6.1.5 TEST RESULTS 69 7 . ANTENNA REQUIREMENT 70 7.1 STANDARD REQUIREMENT 70 7.2 EUT ANTENNA 70 8 . EUT TEST PHOTO 71 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 72 Report No.: NTEK-2012NT1214545F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 72 Report No.: NTEK-2012NT1214545F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 72 Report No.: NTEK-2012NT1214545F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment MID Trade Name N/A Model Name ES401 Serial Model N/A Model Difference N/A Product Description The EUT is a MID Operation Frequency: 802.11b/g/n:2412~2462 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n: 78/52/6.5 Mbps Number Of Channel 802.11b/g/n: 11CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 11.85 dBm (Max.) 802.11g: 8.83 dBm (Max.) 802.11n: 7.69 dBm (Max.) Antenna Gain (dBi) 1.0dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Ratings DC 5.0V Adapter N/A Battery Rated Vo…

Text truncated - open the document above for the full version.

Page 71 of 72 Report No.: NTEK-2012NT1214545F 8. EUT TEST PHOTO Radiated Measurement Photos Page 72 of 72 Report No.: NTEK-2012NT1214545F Conducted Measurement Photos
