TABLET ES907HQ 1 Attention This handbook contains important security information and instructions for the correct use of the product to avoid damages or accidents. Please make sure to read the manual carefully before use the device. 1. Please do not place the device in a high temperature, moisture or dusty place also liquids will damage the device and touch screen. 2. Please do not leave the device in high temperature places especially in summer do not store the device inside a car. 3. Avoid drop, fall or violent collision of the device, do not apply excessive pressure to the display, also vibration could cause the abnormal display of partial or complete damage to the screen. 4. Please choose the appropriate volume level and when using headphones adjust the volume to a safe level of comfort. 5. Please charge the device with the original charger as follows : When the battery power ICONS shows have low or no power. If system automatically shut off, startup after power off soon Or when the operation buttons do not respond. When the device top right corner show red icons. 6. When the device in the format or upload and download a file Please, do not suddenly disconnect the power, this could cause applications error or internal memory damages. 7. In case of any user damage to the product, repair, or other causes of erased the memory, the company shall not be liable for any responsibility, please follow the user manual for the standard operation of the device. 8. Do not disassemble the product or apply any cleaning liquids. 9. Do not use the device one of the place of prohibit the use electronic equipment in regional (such as the plane). 10. Please do not use the Tablet PC when you in driving or walking. 11. Do not charge or connect the device with a non original part. 2 Tablet Parts Name Function 1) Camera Front 0.3MP, Rear 2.0MP 2) Power Keep pressed to turn on/off the tablet and gently press to activate standby. 3) Reset When the Tablet under the condition of crash, use the small object to short press RESET button, Tablet will force shutdown. 4) Earphone jack Connect earphone to this standard 3.5mm jack 5) Host Port PC connection peripheral connection through cable for external memory and power adapter 6) HOME Key Exit from the current function or return to the previous page 7) TF card slot Insert memory card (up to 32GB) 3 Getting Started Battery Charging The tablet has a built-in rechargeable Li-polymer battery. 1. To charge connect the AC power adapter to the HOST port. 2. The battery icon shows the battery status and charging level. 3. The tablet can be used even if the battery is being charged. Use carefully to avoid the damages of power cord or HOST port. 4. Do not remove or puncture the battery this can cause an explosion or hazard situation may happen. 5. Recharge it for at least half hour if it has been idle for long time and fails to start, also do not leave the battery empty of charge 6. Regularly charge the tablet at least once a month to prevent battery damage. Do not charge battery for more than 6 hours. Disposal The battery contain polluting and toxic materials, please contact the official recycling location before disposing the tablet pc. 4 Power ON Press and hold the button for 5 seconds until screen turns ON. Power OFF Press and hold the button for continuous 5 seconds and it will appear On screen the power options then select OK to power OFF the tablet Screen Lock This feature locks the screen, at the same time turn OFF the screen backlight after a few seconds normally the screen locks when: 1. System is idle. 2. Manually activated by pressing the Power button once. Screen unlock Home screen The Home screen will look similar to the picture below. It is actually five screens, each of can have a different layout of icons. To switch between screens, simply slide your finger left or right across the display. The status bar and navigation buttons are always visible. 5 The Desktop contains shortcuts to your most used applications and widgets touch the screen icon to quickly do a search in the internet . The icon will launch the application menu. The status bar displays system information, such as current time, wireless connectivity and battery. Touch to expand the status bar for more detailed information. The button moves back one step to the previous menu/page. The buttons returns immediately to the main desktop. The button display a menu of recently opened applications. Settings Menu The settings menu allows you to adjust Tablet system configuration. To change settings: Touch the "Settings" menu icon on the application menu. 1. Guide your finger up or down the left side of the screen to scroll through the list of available categories. 2. Touch a category to view further options on the right side of the screen. Connect to disconnect from wireless networks, view connection status Data usage - Enable / disable mobile data, view current usage, set mobile data limit (this function is available only on devices supplied with 3G card) Sound - Change volume, touch sound, screen lock sounds etc. Display - Change brightness, wallpaper, sleep settings, font size etc. Storage - Manage NAND and TF card, view available capacity etc. Battery - See battery status and power usage by applications. Apps - Manage applications, running services etc. Accounts - Manage accounts etc. 6 Location services - Change approximate location detection, improve search results. Security - Change screen lock type, encryption, password, credential storage etc. Language & input Select language, add to the dictionary, edit on-screen keyboard settings, vocal search, etc. Backup & reset - Backup & restore data, perform factory reset, etc. Date & time - Set date, time zone, time, clock format etc. Accessibility - Set up large text, auto-rotate screen, speak password etc Developer options - Advanced functions for Android developers - debugging, HDCP check etc. About tablet - Information about your device software versio…

Text truncated - open the document above for the full version.

EPUDO(DongGuan)Digital Technology Co.Ltd Model Difference FCC ID: RIJES907HQ Model : ES907HQ, ES907HD, VX-ES907 All the model are the same circuit and RF module,except the model name and colour. Regards, Client’s signature Signature Client’s name / title : tan zhongliang / Engineer Contact information / address : NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 EPUDO(DongGuan)Digital Technology Co.Ltd 2015-06-12 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ EPUDO(DongGuan)Digital Technology Co.Ltd __ hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Tablet Trade Name： N/A Model Name： ES907HQ Serial Model： ES907HD, VX-ES907 FCC ID： RIJES907HQ Sincerely, Signature Client’s name / title : tan zhongliang / Engineer Contact information / address : NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 EPUDO(DongGuan)Digital Technology Co.Ltd 2015-06-12 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RIJES907HQ We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title : tan zhongliang / Engineer Contact information / address : NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China

EPUDO(DongGuan)Digital Technology Co.Ltd WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : RIJES907HQ Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: EPUDO(DongGuan)Digital Technology Co.Ltd Address : NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan,Guangdong,China Name / Title : tan zhongliang / Engineer Signature : Phone : 0755-61156588 Email : [email protected] Date : 0755-61156588

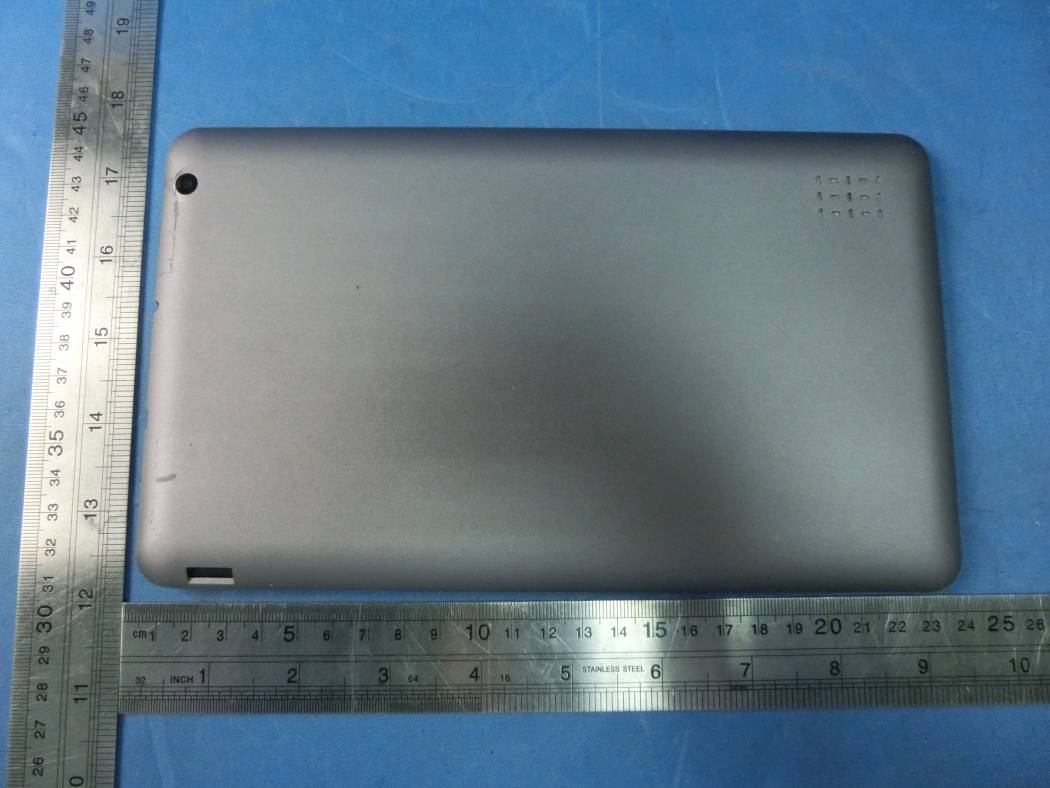

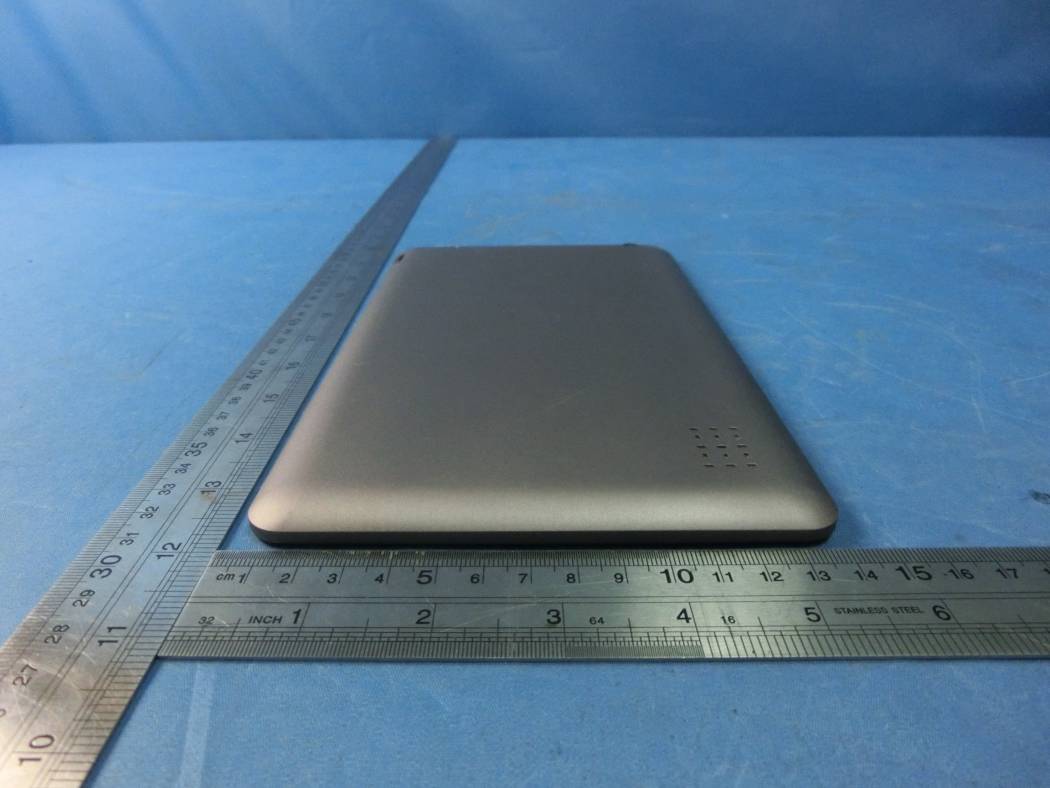

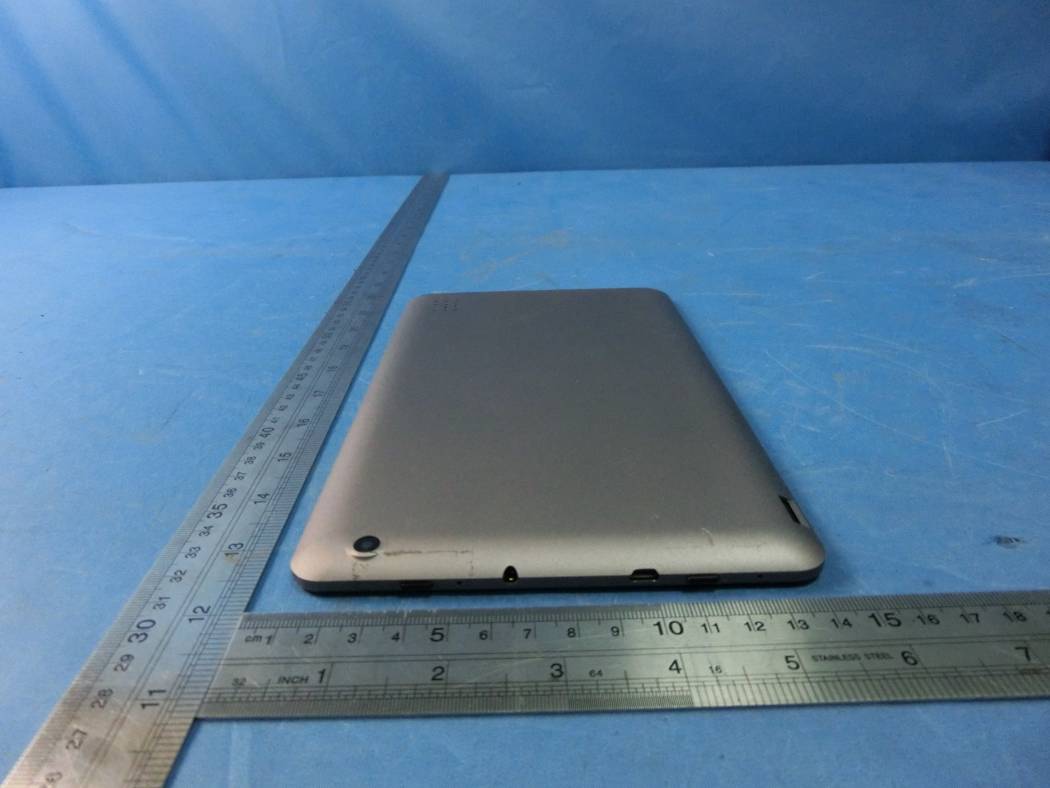

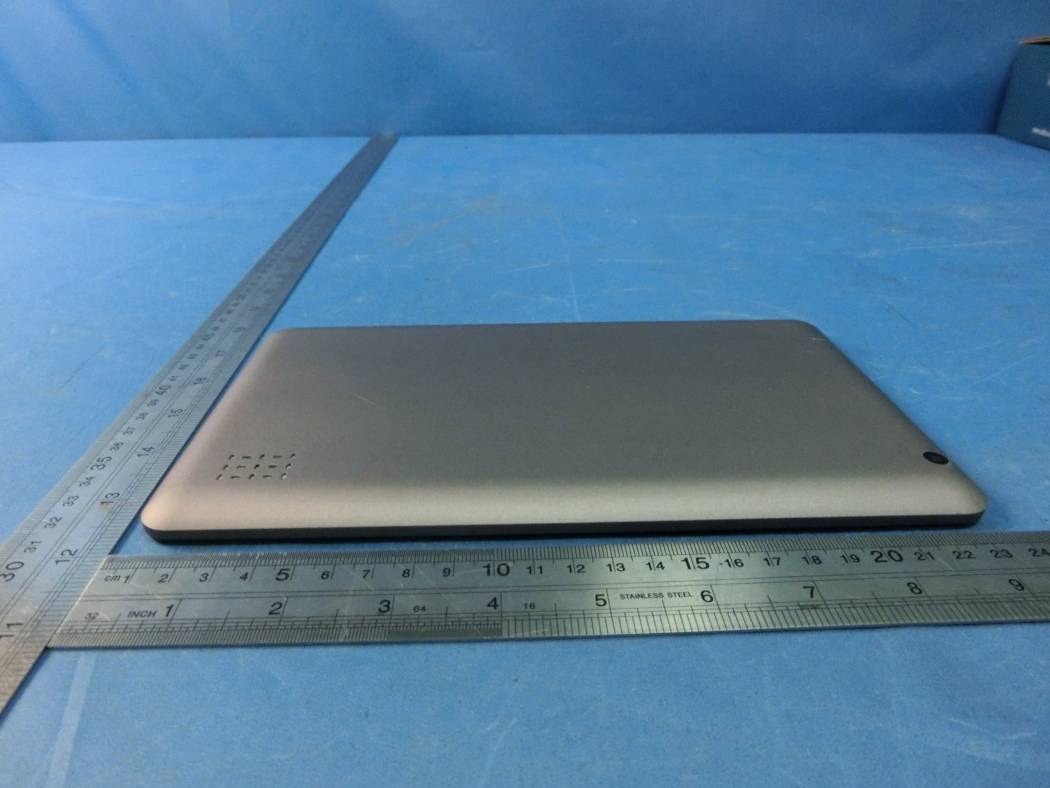

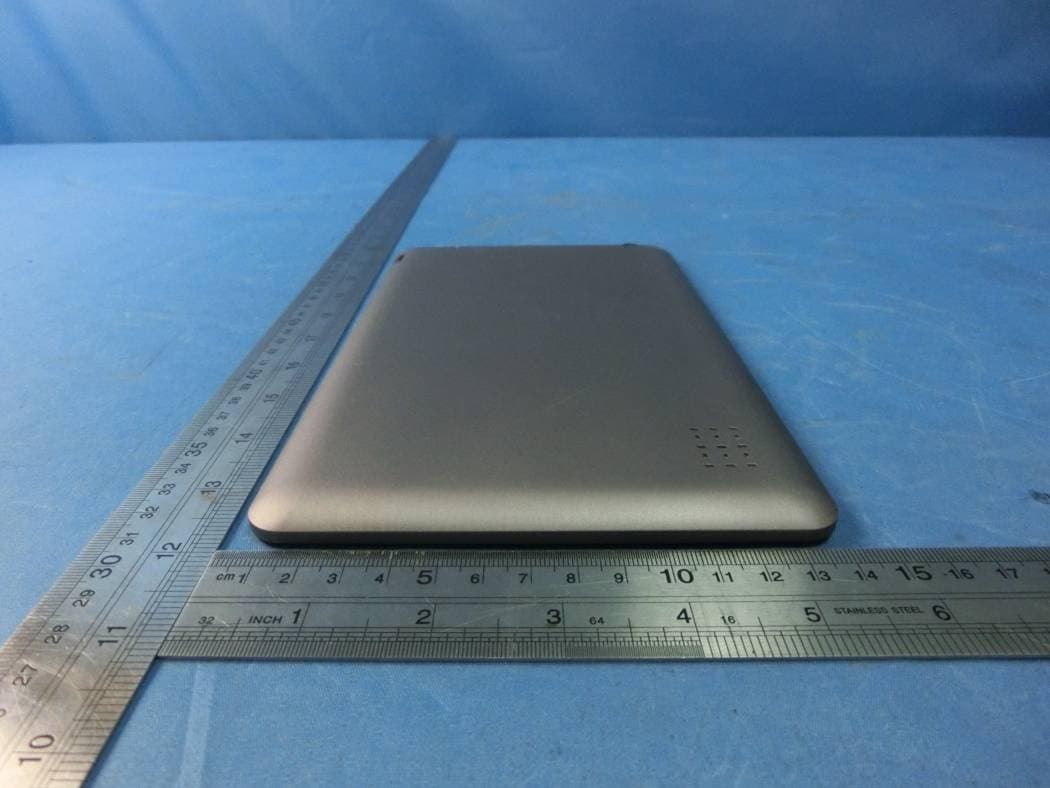

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Tablet Model Name：ES907HQ FCC ID: RIJES907HQ This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Wifi &BT Antenna Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

FCC ID : RIJES907HQ RF EXPOSURE EVALUATION METHOD FCC ID: RIJES907HQ SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. WIFI: TX 802.11b Mode Te s t Channe Frequency Maximum Peak Conducted Output Power（PK） Maximum Peak Conducted Output Power（AV） Maximum Peak Conducted Output Power （AV） (MHz) (dBm) (dBm) mW CH01 2412 12.67 9.59 9.099 CH06 2437 12.74 9.46 8.831 CH11 2462 12.36 9.48 8.872 TX 802.11g Mode CH01 2412 11.05 8.04 6.368 CH06 2437 10.88 7.87 6.124 CH11 2462 11.03 8.02 6.339 TX 802.11n(20) Mode CH01 2412 10.02 7.38 5.470 CH06 2437 9.87 7.23 5.284 CH11 2462 9.68 7.04 5.058 TX 802.11n(40) Mode CH03 2422 9.05 6.63 4.603 CH06 2437 8.87 6.45 4.416 CH09 2452 9.64 7.22 5.272 FCC ID : RIJES907HQ BT 3.0 1Mbps Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 6.07 4.046 CH39 2441 6.21 4.178 CH78 2480 6.21 4.178 2Mbps CH00 2402 7.43 5.534 CH39 2441 7.45 5.559 CH78 2480 7.41 5.508 3Mbps CH00 2402 7.61 5.768 CH39 2441 7.63 5.794 CH78 2480 7.64 5.808 BT 4.0 Te s t Channe Frequency Maximum Conducted Output Power(PK) Maximum Conducted Output Power(PK) (MHz) (dBm) mW CH00 2402 6.97 4.977 CH19 2440 6.64 4.613 CH39 2480 6.87 4.864 Remark: The best case gain of the antenna is -4.5dBi. -4.5 dBi logarithmic terms convert to numeric result is nearly 0.35 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID : RIJES907HQ WIFI: Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit TX 802.11b Mode CH01 7.6~9.6 9.6 9.120 5 2.412 2.83 3 CH06 7.6~9.6 9.6 9.120 5 2.437 2.85 3 CH11 7.6~9.6 9.6 9.120 5 2.462 2.86 3 TX 802.11g Mode CH01 7.0~9.0 9.0 7.943 5 2.412 2.47 3 CH06 7.0~9.0 9.0 7.943 5 2.437 2.48 3 CH11 7.0~9.0 9.0 7.943 5 2.462 2.49 3 TX 802.11n-HT20 Mode CH01 6.0~8.0 8.0 6.310 5 2.412 1.96 3 CH06 6.0~8.0 8.0 6.310 5 2.437 1.97 3 CH11 6.0~8.0 8.0 6.310 5 2.462 1.98 3 TX 802.11n-HT40 Mode CH03 6.0~8.0 8.0 6.310 5 2.422 1.96 3 CH06 6.0~8.0 8.0 6.310 5 2.437 1.97 3 CH09 6.0~8.0 8.0 6.310 5 2.452 1.98 3 BT 3.0 Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit 1Mbps CH00 6.0~8.0 8.0 6.310 5 2.402 1.956 3 CH39 6.0~8.0 8.0 6.310 5 2.441 1.972 3 CH78 6.0~8.0 8.0 6.310 5 2.480 1.987 3 2Mbps CH00 6.0~8.0 8.0 6.310 5 2.402 1.956 3 CH39 6.0~8.0 8.0 6.310 5 2.441 1.972 3 CH78 6.0~8.0 8.0 6.310 5 2.480 1.987 3 3Mbps CH00 6.0~8.0 8.0 6.310 5 2.402 1.956 3 CH39 6.0~8.0 8.0 6.310 5 2.441 1.972 3 CH78 6.0~8.0 8.0 6.310 5 2.480 1.987 3 FCC ID : RIJES907HQ BT 4.0 Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit CH00 6.0~8.0 8.0 6.310 5 2.402 1.956 3 CH39 6.0~8.0 8.0 6.310 5 2.441 1.972 3 CH78 6.0~8.0 8.0 6.310 5 2.480 1.987 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT-BLE FCC ID: RIJES907HQ Product： Tablet Trade Name： N/A Model Name： ES907HQ Serial Model： ES907HD, VX-ES907 Report No.： NTEK-2015NT05161740F2 Prepared for EPUDO(DongGuan)Digital Technology Co.Ltd NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 38 Report No.: NTEK-2015NT05161740F2 TEST RESULT CERTIFICATION Applicant’s name ........ EPUDO(DongGuan)Digital Technology Co.Ltd Address ........................ NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China Manufacture's Name ... EPUDO(DongGuan)Digital Technology Co.Ltd Address ........................ NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China Product description Product name .................Tablet Model and/or type reference ..................... ES907HQ Serial Model .................... ES907HD, VX-ES907 Standards .................... FCC Part15.247: 01 Oct. 2014 Test procedure ................ ANSI C63.10-2013 and KDB 558074: June 5, 2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 16 May 2015~29 May 2015 Date of Issue ........................................... : 29 May 2015 Test Result ............................................... : Pass Testing Engineer : (Eileen Liu) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 38 Report No.: NTEK-2015NT05161740F2 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . BANDWIDTH TEST 28 5.1 APPLIED PROCEDURES / LIMIT 28 5.1.1 TEST PROCEDURE 28 Page 4 of 38 Report No.: NTEK-2015NT05161740F2 Table of Contents Page TEST SETUP 28 5.1.2 EUT OPERATION CONDITIONS 28 5.1.3 TEST RESULTS 29 6 . PEAK OUTPUT POWER TEST 31 6.1 APPLIED PROCEDURES / LIMIT 31 6.1.1 TEST PROCEDURE 31 6.1.2 DEVIATION FROM STANDARD 31 6.1.3 TEST SETUP 31 6.1.4 EUT OPERATION CONDITIONS 31 6.1.5 TEST RESULTS 32 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 33 7.1 DEVIATION FROM STANDARD 33 7.2 TEST SETUP 33 7.3 EUT OPERATION CONDITIONS 33 7.4 TEST RESULTS 34 8 . ANTENNA REQUIREMENT 36 8.1 STANDARD REQUIREMENT 36 8.2 EUT ANTENNA 36 9 . EUT TEST PHOTO 37 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 38 Report No.: NTEK-2015NT05161740F2 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 38 Report No.: NTEK-2015NT05161740F2 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 38 Report No.: NTEK-2015NT05161740F2 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Tablet Trade Name N/A Model Name ES907HQ Serial Model ES907HD, VX-ES907 Model Difference All the model are the same circuit and RF module, except the model name and colour. Product Description The EUT is a Tablet Operation Frequency: 2402~2480MHz Modulation Type: GFSK Number Of Channel 40CH Antenna Designation: Please see Note 3. Antenna Gain (dBi) -4.5dBi Channel List Please refer to the Note 2. Ratings DC 3.7V Adapter Mode : WTA0502000USB1 Input: 100-240V~, 50/60Hz, 0.3A Output: 5V , 2000mA Battery DC 3.7V, 5000mAh Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s s…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT FCC ID: RIJES907HQ Product： Tablet Trade Name： N/A Model Name： ES907HQ Serial Model： ES907HD, VX-ES907 Report No.： NTEK-2015NT05161740F3 Prepared for EPUDO（DongGuan）Digital Technology Co.Ltd NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 54 Report No.: NTEK-2015NT05161740F3 TEST RESULT CERTIFICATION Applicant’s name ........ EPUDO（DongGuan）Digital Technology Co.Ltd Address ........................ NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China Manufacture's Name ... EPUDO（DongGuan）Digital Technology Co.Ltd Address ........................ NO.5,The fifth keyuan Road,Keyuancheng,Tangxia Town,Dongguan, Guangdong,China Product description Product name .................Tablet Model and/or type reference ..................... ES907HQ Serial Model .................... ES907HD, VX-ES907 Standards .................... FCC Part15.247 01 Oct. 2014 Test procedure ................ ANSI C63.10-2013 and KDB 558074: June 5, 2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ...................................... Date (s) of performance of tests ....... 16 May 2015~29 May 2015 Date of Issue ..................................... 29 May 2015 Test Result ......................................... Pass Testing Engineer : (Eileen Liu) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 54 Report No.: NTEK-2015NT05161740F3 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . BANDWIDTH TEST 34 5.1 APPLIED PROCEDURES / LIMIT 34 5.1.1 TEST PROCEDURE 34 Page 4 of 54 Report No.: NTEK-2015NT05161740F3 Table of Contents Page TEST SETUP 34 5.1.2 EUT OPERATION CONDITIONS 34 5.1.3 TEST RESULTS 35 6 . PEAK OUTPUT POWER TEST 43 6.1 APPLIED PROCEDURES / LIMIT 43 6.1.1 TEST PROCEDURE 43 6.1.2 DEVIATION FROM STANDARD 43 6.1.3 TEST SETUP 43 6.1.4 EUT OPERATION CONDITIONS 43 6.1.5 TEST RESULTS 44 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 45 7.1 DEVIATION FROM STANDARD 45 7.2 TEST SETUP 45 7.3 EUT OPERATION CONDITIONS 45 7.4 TEST RESULTS 46 8 . ANTENNA REQUIREMENT 52 8.1 STANDARD REQUIREMENT 52 8.2 EUT ANTENNA 52 9 . EUT TEST PHOTO 53 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 54 Report No.: NTEK-2015NT05161740F3 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 54 Report No.: NTEK-2015NT05161740F3 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 54 Report No.: NTEK-2015NT05161740F3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Tablet Trade Name N/A Model Name ES907HQ Serial Model ES907HD, VX-ES907 Model Difference All the model are the same circuit and RF module, except the model name and colour. Product Description Operation Frequency: 802.11b/g/n(20MHz): 2412~2462MHz 802.11n(40MHz):2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz/40MHz):150/144.44/1 30/117/115.56/104/86.67/78/52/6.5Mb ps Number Of Channel 802.11b/g/n20MHz:11CH 802.11n40MHz:7CH Antenna Designation: Please see Note 3. Antenna Gain (dBi) -4.5dbi Channel List Please refer to the Note 2. Ratings DC 3.7V Adapter Mode : WTA0502000USB1 Input: 100-240V~, 50/60Hz…

Text truncated - open the document above for the full version.

Radiated Measurement Photos CONDUCTED EMISSION Photos
