RIO-64RCTRANS271/64 R/C CAR 27MHz

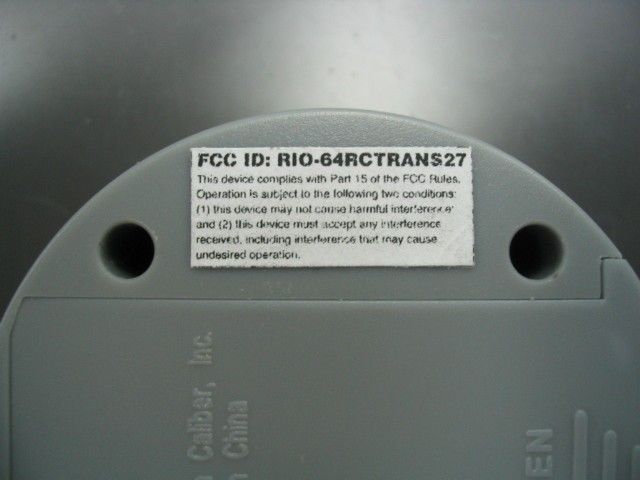

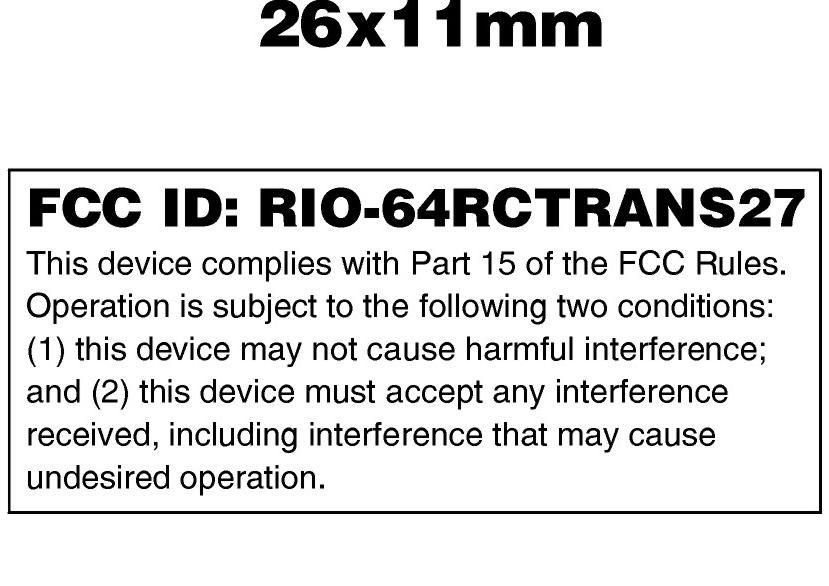

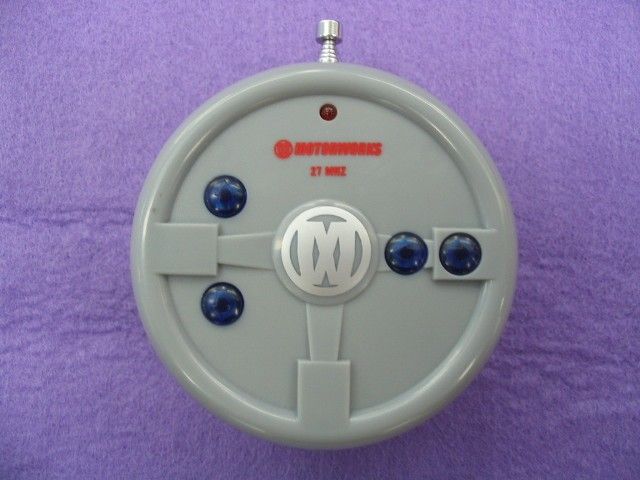

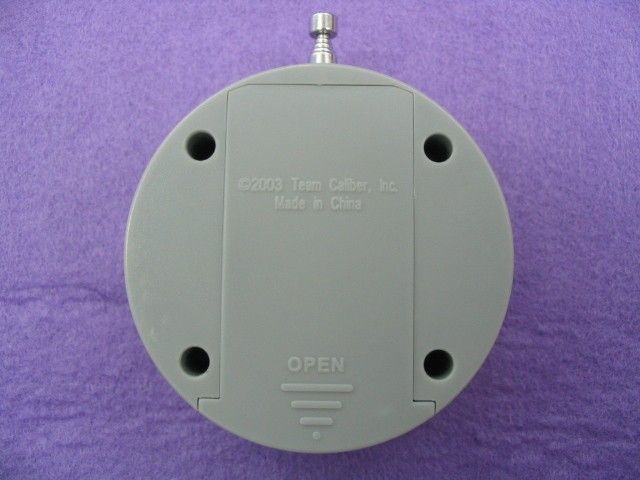

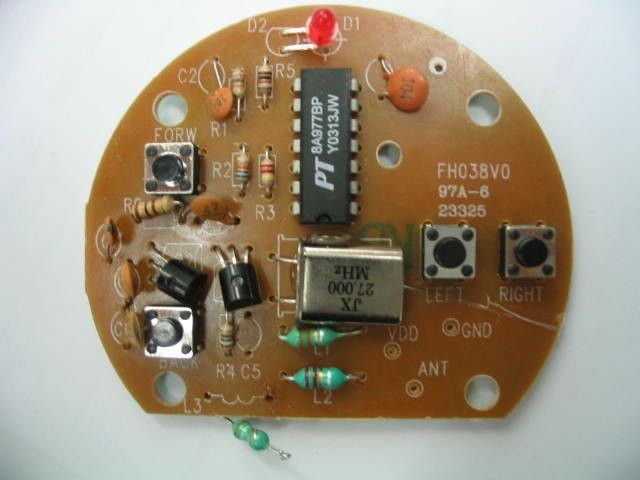

Operation Description of transmitter for 1/64 R/C Car 27MHz The 1/64 R/C Car 27MHz is a transmitter operating at 27.0 MHz which is controlled by a crystal. It is powered by 1.5V x 2pcs of ìAAî size battery. There are four buttons in the front of the transmitter. When the forward or backward button pressed once, it will transmit a radio frequency for receiver going forward or backward. When the left or right button pressed once, it will transmit a radio frequency for receiver turn left or right. Refer to the circuit design, the circuit description is listed as follows: - Q1, X1 and associated circuit act as oscillator - Q2 and associated circuit act as amplifier - TX2 and associated circuit act as encode - R3 and associated circuit act as oscillator for TX2

1 2 3 4 ABCD 4 3 2 1 D CBA Title Numb er R evision Size A4 Date: 1-No v-2003 Sh eet of File: F:\ \ \ \F CC .d db
    Drawn By: 27 MHz L2 2. 2uH L1 3. 3uH R 2 56 K R 51K Q1C 945 Q2 C 945 R 415 0 R 3 22 0K R 1 20 K C 447 p C 656 P C 1 10 0p C 2 10 0P C 747 p LEFT R IGHT B AC KWAR D FORW AR D 1234567 89 1011121314 LED2 B + L3 3. 9uH T X - 2 C 3 10 4 R 610 0

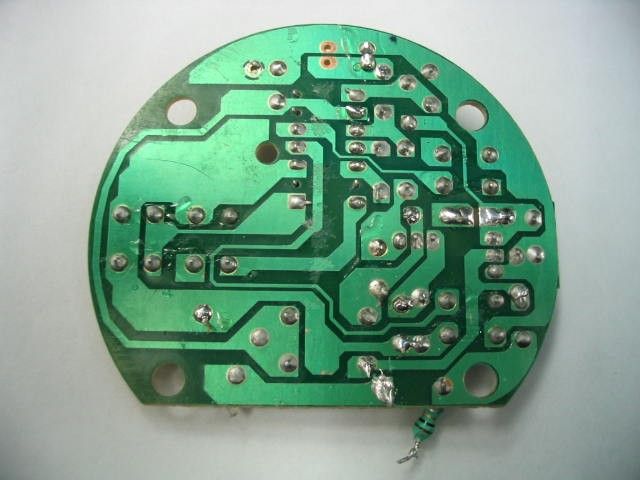

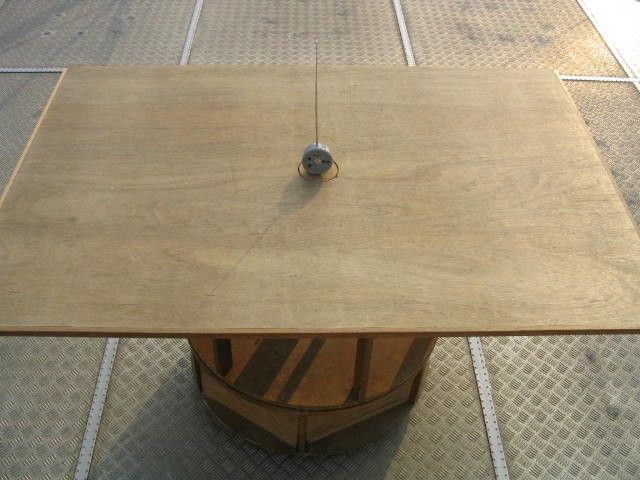

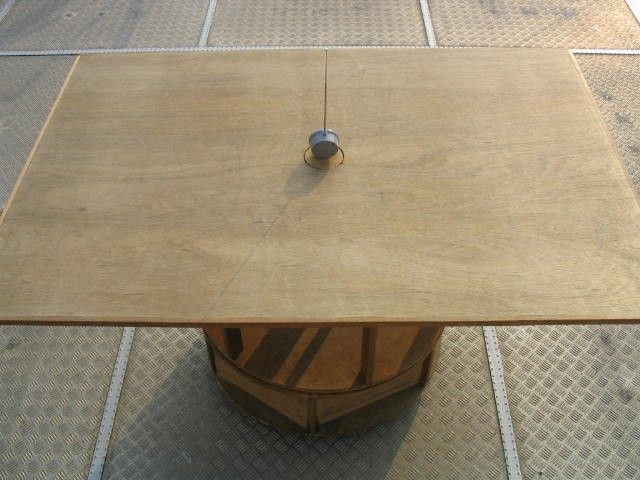

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019292-1 Date : 2003 November 04 Client : Team Caliber, Inc. 4606 Roush Place Concord, North Carolina, U.S.A. Sample Description : One(1) submitted sample stated to be 1/64 R/C Car – 27 MHz of Model No. 64RCTRANS27 . Rating : 2 x 1.5 V AA size batteries No. of sample(s) : Two(2) sets *** Date Received : 2003 October 27. Test Period : 2003 October 27 – 2003 November 03. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : RIO-64RCTRANS27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019292-1 Date : 2003 November 04 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : RIO-64RCTRANS27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019292-1 Date : 2003 November 04 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1/64 R/C Car – 27 MHz operating at 27.0 MHz which is controlled by a crystal. The EUT is powered by 1.5 V x 2 pcs of “AA” size battery. There are four buttons in the front of the transmitter. When the forward or backward button pressed once, it will transmit a radio frequency for receiver going forward or backward. When the left or right button pressed once, it will transmit a radio frequency for receiver turn left or right. The brief circuit description is listed as follows : - Q1, X1 and associated circuit act as oscillator - Q2 and associated circuit act as amplifier - TX2 and associated circuit act as encoder - R3 and associated circuit act as oscillator for TX2 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : RIO-64RCTRANS27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD019292-1 Date : 2003 November 04 1.3 Location of the test site Radiated emissions meas…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AD019292-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AD019292-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AD019292-1 Duty Cycle 2 Duty Cycle 3
