RIQAM-580Land Mobile Radio

4x256 Memory Channels CTCSS/DCS/2TONE/5TONE DTMF-ANI/5TONE-ANI Compander Detachable Front Panel AM-580 FCC ID:RIQAM-580 USER'S MANUAL Dual Band Mobile Radio Applicable Software: PS_580 Model Apply To This Manual: Dual Band Mobile Radio Nice Housing, Stoutness & Stability, Advanced and Reliable functions, Perfect & Valuable. Dual Band mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality. NOTE 580 Precautions Please observe the following precautions to prevent fire, personal injury, or transceiver damage: Do not attempt to configure your transceiver while driving,it is dangerous. This transceiver is designed for a 13.8V DC power supply. Don't use a 24V battery to power on the transceiver. D o n o t p l a c e t h e t r a n s c e i v e r i n excessively dusty, humid or wet areas, nor unstable surfaces. Please keep it away from interferential devices (such as TV, generator etc.) Do not expose the transceiver to long periods of direct sunlight nor place it close to heating appliances. If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an the service station or your dealer. Do not transmit with high output power for extended periods; the transceiver may overheat. Thank you for choosing this mobile transceiver, which always provide high quality products, and this transceiver is no exception. The transceiver is a ruggedly-built, high quality Dual band FM transceiver providing 50 Watts of power output on the VHF band and 40 Watts on the UHF band. It owns many advanced characters like cross band repeat function, built with a direct-flow heat sink and thermostatically-controlled cooling fan maintaining a safe temperature for the transceiver's circuit. Dual band mobile radiao has four independent receiving bands, consist of UU, UV,VU,VV for dual receive and dual output, plus receiving for AM/FM signal of air band, marine band, PMR, etc.also able to receive FM/TV radio and analogue TV signal. It owns 758 memory channels, full duplex operation with independent volume and squelch controls, compander and built- in CTCSS/DCS, DTMF, 5TONE,2TONE signaling, detachable front panel for flexible installation. Though friendly design for user, this transceiver is technically complicated and some features may be new to you. Consider this manual to be a personal tutorial from the designers,allow the manual to guide you through the learning process now, then act as a reference in the coming years. 580 CONTENTS New and Innovative Features ...................................................1 Frequency Range ...................................................................1 Supplied Accessories/Optional Accessories ..........................2 Supplied Accessories ..............................................................2 Optional Accessories ..............................................................2 Initial Installation .......................................................................3 Mobile installation ...................................................................3 DC Power Cable Connection ..................................................4 Antenna Connection ...............................................................6 Accessories Connections ........................................................7 Getting Acquainted ...................................................................8 Front panel ..............................................................................8 Rear panel ..............................................................................9 DISPLAY .................................................................................9 microphone ...........................................................................10 Basic Operations .....................................................................11 Switching The Power On/Off .................................................11 Adjusting The Volume ..........................................................11 Switch between VFO and Channel mode .............................11 Adjusting Frequency .............................................................11 Adjusting Channel .................................................................11 Switch Between Main Band and Sub band ...........................12 Selecting the frequency band ...............................................12 Receiving ..............................................................................12 Squelch Off/Squelch Off Momentary .....................................12 Transmitting ..........................................................................12 Shortcut Operations ................................................................13 Squelch level Setup ..............................................................13 Transmit DTMF/2TONE/5TONE signaling ............................13 High/Mid/Low Power Switch .................................................13 Frequency Reverse ...............................................................13 Band-width Selection ............................................................13 Home Channel ......................................................................13 Hyper Memory channel .........................................................13 Dual Watch............................................................................14 Emergency Alarm ..................................................................14 Channel/Frequency Scan .....................................................14 Channel Scan Skip ...............................................................14 Channel Edit .........................................................................14 Scan range Limit ..................................................................14 Channel Copy .......................................................................14 Channel Delete ....................…

Text truncated - open the document above for the full version.

Dec.28, 2012 Federal Communication Commission Authorization and Evaluation Division FCC ID: RIQAM-580 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5:Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Access Device Integrated Communications Corp. Hanmin Chang/ Manager

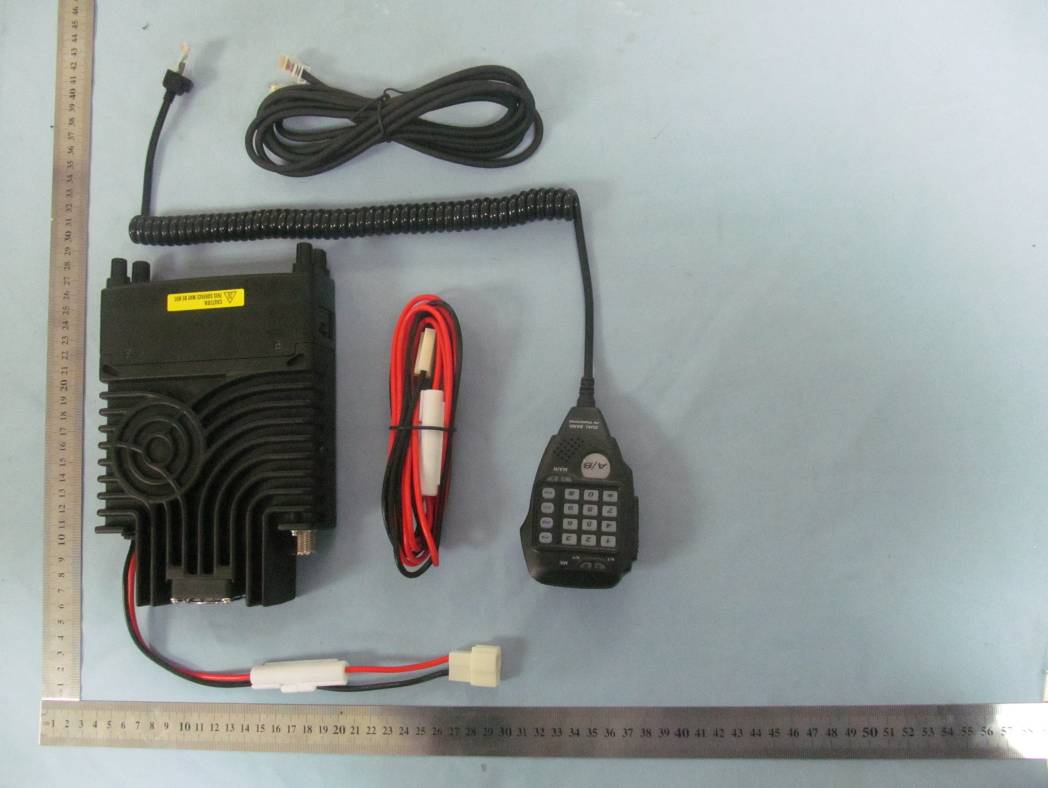

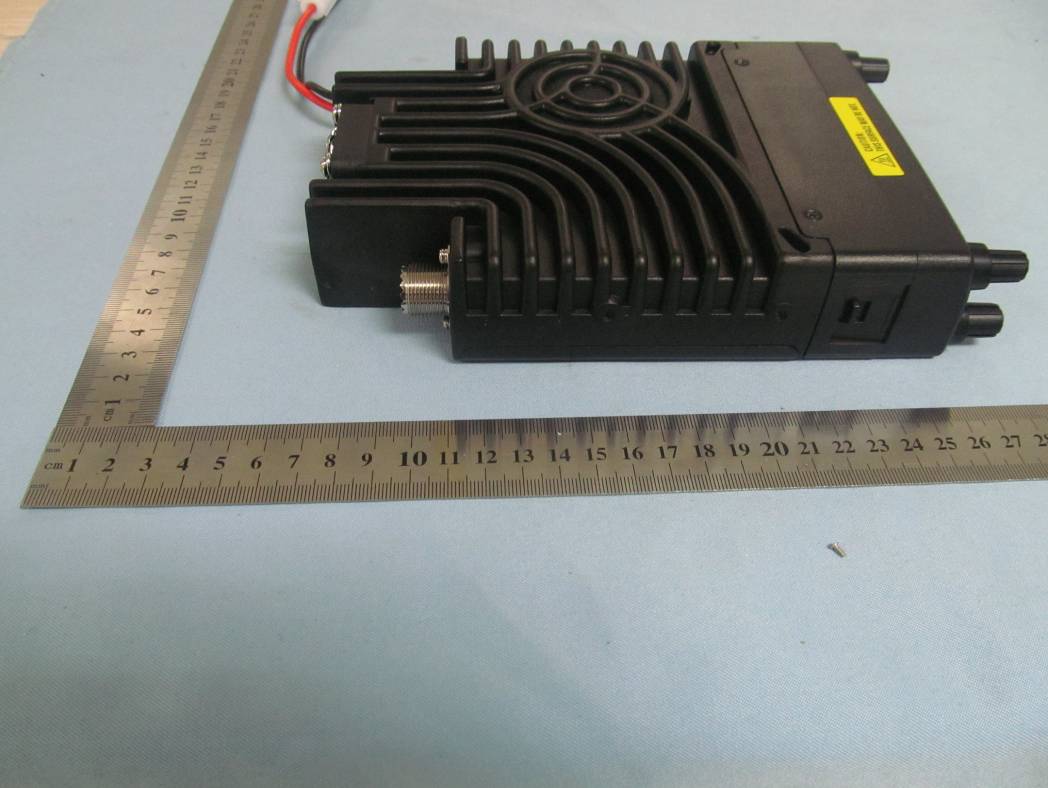

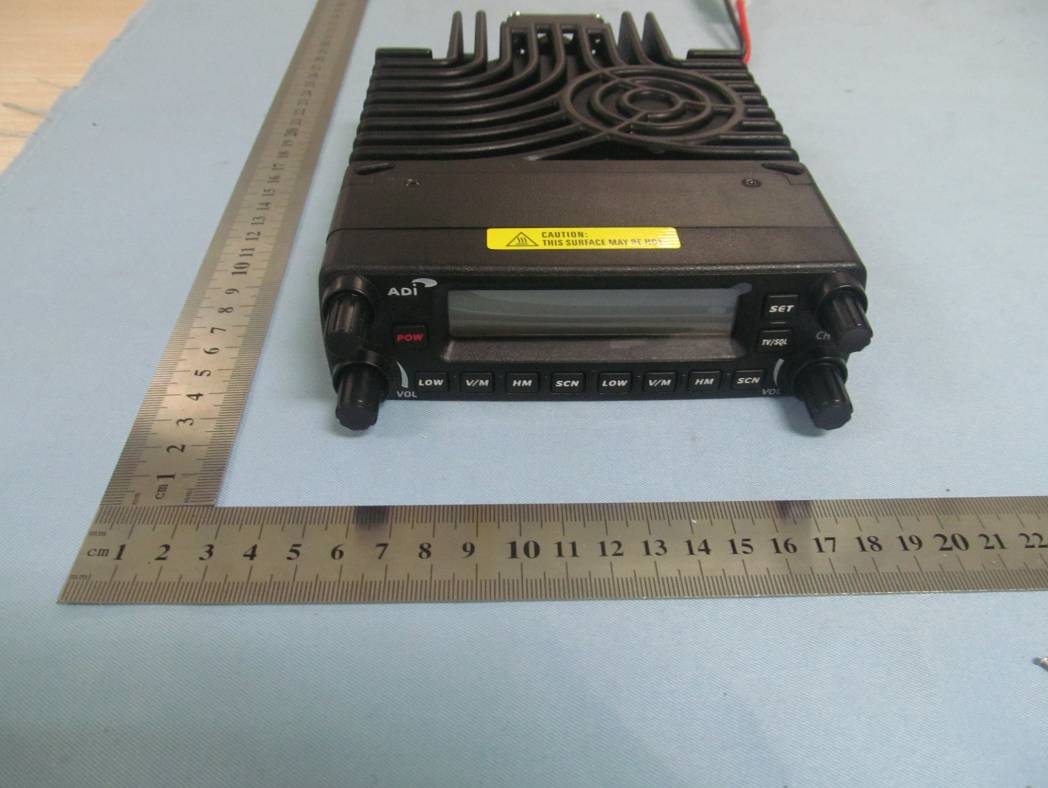

EXTERNAL VIEW OF EUT WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Land Mobile Radio Brand: ADI Model : AM-580 FCC ID: RIQAM-580

OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT

Report No.: AGC02X121201-2F7 Page 1 of 8 OET Bulletin 65 (MPE) Test Report Report No.: AGC02X121201‐2F7 FCC ID : RIQAM‐580 PRODUCT DESIGNATION : Land Mobile Radio BRAND NAME : ADI TEST MODEL : AM‐580 CLIENT : Access Device Integrated Communications Corp. DATE OF ISSUE : Dec.28, 2012 STANDARD(S) : OET Bulletin 65 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02X121201-2F7 Page 2 of 8 TABALE OF CONTENTS TABALE OF CONTENTS .................................................................................................................................. 2 1. TEST RESULT CERTIFICATION ................................................................................................................... 3 2. TECHNICAL INFORMATION ......................................................................................................................... 4 3. RF EXPOSURE MEASUREMENT ................................................................................................................. 5 3.1 INTRODUCTION ...................................................................................................................................... 5 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) .......................................................... 6 4. CLASSIFICATION OF THE ASSESSMENT METHODS ............................................................................... 7 5. EUT OPERATION CONDITION ..................................................................................................................... 7 6. TEST RESULTS ............................................................................................................................................. 8 Report No.: AGC02X121201-2F7 Page 3 of 8 1. TEST RESULT CERTIFICATION Applicant Name: Access Device Integrated Communications Corp. Address: No. 193, Sec. 1, Chungching Road, Taya, Taichung City 42862, Taiwan (R.O.C.) Manufacturer Name: Access Device Integrated Communications Corp. Address: No. 193, Sec. 1, Chungching Road, Taya, Taichung City 42862, Taiwan (R.O.C.) Product Designation Land Mobile Radio Brand Name ADI Test Model AM-580 Hardware Version: N/A Software Version: N/A Test Standard OET Bulletin 65 File Number: AGC02X121201-2F7 Date of Test: Dec.26, 2012 to Dec.28, 2012 We (AGC), Attestation of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Standard OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01). The results of testing in this report apply to the product/system which was tested only. Tested by Wall Huang Dec.28, 2012 Checked By Forrest Lei Dec.28, 2012 Authorized By Solger Zhang Dec.28, 2012 Report No.: AGC02X121201-2F7 Page 4 of 8 2. TECHNICAL INFORMATION Note: the following data is based on the information by the applicant. EUT DESCRIPTION The EUT is a Land Mobile Radio designed for voice communication. It is designed by way of utilizing the FM modulation achieves the system operating. A major technical description of EUT is described as following: Communication Type Voice / Tone only Type of Modulation F3E Emission Bandwidth 7.79KHz for VHF(max) 7.61KHZ for UHF(max) Peak Frequency Deviation 1.78 KHz Audio Frequency Response 11.03dB Maximum Transmitter Power 46.96dBm for VHF(max) 45.42dBm for UHF(max) Rating Power 46.99dBm for VHF(max) 45.44dBm for UHF(max) (It was fixed by the manufacturer, any individual can’t arbitrarily change it.) Antenna Designation Detachable Power Supply DC 13.8V by DC source Limiting Voltage DC 11.73V Operation Frequency Range and Channel Frequency Range:136MHz to 174MHz & 400MHz to 520MHz Channel Separation: 12.5KHz 136MHz to 174MHz: Top Channel: 173.975MHz, Centre Channel: 155.000MHz, Bottom Channel: 136.025MHz 400MHz to 520MHz: Top Channel: 519.975MHz, Centre Channel: 460.000MHz, Bottom Channel: 400.025MHz Frequency Tolerance 0.471ppm for VHF for VHF(max) 0.502ppm for UHF for UHF(max) Report No.: AGC02X121201-2F7 Page 5 of 8 3. RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. Report No.: AGC02X121201-2F7 Page 6 of 8 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. Report No.: AGC02X121201-2F7 Page 7 of 8 4. CLASSIFICATION OF THE ASSESSMENT …

Text truncated - open the document above for the full version.
