RIQAW68XDBDUAL BAND TWO-WAY RADIO

1 SQ L 4 S T P 7 ANI 8 V O X 5 DW 2 P W R 3 S C N 6 S QT 9 D T M F * V/M 0 S E T # F A/ B BAND PTT

FCC Declaration statement For volunteer, the receiver complies with the requirements of FCC part 15 Subpart B. ADI complies with FCC rules part 2.925(d) that the label shall be paermanently affixed to the equipment and shell be readily visible to the purchaser at the time of purchase: 1 This Dual Band Two-Way Radio has limited label space on the exterior of the unit.The FCC ID label is placed in the battery compartment. 2 The battery for these devices are designed for easy remival and that the labels will be visible whenever the battery are removed for charging or replacement. The Dual Band Two-Way Radio will be market without the battery installed. Sincerely yours, Access Device Integrated Communications Corp. Hanmin Chang/ Manager Fax: +866-4-25684163 Tel: +866-25600511 Ext:1331 E-mail:[email protected]

Access Device Integrated Communications Corp. Frequency Attestation Letter DATE: Dec 27, 2012 FCC ID: RIQAW68XDB Model: AW-68, AW-69,AW-68V,LT-9800,LT-9808 Dear Sir/Madam, We, Access Device Integrated Communications Corp. acknowledge that this device can only use the allowed frequency band from 136 MHz to 174 MHz, 400MHz to 406MHz and 406.1MHz to 480MHz in USA. Sincerely yours, Access Device Integrated Communications Corp. Hanmin Chang/ Manager Fax: +866-4-25684163 Tel: +866-25600511 Ext:1331 E-mail:[email protected]

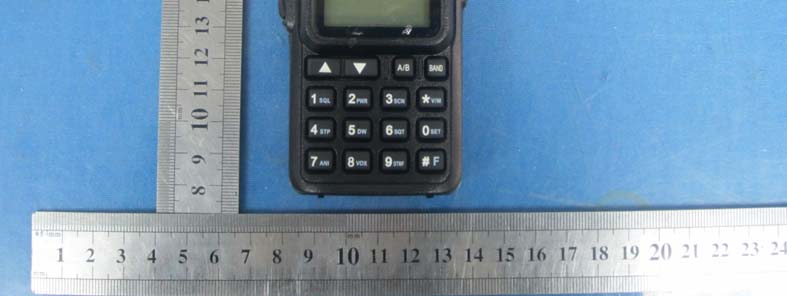

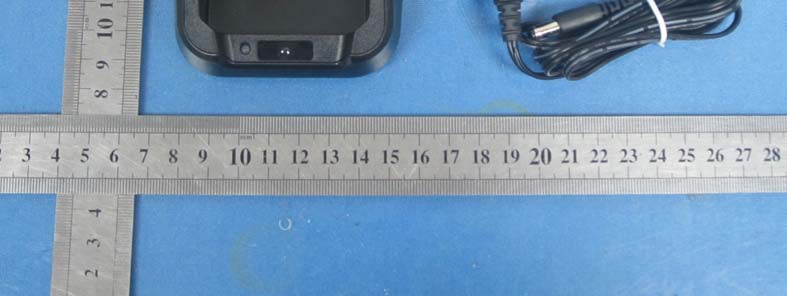

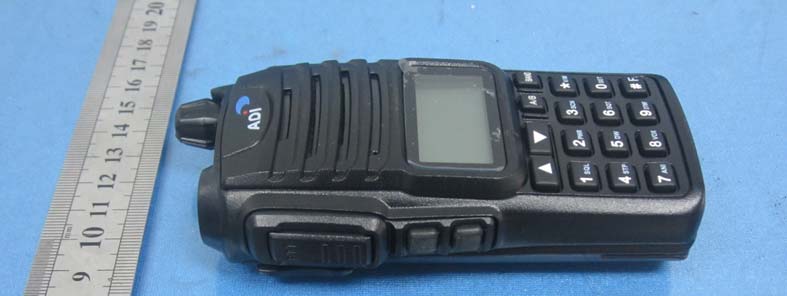

External photos of the EUT

FCC Label FCC RF Warning Label

Product Similarity Declaration To Whom It May Concern, We , Access Device Integrated Communications Corp. hereby declare that our (Dual Band Two-Way Radio ) Model Number: AW-69,AW-68V,LT-9800 and LT-9808 are electrically identical with the Model AW- 6 8. AW-68, AW-69,AW-68V,LT-9800 and LT-9808 are named differently due to marketing purposes Please contact me if you have any question. Sincerely yours, Access Device Integrated Communications Corp. Hanmin Chang/ Manager Fax: +866-4-25684163 Tel: +866-25600511 Ext:1331 E-mail:[email protected]

TEST REPORT OET 65C Report Reference No......................: FCC ID..............................................: TRE1212005902 R/C: 82236 RIQAW68XDB Compiled by ( position+printed name+signature)..: File administrators Tim Zhang Supervised by ( position+printed name+signature)..: Test Engineer Eric Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Dec 26, 2012 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Access Device Integrated Communications Corp. Address ............................................: No.193,Sec.1,Chungching Road,Taya,Taichung City 42862, Taiwan(R.O.C.) Test specification: Standard ...........................................: OET 65C TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Dual Band Two-Way Radio Trade Mark .......................................: / Manufacturer ....................................: Access Device Integrated Communications Corp. Model/Type reference.......................: AW-68 Listed Models ..................................: AW-69,AW-68V,LT-9800,LT-9808 Ratings .............................................: DC 7.4V Modulation .......................................: FM Channel Separation........................... 12.5KHz Rated Power ..................................... UHF: 4 Watts(36.02dBm)/1 Watts(30.00dBm) VHF: 5 Watts(36.98dBm)/1 Watts(30.00dBm) Operation Frequency Range ............. From 136 MHz to 174 MHz and 400MHz to 480MHz Result................................................: Positive Report No.: TRE1212005902 Page 2 of 60 Issued:2012-12-26 T E S T R E P O R T Test Report No. : TRE1212005902 Dec 26, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Dual Band Two-Way Radio Model /Type : AW-68 Listed Models : AW-69,AW-68V,LT-9800,LT-9808 Applicant : Access Device Integrated Communications Corp. Address : No.193,Sec.1,Chungching Road,Taya,Taichung City 42862,Taiwan(R.O.C.) Manufacturer : Access Device Integrated Communications Corp. Address : No.193,Sec.1,Chungching Road,Taya,Taichung City 42862,Taiwan(R.O.C.) Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1212005902 Page 3 of 60 Issued:2012-12-26 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. TEST Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. SAR Limits 7 3.5. Equipments Used during the Test 8 4. SAR MEASUREMENTS SYSTEM CONFIGURATION 9 4.1. SAR Measurement Set-up 9 4.2. DASY5 E-field Probe System 10 4.3. Phantoms 11 4.4. Device Holder 11 4.5. Scanning Procedure 12 4.6. Data Storage and Evaluation 13 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 14 4.8. Tissue equivalent liquid properties 15 4.9. System Check 15 5. TEST CONDITIONS AND RESULTS 17 5.1. Conducted Power Results 17 5.2. Sar Measurement Results 17 5.3. Measurement Uncertainty 19 5.4. System Check Results 20 5.5. Sar Test Graph Results 22 6. CALIBRATION CERTIFICATE 32 6.1. Probe Calibration Ceriticate 32 6.2. D450V3 Dipole Calibration Ceriticate 43 6.3. DAE4 Calibration Ceriticate 52 7. TEST SETUP PHOTOS 57 8. EUT PHOTOS 59 Report No.: TRE1212005902 Page 4 of 60 Issued:2012-12-26 1. TEST STANDARDS The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 447498 D01 Mobile Portable RF Exposure v05: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 643646: SAR Test Reduction Considerations for Occupational PTT Radios Report No.: TRE1212005902 Page 5 of 60 Issued:2012-12-26 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Dec 17, 2012 Testing commenced on : Dec 17, 2012 Testing concluded on : Dec 26, 2012 2.2. Product Description The Access Device Integrated Communications Corp.’s Model: AW-68 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Dual Band Two-Way Ra…

Text truncated - open the document above for the full version.

Report No. RXA1212-1196SAR01R2 Page 1 of 75 TESTING No. L2264 OET 65 TEST REPORT Product Name Dual Band Two Way Radio Model AW-68/AW-69/AW-68V/LT-9800/LT-9808 FCC ID RIQAW68XDB Client Access Device Integrated Communications Corp. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RXA1212-1196SAR01R2 Page 2 of 75 GENERAL SUMMARY Product Name Dual Band Two Way Radio Model AW-68/AW-69/AW-68V/LT-9800/ LT-9808 FCC ID RIQAW68XDB Report No. RXA1212-1196SAR01R2 Client Access Device Integrated Communications Corp. Manufacturer Access Device Integrated Communications Corp. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01 SAR Measurement Requirements for 100 MHz to 6 GHz KDB 643646 D01 SAR Test for PTT Radios v01r01: SAR Test Reduction Considerations for Occupational PTT Radios KDB 447498 D01 Mobile Portable RF Exposure v05: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: May 13 th , 2013 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RXA1212-1196SAR01R2 Page 3 of 75 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ....................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT ................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 8 1.7. Test Date .............................................................................................................................. 8 2. SAR Measurements System Configuration .................................................................................. 9 2.1. SAR Measurement Set-up .................................................................................................... 9 2.2. DASY5 E-field Probe System ............................................................................................. 10 2.2.1. ES3DV3 Probe Specification ....................................................................................... 10 2.2.2. E-field Probe Calibration .............................................................................................. 11 2.3. Other Test Equipment ......................................................................................................... 11 2.3.1. Device Holder for Transmitters .................................................................................... 11 2.3.2. Phantom ...................................................................................................................... 12 2.4. Scanning Procedure ........................................................................................................... 12 2.5. Data Storage and Evaluation .............................................................................................. 14 2.5.1. Data Storage ................................................................................................................ 14 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 14 3. Laboratory Environment ............................................................................................................. 16 4. Tissue-equivalent Liquid ............................................................................................................ 17 4.1. Tissue-equivalent Liquid Ingredients ................................................................................... 17 4.2. Tissue-equivalent Liquid Properties .................................................................................... 18 5. System Check ............................................................................................................................ 19 5.1. Description of System Check .............................................................................................. 19 5.2. System Check Results ........................................................................................................ 20 6. Operational Conditions during Test ............................................................................................ 21 6.1. General Description of Test Procedures ............................................................................. 21 6.2. Test Configuration .............................................................................................................…

Text truncated - open the document above for the full version.

MAIN PC BOARD (TOP VIEW) MAIN PC BOARD (BOTTOM VIEW)

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No......................: FCC ID..............................................: TRE1212005901 R/C: 82236 RIQAW68XDB Compiled by ( position+printed name+signature)..: File administrators Tim Zhang Supervised by ( position+printed name+signature)..: Test Engineer Eric Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Dec 24, 2012 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Access Device Integrated Communications Corp. Address ............................................: No.193,Sec.1,Chungching Road,Taya,Taichung City 42862, Taiwan(R.O.C.) Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Dual Band Two-Way Radio Trade Mark .......................................: / Manufacturer ....................................: Access Device Integrated Communications Corp. Model/Type reference.......................: AW-68 Listed Models ..................................: AW-69,AW-68V,LT-9800,LT-9808 Ratings .............................................: DC 7.4V Modulation .......................................: FM Channel Separation........................... 12.5KHz Rated Power ..................................... UHF: 4 Watts(36.02dBm)/1 Watts(30.00dBm) VHF: 5 Watts(36.98dBm)/1 Watts(30.00dBm) Operation Frequency Range ............. From 136 MHz to 174 MHz and 400MHz to 480MHz Result................................................: Positive Report No.: TRE1212005901 Page 2 of 87 Issued:2012-12-24 FCC ID: RIQAW68XDB T E S T R E P O R T Test Report No. : TRE1212005901 Dec 24, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Dual Band Two-Way Radio Model /Type : AW-68 Listed Models : AW-69,AW-68V,LT-9800,LT-9808 Applicant : Access Device Integrated Communications Corp. Address : No.193,Sec.1,Chungching Road,Taya,Taichung City 42862,Taiwan(R.O.C.) Manufacturer : Access Device Integrated Communications Corp. Address : No.193,Sec.1,Chungching Road,Taya,Taichung City 42862,Taiwan(R.O.C.) Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1212005901 Page 3 of 87 Issued:2012-12-24 FCC ID: RIQAW68XDB Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 12 4.1. Conducted Emissions Test (For Volunteer) 12 4.2. Occupied Bandwidth and Emission Mask Test 17 4.3. Transmitter Radiated Spurious Emssion 29 4.4. Spurious Emssion on Antenna Port 34 4.5. Modulation Charcateristics 48 4.6. Frequency Stability Test 51 4.7. Maximum Transmitter Power 53 4.8. Transmitter Frequency Behavior 60 4.9. Receiver Radiated Spurious Emssion (For Volunteer) 62 4.10. Receiver Conducted Spurious Emssion (For Volunteer) 72 5. TEST SETUP PHOTOS OF THE EUT 79 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 83 Report No.: TRE1212005901 Page 4 of 87 Issued:2012-12-24 FCC ID: RIQAW68XDB 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603 D June 2010: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. 47 CFR FCC Part 15 Subpart B - Unintentional Radiators FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS Report No.: TRE1212005901 Page 5 of 87 Issued:2012-12-24 FCC ID: RIQAW68XDB 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Dec 17, 2012 Testing commenced on : Dec 17, 2012 Testing concluded on : Dec 24, 2012 2.2. Product Description The Access Device Integrated Communications Corp.’s Model: AW-68 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Dual Band Two-Way Radio Model Number AW-68, AW-69,AW-68V,LT-9800,LT-9808 FCC ID RIQAW68XDB Rated Output Power UHF: 4 Watts(36.02dBm)/1 Watts(30.00dBm) VHF: 5 Watts(36.98dBm)/1 Watts(30.00dBm) FM for Analog Voice Modilation Type Analog 11K0F3E for 12.5KHz Channel Separation Channel Separation Analog Voice 12.5KHz Antenna Type External Frequency Range From 136 MHz to 174 MHz/From 400MHz to 480MHz 5.395W for VHF Band Maximum Transmitter Power Analo…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
