RJ2TUPDJN-393049RRC Car

RECEIVER FOR ALL JN-393 SERIES 1:64 NASCAR ( 49.860Mhz) RECEIVER Super-regenerative Receiver (49.860MHz) 4 Decoder IC U1 RX2C Steering Driver Q2,3 Racing Driver and Motor Q5,6,7,8

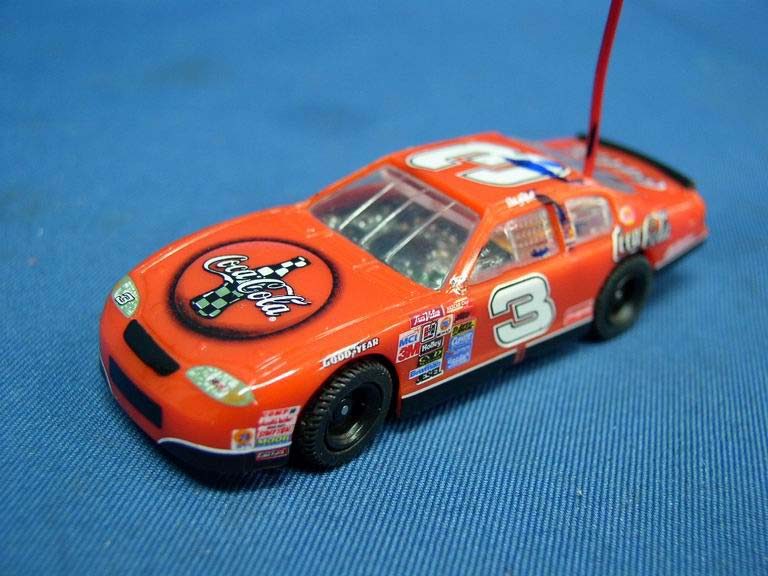

FCC ID: RJ2TUPDJN-393049R Ophoto1 Ophoto2 FCC ID: RJ2TUPDJN-393049R Ophoto3 Ophoto4 FCC ID: RJ2TUPDJN-393049R Ophoto5 Ophoto6

LABEL & LOCATION : FCC ID : RJ2TUPDJN-393049R Receiver : Labeling Size : 17 X 3 mm The above label will be stuck on the back cab of the Receiver. FCC ID: RJ2TUPDJN-393049R

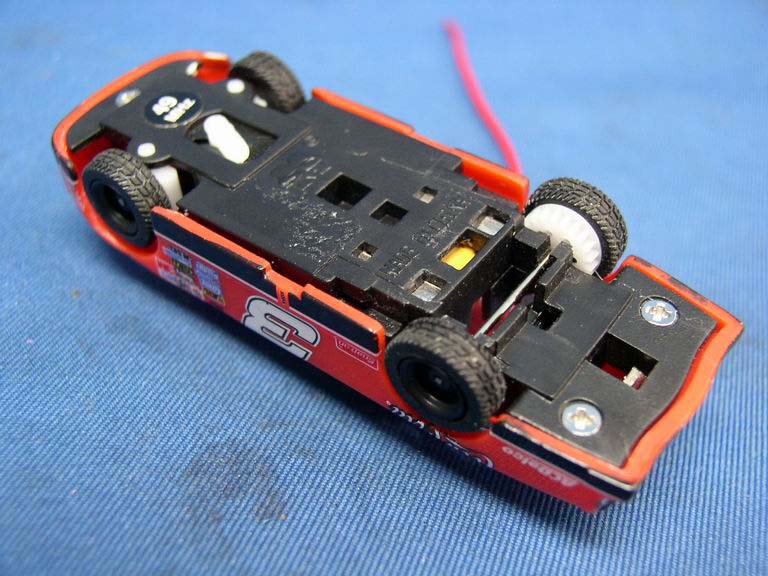

FCC ID: RJ2TUPDJN-393049R Iphoto1 Iphoto2 FCC ID: RJ2TUPDJN-393049R Iphoto3 Iphoto4 FCC ID: RJ2TUPDJN-393049R Iphoto5 Iphoto6 FCC ID: RJ2TUPDJN-393049R Iphoto7 Iphoto8 FCC ID: RJ2TUPDJN-393049R Iphoto9 Iphoto10

FCC ID: RJ2TUPDJN-393049R Technical Description : The brief circuit description is listed as follows : For Receiver PCB : - Q4 and associated circuit act as Super-regenerative Receiver (49.860 MHz). - U1 RX2C and associated circuit act as Decoder. - Q1 and associated circuit act as Switch. - Q2, Q3 and associated circuit act as Steering Driver. - Q5 ~ Q8 and associated circuit act as Racing Driver. For Charger PCB : - U1, Q1, Q2 and associated circuit act as Voltage Regulator. Antenna Used : A permanent wire antenna has been used.

123456 A B C D 6 54321 D C B A DWG. No.Rev. Date : Size Model No.: Model Name: Drawn: Checked:Approved: Title: A A FM-RD-20A R2 270K C6 332 R10 1K2 L2 3.3uH L5 0.7uH C4 10P C2 5P C3 18PF R4 4K7 C11 100uF E1 ANT R15 680R R14 680R C5 0.1uF C8 1uF MT1 220uH D1 4148 VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 R 6 L 7 RDB 8 LDB 9 BLK 10 FOR 11 TB 12 VDD 13 VI1 14 VO1 15 VI2 16 U1 RX2C C9 500P R12 1.2M R13 2K2 R7 120K R51.2M C12 202 R16 680R R17 680 C1 0.1uF R1 1K C10 104 C14 104 C15 12P Q1 8050D Q2 8050 Q3 8050 Q4 49.860M C13 0.1uF R8 100R R9100R Q6 8550 Q5 8550 Q7 8050 Q8 8050 Main pcb(49.860MHZ) 2004-10-19 4 /0 PAGE : DOC. No: DWG-EB- JN-393 C7 223 L3 16 OHM L4 16 OHM BT1 1.2V 5.7 X1.9MM5.7 X1.9MM 1 2 J1 TO Charge TOYS WORLD ELECTRONIC LTD. M M1 123456 A B C D 6 54321 D C B A DWG. No. Rev. Date : Size Model No.: Model Name: Drawn: Checked:Approved: Title: A/0 A FM-RD-20A PAGE : DOC. No: OF R8 0.22/1W C1 0.1uF R2 120K R4 100 BT2 BATTERY 3 2 1 Q1 2328 R3 47K VO2 4 VO1 6 VDD1 7 P3.3 8 P3.2 9 VSS 12 VDD 3 OSCI 13 VSS 5 P2.0 11 P2.1 10 U1 55005S Q2 2412 J3 J4 R6 1K 3V R7 330R D1 LED R1 1M J1 J2 1 2 J6 TO CAR BT1 1 2 J5 TO Remote R5 4.7K JN-393Charge pcb 2004-10-19 TOYS WORLD ELECTRONIC LTD.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : RJ2TUPDJN-393049R Team Up Product Development Co., Ltd. Application For Certification (FCC ID: RJ2TUPDJN-393049R) Superregenerative Receiver Sample Description : 1:64 Scale Nascar R/C Car Model : JN-393 0419683 WN/at November 5, 2004 INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-393049R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-393049R ii MEASUREMENT/TECHNICAL REPORT Team Up Product Development Co., Ltd. - MODEL: JN-393 FCC ID: RJ2TUPDJN-393049R November 5, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-393049R iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Special Accessories.............................................................................................. 6 3.0 Emission Results..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling................................................................................................... 16 6.0 Technical Specifications........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information.................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 8.2 Emissions Test Procedures (cont'd) .................................................................... 25 INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-393049R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-393049R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-393049R 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Car operating at 49.860 MHz. The EUT is powered by a 1.2V rechargeable battery. The EUT is charged by a corresponding battery charger. After charging, it can be controlled to drive forward, backward, turning left and right directions by the corresponding controller. The brief circuit description is saved with filename: descri.pdf 1.2 Related Submittal(s) Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure with FCC ID: RJ2TUPDJN-393049T. INTERTEK TESTIN…
